Description
Smart-UPS X is an intelligent, long run time UPS for IT and telecom professionals who need their critical servers and communication systems to ride through power outages that could last hours. More efficient than on-line UPS's and easier to deploy than generators, the Smart-UPS X has the ability to accept external batteries at any time to increase availability and because it is a Smart-UPS, you know it is reliable.
- 600 Watts Output Power Capacity
- 8 IEC C13 Power Sockets
Provide an emergency power supply for your electrical equipment to protect your investment from unexpected power disruption, including spikes, surges and voltage dips.
Refined Power Supply: Protects connected devices from dips and spikes caused by lightning.
Instant Power: Power to your equipment the exact moment the power goes out, protecting you from data loss or unexpected interruption.
Keep your Equipment and Data Safe
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Protect professional equipment including high-end desktops, home office PCs, workstations and network-attached storage.
Protect business grade equipment including servers, point-of sale, routers, switches and other networking devices.
Additional Features
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Reduces size of (or eliminates) bulky transformers making installation even easier. Tower or Rack form factor with a display that rotates easily for use in or out of a rack.
The Smart-UPS X has the ability to accept external batteries (sold separately) at any time for more runtime during prolonged outages.
Patented green operating mode achieves efficiencies over 97%. This bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. This saves costs, reduces heat and promotes a longer lifespan across components.
Green Premium™ label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Understand Your Device Runtime
Using the below table, you can choose a solution aligned with your specific application and runtime needs to ensure you’re protected.
Runtime varies according to devices, usage and power settings. The higher battery power (VA), the longer the runtime provided.
Enhanced Management with SmartSlot
The SMX750I features a SmartSlot port allowing you to add a network management card for network-based monitoring and increased control functionality.
* Network management card sold separately.
Flexible Deployment
A rack / tower convertible range of intelligent and efficient network power protection for enterprise and business, APC's next-generation Smart-UPS™ is more adaptable and easier to deploy than ever before.
Sustainability is at the heart of our strategy.
At Schneider Electric, sustainability has been at the core of our business strategy for the past 15 years. Being awarded with top rating in four keys Environmental, Social and Governance corporate ratings, demonstrates our sustainability leadership which has spanned over a decade (DJSI, Ecovadis, CDP A list, Vigeo Eiris). As an impact company, we create technologies and solutions to advance a more efficient, sustainable, resilient, and inclusive world for all. We work with customers, partners, governments, and suppliers to deploy these solutions and create a low-carbon future.
230 V
220 V
240 V
230 V
600 W
750 VA
IEC 320 C14
8 IEC 320 C13
2 IEC Jumpers
2U
1.83 m
1
Lead-acid battery
CD with software
Documentation CD
Installation guide
Rack mounting brackets
Removable support feet
Smart UPS signalling RS-232 cable
User manual
Extended run
No
Black
8.9 cm
43.2 cm
49 cm
22.05 kg
Lower
Rack-mounted with kit
1
No
151 - 302 V adjustable
160 - 286 V
50/60 Hz +/- 3 Hz auto-sensing
Less than 5 %
750 VA
600 W
Line interactive
Sine wave
50/60 Hz +/- 3 Hz sync to mains
CE
RCM
VDE
EAC
40 dBA
69 Btu/h
0 - 10000 ft
0 - 40 °C
-15 - 45 °C
0 - 15240 m
0 - 95 %
0 - 95 %
0
1
1
3 Hours
1
60 A
3 - 5 year(s)
312 VAh runtime
104 W rated
SMX48RMBP2U 1 938 VAh
SMX48RMBP2U 2 1563 VAh
SMX48RMBP2U 3 2188 VAh
SMX48RMBP2U 4 2613 VAh
SMX48RMBP2U 5 3438 VAh
Alarm when on battery : Distinctive low battery alarm : Overload continuous tone alarm
Multifunction LCD status and control console
1
645 Joules
Full time multi-pole noise filtering : 5% IEEE surge let-through : Zero clamping response time : Meets UL 1449
3 Years repair or replace (excluding battery) and 2 years for battery

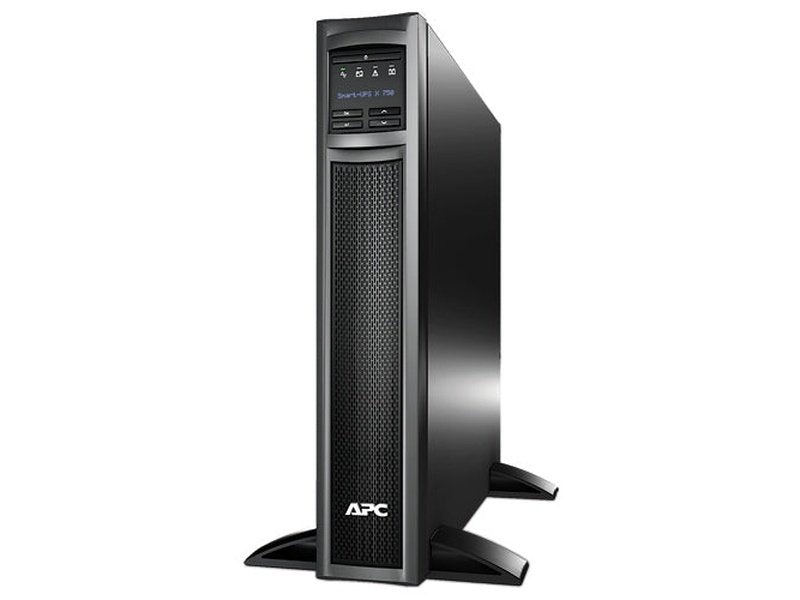

APC Smart-UPS X 750VA Rack/Tower LCD 230V
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Removable support feet , Smart UPS signalling RS-232 cable , User Manual
- Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- High online efficiency
Reduces utlility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Scalable runtime
Allows additional run time to be quickly added as needed.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Output
- Output power capacity
600Watts / 750VA - Max Configurable Power (Watts)
600Watts / 750VA - Nominal Output Voltage
230V - Output Voltage Distortion
Less than 5% - Output Frequency (sync to mains)
50/60Hz +/- 3 Hz - Topology
Line Interactive - Waveform type
Sine wave - Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Input
- Nominal Input Voltage
230V - Input frequency
50/60 Hz +/- 3 Hz (auto sensing) - Input Connections
IEC-320 C14 - Cord Length
1.83meters - Input voltage range for main operations
160 - 286V - Input voltage adjustable range for mains operation
151 - 302V - Number of Power Cords
1 - Other Input Voltages
220, 240
Batteries & Runtime
- Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof - Included Battery Modules
1 - Typical recharge time
3hour(s) - Replacement Battery
APCRBC116 - Battery Slots Empty
1 - Expected Battery Life (years)
3 - 5 - RBC Quantity
1 - DC Overcurrent Protection
60A - Battery Volt-Amp-Hour Capacity
312 - Extended Run Options
APC-Smart-UPS-X-750VA-Rack-Tower-LCD-230V - Runtime
View Runtime Graph
View Runtime Chart
- Efficiency
View Efficiency Graph
Communications & Management
- Interface Port(s)
SmartSlot , USB - Control panel
Multi-function LCD status and control console - Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm - Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
- Surge energy rating
645Joules - Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
- Maximum Height
89mm , 8.9cm - Maximum Width
432mm , 43.2cm - Maximum Depth
490mm , 49.0cm - Rack Height
2U - Net Weight
22.05kg - Shipping weight
26.5kg - Shipping Height
246mm , 24.6cm - Shipping Width
589mm , 58.9cm - Shipping Depth
620mm , 62.0cm - Color
Black - Units per Pallet
8.0
Environmental
- Operating Environment
0 - 40 °C - Operating Relative Humidity
0 - 95 % - Operating Elevation
0-3000meters - Storage Temperature
-15 - 45 °C - Storage Relative Humidity
0 - 95 % - Storage Elevation
0-15000meters - Audible noise at 1 meter from surface of unit
40.0dBA - Online thermal dissipation
69.0BTU/hr
Conformance
- Approvals
CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE - Standard warranty
3 years repair or replace (excluding battery) and 2 year for battery
Sustainable Offer Status
- RoHS
Compliant - REACH
REACH: Contains No SVHCs - PEP
Available in Documentation tab - EOLI
Available in Documentation tab
