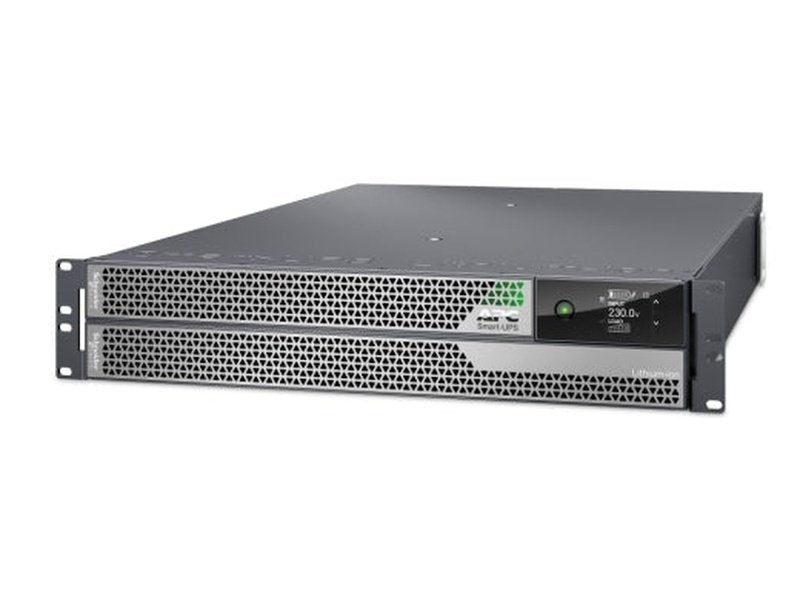

APC (SRTL5KRM2UI) SMART-UPS ULTRA ON-LINE LITHIUM ION, 5KVA/5KW, 2U RACK/TOWER, 230V

APCSKU: SRTL5KRM2UI

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$13,660.00

Estimate shipping

Description

Overview

Protection

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Cold-start capable
Provides temporary battery power when the utility power is out.

Adaptability

Rack/Tower mounting convertible
Save extra effort or investment when migrating from tower to rack-mount environment, with auto-rotating LCD and smart installation kits.

Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.

Manageability

Serial connectivity
Provides management of the UPS via a serial port.

High resolution LCD with virtual touch keys
Quickly understand unit and power status with clear indications.

Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.

Availability

Scalable runtime
Allows additional run time to be quickly added as needed.

Long lifetime of batteries
Increases availability by saving the time and effort on battery replacements during the whole usage time.

Live-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Best-in-Class compact design
Enables flexible applications for edge computing with highest power density and energy density, and multiple mounting options

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic internal bypass
Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.

Serviceability

Battery management system
Provide real time monitoring and protection of lithium-ion batteries in service. Battery state of charge (SOC) and state of health (SOH) is precisely reflected in UPS control and service in field.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Specification

Output

Max Configurable Power (Watts)
5.0kWatts / 5.0kVA
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)

Input

Input frequency
40 - 70 Hz Auto-sensing
Input voltage range for main operations
180 - 275 Adjustable (half load)V
Number of Power Cords
1
Other Input Voltages
220 V

Batteries & Runtime

Battery type
Li-Ion (Lithium-Ion)
Typical recharge time
1.5hour(s)
Nominal Battery Voltage
180 V
Expected Battery Life (years)
5 - 10
RBC Quantity
1
Battery Charge Power (Watts)
600 Watts
Extendable Run Time
1

Communications & Management

Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
1260Joules

Physical

Maximum Height
86MM, 8.6CM
Maximum Width
432MM, 43.2CM
Maximum Depth
701MM, 70.1CM
Net Weight
29.2KG
Shipping weight
38.5KG
Shipping Height
392MM, 39.2CM
Shipping Width
585MM, 58.5CM
Shipping Depth
984MM, 98.4CM
Color
Black
SCC Codes
10731304435754

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 (Non-condensing) %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
931.0BTU/hr
Protection Class
IP20

Conformance

Approvals
CE, CE Mark, UKCA

Sustainable Offer Status

RoHS
Compliant
