Aten USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)

Save $10.00
AtenSKU: CE100-AT-U

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$239.00 Regular price$249.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)

CE100



Overview

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

Package Contents

  • 1x CE100L Mini USB KVM Extender (Local Unit)
  • 1x CE100R Mini USB KVM Extender (Remote Unit)
  • 1x KVM Cable (VGA, USB; 1.5m/5ft)
  • 1x Power Adapter (for Remote Unit)
  • 1x Mounting Kit
  • 1x User Instructions

Features

  • Extends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality – up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance

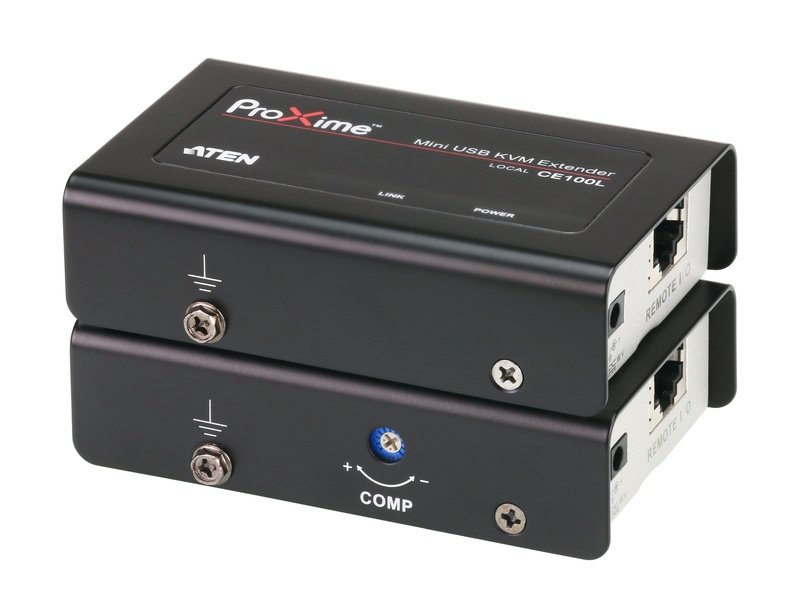

  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable



Specifications

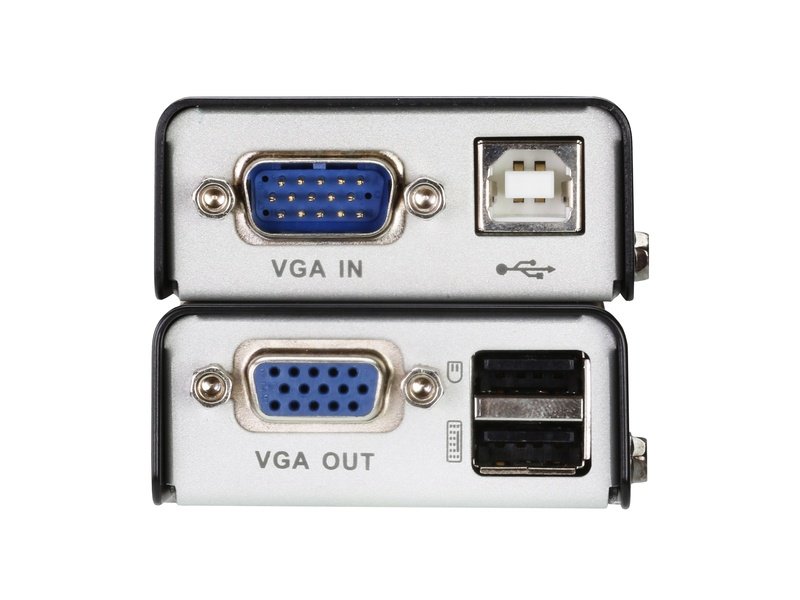

Connectors

Console Ports N/A 2 x USB Type A Female (White)
1 x HDB-15
Female (Blue)
KVM Ports 1 x USB Type B Female (White) N/A
1 x HDB-15 Male (Blue)
Power 1 x DC Jack 1 x DC Jack

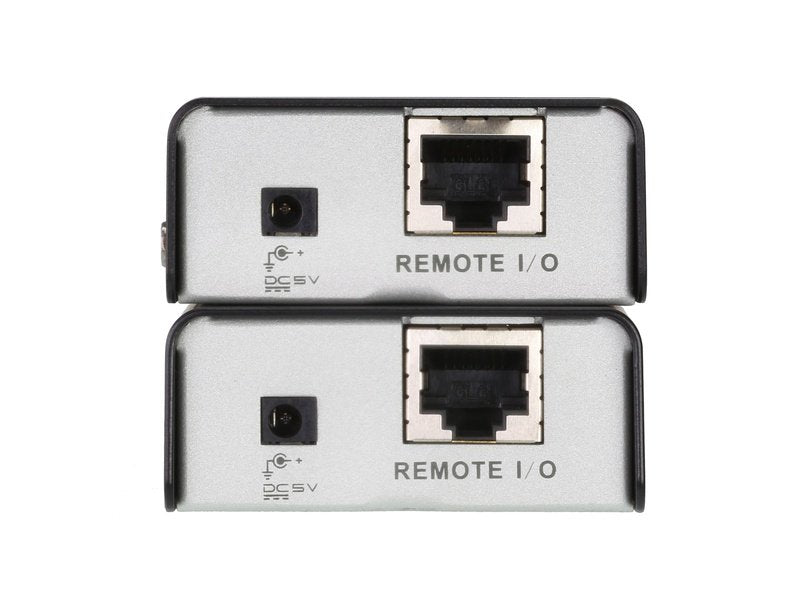

Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)

Switches

N/A 1 x Knob

LEDs

Link 1 (Blue) 1 (Blue)
Power 1 (Green) 1 (Green)

Video

1920 x 1200 @ 60 Hz (30 m); 1920 x 1200 @ 60 Hz (30 m);
1280 x 1024 @ 60 Hz (100 m) 1280 x 1024 @ 60 Hz (100 m)

Power Consumption

DC5V:0.68W:7BTU DC5V:0.99W:9BTU

Environmental

Operating Temperature 0–50°C 0–50°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing

Physical Properties

Housing Metal Metal
Weight 0.17 kg ( 0.37 lb ) 0.17 kg ( 0.37 lb )
Dimensions (L x W x H) 9.10 x 5.74 x 2.40 cm 9.10 x 5.74 x 2.40 cm
(3.58 x 2.26 x 0.94 in.) (3.58 x 2.26 x 0.94 in.)
