Description

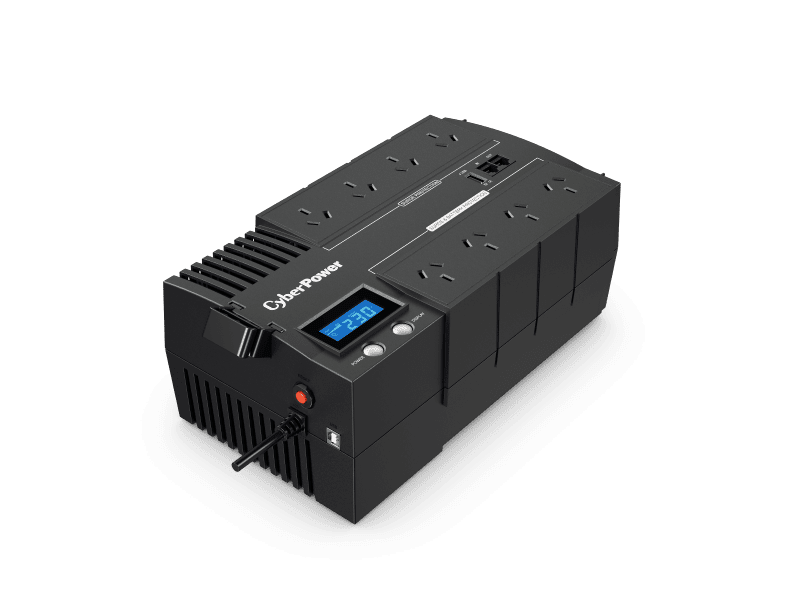

CyberPower BR1000ELCD-FR offers home and office users a reliable battery
backup and safeguards office PCs, network communication equipment, and other
electronic devices from surges, spikes, brownouts and other power incidents.
Designed with GreenPower UPS™ Technology to improve operating efficiency and
to minimize energy consumption, users can enjoy significant energy cost
savings over conventional UPS systems. The UPS provides Automatic Voltage
Regulation (AVR) to maintain a safe voltage for connected equipment. The
featured data line protection protects phones, networks, and other
communication equipment against surge/spikes and other power irregularities.
Users can access precise information of critical power/battery conditions by
switching to the LCD status monitor.
FEATURES
- Line-interactive UPS Topology
- Energy Saving Technology
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- USB Charging Port
- Surge and Spike Protection
- Phone/ Fax/ Modem/ DSL/ Network Protection
- LCD Status Display
- PowerPanel® Management Software
- Brick Form Factor
GENERAL
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
INPUT
Nominal Input Voltage (Vac)
230 ± 10%
Input Voltage Range (Vac)
165 ~ 290
Input Frequency (Hz)
50 ± 5
60 ± 5
Input Frequency Detection
Auto-sensing
Rated Input Current (A)
4.55
Input Connector Type
Schuko
Power Cord Length (ft.)
5
Power Cord Length (m.)
1.5
OUTPUT
Capacity (VA)
1000
Capacity (Watts)
600
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) (Vac)
230 ± 10%
On Battery Frequency (Hz)
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection
Circuit Breaker
Outlet(s) - Total
8
Outlet Type
FR x 8
Outlet(s) - Battery & Surge Protected
4
Outlet(s) - Surge-Only Protected
4
USB Charging Port(s)
1
USB Charging Current (A)
1
Typical Transfer Time (ms)
4
BATTERY
Runtime at Half Load (min)
6
Runtime at Full Load (min)
1
Typical Recharge Time (Hours)
8
Start On Battery
Yes
User Replaceable
Yes
Battery Type
Sealed Lead-acid
Replacement Battery Pack
RBP0117
RBP Quantity (pcs)
1
SURGE PROTECTION & FILTERING
Surge Suppression (Joules)
125
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out
MANAGEMENT & COMMUNICATIONS
LCD Panel
Yes
LCD Information Display
Power Status , Battery Status , Load Status , Other Information
LCD Setting & Control
Alarm Setting
LED Indicators
Power On , Line Mode , Battery Mode , Low Battery
HID Compliant USB Port(s)
1
Audible Alarms
Battery Mode , Low Battery , Overload , UPS Fault
Power Management Software
PowerPanel® Personal Edition
PHYSICAL
Form Factor
Brick
Enclosure Construction
Plastic
Color
Black
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
6.54 x 4.65 x 11.34
Dimensions (WxHxD) (mm.)
166 x 118 x 288
Weight (lbs.)
14.33
Weight (kg.)
6.5
ENVIRONMENTAL
Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) (%)
0 ~ 90
Operating Elevation (feet/meters)
0-10,000 feet (0-3,000 meters)
Storage Temperature (°F)
-4 ~ 122
Storage Temperature (°C)
-20 ~ 50
Storage Relative Humidity (Non-condensing) (%)
0 ~ 90
Storage Elevation (feet/meters)
0-10,000 feet (0-3,000 meters)
Online Thermal Dissipation (BTU/hr)
102
Audible Noise at 1.5M from Surface of Unit (dBA)
40
CERTIFICATIONS
Certifications
CE
RoHS
Yes
WARRANTY
Product Warranty Period (Year)
2
Battery Warranty Period (Year)
2
Connected Equipment Guarantee 50,000 EUR ;
2 years
