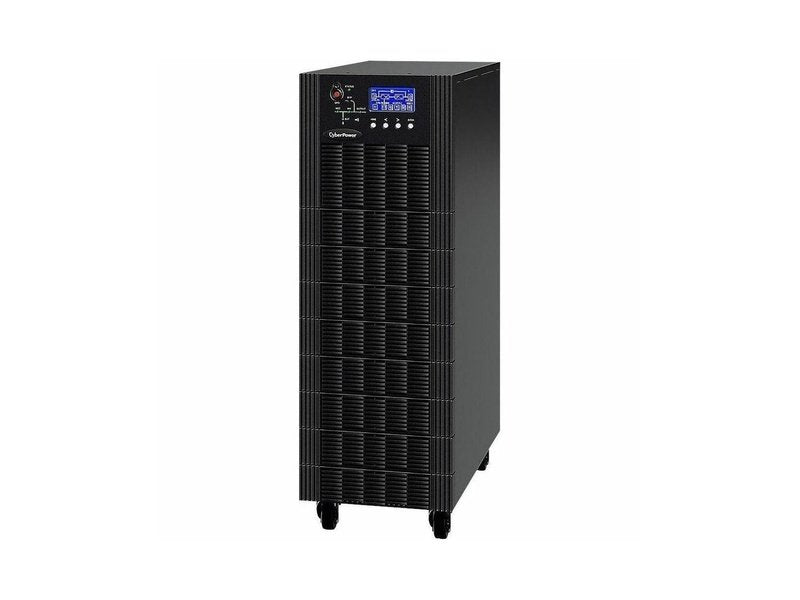

CyberPower HSTP3T20KE 3-Phase 20000VA/18000W online UPS

CyberpowerSKU: HSTP3T20KE

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$5,049.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Overview

CyberPower HSTP3T20KE 3-Phase online UPS provides long-lasting power backup for data closets, transportation and infrastructure, and emergency systems. With parallel redundancy capability, the HSTP3T (3-Phase) Series UPS is ideal for critical applications in server rooms, data centers, industrial factories, and power generation plants that require high capacity, high reliability, and extended runtimes.

With integrated IGBT technology and intelligent DSP-based control, the UPS produces less input total harmonic distortion (THDi) and achieves higher power efficiency up to 98% in Economy Mode, making it the most efficient UPS in the industry. Higher operating efficiency equates to lowered BTU heat dissipation and lowered idle power consumption, resulting in an operating expense reduction and a lower carbon footprint.

To improve operating efficiency, the UPS system works in bypass mode under normal conditions, during which the inverter is kept on standby. During power failures, the UPS switches to battery mode and the inverter continuously supplies the critical load to the connected equipment.

FEATURES
- Three-phase Design
- ECO Mode
- Dual Inputs
- Pure Sine Wave Output
- Maintenance Bypass Switch
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
- Online (Double Conversion) UPS Topology
- UPS Parallel Expansion
- Generator Compatible
- Overload Protection
- LCD Status Display
- SNMP/HTTP Remote Management Capability (Optional)

Specifications

Phase Three Phase Tower UPS
UPS Topology Online Double Conversion
Energy Saving Technology Online ECO Mode Efficiency > 98%
Active PFC Compatibility Yes
Parallel Expansion (Max. Units) 4
Dual Power Inputs Yes
Generator Compatibility Yes
Input Voltage (Vac) Line to Neutral (L-N): 220 ~ 240 Vac
Line to Line (L-L): 380 ~ 415 Vac
Input Voltage Range (Vac) Line to Neutral (L-N): 132 ~ 276 Vac
Line to Line (L-L): 228 ~ 478 Vac
Adjustable Voltage Range (Vac) Line to Neutral (L-N): 220 ~ 250 Vac
Line to Line (L-L): 380 ~ 435 Vac
Input Frequency (Hz) 50 ± 3
60 ± 3
Rated Input Current (A) 28
Input Power Factor 0.99
Input Connector Type Hardwire Terminal Block
Capacity (VA) 20000
Capacity (Watts) 18000
On Battery Waveform Pure Sine Wave
Output Voltage Setting Configurable
Output Frequency Setting Configurable
Power Factor 0.9
ECO Mode Voltage Tolerance ± 10 %
Overload Protection Internal Current Limiting , Circuit Breaker , Fuse
Overload Protection (Line Mode) 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately
Overload Protection (Battery Mode) 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately
Overload Protection (Bypass Mode) 125~130% Load for 10 min, 130~150% Load for 1 min, 150~400% Load for 1 sec, >400% Load Immediately
Crest Factor 3 : 1
Harmonic Distortion (Linear Load) THD<1%
Harmonic Distortion (Non-linear Load) THD<5.5%
Internal Bypass Automatic Bypass , Manual Bypass
Maintenance Bypass Yes
Outlet Type Hardwire Terminal Block x 1
Typical Transfer Time (ms) 0
Typical Recharge Power (%) 20 % x Power
Recharge Power Setting Configurable
Smart Battery Management (SBM) Yes
User-replaceable No
EMI/RFI Filtration Yes
LCD Panel Yes
LCD Information Display Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log
LCD Setting & Control Mode Setting , Input & Output , Battery Setting , Communication , Event & Log , Security Setting , Language
LED Indicators Yes
Serial Port RS232 x 1 + RS485 x 1 + Dry Contact x1
Dry Contact (with Relay) Yes
Emergency Power Off (EPO) Port Yes
Audible Alarms Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery
Power Management Software PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring Yes – with optional RMCARD205
Form Factor Tower
Enclosure Construction Metal
Color Black
Dimensions (WxHxD) (mm.) 250 x 770 x 680
Weight (kg.) 50
Dimensions (WxHxD) (mm.) 400 x 970 x 880
Weight (kg.) 61
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) (%) 0 ~ 95
Operating Elevation (feet/meters) ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°C) -40 ~ 70
Storage Relative Humidity (Non-condensing) (%) 0 ~ 95
Audible Noise at 1.5M from Surface of Unit (dBA) 58
Certifications CE , IEC62040-1 , IEC62040-2
