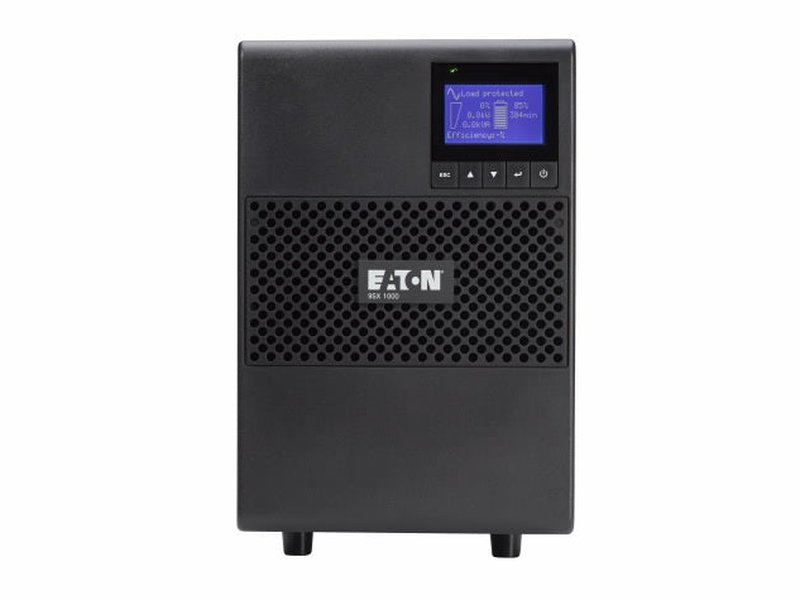

EATON 9SX 1000VA/900W ON LINE TOWER UPS 240V

EatonSKU: 9SX1000I-AU

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,939.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview


9SX1000I-AU
Eaton 9SX 1000I



General

Topology

On-line double conversion with PFC (Power Factor Correction) system

Configuration
Tower

Part Number
9SX1000I-AU

Rating (VA/Watts)
1000/900

Dimensions (H x W x D, mm)
252 x 160 x 387

Warranty
2 years


Electrical Input

Connection
(1) IEC-320-C14
IEC C14

Input Voltage Range
190-276V without derating (up to 120–276V with derating)

Nominal Voltage
200/208/220/230/240V

Frequency
50/60 Hz autoselection

Frequency Range
40-70 Hz


Electrical Output

Output Receptacles
(4) Aust. 10A
Australian 10A

Output Frequency
50/60 Hz autoselect, frequency converter as standard


Battery

Battery Management
ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.

Extended Battery Capability
EBM


Communications

User Interface

Multilingual graphical LCD display

Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot
1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards


Environmental & Standards

Audible Noise

<41dB

Operating Temperature
0 to 40°C continuous

Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2

EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals
CE /CB report (TUV) / cULus / EAC / RCM
