Lenovo ThinkSystem SR250 V2 Xeon E-2356G 6-Core 3.2GHz 16GB 450W Rack Server

LenovoSKU: 7D7QA01GAU

Lenovo ThinkSystem SR250 V2 Xeon E-2356G 6C(1/1), 16GB(1/4), 2.5"HS ( 0/8), 450W(1/2) Rack Server 3 Year Warranty

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$2,462.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

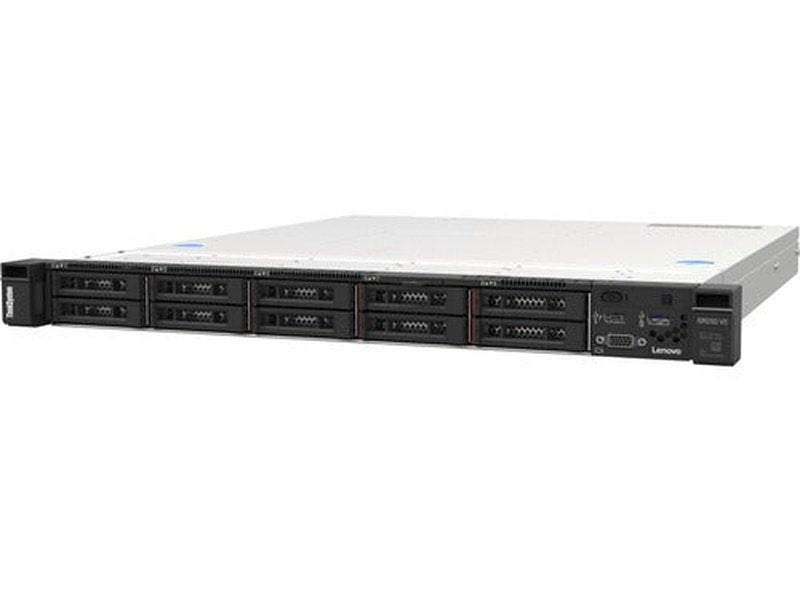

Lenovo ThinkSystem SR250 V2 - 7D7QA01GAU

Powerful 1U server for your evolving needs

The ideal single-socket 1U rack server for growing businesses offering power, reliability, and flexibility for space constrained installations.

Quick Spec

Components Specification
Processor/Speed Intel Xeon E-2356G 3.2GHz
Processor Cores 6 Cores (1/1)
Memory 1x16GB (1/4) installed (Up to 128 GB using 4x 32 GB UDIMMs.)
Drive Bays/Drives 8x 2.5-in HS / Open bay
Maximum internal storage
  • 2.5-inch drives:
    • 9.6TB using 10x 960GB 2.5-inch SAS/SATA SSDs
    • 18TB using 10x 1.8TB 2.5-inch HDDs
  • 3.5-inch drives:
    • 88TB using 4x 22TB 3.5-inch HDDs
    • 3.84TB using 4x 960GB 3.5-inch SAS/SATA SSDs
  • Intermix of SAS and SATA is supported.
RAID SATA
Power Supply 1x450W installed (1/2)
Form factor 1U rack
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).


Features

High reliability and security


The Lenovo ThinkSystem SR250 V2 offers reliability, and security without sacrificing performance. This single-processor rack server, in a compact 1U form factor, is built for expanding businesses or edge deployment.

With an increase in performance of up to 17% above previous generations, the next-generation Intel® Xeon® E-2300 processors provide higher workload performance at an entry-level price point.


Flexible, scalable and manageable


The ThinkSystem SR250 V2 offers flexibility via multiple configurations with TruDDR4 memory, GPU support, and an array of storage options. Ideal for IT infrastructure, web serving, virtualization, and edge applications.

The SR250 V2 includes the Lenovo XClarity Controller, that standardizes and automates server management tasks.

The XClarity Administrator virtualized application centrally manages your ThinkSystem servers, storage, and networking, lowering costs and speeding infrastructure provisioning.


Energy-efficient powerhouse


The ThinkSystem SR250 V2 provides enterprise-level, 8 core performance while using no more than 95W CPUs. It’s shorter-depth rack accommodates the space-constrained environments found in many SMB’s, remote/branch offices, and edge applications.

The ThinkSystem SR250 V2 is an ideal solution when your business needs a server to handle large workloads in a small footprint.


Specifications

Components Specification
Intel processor
Xeon E-2356G 6C 80W 3.2G
Memory 1x 16GB
Drive controller SATA
Drive bays/Drives 8x 2.5-in HS / Open bay
Slots x8 LP, x8 FH, x8 Int
Power supply(cord)
1x 450W HS / 2 (Y)
Machine type 7D7R - 1 year warranty
7D7Q - 3 year warranty
Form factor 1U rack-mount
Processor One Intel processor. Choose from:
Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz
Intel Pentium G6405, G6505 and G6605 processors ("Comet Lake Refresh") with 2 cores, with core speeds up to 4.3 GHz
Chipset Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform
Memory Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs.
Memory maximum Up to 128 GB using 4x 32 GB UDIMMs.
Memory protection Error-correcting code (ECC)
Disk drive bays Available configurations:
10x 2.5-inch hot-swap SAS/SATA drive bays
8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays
4x 3.5-inch hot-swap SATA only, or SAS/SATA drive bays
4x 3.5-inch simple-swap drive bays, all SATA
4x 3.5-inch simple-swap drive bays, 3x SATA and 1x NVMe
In addition, the SR250 V2 supports two M.2 drives installed in an M.2 adapter which is installed in PCIe slot.
Maximum internal storage 2.5-inch drives:
9.6TB using 10x 960GB 2.5-inch SAS/SATA SSDs
18TB using 10x 1.8TB 2.5-inch HDDs
3.5-inch drives:
88TB using 4x 22TB 3.5-inch HDDs
3.84TB using 4x 960GB 3.5-inch SAS/SATA SSDs
Intermix of SAS and SATA is supported.
Storage controller Onboard 6 Gb SATA for drive configurations of up to 8x drives, using embedded Intel RSTe software RAID. Supports RAID 0, 1, 10, 5, 50
12 Gb SAS/SATA RAID adapters
12 Gb SAS/SATA host bus adapters
Optical drive bays No support. Use an external optical drive.
Tape drive bays No support
Network interfaces Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management.
PCI Expansion slots Two or three PCIe slots depending on the riser selected:
Riser with two x8 slots:
Slot 1: PCIe G4 x8 (x8 slot, open-ended) 25W full-height half-length
Slot 2: PCIe G4 x8 (x16 slot, closed-ended) 25W full-height half-length
Slot 3 (internal slot): PCIe G3 x4 (x8 slot, closed-ended) 25W full-height half-length
Riser with one x16 slot:
Slot 1: Not connected
Slot 2: PCIe G4 x16 (x16 slot, closed-ended) 75W full-height half-length
Slot 3 (internal slot): PCIe G3 x4 (x8 slot, closed-ended) 25W full-height half-length
Note: Slots 1 and 2 are PCIe Gen 4 with a Xeon processor, and PCIe Gen 3 with a Pentium processor

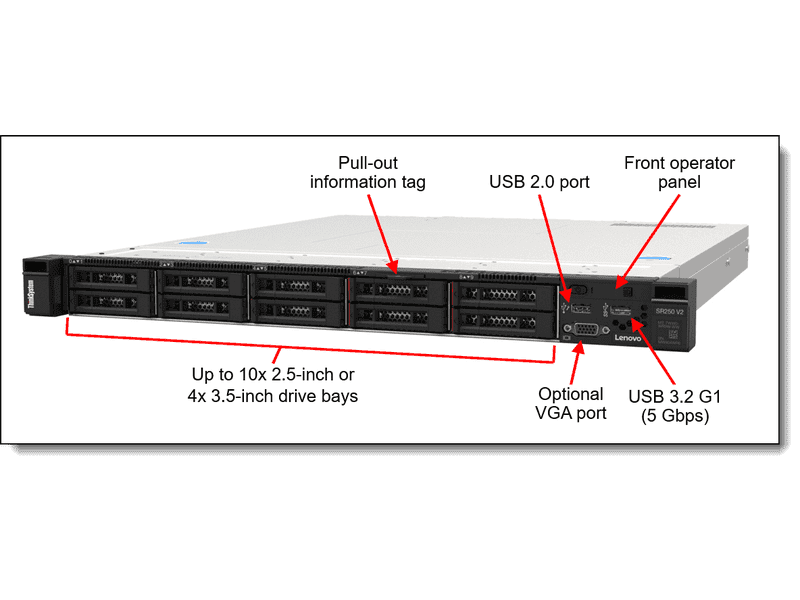

Ports Front:
One USB 3.2 G1 (5 Gb/s) port
One USB 2.0 port (also for XClarity Mobile connectivity for local systems management)
Optional VGA port

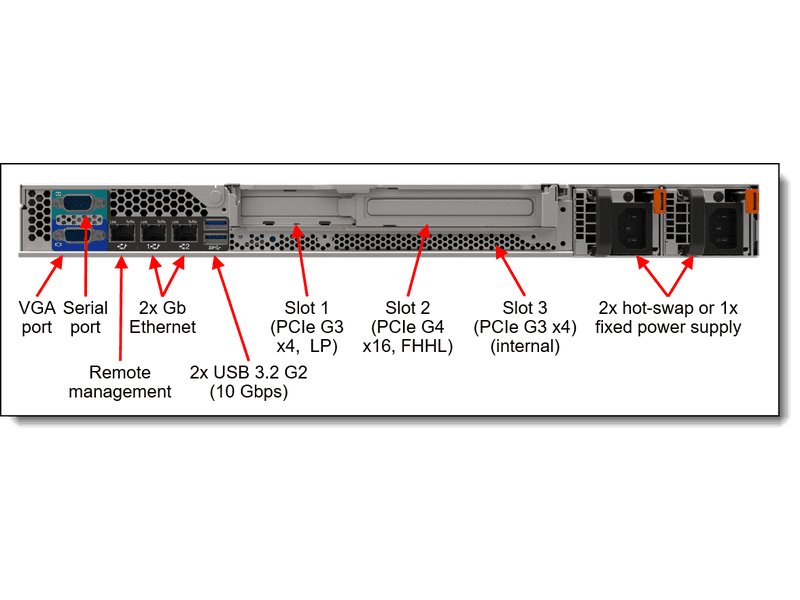

Rear:
Two USB 3.2 G2 (10Gb/s) ports
One VGA video
One RJ-45 systems management network port
Two RJ-45 GbE network ports
One serial port
Cooling Four non-hot-swap system fans
Power supply Model dependent choices:
One fixed 300W power supply, 80 PLUS Gold certified
Two hot-swap 450W redundant power supplies, 80 PLUS Platinum certified, Energy Star and ErP Lot 9 compliant (Energy Star and ErP Lot 9 only with Intel Xeon processors)
Hot-swap parts Hard drives and hot-swap power supplies
Systems management Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions.
Security features Power-on password, administrator's password, Trusted Platform Module, supporting TPM 2.0. Optional lockable front bezel for physical security.
Video G200 graphics with 16 MB memory, integrated into the XClarity Controller. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920x1200 32bpp at 60Hz.
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 545 mm (21.5 in.). See Physical and electrical specifications for details.
Weight Maximum configuration: 12.3 kg (27.1 lb)
