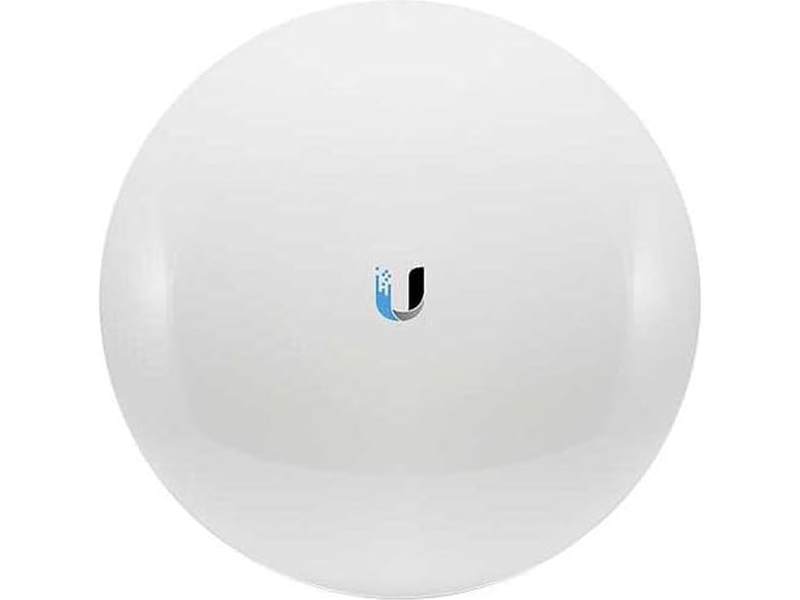

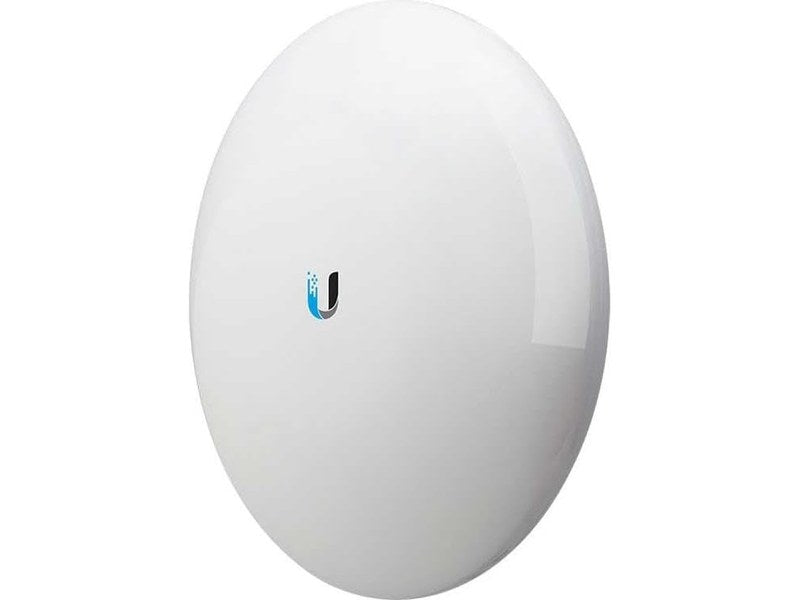

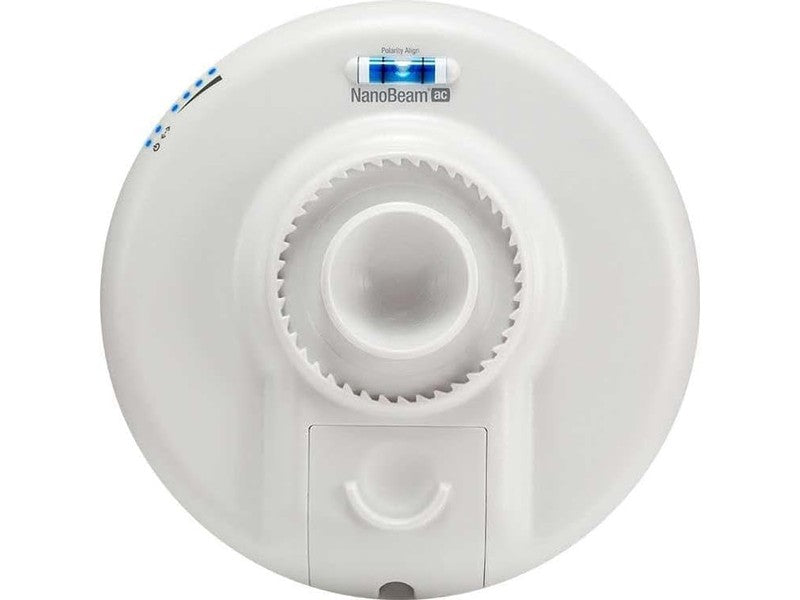

Ubiquiti NanoBeam Airmax 2AC 13dBi 2.4GHz 802.11n MIMO Antenna

UbiquitiSKU: NBE-2AC-13

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$177.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview

PUISP-ready, 2.4 GHz WiFi radio that can serve as a point-to-multipoint station.
- 2.4 GHz, 15+ km link range
- 150+ Mbps throughput
- Easy mounting
- Dedicated spectral analysis radio
- Dedicated WiFi management radio

Specifications

Mechanical
Dimensions 189 x 189 x 125 mm (7.4 x 7.4 x 4.9")
Weight 530 g (1.2 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wall mount (Not included)
Window mount (Not included)
Wind loading 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 7.5W
ESD/EMP protection Air/contact: ± 24kV
LEDs Power, Ethernet, (4) signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 80° C (-40 to 176° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 13 dBi
Channel sizes
PtP Mode
PtPM Mode

10/20/40 MHz
10/20/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 2412 - 2472 MHz
USA 2412 - 2462 MHz
Management Radio (MHz)
Worldwide 5150 - 5250 MHz
US/CA U-NII-3: 5725 - 5850 MHz
