Description
Overview

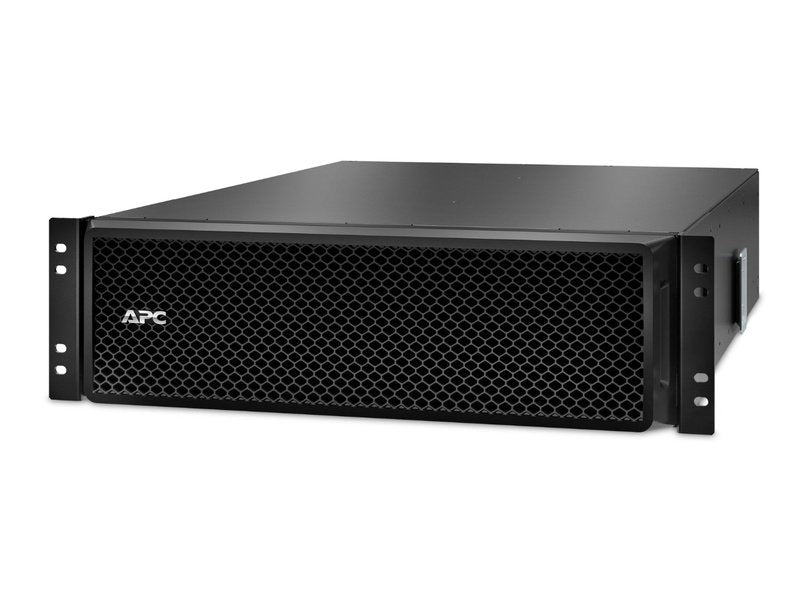

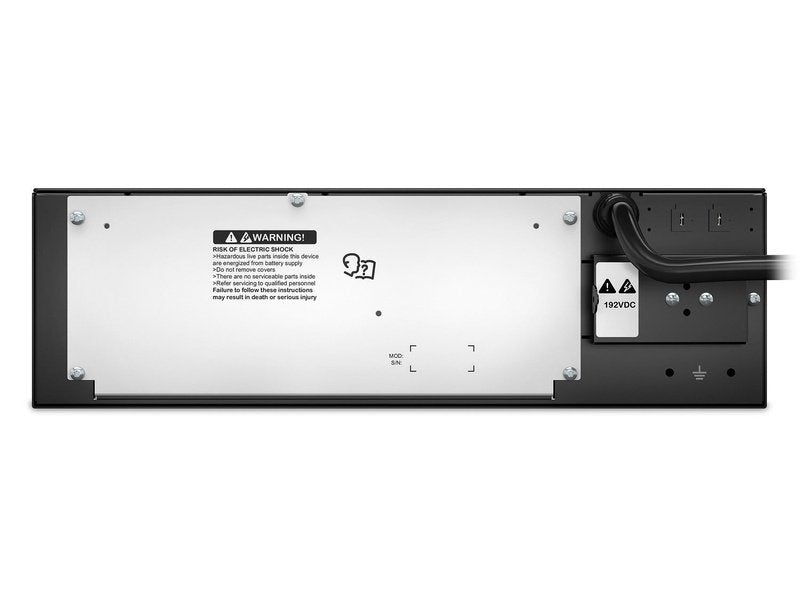

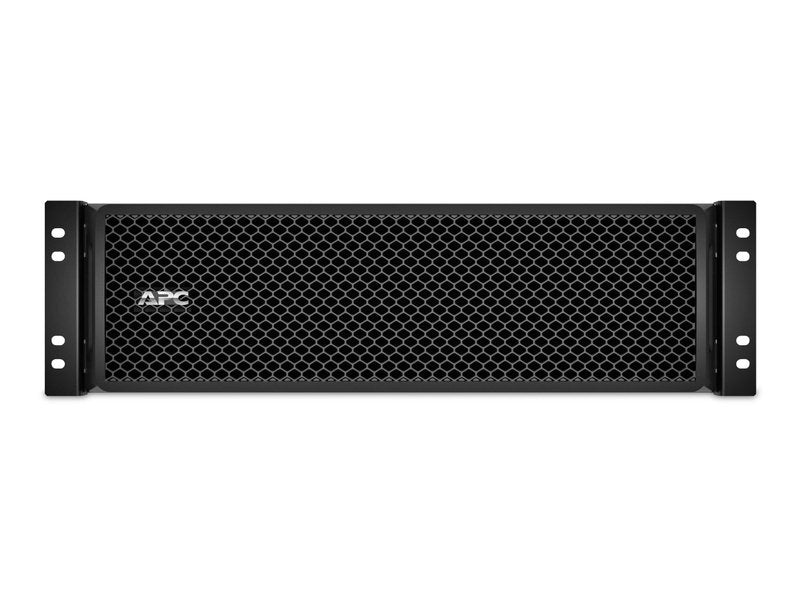

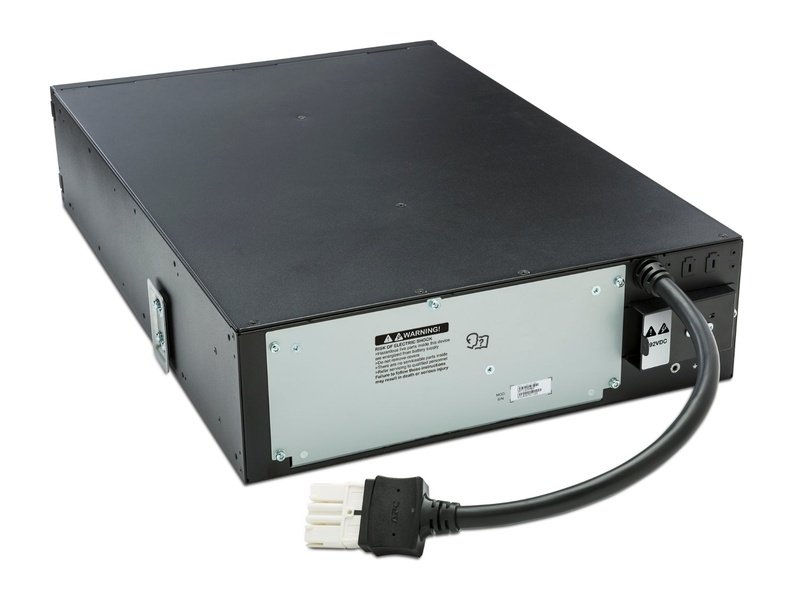

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.
Specifications
This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.
Specifications
| Number of rack unit | 3U |
|---|---|
| Battery type | Lead-acid battery |
| provided equipment | Installation guide Warranty card |
| Number of battery free slots | 0 |
| Number of battery filled slots | 0 |
| Device mounting | Stand alone battery stack |
| Battery voltage | 192 V |
| Number of battery replacement quantity | 2 |
| Replacement battery | APCRBC140 |
| Colour | Black |
| height | 13 cm |
| Width | 43.2 cm |
| Depth | 68.27 cm |
| Net weight | 91 kg |
| Mounting mode | Rack-mounted |
| Standards | OSHPD |
| Ambient air temperature for operation | 0…40 °C |
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % non-condensing |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Storage Relative Humidity | 0…95 % non-condensing |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 42 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 100 cm |
| Package 1 Weight | 105.5 kg |
