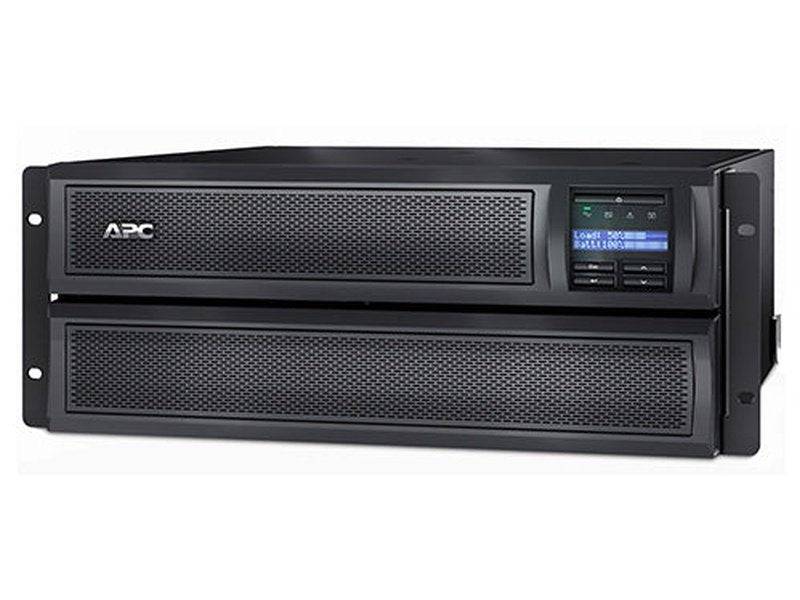

APC SMX3000HV Smart-UPS X 3000VA Rack/Tower Convertible 4U UPS with Smart Slot

Save $200.00
APCSKU: SMX3000HV

APC Schneider Electric Smart-UPS Line-interactive UPS - 3 kVA/2.70 kW - 4U Rack/Tower - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V, 230 V Input - 230 V AC Output - 2 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 - Serial Port - USB

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$3,799.00 Regular price$3,999.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

APC Smart-UPS XSMX3000HV

A reliable line-interactive UPS that provides pure sine wave and scalable runtime for critical applications.

Smart-UPS X is an intelligent, long run time UPS for IT and telecom professionals who need their critical servers and communication systems to ride through power outages that could last hours. More efficient than on-line UPS's and easier to deploy than generators, the Smart-UPS X has the ability to accept external batteries at any time to increase availability and because it is a Smart-UPS, you know it is reliable.

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes : CD with software , Documentation CD , Rack Mounting Brackets , Smart UPS signalling RS-232 cable , USB cable , User Manual

Output

  • Output power capacity
    2.7 KWatts / 3.0 kVA
  • Max Configurable Power (Watts)
    2.7 KWatts / 3.0 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Distortion
    Less than 5%
  • Output Frequency (sync to mains)
    50/60Hz +/- 3 Hz
  • Other Output Voltages
    208, 220, 240
  • Load Crest Factor
    3 : 1
  • Topology
    Line Interactive
  • Waveform type
    Sine wave
  • Output Connections
    (2) IEC 320 C19 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
    (8) IEC 320 C13 (Battery Backup)

  • Transfer Time
    2-4 ms
  • Transfer Time
    6ms typical : 10ms maximum

Input

  • Nominal Input Voltage
    208V , 230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
  • Cord Length
    1.83meters
  • Input voltage range for main operations
    140 - 280V
  • Number of Power Cords
    1
  • Other Input Voltages
    220, 240
  • Transfer Time
    2-4 ms

Batteries & Runtime

Communications & Management

  • Interface Port(s)
    SmartSlot
  • Control panel
    LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO)
    Yes
  • Available SmartSlot™ Interface Quantity
    1

Surge Protection and Filtering

  • Surge energy rating
    645Joules
  • Data Line Protection
    --
  • Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    432mm , 43.2cm
  • Maximum Width
    178mm , 17.8cm
  • Maximum Depth
    483mm , 48.3cm
  • Rack Height
    4U
  • Net Weight
    38.64kg
  • Shipping weight
    47.73kg
  • Shipping Height
    330mm , 33.0cm
  • Shipping Width
    586mm , 58.6cm
  • Shipping Depth
    633mm , 63.3cm
  • Color
    Black
  • # of Layers per Pallet
    4.0
  • # of Units per Layer per Pallet
    2.0
  • Pallet Weight
    855.12lbs.
  • Units per Pallet
    6.0

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    55.0dBA
  • Online thermal dissipation
    184.0BTU/hr

Conformance

  • Approvals
    C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A,
  • GOST, IRAM, VDE
  • Standard warranty
    3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
