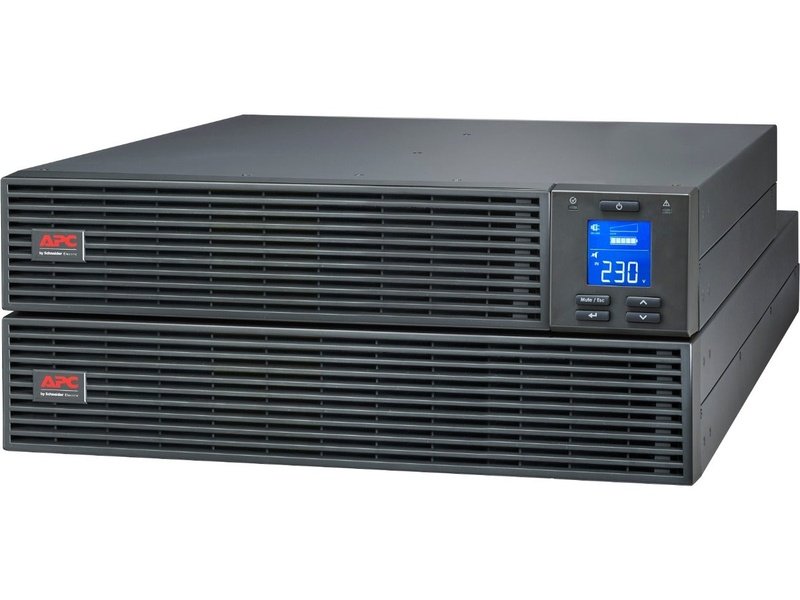

Description
APC Easy UPS Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range and inconsistent power conditions. High quality, Double-conversion for essential power protection needs even in the most unstable power conditions. That's Certainty in a Connected World.
- 800 Watts Output Power Capacity
- 4 Power Sockets (C13)
Provide an emergency power supply for your electrical equipment to protect your investment from unexpected power disruption, including spikes, surges and voltage dips.
Refined Power Supply: Protects connected devices from dips and spikes caused by lightning.
Instant Power: Power to your equipment the exact moment the power goes out, protecting you from data loss or unexpected interruption.
Protect Your Investment
APC Easy UPS are quality products for price-conscious customers, helping to provide power protection and backup in unstable power conditions, and consistent and reliable connectivity at critical moments. Providing real output power to support equipment during outages as well as automatic Voltage Regulation (AVR) correcting utility voltage dips and surges.
Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads. Protects connected loads from surges, spikes, lightning and other power disturbances.
Additional Features
LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys.
The Smart-UPS SRV has the ability to add up to 4 external battery packs (SRV36RLBP-9A - sold separately) for extended runtime.
Immediately remove power to all connected equipment in the event of an emergency. Built-in automatic bypass ensures seamless power to the load even in the event of catastrophic failure.
Patented green operating mode achieves efficiencies over 97%. This bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. This saves costs, reduces heat and promotes a longer lifespan across components.
Understand Your Device Runtime
Using the below table, you can choose a solution aligned with your specific application and runtime needs to ensure you’re protected.
Runtime varies according to devices, usage and power settings. The higher battery power (VA), the longer the runtime provided.
Smart-UPS Cloud-enabled Management Options
The On-Line UPS has an intelligent card slot for optional Network Management Card* that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralised management platforms.
IT Expert
Monitoring
IT Expert helps the IT Professional manage their IT equipment for Local Edge and Distributed IT. It synthesises performance and alarming data into proactive recommendations and enables secure, wherever-you-go visibility.
IT Advisor
Planning and Modeling
IT Advisor is an asset planning tool that enables Data Center Managers to reduce OPEX, plan for uptime and automate reporting by optimising capacities, analysing business impact, automating workflow and deploying energy-based billing.
Asset Advisor
24/7 Monitoring
Asset Advisor provides a remote monitoring service for your critical equipment, increasing Resiliency and quick resolution through Schneider Electric’s service personnel equipped with real-time device data to quickly troubleshoot and dispatch.
* Network Management Card (AP9544, SRVSMB001, VGL9601l) sold separately.
Sustainability is at the heart of our strategy.
At Schneider Electric, sustainability has been at the core of our business strategy for the past 15 years. Being awarded with top rating in four keys Environmental, Social and Governance corporate ratings, demonstrates our sustainability leadership which has spanned over a decade (DJSI, Ecovadis, CDP A list, Vigeo Eiris). As an impact company, we create technologies and solutions to advance a more efficient, sustainable, resilient, and inclusive world for all. We work with customers, partners, governments, and suppliers to deploy these solutions and create a low-carbon future.
230 V
220 V
240 V
230 V
220 V
240 V
800 W
1000 VA
IEC 60320 C14
4 IEC 60320 C13
4U
1
1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
1 external battery pack
1 battery cable
1 rack mounting brackets
user manual
0
0
No
Black (RAL 7010)
17.2 cm
43.8 cm
41.2 cm
27 kg
Front
Lower
Rack-mounted
No
Horizontal
110 - 285 V half load
160 - 280 V full load
40 - 70 Hz auto sensing
1000 VA
800 W
50/60 Hz +/- 3 Hz sync to mains
3%
Double conversion online
Sine wave
88% (full load)
Configurable for 220 : 230 or 240 nominal output voltage
Internal bypass (automatic and manual)
3 : 1
CE
UKCA
EAC
TISI
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
0 - 40°C
0 - 95% non-condensing
0 - 3000m
-20 - 50°C
0 - 95% non-condensing
0 - 15000m
50 dBA
372 Btu/h
IP20
Lead-acid battery
36 V
0
0
4.5 h
3 - 5 year(s)
175 W rated
SRV36RLBP-9A 1 1032 VAh
SRV36RLBP-9A 2 1548 VAh
SRV36RLBP-9A 3 2064 VAh
SRV36RLBP-9A 4 2580 VAh
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
1
Multifunction LCD status and control console
600 J
2 years repair or replace
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
Specifications
Application/Usage | Equipment |
Server | |
Overload Protection | Yes |
Plug/Connector Type | IEC 320-C14 |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
Transfer Time | 0 ns |
Receptacle Detail | 4 x IEC 60320 C13 |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
240 V AC | |
220 V AC | |
Surge Energy Rating | 600 J |
Waveform Type | Sine Wave |
Input Voltage Range | 160 V AC - 280 V AC |
Output Frequency | 60 Hz |
Input Frequency | 70 Hz |
Battery Chemistry | Lead Acid |
Battery Energy | 1857.6 kJ |
Backup/Run Time (Half Load) | 52 Minute |
Backup/Run Time (Full Load) | 23.70 Minute |
Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
Replaceable Battery | Yes |
Typical Battery Recharge Time | 4 Hour |
Weight (Approximate) | 27 kg |
Form Factor | Rack-mountable |
Rack Height | 4U |
Height | 172 mm |
Width | 438 mm |
Depth | 412 mm |
Network Management | USB |
Alarm | On Battery |
Overload | |
Low Battery | |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Maximum Storage Elevation | 14.76 km |
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Environmentally Friendly | Yes |
