Description
Overview
- Performance: Delivers best-in-class performance among comparable mini-PC offerings
- Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
- AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
- Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
- Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
- Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster
Specifications
Operating System
Support for Windows 11* Compatible with various Linux distributions
CPU
Intel® Core™ Ultra 5 125H Processor
Chipset
Integrated
Graphics
Intel® Arc™ GPU (U7/U5)* Intel® Graphics (C3) * Arc™ GPU System requires 128-bit dual channel memory for optimal performance"
Memory
2 x SO-DIMM , DDR5-5600MHz memory, up to 48GB*2 L10
Storage
NUC14RVK 1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot Support 1x M.2 2242 PCIe x4 NVMe SSD Slot Support"
Wireless Data Network
Intel® Wi-Fi 6E AX211, 2x2, and Bluetooth® 5.3 (BT version depends on OS support)"
LAN
2.5G Ethernet, 10/100/1000/2500 Mbps"
Audio
Display Audio through the Intel® GPU ports"

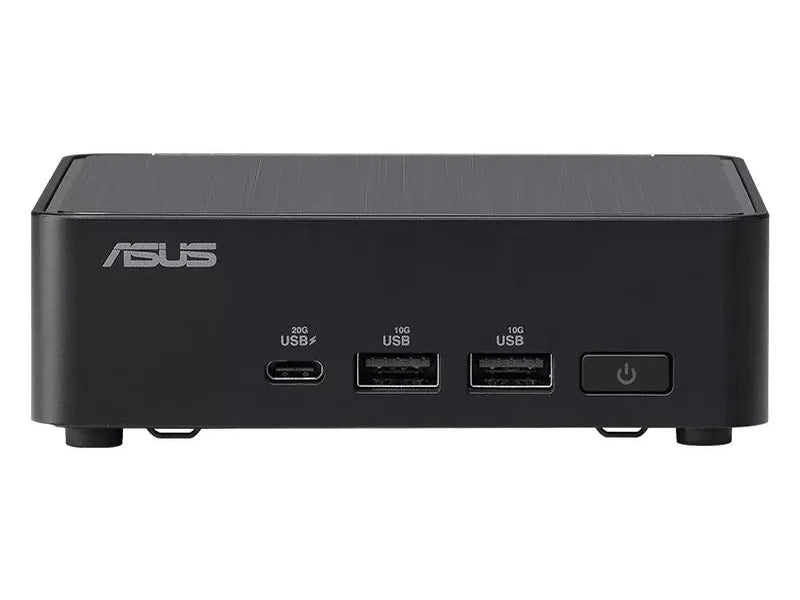

Front(Side) I/O Ports
1 x USB 3.2 Gen2x2 Type C (20Gbps) 2 x USB 3.2 Gen2 Type A 1 x Kensington Lock"

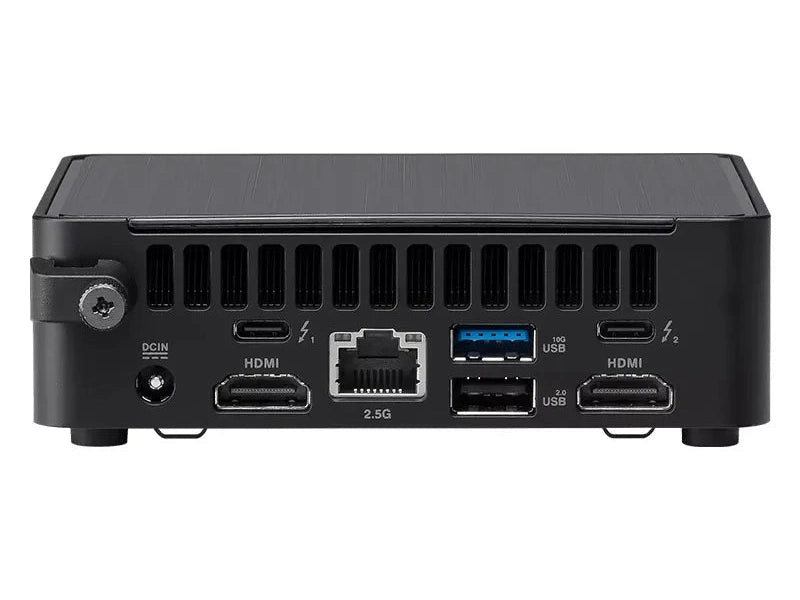

Back I/O Ports
1 x USB 3.2 Gen 2 Type-A 1 x 2.0 Type-A 2 x HDMI 2.1 (TMDS) ports 1 x RJ45 LAN Port 1 x DC-in 2 x Thunderbolt 4 Type-C Ports 1 x USB 3.2 Gen 2 Type-A 1 x 2.0 Type-A 2 x HDMI 2.1 (TMDS) ports 1 x RJ45 LAN Port 1 x DC-in"
Dimensions (W x D x H)
Slim Chassis - 117mm x 112mm x 37mm / Tall Chassis - 117mm x 112mm x 54mm
Weight
480g
