ASUS NUC 15 Pro Micro PC U5-225H DDR5(0/2) M.2(0/1) WL 3YR RTB

AsusSKU: RNUC15CRKU500004

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$935.00
Contact Us for ETA

Estimate shipping

Description

Overview

AI-Enabled Mini PC Powered by Intel® Core™ Ultra processors (Series 2). Designed as the best compact choice for the AI-driven future.

- Powered by Intel® Core™ Ultra processors (Series 2), delivering up to 99 Platform TOPS and an 18% boost in performance gen-on-gen.
- Supports up to 96GB dual-channel DDR5-6400 memory for seamless multitasking and high-speed workloads.
- Features Intel® Arc™ Graphics for AI acceleration and stunning visual performance, with Intel® vPro® for enterprise-grade security and management.
- Includes PCIe Gen5 NVMe SSD and Gen4 expansion slots for ultra-fast storage and flexibility.
- Connects up to four 4K displays via dual HDMI 2.1 and Thunderbolt™ 4 with DisplayPort 2.1 and USB4 compatibility.
- Offers advanced connectivity with Intel® Wi-Fi 7, Bluetooth® 5.4, and multiple high-speed USB 3.2 Gen2 ports.
- Compact 0.48L design with tool-less chassis enables quick upgrades and effortless deployment.
- Built for reliability with MIL-STD-810H certification, efficient cooling, and eco-friendly packaging for sustainability.

Specifications

Operating System
No preinstalled OSSupport: Windows 11 RedHat Enterprise Linux Ubuntu 24.04 LTS

CPU
Intel® Core™ Ultra 5 225H, cTDP 40W

Chipset
Integrated

Graphics
Intel® Arc™ GPU (Core Ultra) *Intel® Arc™ GPU requires using 2 x SO-DIMM Intel® Graphics

Memory
No memory included at shipment Max Capacity: 48GB DDR5-5600 SO-DIMM x 2 or 48GB DDR5-6400 CSO-DIMM x 2

Storage
No storage included at shipment Support: 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD (Core Ultra Series CPU) or 128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD (Core Series CPU)+ 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD

LAN
Intel® Ethernet Controller I226-V, 2.5G Intel® Ethernet Controller I226-LM, 2.5G *Intel® Ethernet Controller I226-LM included on vPro enabled systems

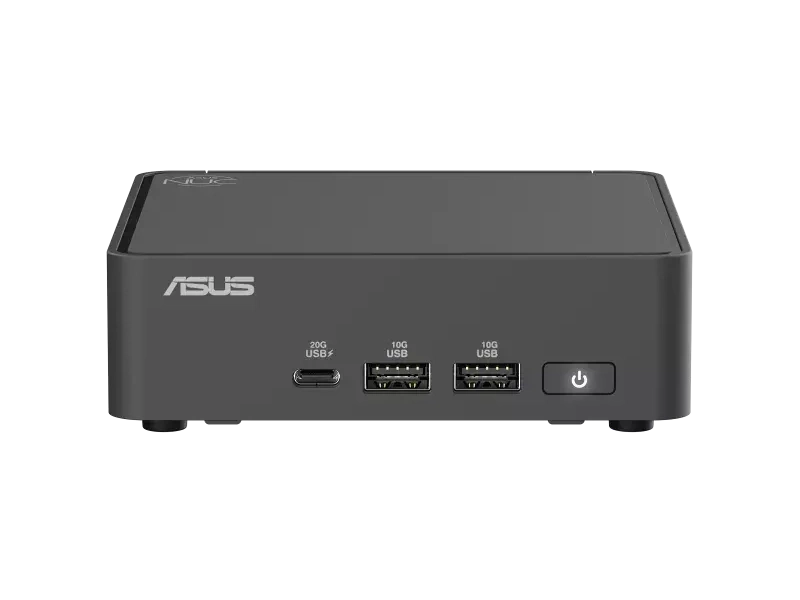

Front(Side) I/O Ports
1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A 1 x Kensington Lock (Side)

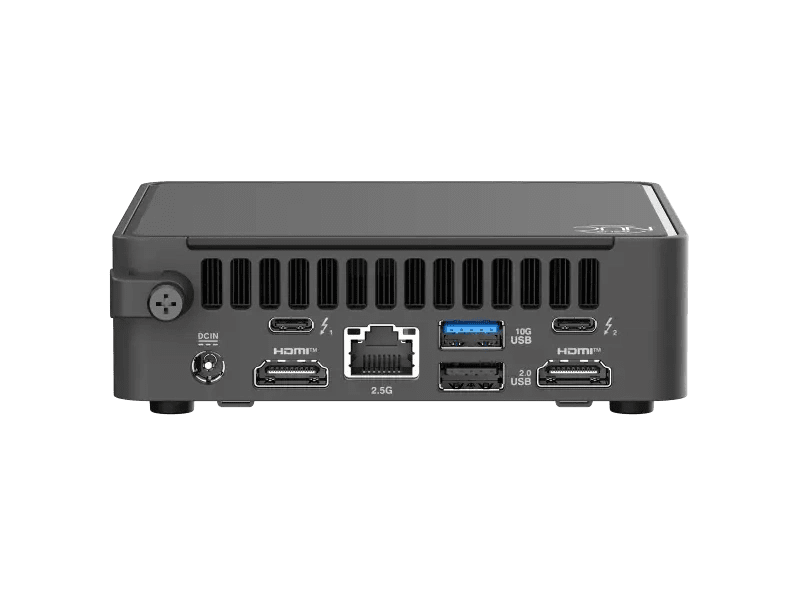

Back I/O Ports
2 x HDMI 2.1 TMDS Compatible (4K@60Hz) 2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4) 1 x USB 3.2 Gen2 Type-A 1 x USB 2.0 Type-A 1 x RJ45 LAN 1 x DC-in

Power Supply
19VDC, 6.32A, 120W Power Adapter (Core Ultra 5/7) 19VDC, 4.74A, 90W Power Adapter (i3 CPU) 19VDC, 6.32A, 120W Power Adapter

Dimensions (W x D x H)
117mm x 112mm x 37mm

Weight
500g
