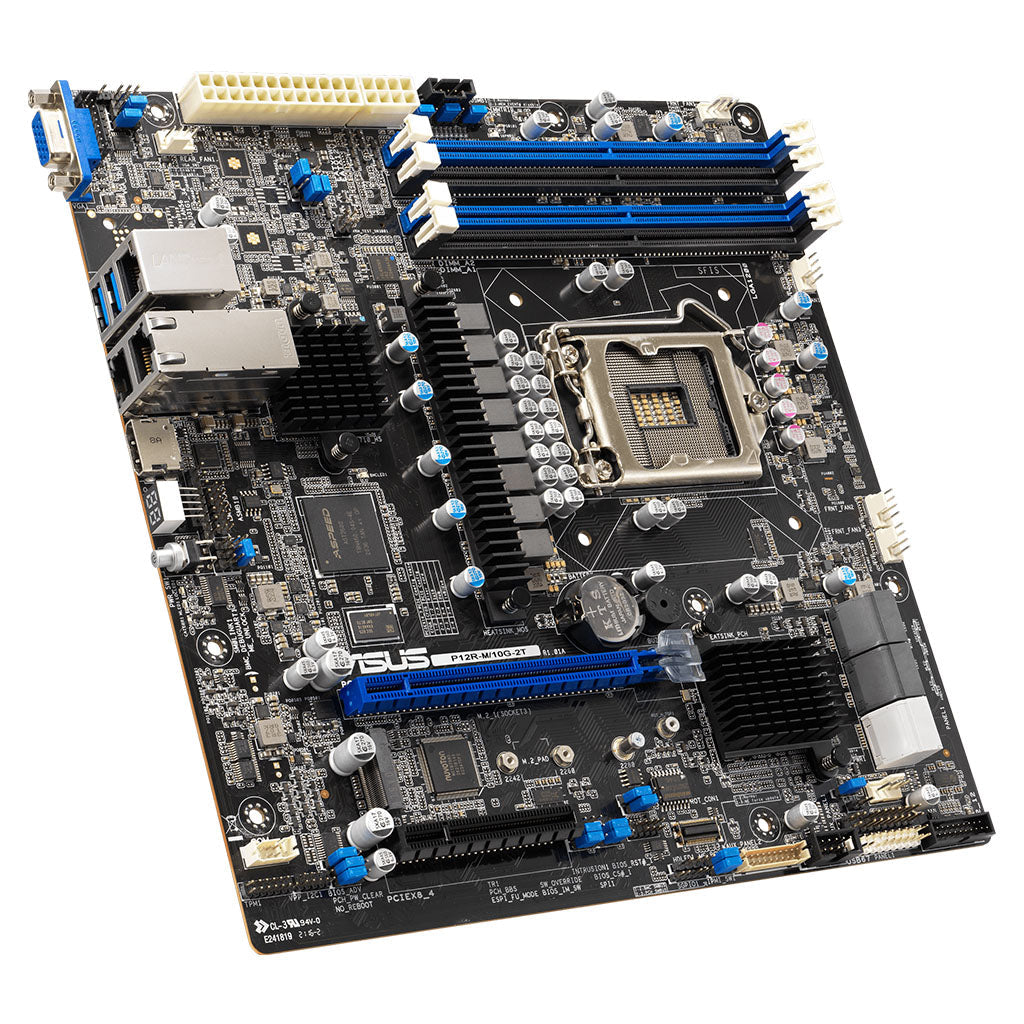

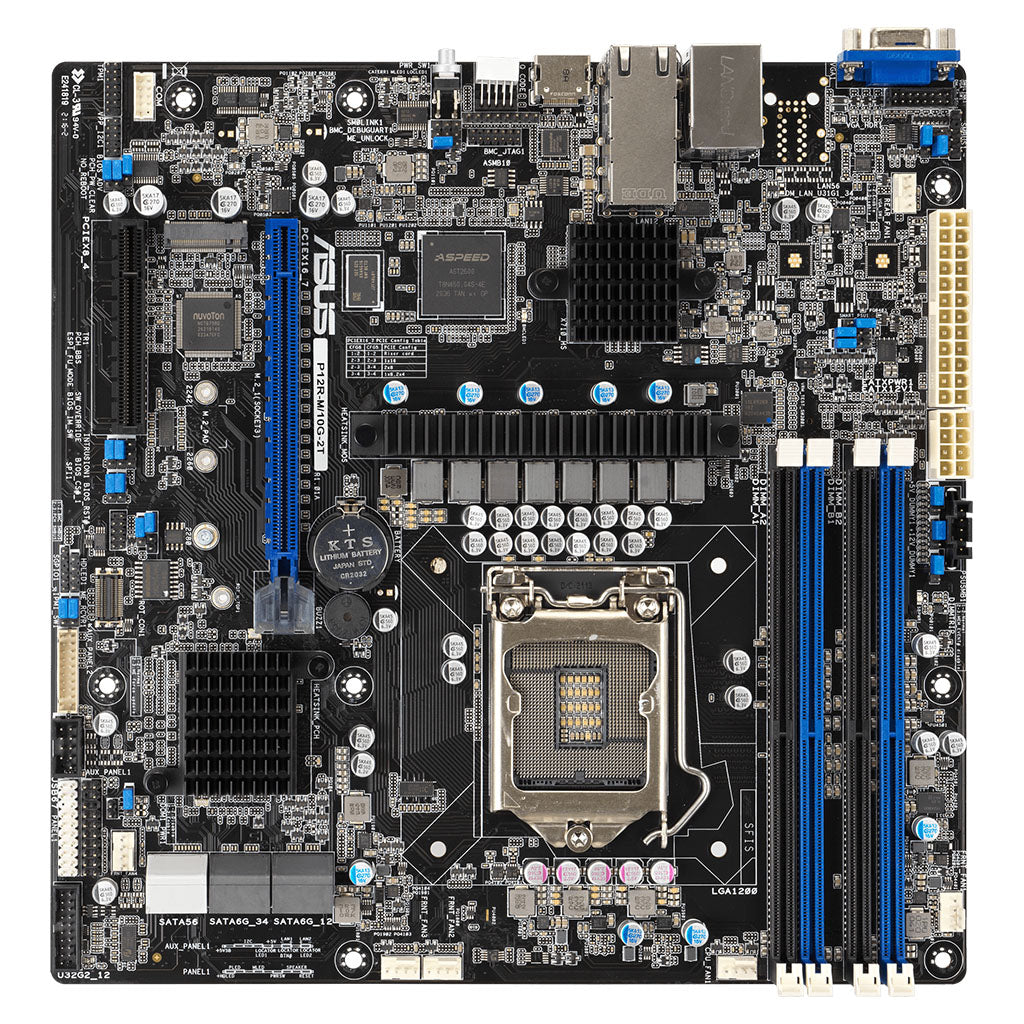

ASUS P12R-M-10G-2T C252 LGA 1200 Micro-ATX Workstation Motherboard

Save $200.00
ASUSSKU: P12R-M-10G-2T -deal

Availability:

✅ In Stock at PC LAN Store

Pickup available at PC LAN Store

Usually ready in 30 minutes

Price:
Sale price$499.00 Regular price$699.00
1

Estimate shipping

Description

Specification

Processor / System Bus

1 x Socket LGA1200

Supports Intel® Pentium® Processors

Supports Intel® Xeon® E Processors

Chipset

Intel® C252 Chipset

Memory

Total Slots: 4 DIMM Slots (Dual-Channel)

Maximum Capacity: 128 GB UDIMM

Memory Type: DDR4 3200 / 2933 / 2666 UDIMM

Supported Memory Sizes: 32 GB / 16 GB / 8 GB / 4 GB

Note: Refer to the manufacturer's support page for detailed memory compatibility information.

Expansion Slots

Total: 2 PCIe Slots

Slot Location 4: 1 x PCIe 4.0 x8 Slot (x4 Link)

Slot Location 6: 1 x PCIe 4.0 x16 Slot (x16 Link)

Form Factor

Micro-ATX (mATX)

9.6 x 9.6 inches (244 x 244 mm)

Storage Controller

6 x SATA III 6 Gb/s Ports

Intel® VROC (For Linux / Windows)

Supports Software RAID 0 / 1 / 5 / 10

SAS Controller Support

ASUS PIKE II 3008-8i 8-Port SAS 12G RAID Card

ASUS PIKE II 3108-8i 8-Port SAS 12G Hardware RAID Card

Networking

1 x Intel® X710-AT2 Dual-Port 10GbE LAN Controller

2 x 10GbE LAN Ports

1 x Dedicated Management LAN Port

Graphics

ASPEED AST2600

64 MB VRAM

Onboard I/O Connectors

1 x TPM Header

1 x 24-Pin ATX Power Connector

1 x 8-Pin ATX 12V Power Connector

2 x USB 3.2 Gen 2 Ports

1 x USB 3.2 Gen 1 Header

1 x USB 2.0 Pin Header

6 x 4-Pin Fan Headers

1 x SMBus Header

1 x Chassis Intrusion Header

4 x Front LAN LED Connectors

1 x Serial Port Header

1 x M.2 Connector

1 x VGA Header

1 x Onboard Header for Optional Management Card

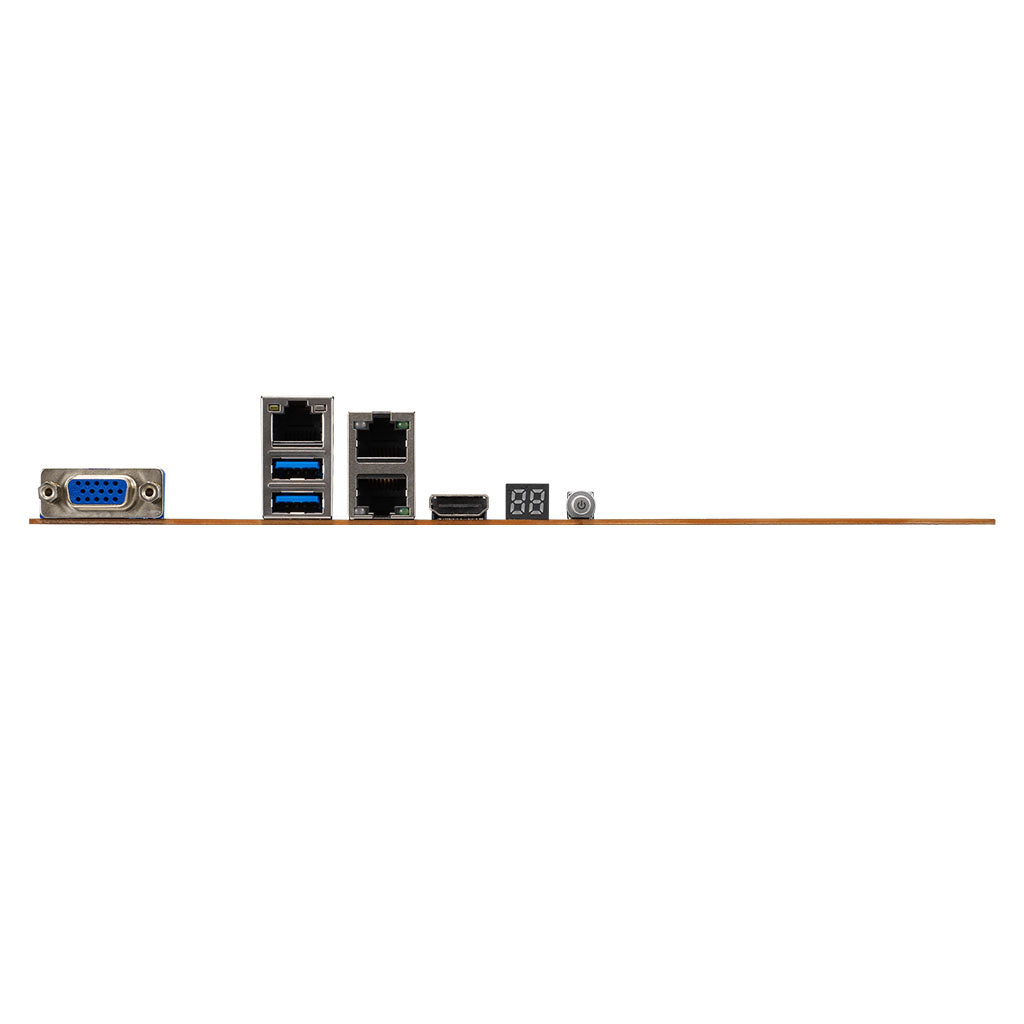

Rear I/O Ports

2 x USB 3.2 Gen 2 Ports

1 x VGA Port

1 x HDMI Port

2 x 10GbE LAN Ports

1 x Management LAN Port

Management Solutions

ASUS Control Center Enterprise (Optional)

ASMB10-iKVM for KVM-over-Internet (Optional)

Weight

Gift Box (1-in-1):

Net Weight: 0.76 kg

Gross Weight: 1.3 kg

Bulk Pack (10-in-1):

Net Weight: 6.9 kg

Gross Weight: 9.5 kg

Environmental Specifications

Operating Temperature: 10°C to 50°C

Non-Operating Temperature: -40°C to 70°C

Non-Operating Humidity: 20% to 90% (Non-Condensing)

Note: The operating temperature boundary is based on an 8.3 W PCH TDP specification. If the estimated LFM exceeds acceptable limits, ASUS can provide boundary conditions based on raw power for reference.

Package Contents - Gift Box (1-in-1)

2 x Support CDs

1 x I/O Shield

6 x SATA 6 Gb/s Cables

4 x Plates for LGA1200

Package Contents - Bulk Pack (10-in-1)

2 x Support CDs

1 x I/O Shield

1 x Plate for LGA1200

Hardware Monitoring

CPU Temperature Monitoring

Fan RPM Monitoring
