Description
Overview

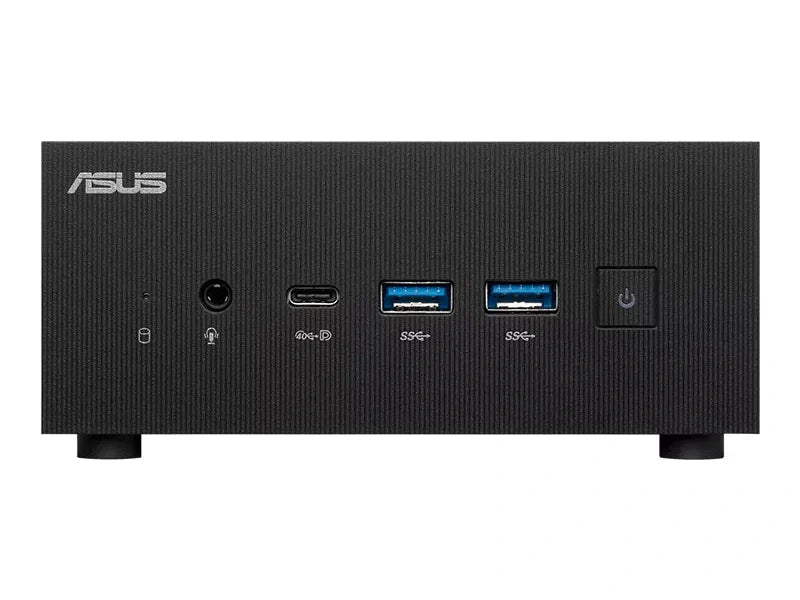

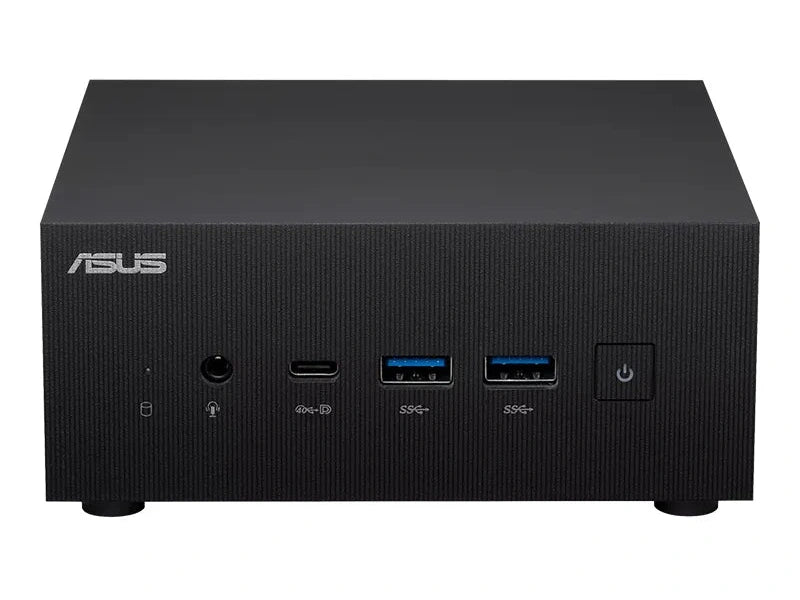

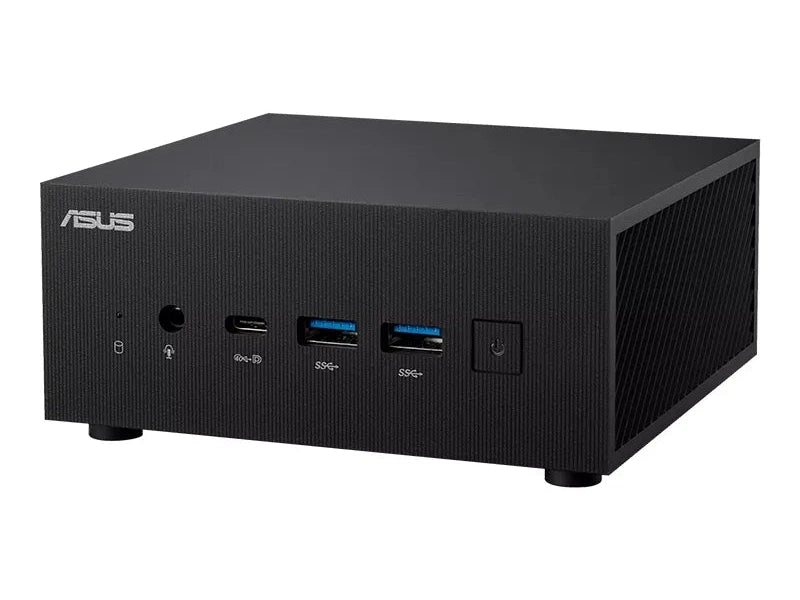

Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.
Specifications
Model Name
PN53-7R7BAREBONES
Colour
Black
Dimensions (WxDxH)
120 x 130 x 58 mm
Processor
AMD RyzenTM 7 7735H Processor
Weight
900g (with 2.5" HDD installed, not included)
Graphics
RadeonTM 660M Graphics
Memory
2x SODIMM DDR5 Slots
Storage
2 x M.2 2280 PCIe Gen4x4 slot
1 x SATA 6Gb/s connector for 2.5" HDD
LAN
2.5G LAN, Realtek RTL8125B-CG
WiFi / Bluetooth
Wi-Fi 6E, Bluetooth 5.2, 2x2
Side (Front) I/O Ports
1 x USB 4 Type-C (w/ DP output)
2 x USB 3.2 Gen1
1 x Audio Jack (Line out/ Mic in/ Headphone out)
1 x Kensington Lock
Rear I/O Ports
1 x USB 4 Type-C (w/ DP output, PD power input)
3 x USB 3.2 Gen1
2 x HDMI 2.1
1 x 2.5G RJ45 LAN
1x DC-in, 1 x Padlock ring
Speakers
No
Operating System
Not Included
Power Supply
150W
19Vdc, 6.32A, 120W Power Adapter
