Description

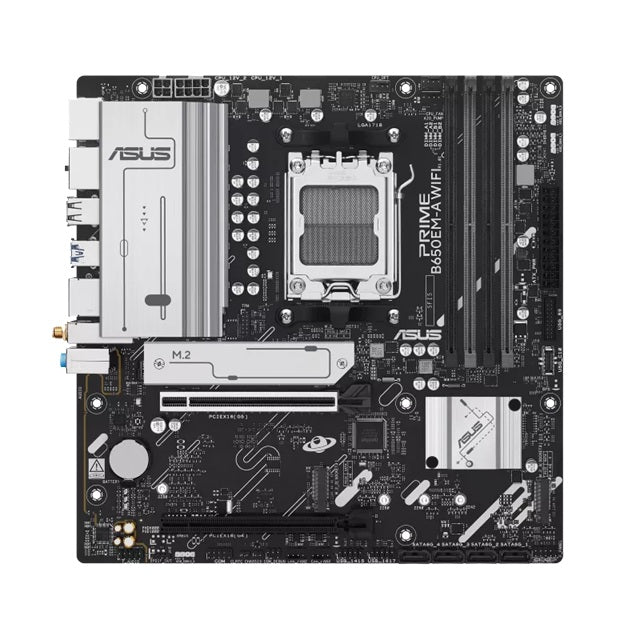

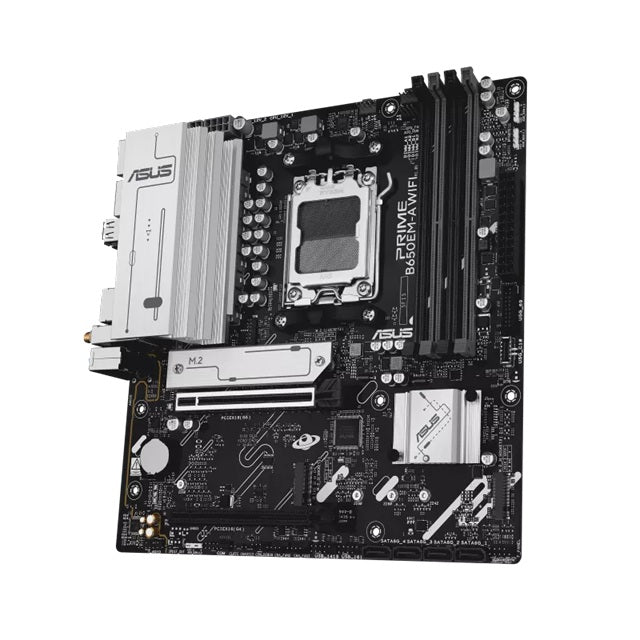

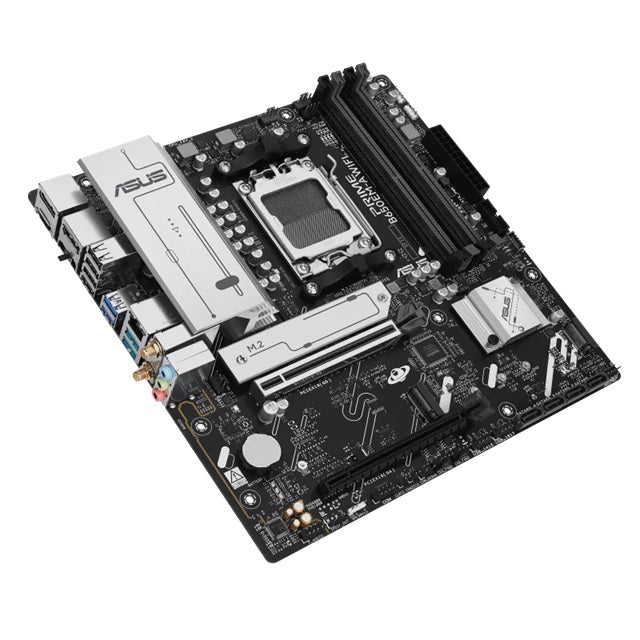

ASUS PRIME B650EM-A WIFI AM5 DDR5 Micro-ATX Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650EM-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB •5Gbps Type-C® support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
Specification
| Model |
PRIME B650EM-A WIFI |
|---|---|
| CPU Socket |
AMD Socket AM5 |
| CPU Support |
AMD Ryzen™ 9000 Series Desktop Processors AMD Ryzen™ 8000 Series Desktop Processors AMD Ryzen™ 7000 Series Desktop Processors Supports AMD CPUs Up to 170 W |
| Chipset |
AMD B650 Chipset |
| Memory |
4 x DDR5 DIMM Slots Maximum Capacity: 256 GB Supports Up to 8000+ MT/s (OC) with AMD Ryzen™ 9000 / 8000 / 7000 Series Processors ECC and Non-ECC Unbuffered DIMM Support Dual-Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports ASUS Enhanced Memory Profile (AEMP) |
| Graphics Outputs |
2 x DisplayPort 1 x HDMI Port |
| Expansion Slots |
AMD Ryzen™ 9000 / 7000 Series: 1 x PCIe 5.0 x16 Slot (Supports x16 Mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 Slot (Supports x8 / x4 Mode) AMD B650 Chipset: 1 x PCIe 4.0 x16 Slot (Supports x1 Mode) PCIe Lane Configuration and Bifurcation Support May Vary by CPU. |
| Storage |
3 x M.2 Slots 4 x SATA 6 Gb/s Ports |
| M.2 Storage Support |
AMD Ryzen™ 9000 / 7000 Series: M.2_1: Key M, Type 2280, PCIe 5.0 x4 M.2_2: Key M, Type 2280, PCIe 4.0 x4 AMD Ryzen™ 8000 Series: M.2_1: Key M, Type 2280, PCIe 4.0 x4 M.2_2: Key M, Type 2280, PCIe 4.0 x4 / x2 AMD B650 Chipset: M.2_3: Key M, Type 2242 / 2260 / 2280, PCIe 4.0 x4 |
| SATA Ports |
4 x SATA 6 Gb/s Ports |
| RAID Support |
AMD RAIDXpert2 Technology AMD Ryzen™ 9000 Series: RAID 0 / 1 / 5 / 10 AMD Ryzen™ 8000 Series: RAID 0 / 1 AMD Ryzen™ 7000 Series: RAID 0 / 1 / 10 |
| Ethernet |
1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless Connectivity |
Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4 GHz / 5 GHz Frequency Bands |
| Bluetooth |
Bluetooth 5.4 |
| Rear USB Ports |
8 Ports Total 2 x USB 10 Gbps Type-A 2 x USB 5 Gbps Type-A 4 x USB 2.0 Type-A |
| Front USB Support |
7 Ports Total 1 x USB 5 Gbps Connector (Supports USB Type-C) 1 x USB 5 Gbps Header (Supports 2 Additional USB 5 Gbps Ports) 2 x USB 2.0 Headers (Support 4 Additional USB 2.0 Ports) |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports Jack Detection Supports Multi-Streaming Supports Front Panel Jack Retasking Supports Up to 24-Bit / 192 kHz Playback |
| Audio Features |
Audio Shielding Premium Audio Capacitors Dedicated Audio PCB Layers |
| BIOS |
256 Mb Flash ROM UEFI AMI BIOS |
| Manageability |
Wake-on-LAN by PME (WOL) PXE |
| Operating System |
Windows 11 Windows 10 64-Bit |
| Form Factor |
Micro-ATX (mATX) |
| Dimensions |
9.6 x 9.6 Inches 24.4 x 24.4 cm |
ASUS PRIME B650EM-A WIFI AM5 DDR5 Micro-ATX Motherboard
$202.00
