Description

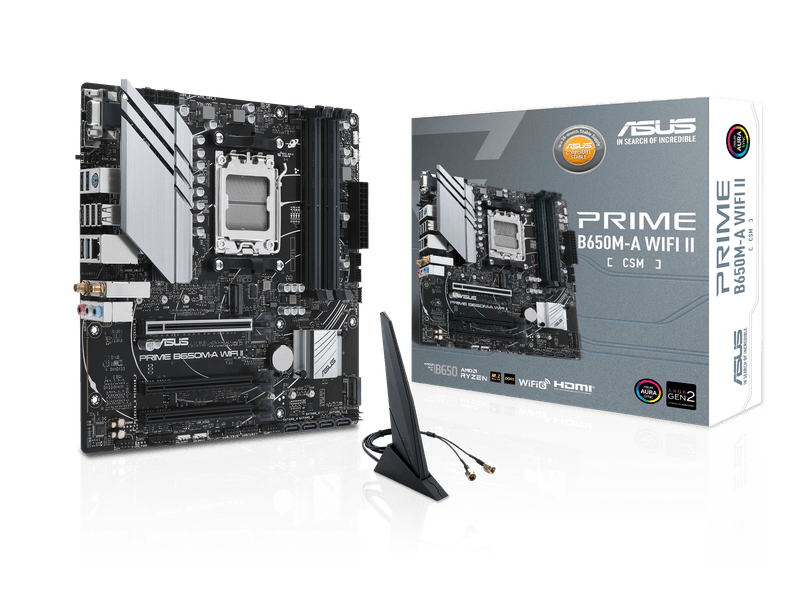

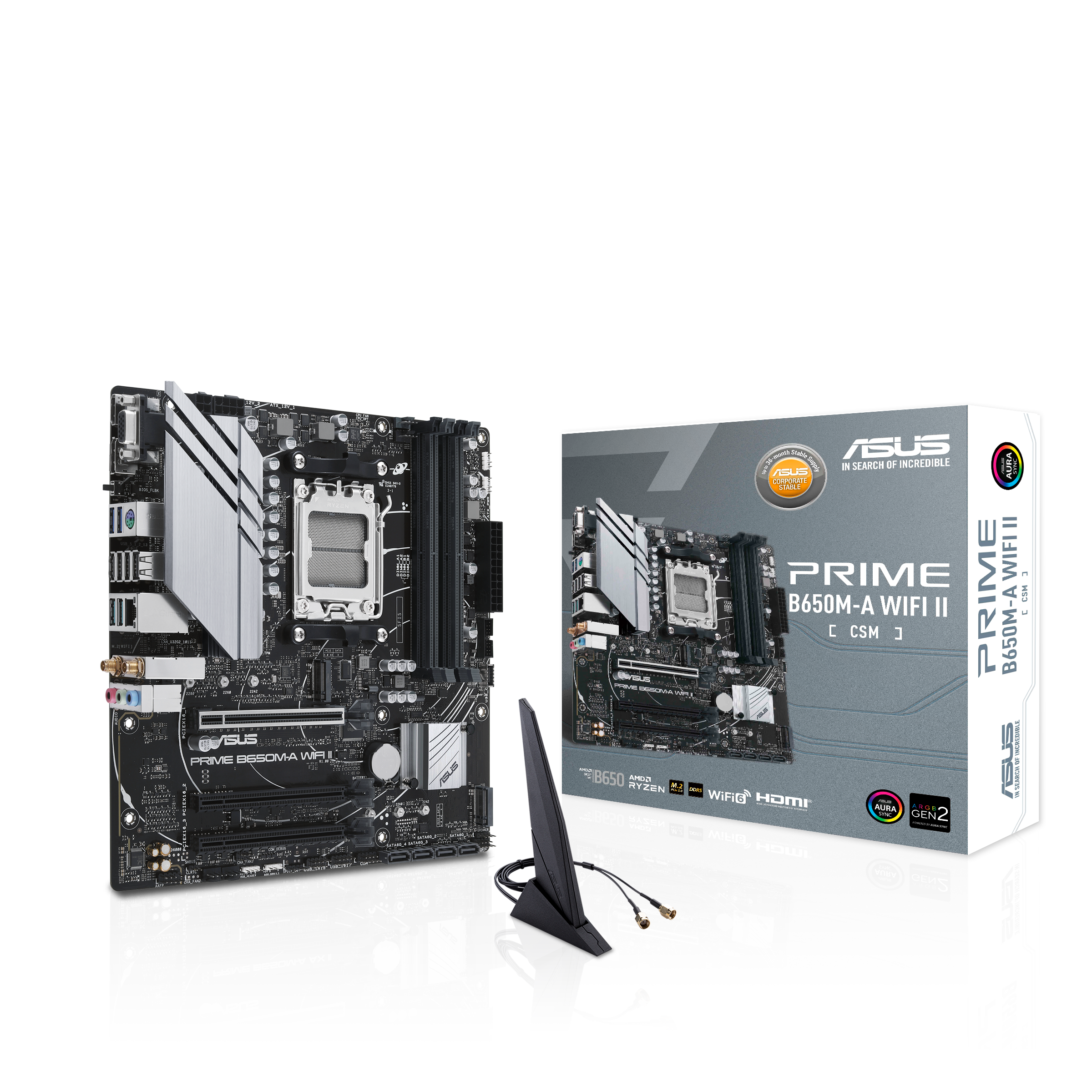

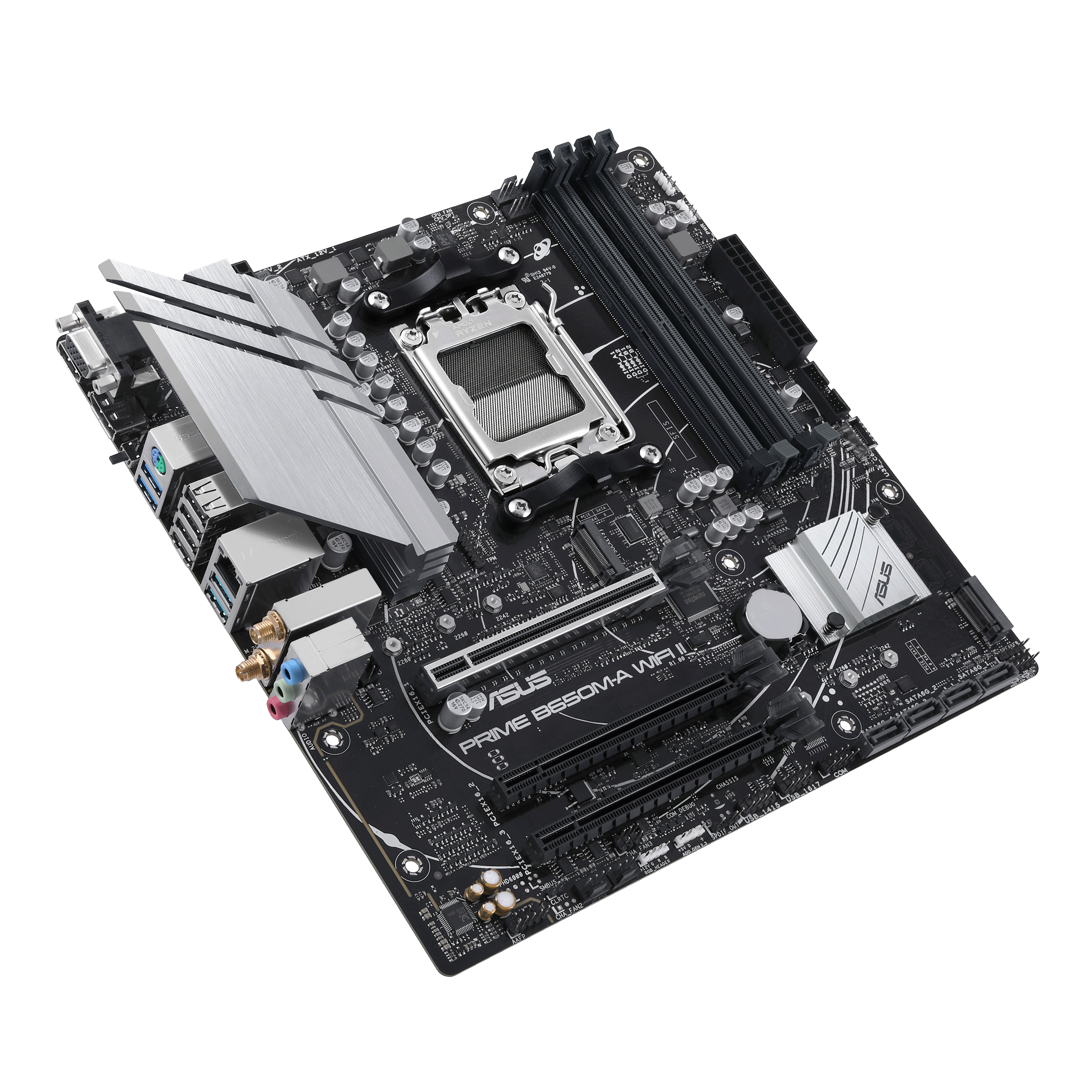

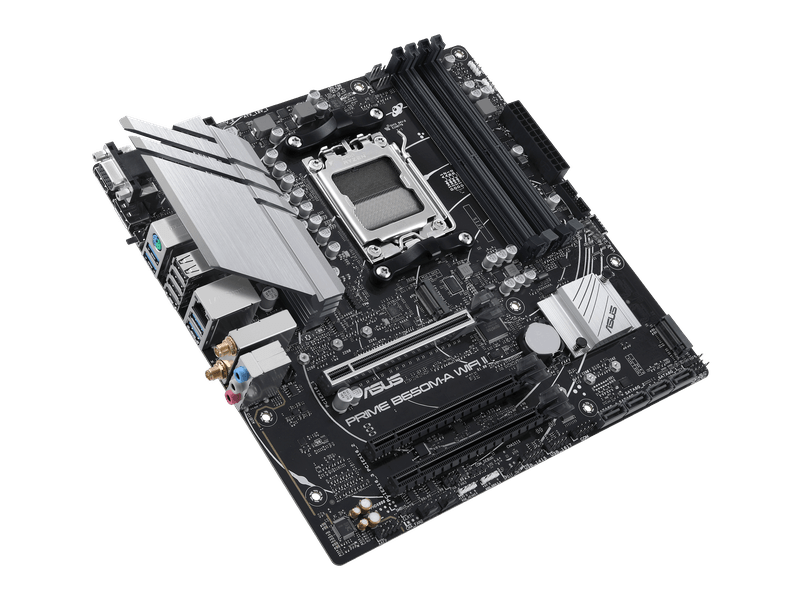

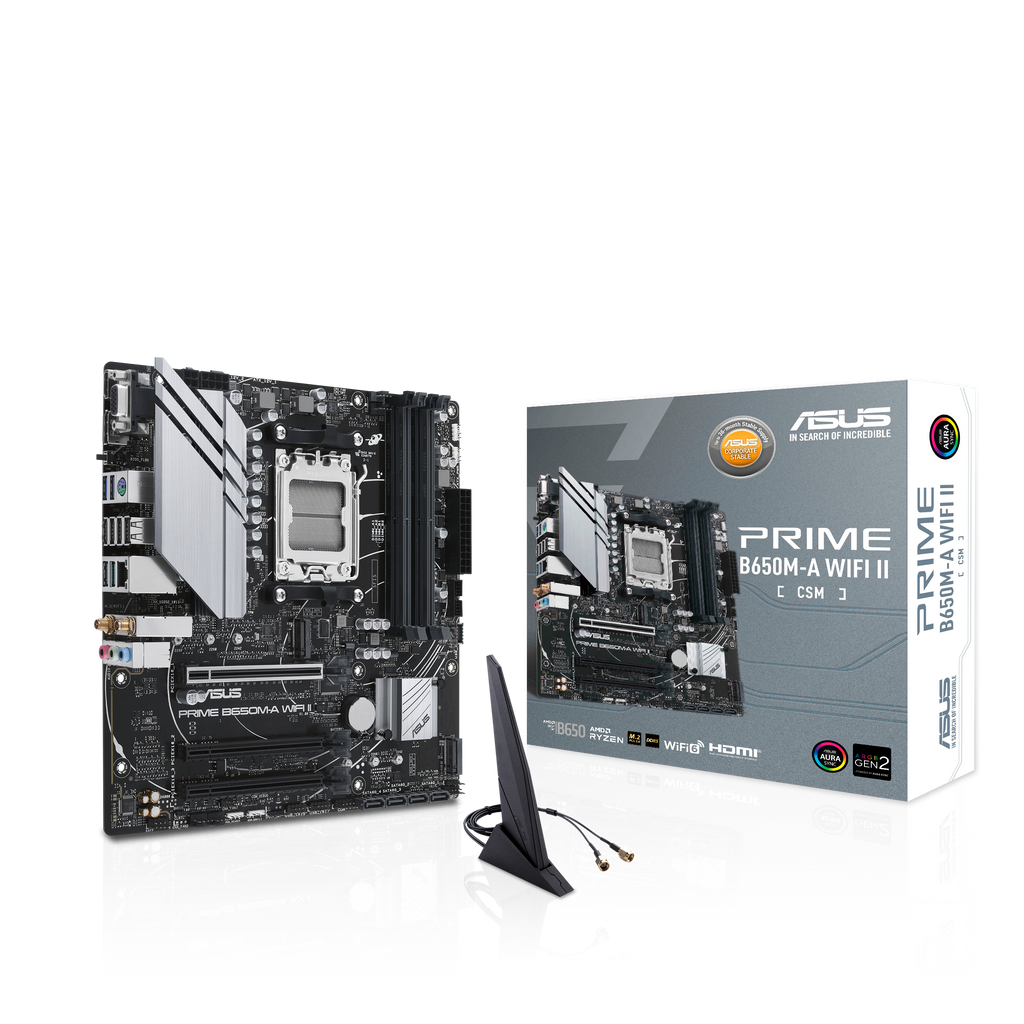

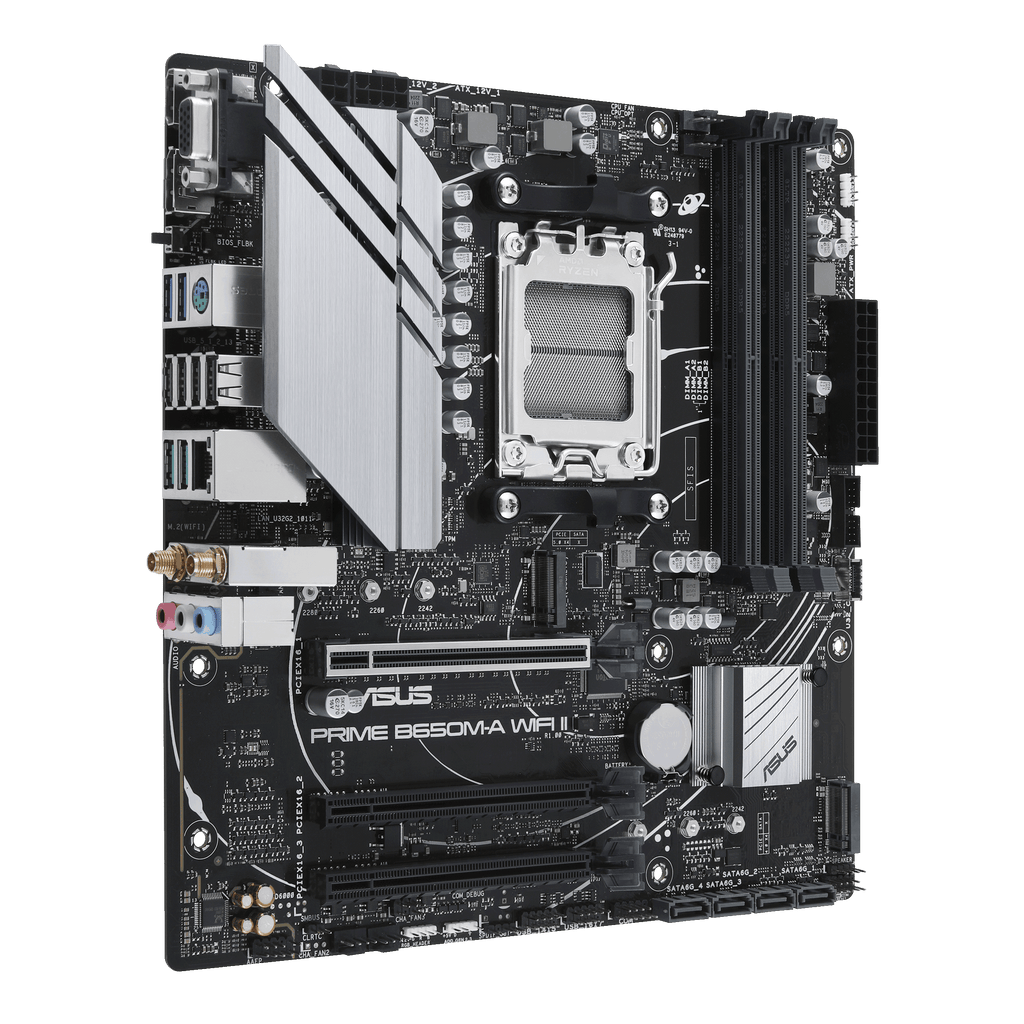

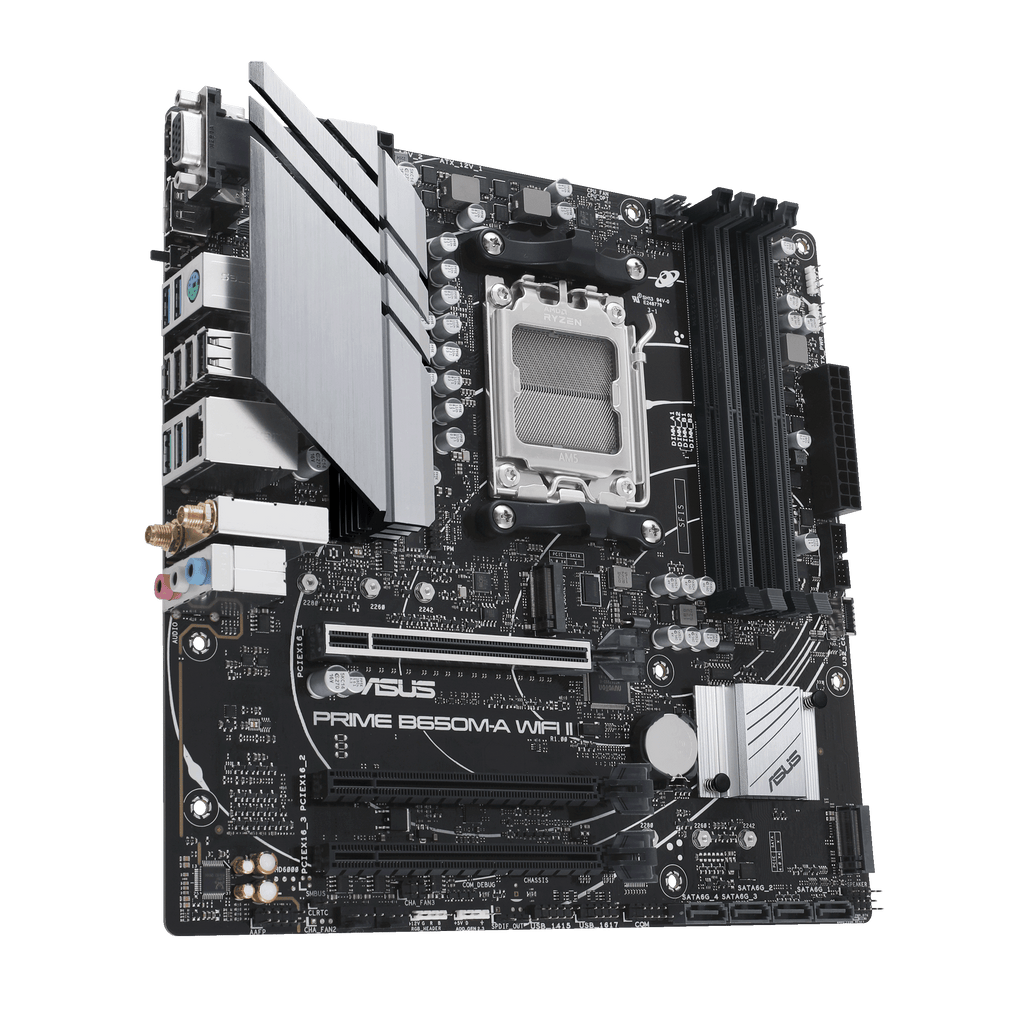

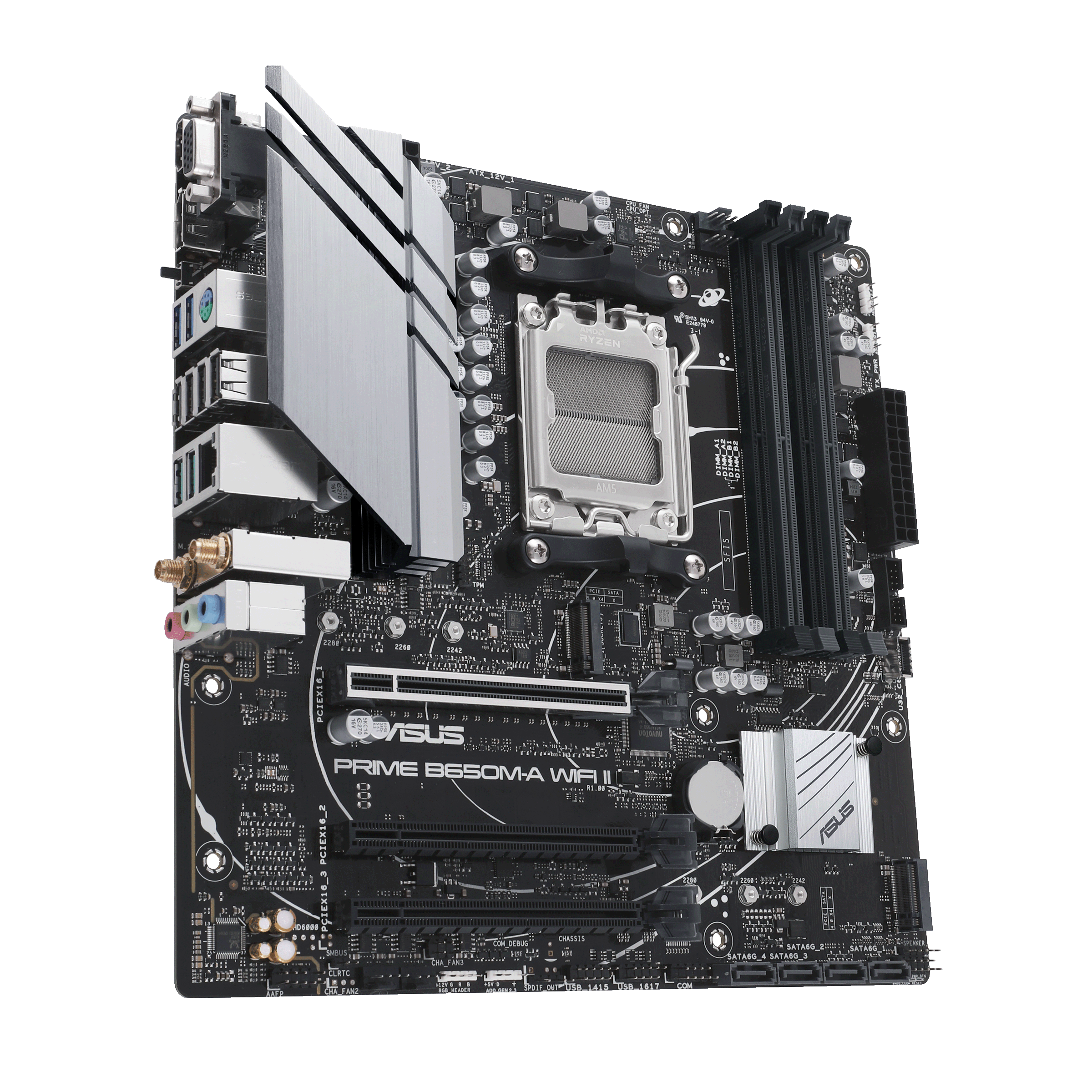

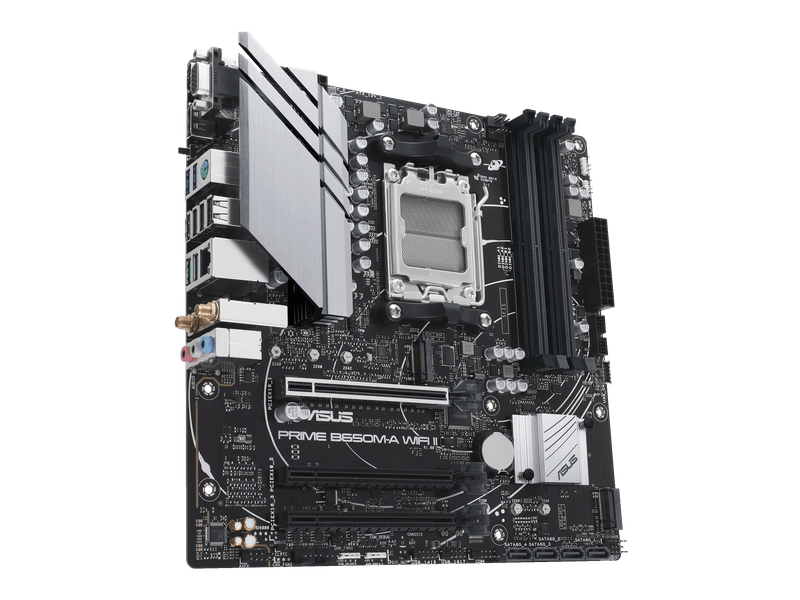

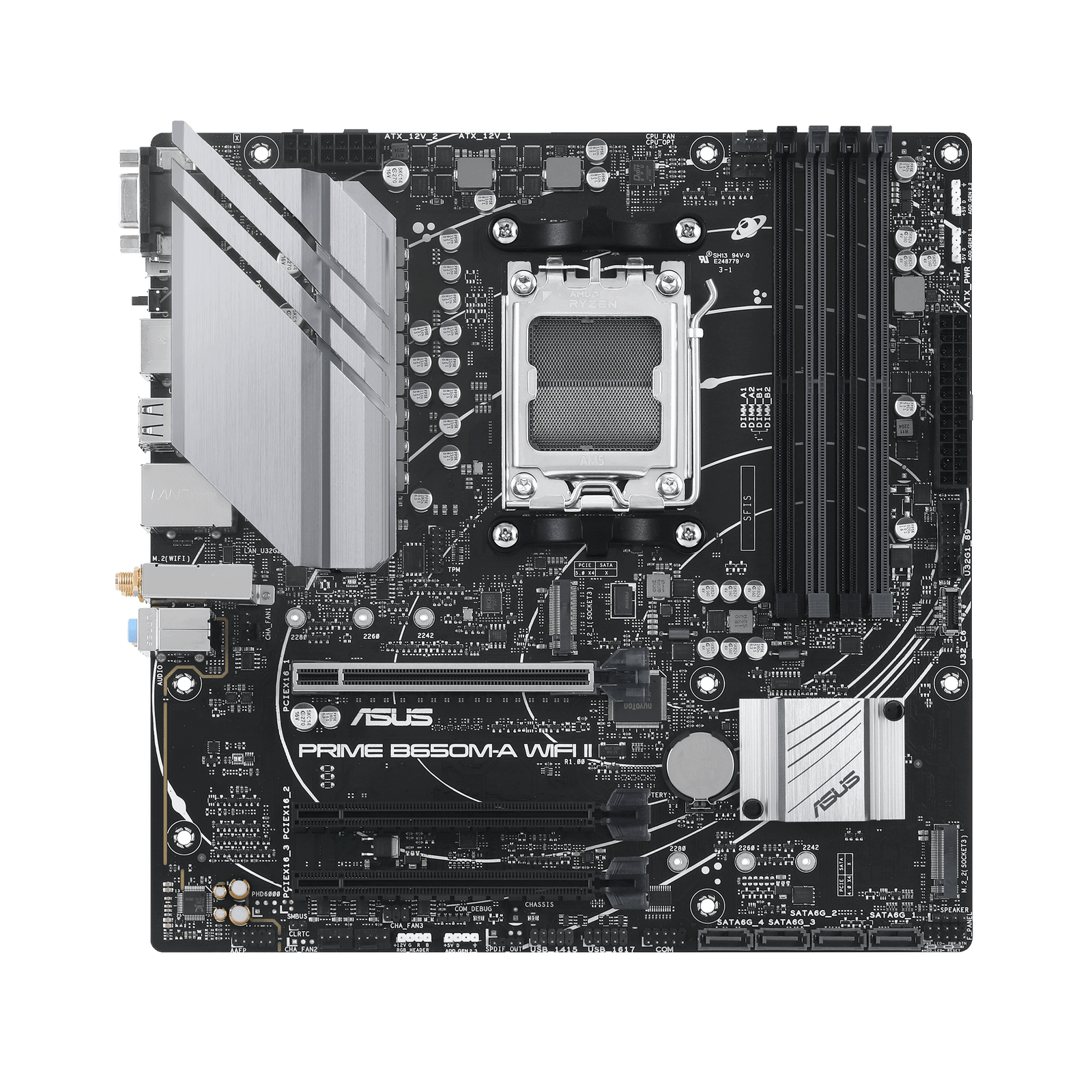

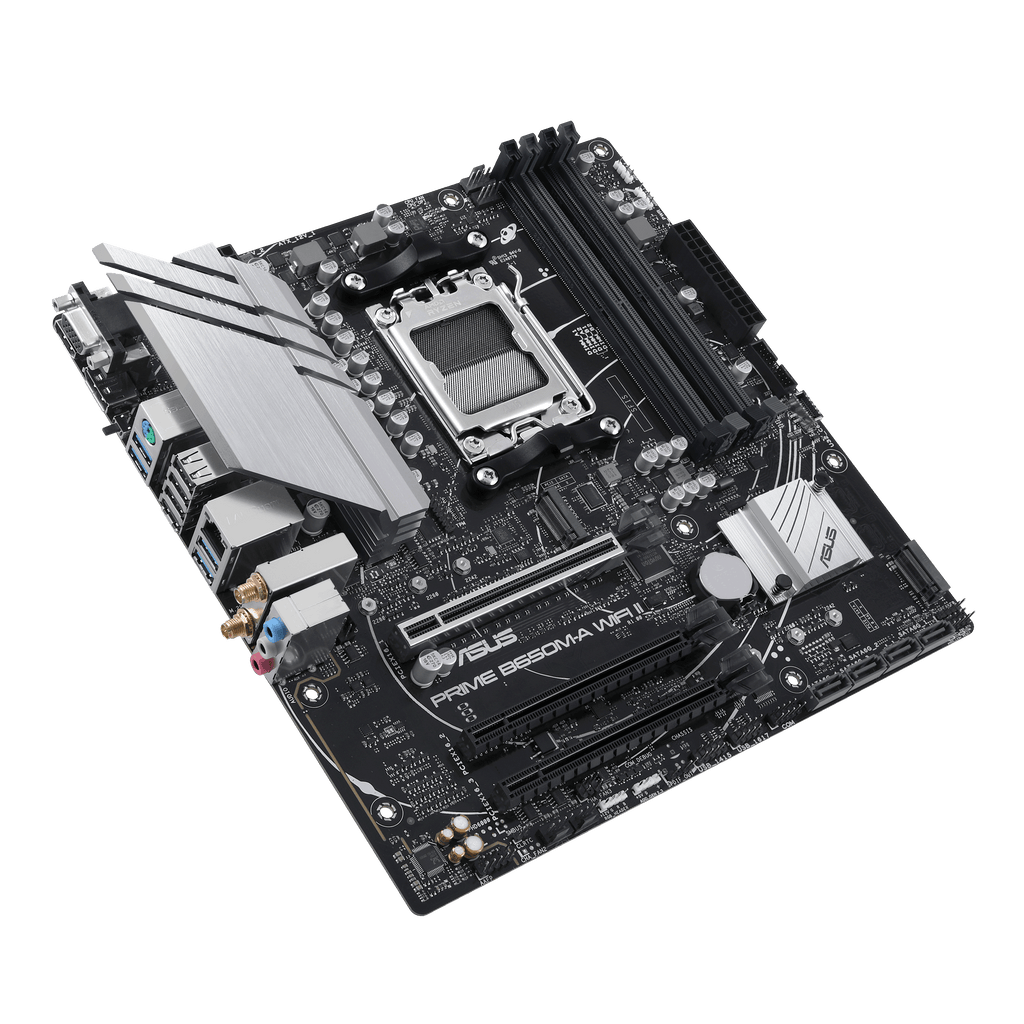

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
PRIME
B650M-A WIFI II-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI II-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control
Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A WIFI II-CSM, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
ASUS PRIME B650M-A WIFI II-CSM Specifications | |
---|---|
Model | PRIME B650M-A WIFI II-CSM |
CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors |
Chipset | AMD B650 Chipset |
Memory | 4 x DDR5 DIMM slots, up to 192GB Supports up to 7600+(OC) MT/s ECC and Non-ECC, Un-buffered Memory Dual Channel Architecture AMD EXPO™, OptiMem II, On-Die ECC |
Graphics | 1 x DisplayPort (up to 8K@60Hz) 1 x HDMI® (up to 4K@60Hz) 1 x VGA port * Graphics output depends on CPU |
Expansion Slots |
CPU: 1 x PCIe 4.0 x16 (Ryzen 9000/7000) 1 x PCIe 4.0 x16 (Ryzen 8000, x8/x4 mode) Chipset: 2 x PCIe 4.0 x16 (x1 mode) |
Storage | 2 x M.2 slots: - M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000) - M.2_1: PCIe 4.0 x4 (Ryzen 8000) - M.2_2: PCIe 4.0 x4 4 x SATA 6Gb/s ports Supports PCIe & SATA RAID 0/1/10 |
Ethernet | Realtek 2.5Gb Ethernet with ASUS LANGuard |
Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2x2 Supports 2.4/5GHz bands Bluetooth® v5.2 |
USB Ports |
Rear: 8 ports - 2 x USB 3.2 Gen 2 (Type-A) - 2 x USB 3.2 Gen 1 (Type-A) - 4 x USB 2.0 (Type-A) Front: 7 ports - 1 x USB 3.2 Gen 1 (Type-C®) - 1 x USB 3.2 Gen 1 header (2 ports) - 2 x USB 2.0 headers (4 ports) |
Audio | Realtek 7.1 Surround Sound HD Audio CODEC Up to 24-Bit/192 kHz playback Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Shielding, Premium capacitors, Dedicated PCB layers |
Back Panel I/O | 2 x USB 3.2 Gen 2 (Type-A) 2 x USB 3.2 Gen 1 (Type-A) 4 x USB 2.0 (Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo |
Internal I/O |
Cooling: 1 x CPU Fan, 1 x CPU OPT, 3 x Chassis Fan Power: 1 x 24-pin Main, 1 x 8-pin +12V, 1 x 4-pin +12V Storage: 2 x M.2, 4 x SATA 6Gb/s USB: 1 x USB 3.2 Gen 1 (Type-C®), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers Misc: 3 x Gen2 RGB headers, Aura RGB, Clear CMOS, COM, AAFP, S/PDIF Out, Speaker, SPI TPM, System Panel |
Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core+, Stainless-Steel I/O) ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (VRM heatsink) ASUS EZ DIY (BIOS FlashBack™ button & LED) Aura Sync (Aura RGB, Gen2 headers) |
Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving) AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner) ASUS CPU-Z, MyASUS ASUS Control Center Express (ACCE) Norton Anti-virus (Trial), WinRAR |
UEFI BIOS | ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, EZ Mode) 256Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

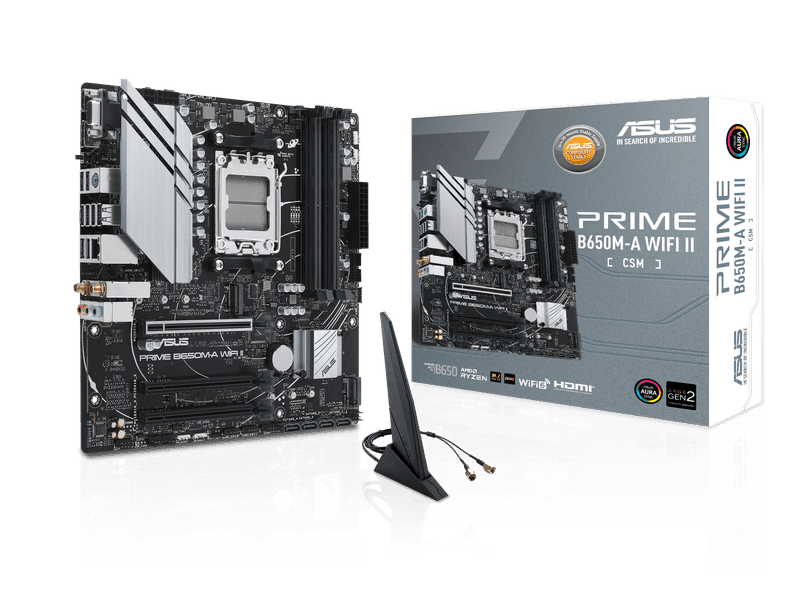

Accessories | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi antenna 1 x I/O Shield 1 x M.2 SSD screw package 1 x ACC Express Activation Key Card 1 x User guide |
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor | micro-ATX, 9.6" x 9.6" (24.4 cm x 24.4 cm) |
