Description
Specification
| Model | PRIME B850-PLUS WIFI-CSM |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors (Refer to ASUS support website for CPU support list) |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max 256GB DDR5; Supports up to 8000+ MT/s (OC) with Ryzen™ 9000/8000/7000 Series; Dual-channel; Supports AMD EXPO™; Non-ECC, Un-buffered DIMM* |
| Graphics | 1 x DisplayPort; 1 x HDMI® port; Graphics specs vary by CPU |
| Expansion Slots | 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x16 (x4 mode); 2 x PCIe 3.0 x16 (x1 mode) |
| Storage | Up to 3 x M.2 slots & 4 x SATA 6Gb/s; Supports PCIe 5.0/4.0 (depending on CPU); RAID 0/1/5/10 (varies by CPU series) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet (ASUS LANGuard) |
| Wireless & Bluetooth | Wi-Fi 6E (802.11ax), 2x2; Supports 2.4/5/6GHz bands; Bluetooth® v5.3 |
| Rear USB (Total 8 ports) | 4 x USB 10Gbps (incl. 1 x USB Type-C®); 2 x USB 5Gbps; 2 x USB 2.0 |
| Front USB Support | USB 10Gbps header; USB 5Gbps header; USB 2.0 headers |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports 24-bit/192kHz playback; Audio shielding; Premium capacitors; Dedicated PCB layers |
| Back Panel I/O Ports | 1 x USB 10Gbps Type-C®; 3 x USB 10Gbps Type-A; 2 x USB 5Gbps; 2 x USB 2.0; 1 x DisplayPort; 1 x HDMI®; 1 x RJ-45 (2.5Gb); 3 x Audio jacks; 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | CPU/Chassis fan headers; AIO pump header; 24-pin ATX; 8-pin + 4-pin CPU power; 3 x M.2; 4 x SATA; USB headers; RGB Gen 2 headers; Front panel header |
| Special Features | ASUS 5X Protection III; Q-Design (Q-DIMM, Q-LED, Q-Slot); BIOS FlashBack™; SafeSlot; Stainless-steel back I/O |
| Software Features | Armoury Crate; Aura Creator; Fan Xpert 2+; ASUS AI Advisor; TurboV Core; ASUS DriverHub; Norton 360 (trial); WinRAR (trial) |
| Remote Management | ASUS Control Center Express (ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables; Wi-Fi antenna; I/O shield; M.2 screws; Documentation |
| Operating System Support | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |

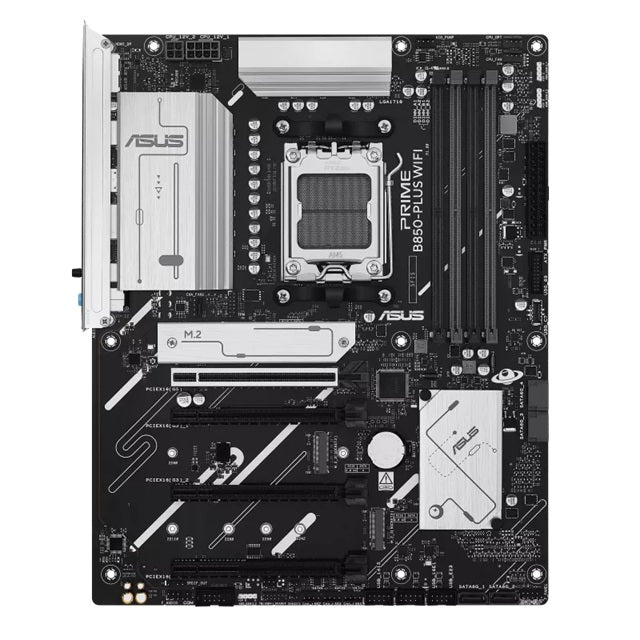

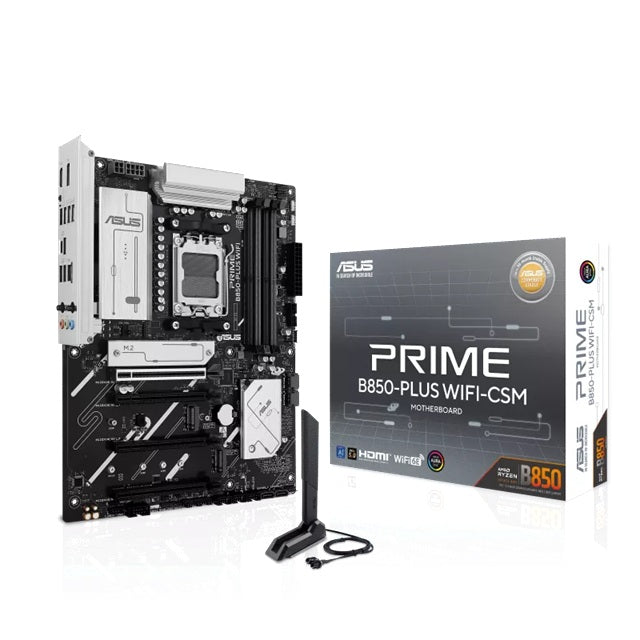

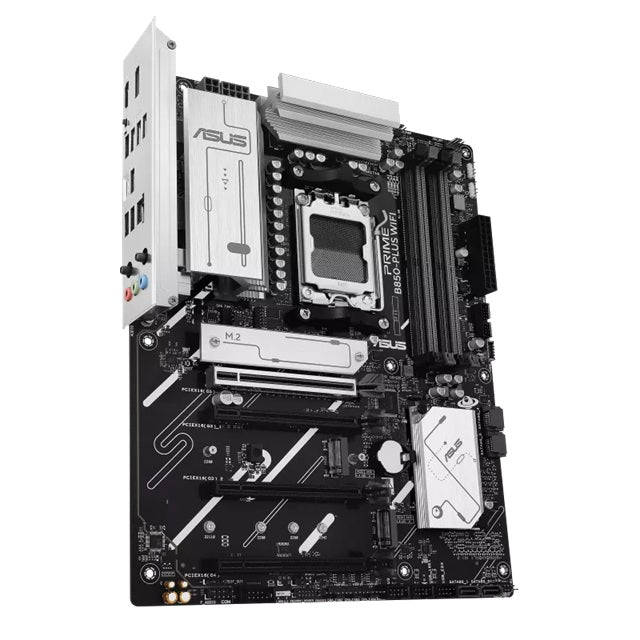

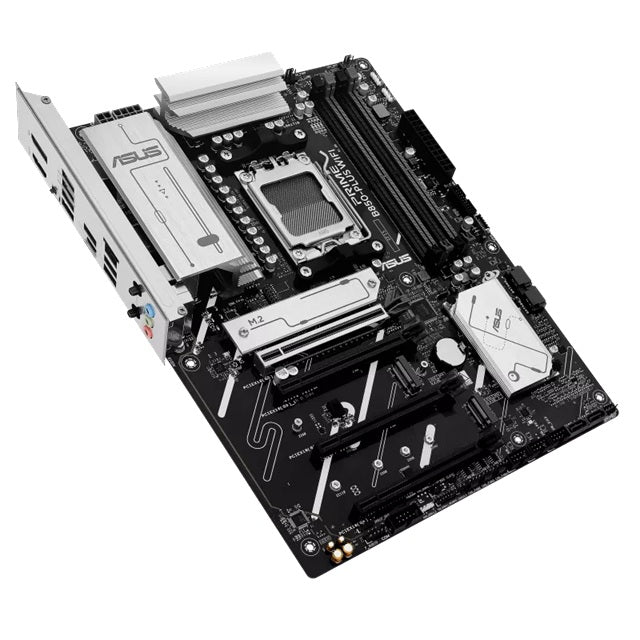

ASUS PRIME B850-PLUS WIFI-CSM AM5 DDR5 ATX Motherboard
$310.00
