Description

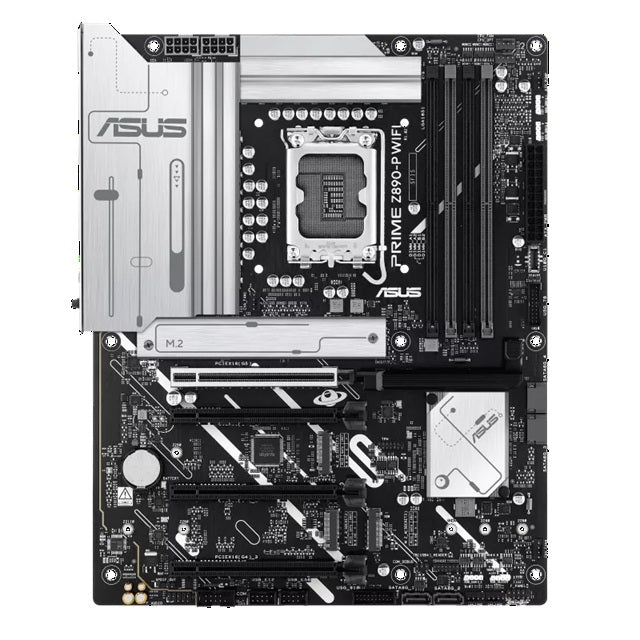

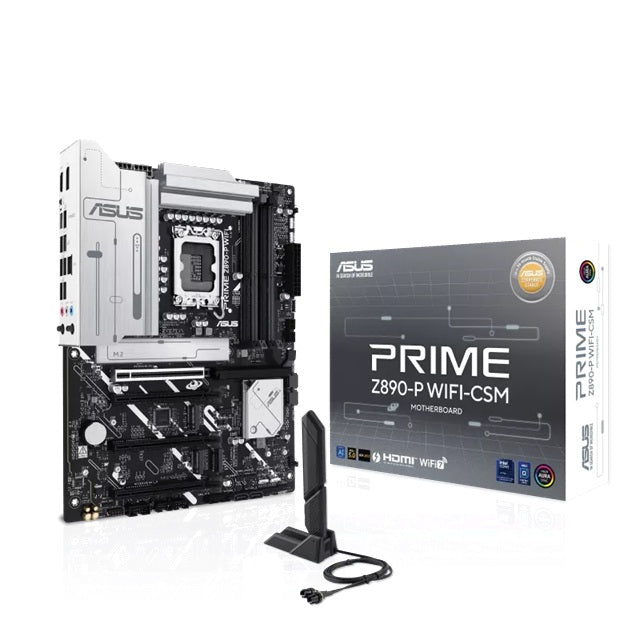

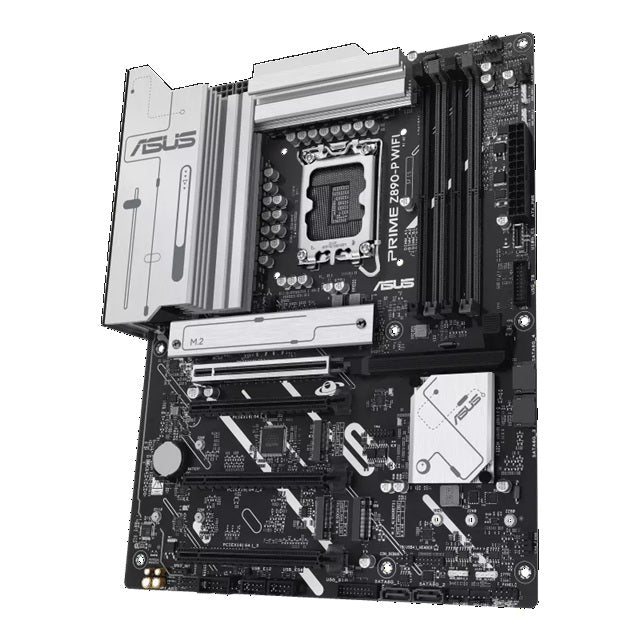

ASUS PRIME Z890-P WIFI-CSM LGA1851 DDR5 ATX Motherboard
Specification
|
Model
|
PRIME Z890-P WIFI-CSM
|
|
CPU
|
Supports Intel® Core™ Ultra Processors (Series 2), LGA185*
|
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
|
Chipset
|
Intel® Z890 Chipset
|
|
Memory
|
4 x DIMM slots, max. 192GB, DDR5
|
| Support up to 8400+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* | |
| Dual channel memory architecture | |
| DIMM Fit | |
| Supports Intel® Extreme Memory Profile (XMP) memory module | |
| ASUS Enhanced Memory Profile III(AEMPIII) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
|
Graphics
|
1 x DisplayPort**
|
| 1 x HDMITM port*** | |
| 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs**** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| **** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. | |
| **** In DP alt mode, supports up to UHBR20. | |
| ***** VGA resolution support depends on processors' or graphic cards' resolution. | |
| ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. | |
|
Expansion Slots
|
Intel® Core™ Ultra Processors (Series 2)*
|
| 1 x PCIe 5.0 x16 slot | |
| Intel® Z890 Chipset | |
| 2 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 4.0 x16 slot (supports x1 mode) | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
|
Storage
|
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
|
| Intel® Core™ Ultra Processors (Series 2)* | |
| M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| Intel® Z890 Chipset | |
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |
|
Ethernet
|
1 x Realtek 2.5Gb Ethernet
|
| ASUS LANGuard | |
|
Wireless & Bluetooth
|
Wi-Fi 7*
|
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
|
USB
|
Rear USB (Total 8 ports)
|
| 1 x Thunderbolt™ 4 port (1 x USB Type-C®) | |
| 1 x USB 10Gbps port (1 x Type-A) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A)** | |
| Front USB (Total 9 ports) | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports** | |
| * USB Type-C® power delivery output: max. 5V/3A | |
| ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |
| ** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth. | |
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
| - Supports: Jack-detection, | |
| Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
|

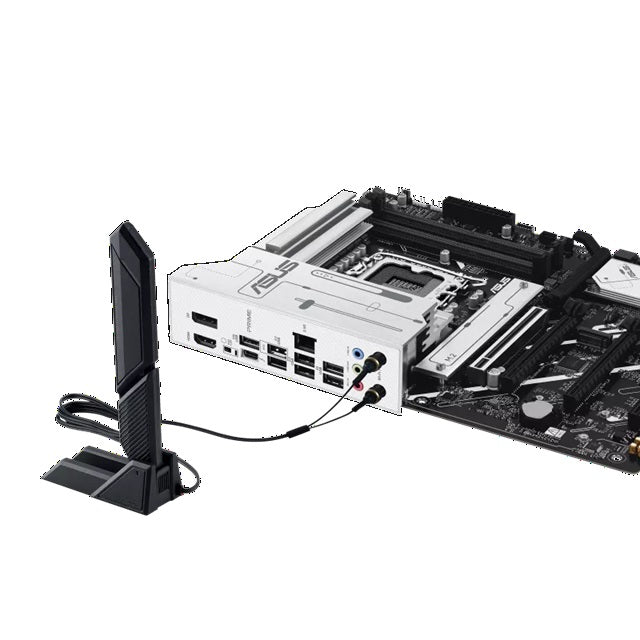

Back Panel I/O Ports
|
1 x Thunderbolt™ 4 USB Type-C® port
|
| 1 x USB 10Gbps port (1 x Type-A) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMITM port | |
| 1 x Wi-Fi module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
|
Internal I/O Connectors
|
Fan and Cooling related
|
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thunderbolt™ (USB4®) header | |
|
Special Features
|
ASUS 5X PROTECTION III
|
| - DIGI+ VRM (- Digital power design with DrMOS) | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-Antenna | |
| - Q-Dashboard | |
| - Q-DIMM | |
| - Q-LED Core | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBack™ button | |
| - BIOS FlashBack™ LED | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen2 headers | |
|
Software Features
|
ASUS Exclusive Software
|
| Armoury Crate | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - Power Saving | |
| ASUS DriverHub | |
| ASUS GlideX | |
| ASUS CPU-Z | |
| TurboV Core | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash | |
| - ASUS UEFI BIOS EZ Mode | |
| - ASUS MyHotkey | |
|
BIOS
|
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
WOL by PME, PXE
|
|
Accessories
|
Cables
|
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x M.2 rubber package | |
| 2 x Screw packages for M.2 SSD | |
| Documentation | |
| 1 x Quick start guide | |
|
Operating System
|
Windows 11 (22H2 & later)
|
|
Form Factor
|
ATX Form Factor
|
| 12 inch x 9.6inch ( 30.5 cm x 24.4 cm ) |
ASUS PRIME Z890-P WIFI-CSM LGA1851 DDR5 ATX Motherboard
$421.00
