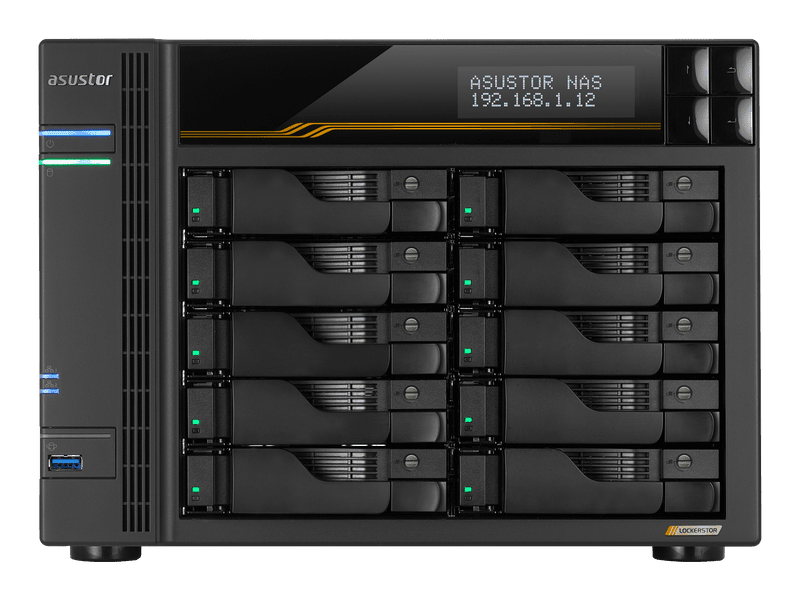

Asustor Lockerstor 10 Gen3 AS6810T 10 Bay NAS, Quad-Core 2.3GHz 2x 10GbE, 2x 5GbE, 16GB, 4x M.2 SSD Slots (Diskless)

AsustorSKU: AS6810T

Asustor Lockerstor 10 Gen3 AS6810T 10 Bay NAS, Quad-Core 2.3GHz CPU, Dual USB 4 Ports, Dual 10GbE Ports, Dual 5GbE Ports, 16G ECC RAM DDR5, Four M.2 SSD Slots (Diskless)

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$3,032.00
1
Contact Us for ETA

Estimate shipping

Description

  • Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
  • 16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
  • Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
  • 2x USB4 ports at 40 Gbps
  • 3x USB 3.2 Gen 2 Type-A at 10 Gbps
  • 2x 10-Gigabit Ethernet
  • 2x 5-Gigabit Ethernet
  • Supports Wake on LAN and Wake on WAN (5 GbE)
Category Specification
CPU
CPU Model AMD Ryzen V3C14
CPU Architecture x64 64‑bit
CPU Frequency Quad‑Core 2.3 GHz (Burst up to 3.8 GHz)
Memory
Installed Memory 16GB ECC DDR5‑4800 SO‑DIMM
Pre‑installed Module 16GB (1 × 16GB)
Total Memory Slots 2
Expandable Up To 64GB (Mixed capacity supported)
ECC Support Yes — disabled if mixed with non‑ECC memory
Flash Memory 8GB eMMC
Storage
Drive Bays 10
M.2 NVMe Slots 4 × M.2 2280 NVMe
M.2 PCIe Interface PCIe 4.0 ×1
Compatible Drive Types 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 NVMe 2280
Maximum Drive Bays w/ Expansion 22
Hot‑Swappable Drives Yes
External Ports
USB Ports 3 × USB 3.2 Gen 2 (10Gbps) Type‑A
2 × USB4 (40Gbps) Type‑C
USB4 Notes Backwards compatible with USB 3.2 Gen2/Gen1 & USB2.0
USB4 supports external storage + direct same‑series NAS‑to‑NAS only
(Host‑to‑Host not supported otherwise)
Network Ports 2 × 5GbE (5G/2.5G/1G/100M)
2 × 10GbE (10G/2.5G/1G/100M)
PCIe Expansion 1 × PCIe slot for optional 10GbE card
(Requires removing an M.2 card)
Multimedia Output N/A
Other Hardware
System Fans 2 × 120mm
LCD Panel Yes
Power Supply 250W Adapter
Input Voltage 100V – 240V AC
Certification FCC, CE, VCCI, BSMI, C‑TICK, KCC, BIS, CCC, UKCA
Warranty 3 Years
Operation
Power Consumption 68W (Operation)
2.4W (Sleep Mode)
Noise Level 22 dB (HDD idle)
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature −20°C – 70°C (−4°F – 158°F)
Humidity 5% – 95% RH
Size & Weight
Dimensions 215.5(H) × 293(W) × 230(D) mm
Weight 6.55 kg / 14.44 lb
