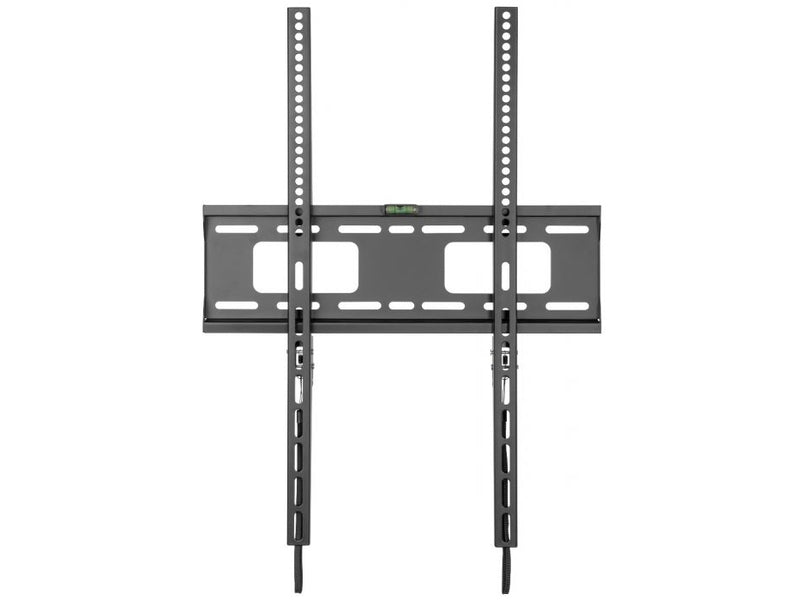

Atdec AD-WFP-5040 Portrait Fixed Wall Mount
This wall mount is for portrait mounting smaller displays. The AD-WFP-5040 suits VESA 100x100 to 400x600.
Consider whether your portrait VESA requirements are supported by the AD-WF-5040 or AD-WT-5040 – where they are not, use the AD-WFP-5040.
The AD-WFP-5040 mounts displays in portrait orientation, offset 27mm (1.06”) from the wall. The AD-WT-5040 is suitable for commercial, domestic, and most light industrial environments.
AD-WT-5040 suits most types of wall construction (with appropriate hardware*) and embodies Atdec’s easy-installation ethos. The product includes a spirit level and has slotted mounting holes. Hardware to mount the display is included.
* wall mount hardware not included
Choose me for:
-
- Mounting portrait oriented displays
- Displays to ~80"
- Touchscreens to ~60"
- Most wall constructions
- Lockable display brackets (padlock not included)
- Mounting portrait oriented displays
Specifications
| Length, single unit (cm) | 66 |
| Width, single unit (cm) | 15.6 |
| Height, single box (cm) | 4.1 |
| Weight, single unit, kg | 2.08 |
| Flat screen: maximum supported weight, kg | 50.00 |
| VESA mounting hole pattern, mm | Universal, 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 200x600, 300x200, 300x300, 400x200, 400x300, 400x400, 400x600, 600x200, 600x400 |
| Universal width (mm) | From 100 to 400 |
| Universal height (mm) | From 100 to 600 |
| Range of motion | Fixed angle |
| Horizontal levelling adjustment | Yes |
| Landscape to portrait screen rotation | No |
| Maximum distance from wall (mm) | 27 |
