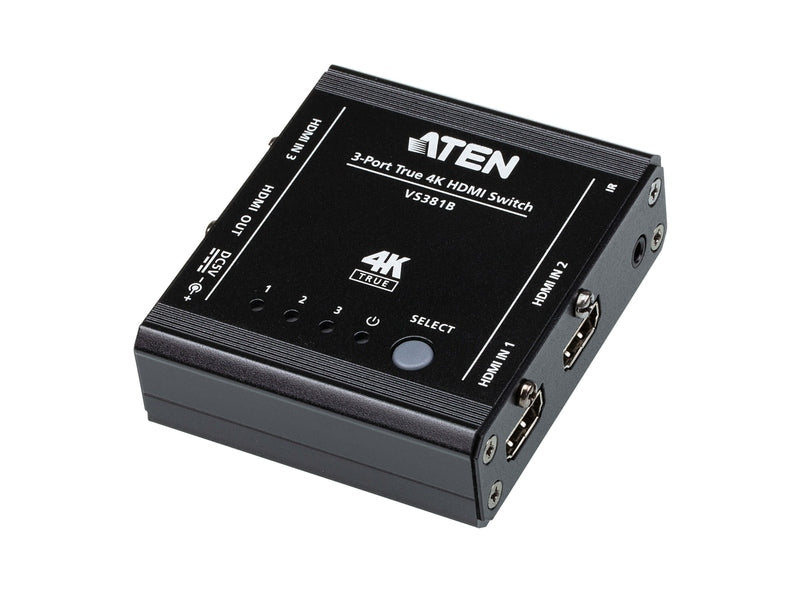

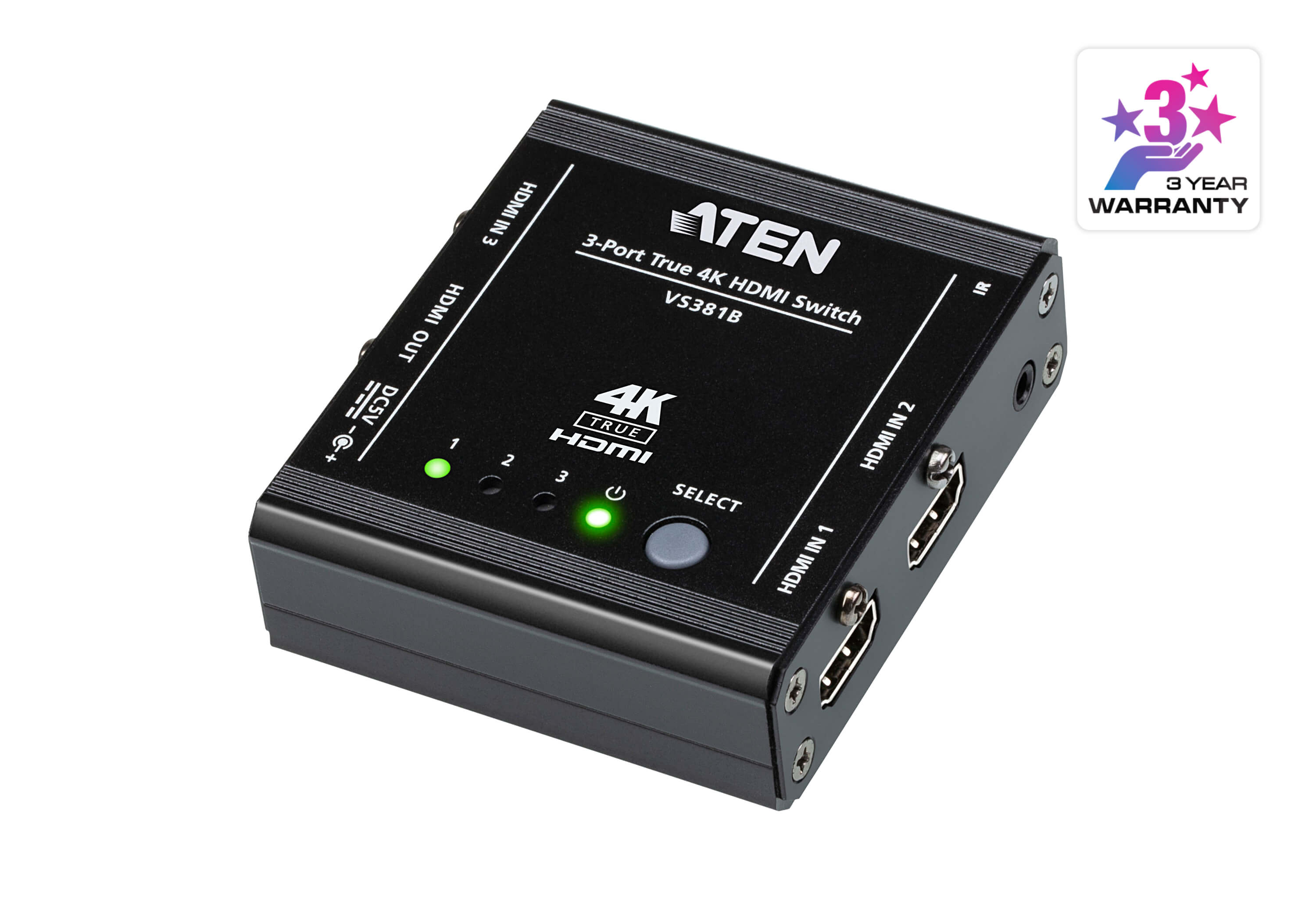

Aten 3-Port True 4K HDMI Switch

AtenSKU: VS381B-AT

Video Switch

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$79.00

Estimate shipping

Description

Overview

3-Port True 4K HDMI Switch

- Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
- Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
- HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG); HDCP 2.2 compliant
- Auto switching mode for auto port selection

Conveniently switch among 3 inputs
Effortlessly connect up to 3 HDMI input devices and switch between them seamlessly, eliminating the need for constant cable plugging and unplugging. Save time and enjoy a hassle-free experience.

True 4K long-distance transmission
The VS381B HDMI switch supports input and output resolutions of 3840 x 2160@60Hz (4:4:4) / 4096 x 2160@60Hz (4:4:4) up to 5 meters*, ensuring excellent image and sound quality even at longer distances.

*Tested with ATEN HDMI Cable 2L-7D05H-1

Intuitive switching options
The VS381B HDMI switch provides multiple options for switching between sources, including via pushbutton, IR remote control, and Auto Switch*, allowing you to effortlessly customize your viewing experience and enjoy uninterrupted entertainment.

*Auto switch: Automatically detects devices and switches to a new source when connected, or to the next available source when the current display source is disconnected.

Robust and durable design
Experience the robustness and superior performance of the VS381B HDMI switch, boasting a premium aluminum housing and a lockable HDMI design. Secure signal connections guarantee a smooth, uninterrupted viewing experience that you can rely on.

*Note: ATEN LockPro™ (2X-EA12) is available separately.

Aten 3-Port True 4K HDMI Switch Specifications
LEDs
Input 3 x HDMI-In (Green)
Power 1 x Power LED (Green)
Pushbuttons
Select 1 x push button (input selection)
Audio
Input 3 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Video Input
Interfaces 3 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision)
HDCP 2.2
Max. Resolution 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
IR 1 x Mini Stereo Jack Female (Black) / Max distance@ 5m
Connectors
Power 1 x DC Jack
Note: ATEN strongly recommend to use the USB via USB to DC cable (supplied) and a 5V/0.5A power adapter (self-supplied) as the main power source for the unit. The power supply from the HDMI connection may be insufficient for the unit to operate fully.
Power Consumption DC5V:1.46W:6BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.15 kg ( 0.33 lb )
Dimensions (L x W x H) 7.16 x 7.90 x 2.55 cm
(2.82 x 3.11 x 1 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
