Description
Overview

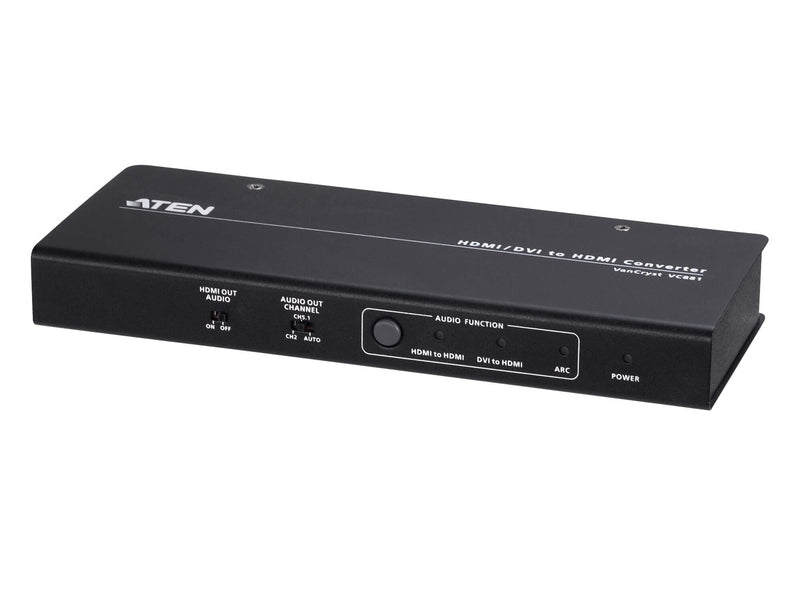

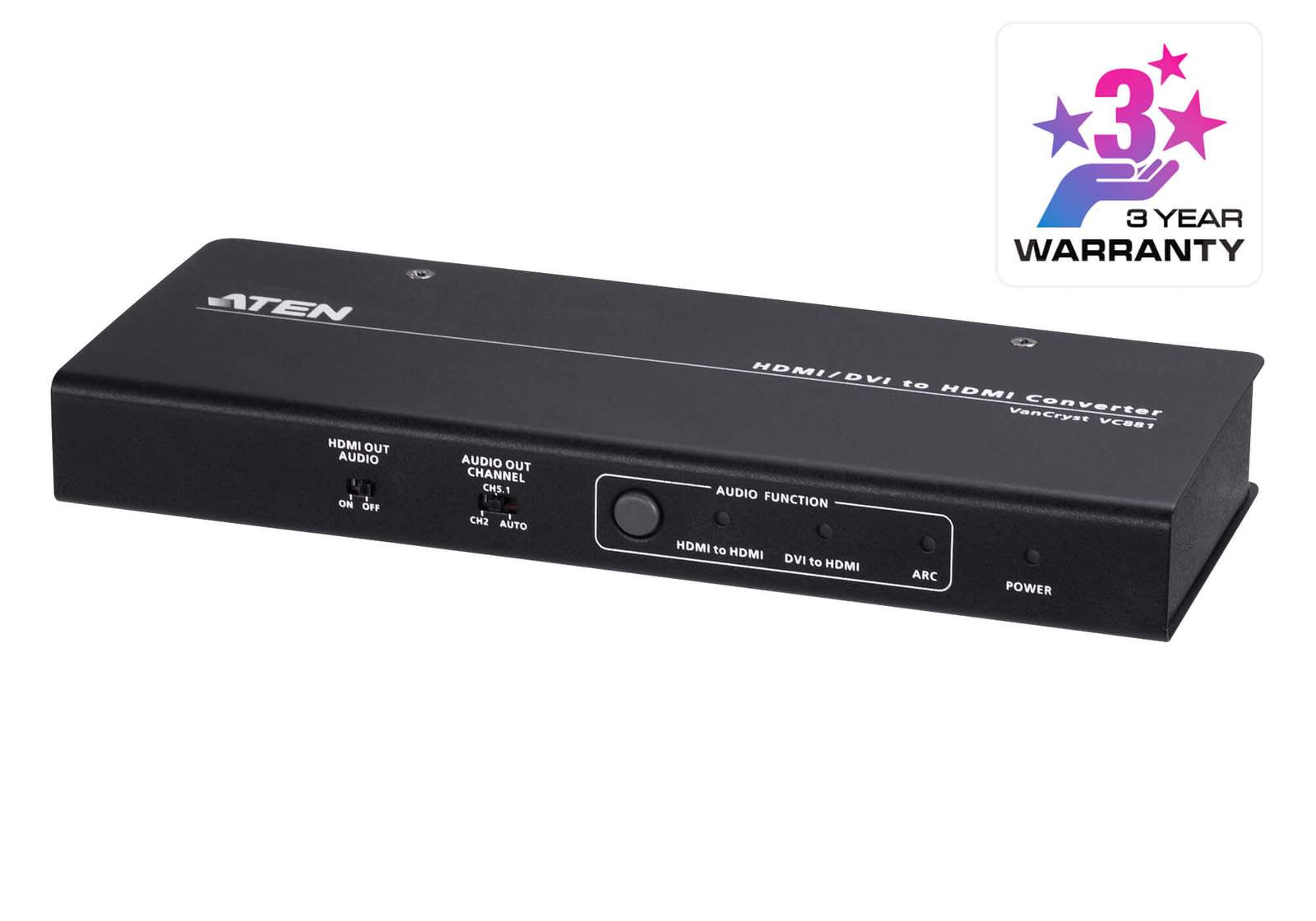

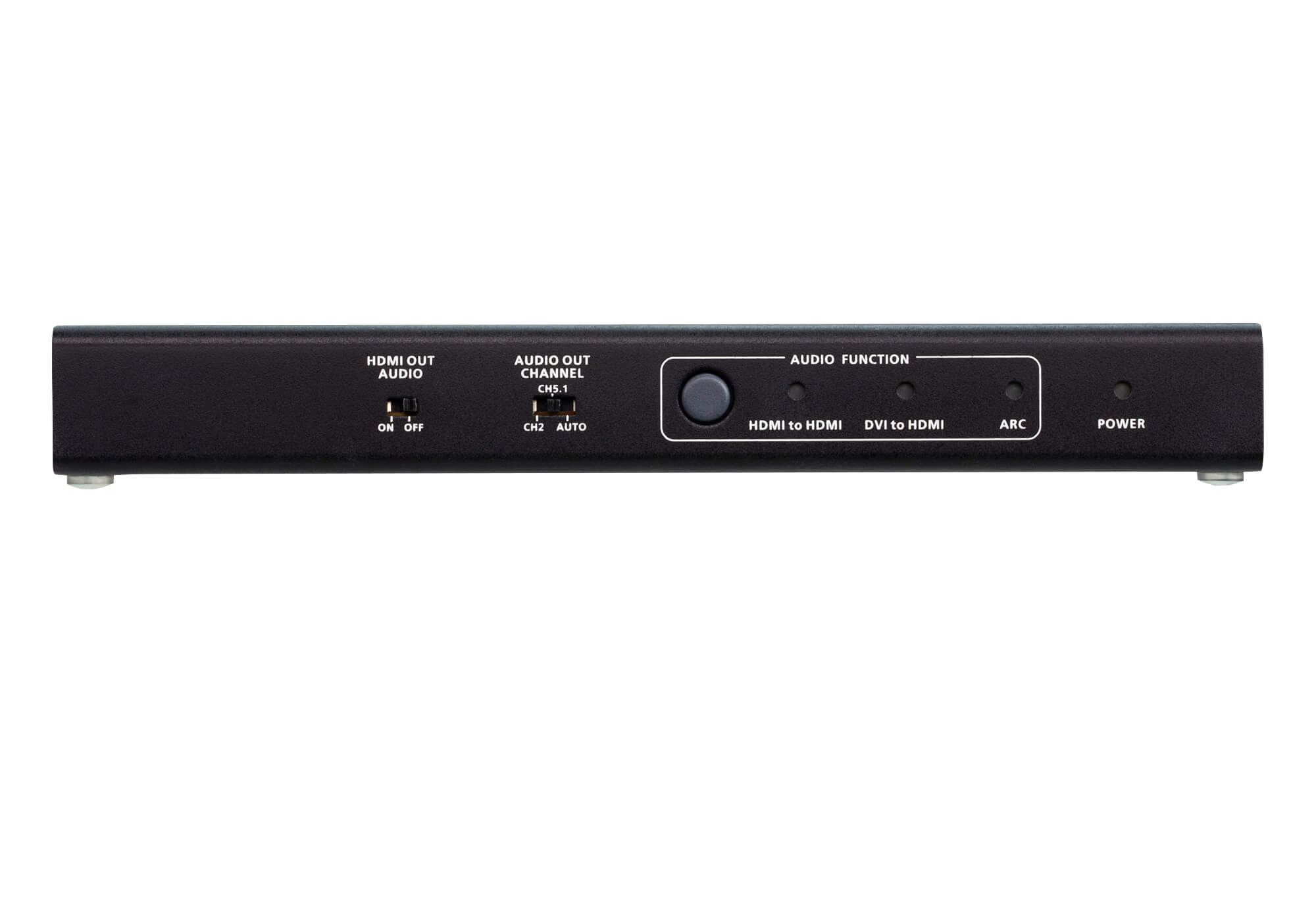

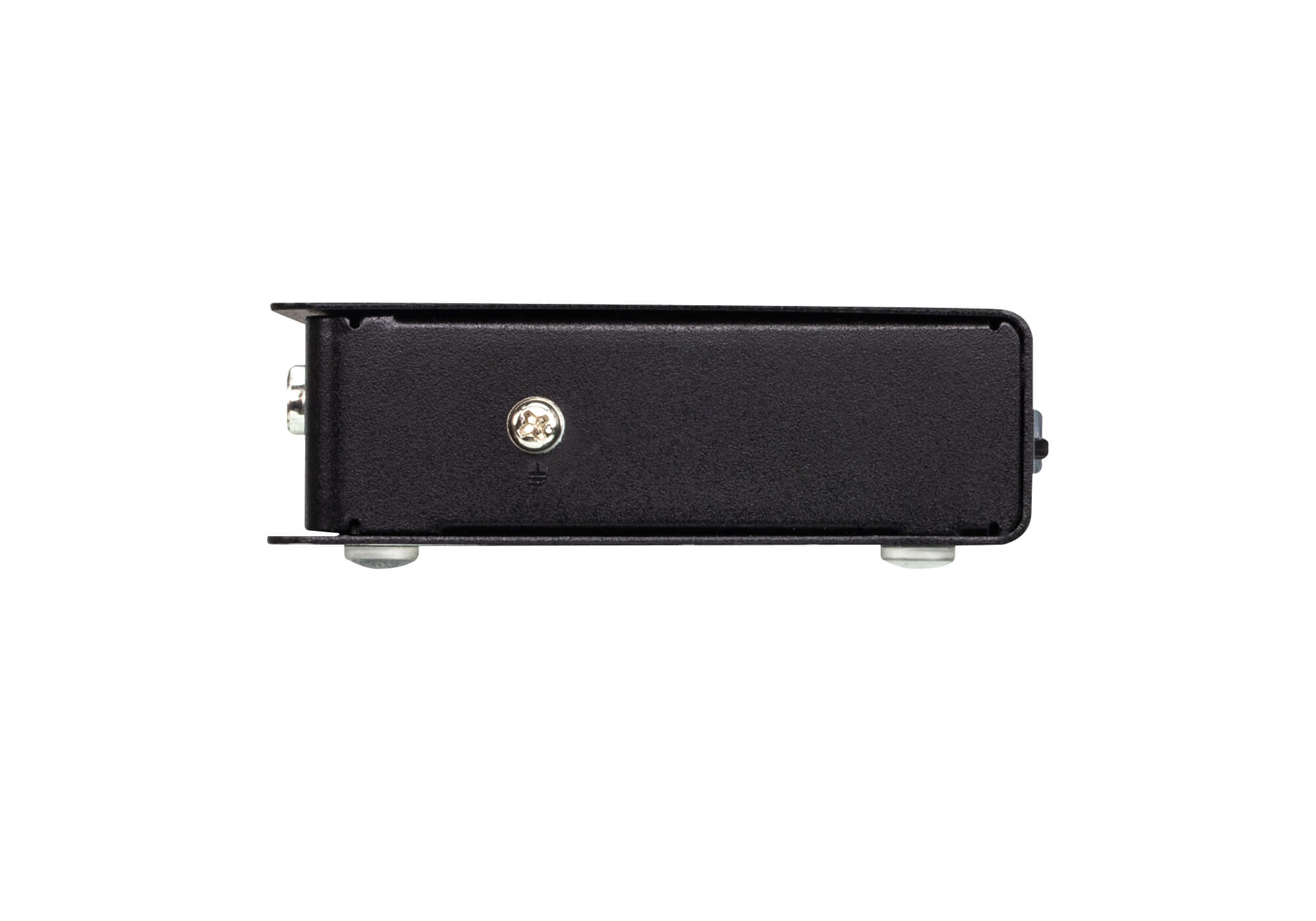

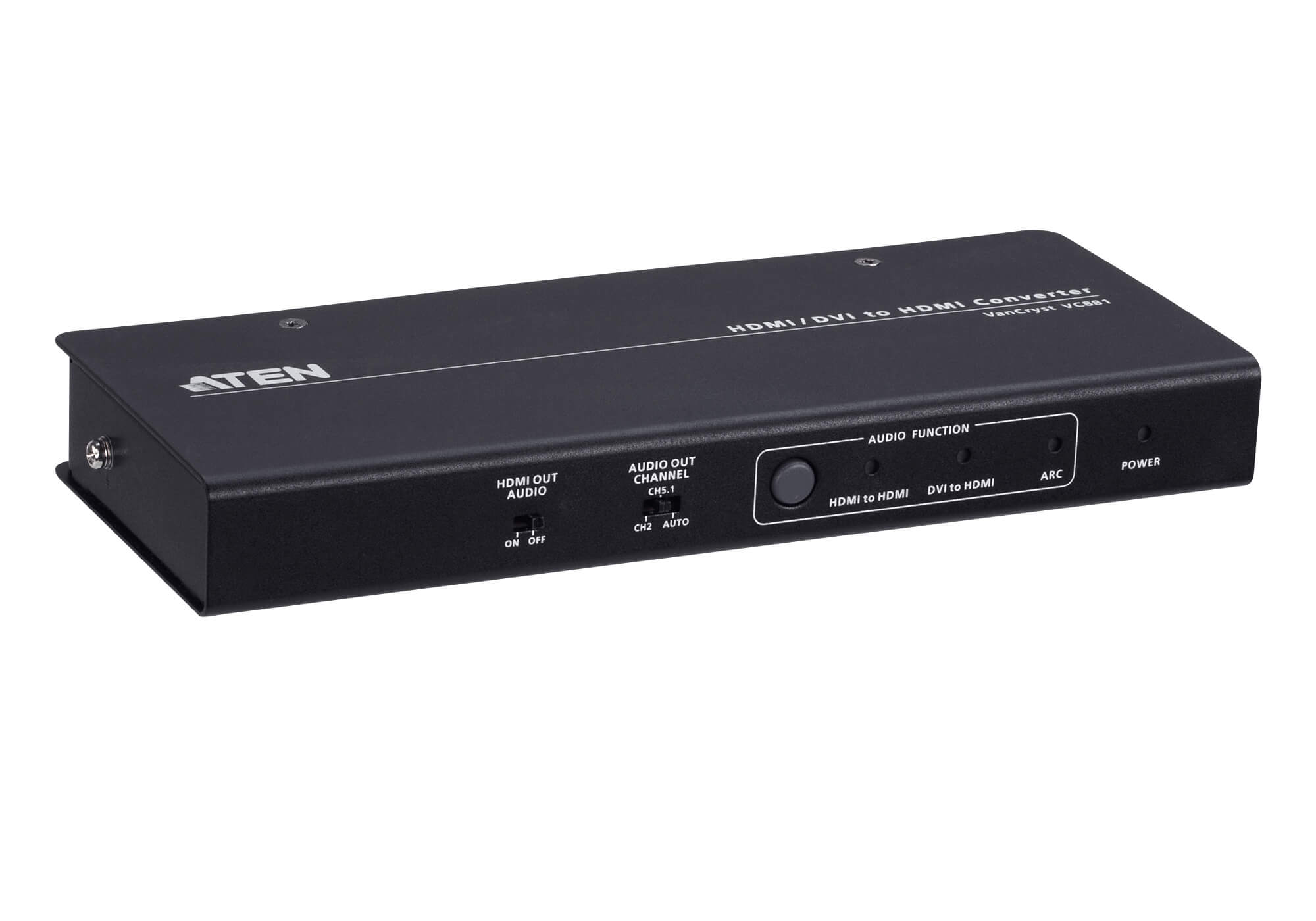

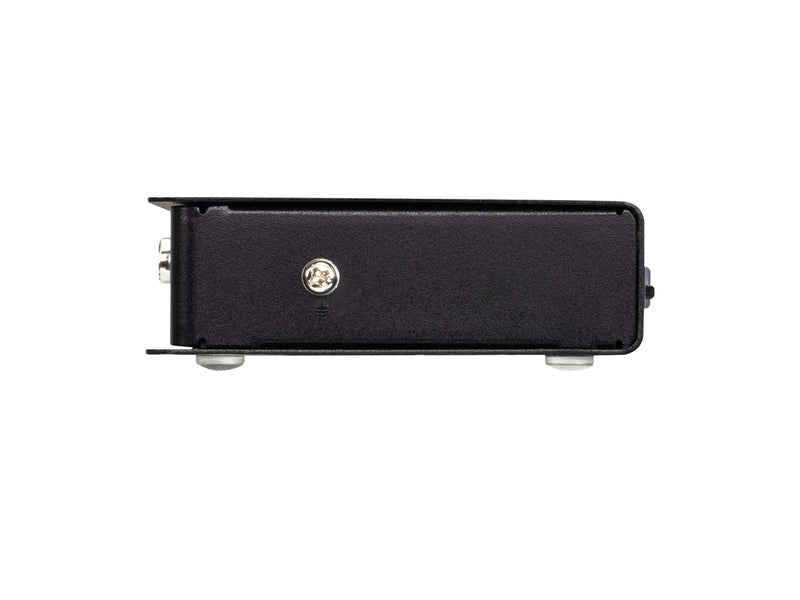

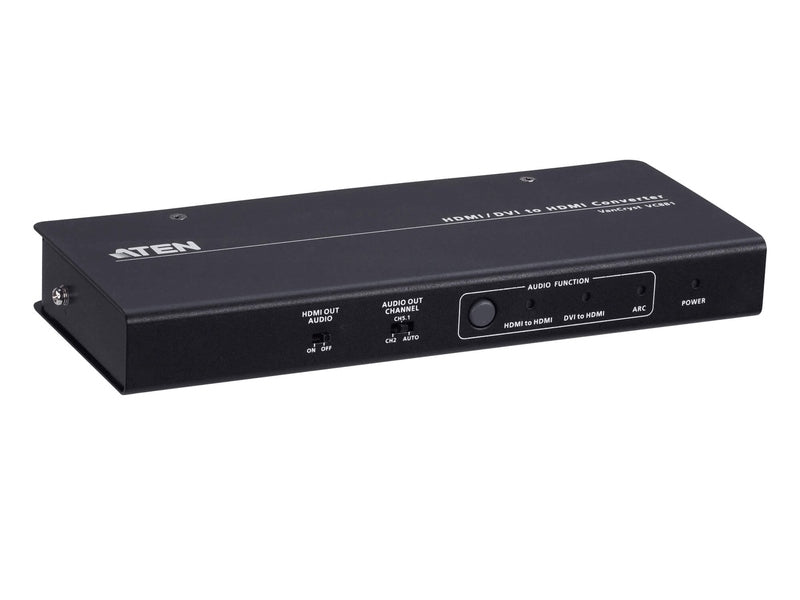

4K HDMI/DVI to HDMI Converter with Audio De-embedder
- Easy mode selection via a pushbutton
• HDMI to HDMI
• DVI to HDMI
• Audio Return Channel (ARC)
- Superior video quality:
• HDMI: up to 4K (3840 x 2160 @30Hz)
• DVI: up to 1920 x 1200
- HDMI audio stream can be extracted and converts it to S/PDIF, Coaxial, or a RCA Stereo Audio signal
Fully immersive audio
The powerful VC881 enables you to seamlessly embed a separate audio source into video content, creating a fully immersive multimedia experience that enhances the effectiveness of presentations for training and educational applications.
Audio de-embedding for better sound
VC881's audio de-embedding functionality can greatly benefit restaurants and home theaters by extracting high-quality audio from the HDMI input source and outputs it to an amplifier or speaker, creating an immersive and enjoyable audio experience.
Hassle-free setup
The audio return channel (ARC) function eliminates the need for extra audio cables and simplifies audio setup, allowing for direct output of TV audio to speakers or amplifiers without any hassle.
4K HDMI/DVI to HDMI Converter with Audio De-embedder
- Easy mode selection via a pushbutton
• HDMI to HDMI
• DVI to HDMI
• Audio Return Channel (ARC)
- Superior video quality:
• HDMI: up to 4K (3840 x 2160 @30Hz)
• DVI: up to 1920 x 1200
- HDMI audio stream can be extracted and converts it to S/PDIF, Coaxial, or a RCA Stereo Audio signal
Fully immersive audio
The powerful VC881 enables you to seamlessly embed a separate audio source into video content, creating a fully immersive multimedia experience that enhances the effectiveness of presentations for training and educational applications.
Audio de-embedding for better sound
VC881's audio de-embedding functionality can greatly benefit restaurants and home theaters by extracting high-quality audio from the HDMI input source and outputs it to an amplifier or speaker, creating an immersive and enjoyable audio experience.
Hassle-free setup
The audio return channel (ARC) function eliminates the need for extra audio cables and simplifies audio setup, allowing for direct output of TV audio to speakers or amplifiers without any hassle.
| HDMI/DVI Audio Converter Specifications | |
|---|---|
| Switches | |
| Mode Selection | Side Switch x 1 (HDMI Audio Out - ON/OFF) Side Switch x 1 (Audio Out Channel - AUTO / CH 5.1 / CH 2) Push Button x 1 (Audio Function Selection): 1. HDMI to HDMI 2. DVI to HDMI 3. ARC (Audio Return Channel) |
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black), 1 x DVI-D Female (White) |
| Impedance | 100 Ω |
| Max. Distance | HDMI: 3M, DVI: 1.8M |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) with ARC |
| Impedance | 100 Ω |
| Max. Distance | 3M |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI 1.4 (3D, Deep Color) |
| HDCP Compatibility | HDCP 1.4 Compatible |
| Max. Resolution | HDMI: 3840 x 2160 @ 30Hz, DVI: 1920 x 1200 |
| Audio | |

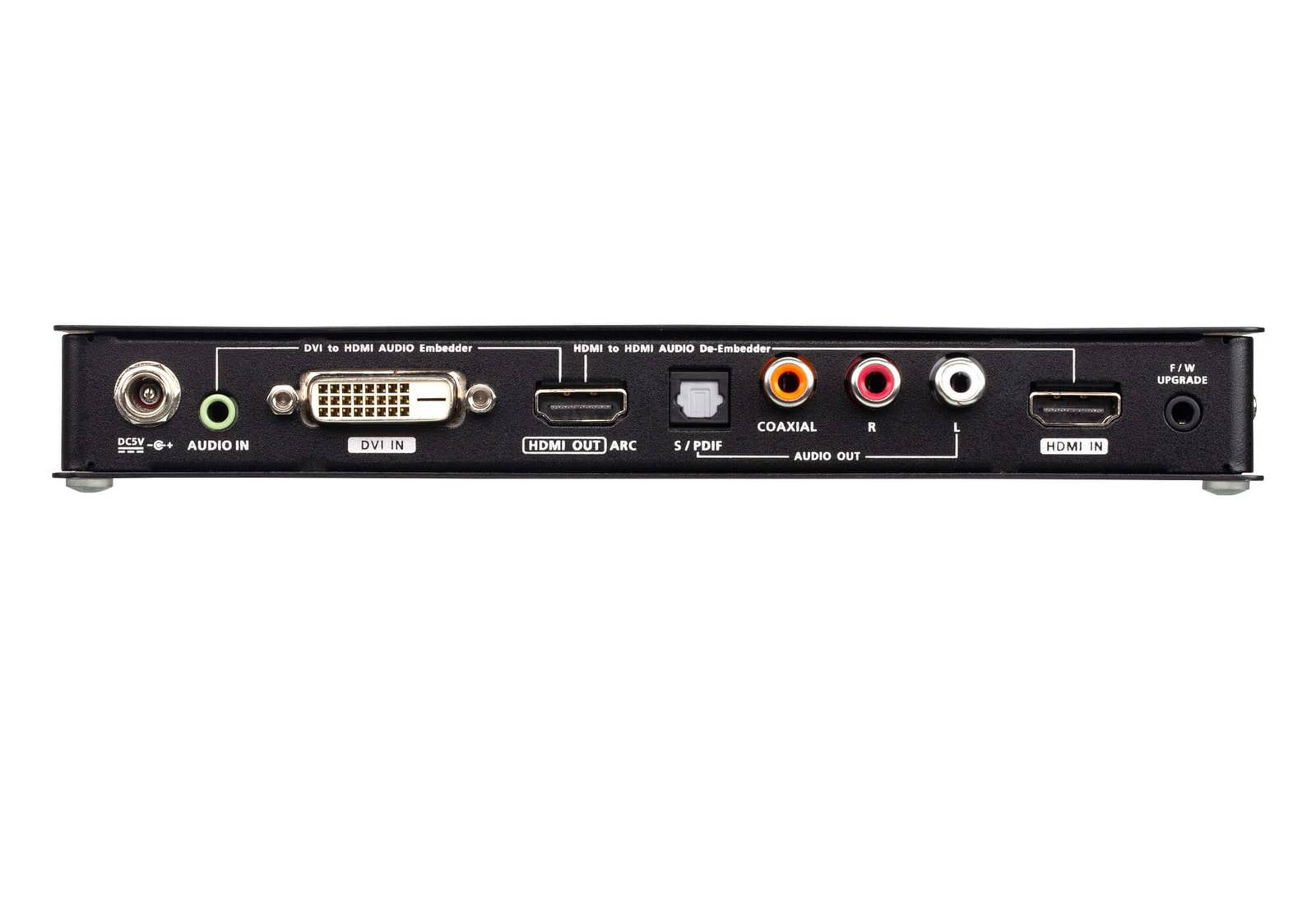

| Output | Optical Audio: 1 x Toslink (Black) Coaxial Audio: 1 x RCA Female (Orange) Stereo Audio: 2 x RCA Female (White / Red) |
| Input | Stereo Audio: 1 x 3.5mm Jack (Green) |
| Connectors | |
| Power | 1 x DC Jack, 5V, Lockable |
| Firmware Upgrade | 1 x 3.5mm Jack (FW upgrade) |
| Power Consumption | |
| Typical / Max | DC5V: 1.767W / 8BTU/h |
| Note | ● Watts = typical consumption with no external loading ● BTU/h = consumption when fully loaded |
| Environmental | |
| Operating Temperature | 0 - 40 ºC |
| Storage Temperature | -20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg (1.04 lb) |
| Dimensions (L x W x H) | 20.20 x 8.49 x 2.50 cm (7.95 x 3.34 x 0.98 in.) |
| Carton Lot | 20 pcs |
| Note | Standard rackmount dimensions are expressed as LxWxH. |
