Overview

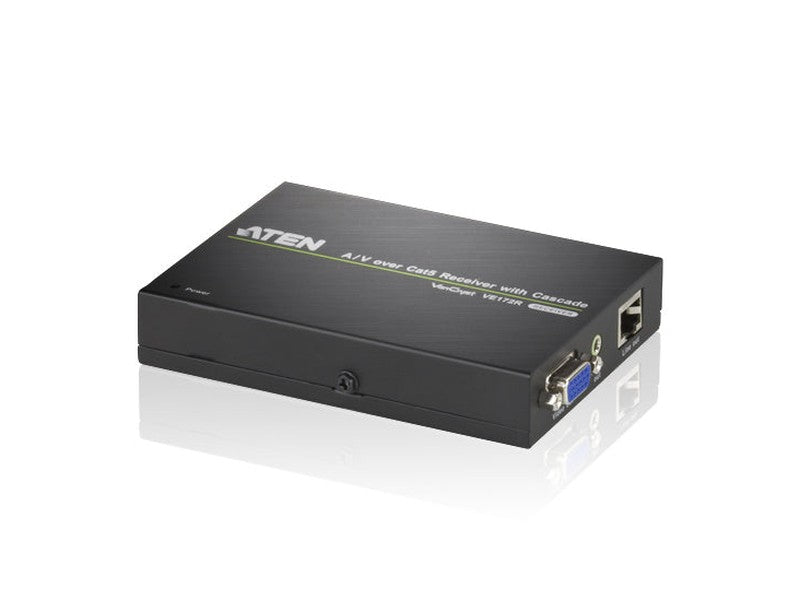

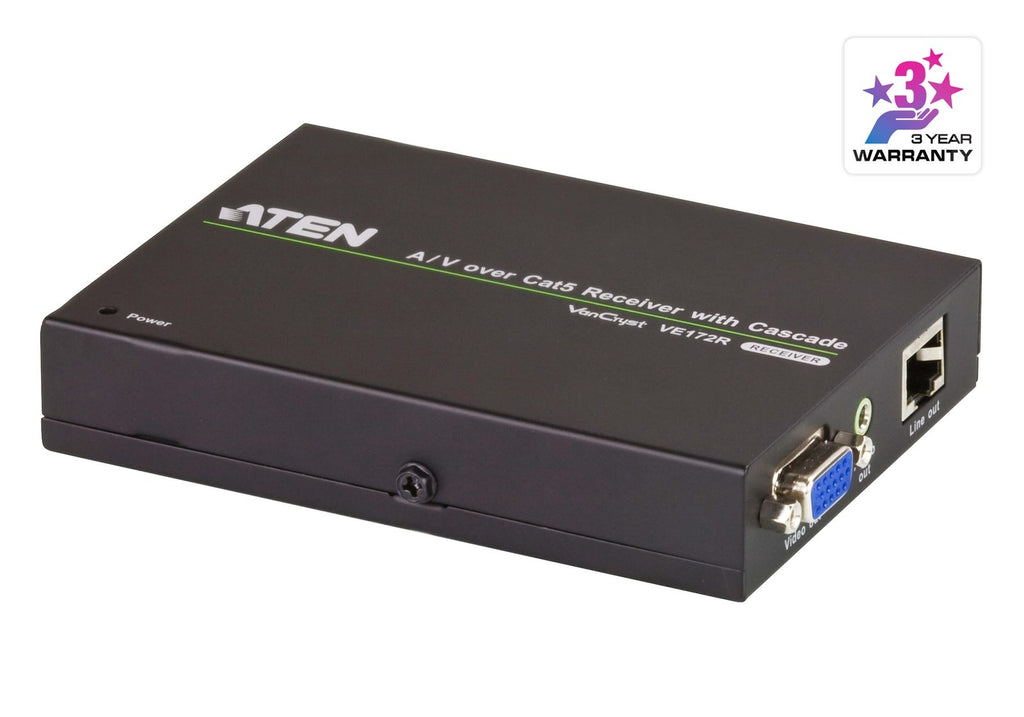

VGA/Audio Cat 5 Receiver with Cascade (1280 x 1024@150m)
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Cascadable up to 10 levels
- Long distance transmission up to 150m
- Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.
Compatible Transmitter Units:
- VE170T A/V Over Cat 5 Transmitter
- VS1204T A/V Over Cat 5 Transmitter
- VS1208T A/V Over Cat 5 Transmitter
Compatible Receiver Units:
- VE172R A/V Over Cat 5 Receiver with Cascade
- VE170R A/V Over Cat 5 Receiver
- VE170RQ A/V Over Cat 5 Receiver with Deskew
VGA/Audio Cat 5 Receiver with Cascade (1280 x 1024@150m)
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Cascadable up to 10 levels
- Long distance transmission up to 150m
- Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.
Compatible Transmitter Units:
- VE170T A/V Over Cat 5 Transmitter
- VS1204T A/V Over Cat 5 Transmitter
- VS1208T A/V Over Cat 5 Transmitter
Compatible Receiver Units:
- VE172R A/V Over Cat 5 Receiver with Cascade
- VE170R A/V Over Cat 5 Receiver
- VE170RQ A/V Over Cat 5 Receiver with Deskew
| Product Specifications | |
|---|---|
| Video Output | |

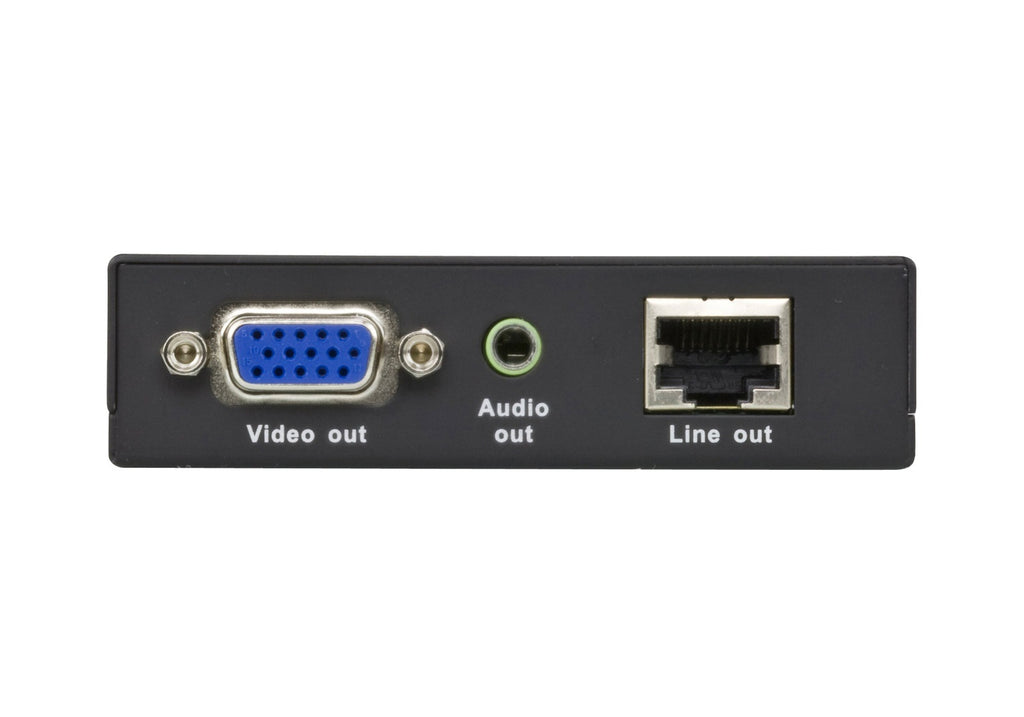

| Interfaces | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ω |
| Video | |
| Max. Bandwidth | 300 MHz |
| Max. Resolutions / Distance | Up to 1920 x 1200 @ 30m 1280 x 1024 @ 150m |
| Audio Outputs | |
| Interfaces | 1 x Mini Stereo Jack Female (Green) |
| Connectors | |

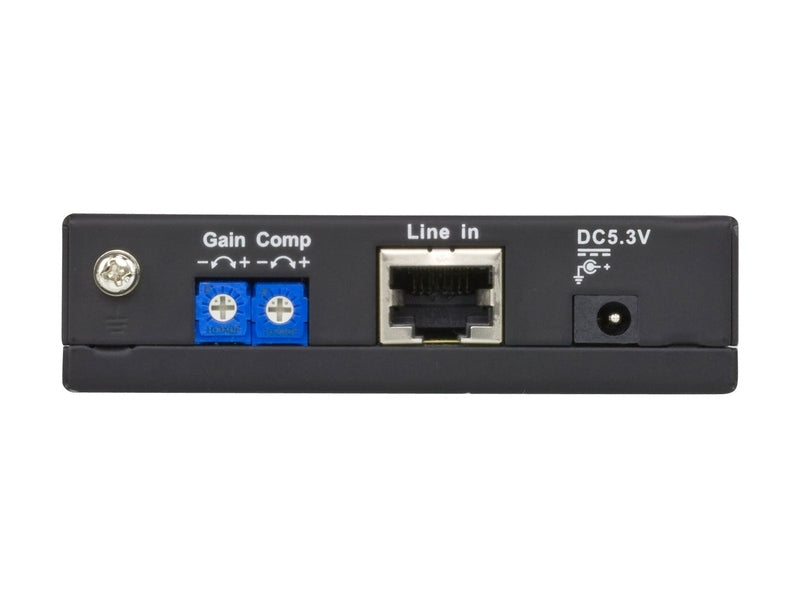

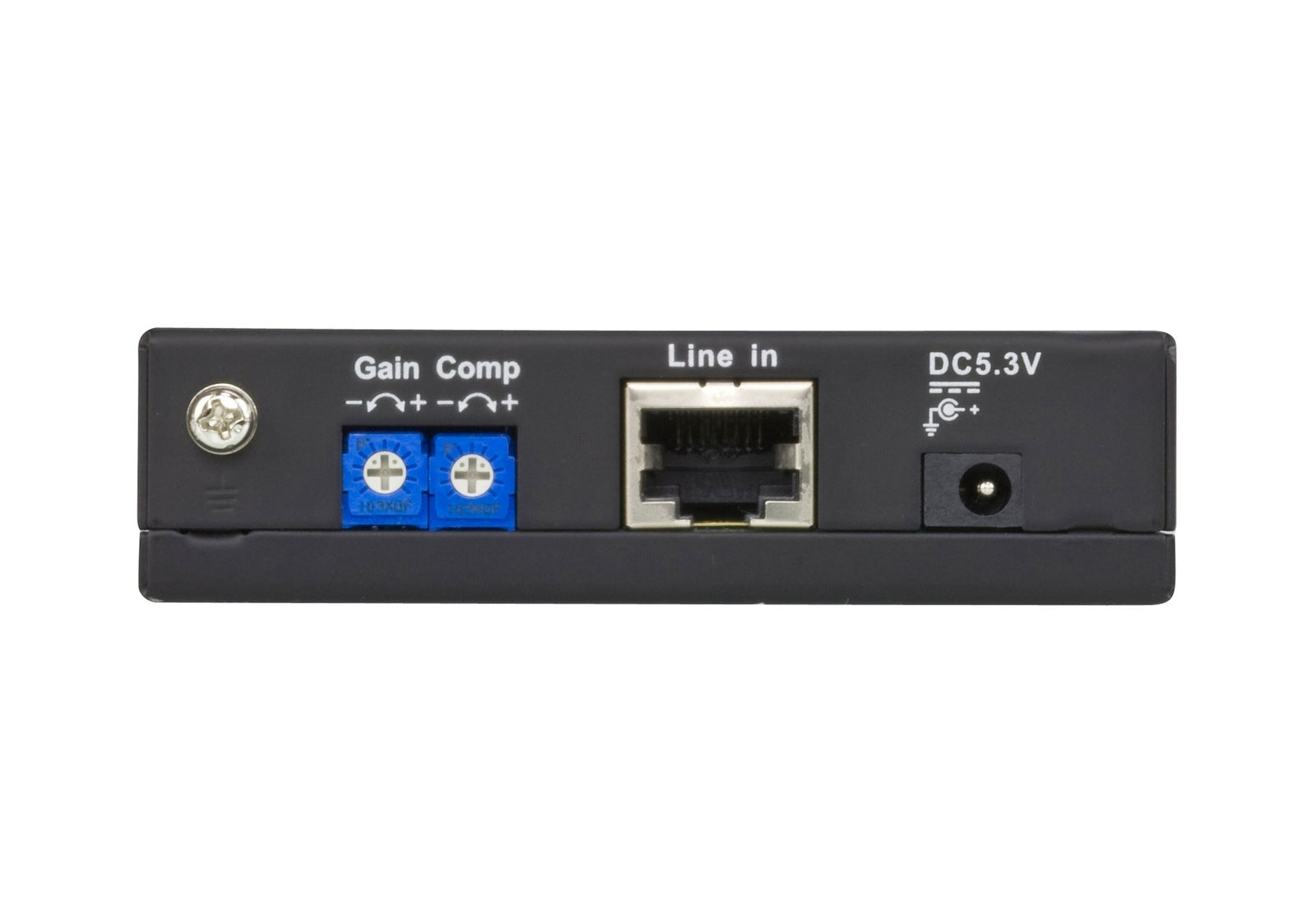

| Power | 1 x DC Jack (Black) |
| Power Consumption | DC5.3V: 2.29W; 11 BTU/h |
| Note | |
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. ● For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | –20–60°C |
| Humidity | 0–80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.24 kg (0.53 lb) |
| Dimensions (L x W x H) | 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
| Carton Lot | 5 pcs |
