Description
Overview

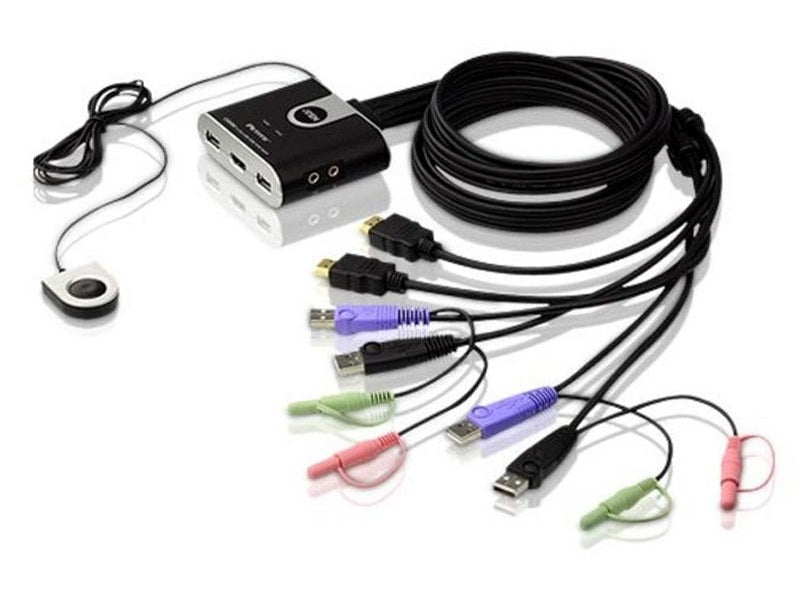

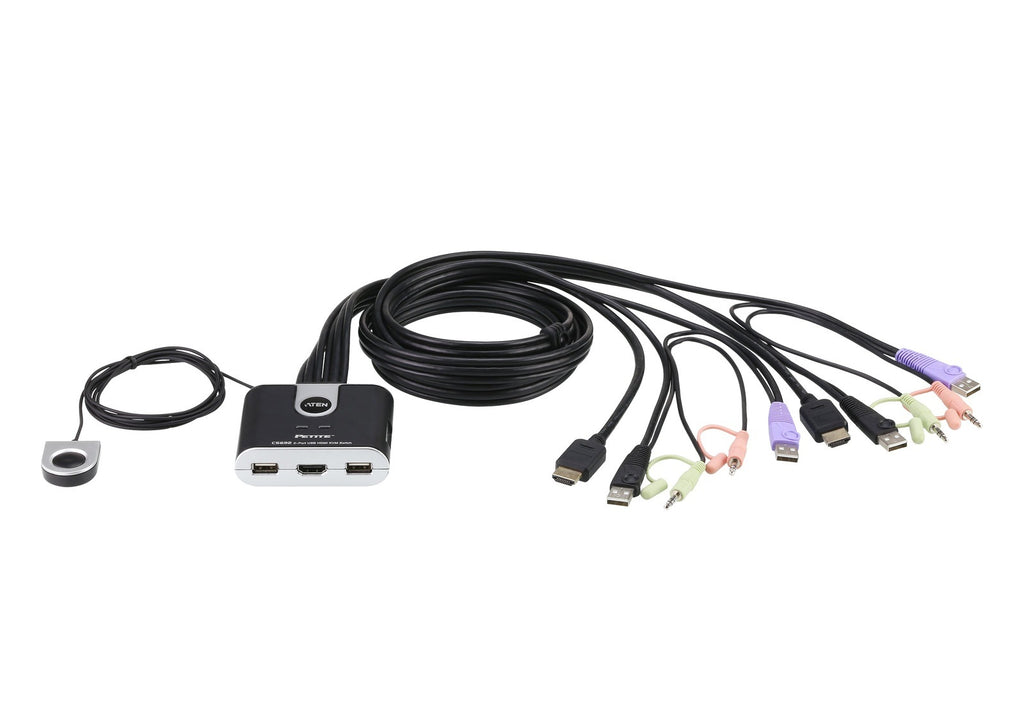

2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
- Superior video quality - up to 1920 x 1200 and 1080p
- Computer selection via a remote port selector, hotkeys, and USB mouse
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Built-in all-in-one cables (2 x 1.2 m) and bus-powered design
The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
- Superior video quality - up to 1920 x 1200 and 1080p
- Computer selection via a remote port selector, hotkeys, and USB mouse
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Built-in all-in-one cables (2 x 1.2 m) and bus-powered design
The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
| Specifications | |
|---|---|
| Computer Connections | 2 |
| Port Selection | Hotkey, Remote Port Selector, Mouse |
| Connectors | |
| Console Ports | 1 x HDMI Female (Black) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink) |
| KVM Ports | 2 x HDMI Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink) |
| LEDs | |
| KVM | 2 (Green) |
| Cable Length | |
| KVM | 2 x 1.2 m |
| Remote Port Selector | 1.8 m |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1080 @ 60 Hz; 1920 x 1200 @ 60Hz |
| Scan Interval | 3, 5, 10, 20 secs. (default 5 secs.) |
| Power Consumption | DC5V:0.72W:8BTUBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.48 kg ( 1.06 lb ) |
| Dimensions (L x W x H) | 8.24 x 6.65 x 2.52 cm (3.24 x 2.62 x 0.99 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
