Aten Compact KVM Switch 2 Port Single Display VGA, Remote Port Selector, USB Hot-Plugging

AtenSKU: CS22U-AT

Desktop KVM

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$40.00

Estimate shipping

Description

Overview

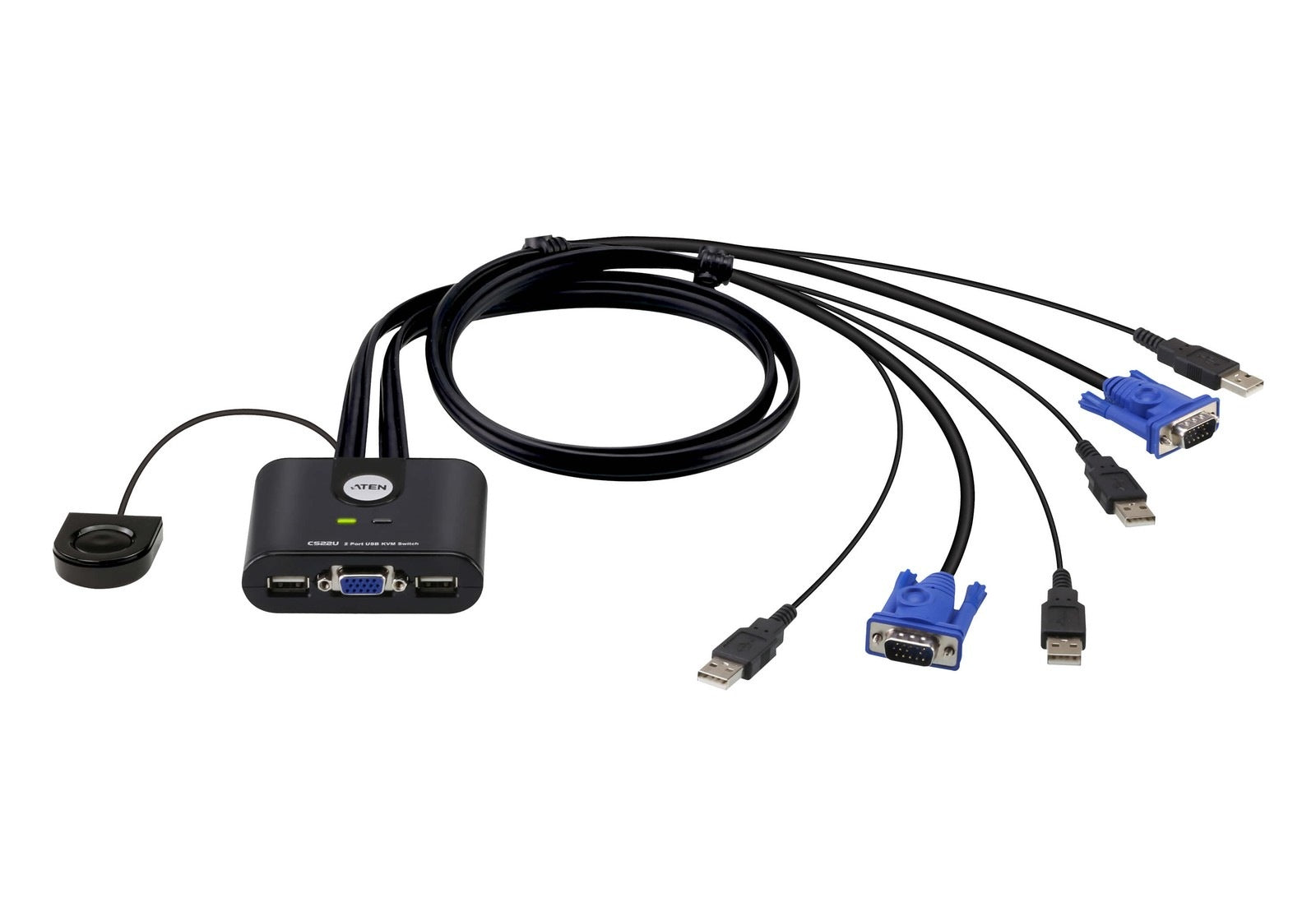

2-Port USB VGA Cable KVM Switch with Remote Port Selector

- Superior video quality - up to 2048 x 1536; DDC2B
- Computer Selection via a Remote Port Selector
- Multiplatform support - Windows, Mac, Linux and Sun
- Bus-powered design

The compact CS22U allows quick switching between 2 VGA-interfaced PCs via one KVM console and flexible media sharing via the console USB ports, which helps to expand desktop workspace while keeping it tidy and organized for improved productivity.

Smooth Cross-Platform Integration
The CS22U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.

Plug in. Power on
The CS22U supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

KVM Switch Specifications
Computer Connections
Computer Connections 2
Port Selection Remote Port Selector
Connectors

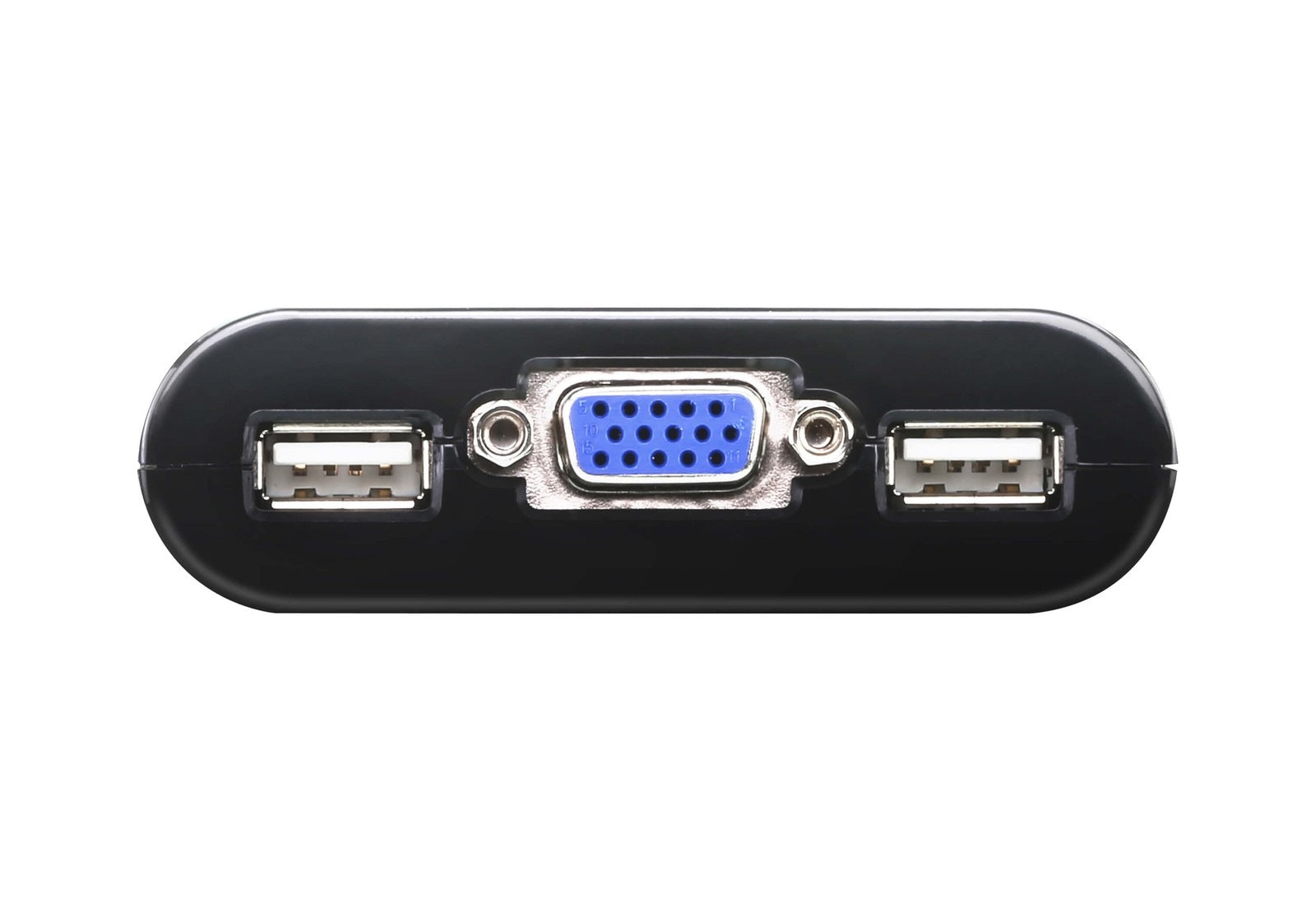

Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
KVM Ports 2 x HDB-15 Male (Blue)
4 x USB Type A Male (Black)
LEDs
Selected 2
Cable Length
Computer 2 x 0.9 m
Remote Port Selector 1.8 m
Video
Resolution 2048 x 1536
DDC DDC2B
Power Consumption
Typical / Max DC5V: 0.14W / 13BTU/h
Note ● Watts = typical consumption with no external loading
● BTU/h = consumption when fully loaded
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.30 kg (0.66 lb)
Dimensions (L x W x H) 8.24 x 7.01 x 2.46 cm
(3.24 x 2.76 x 0.97 in.)
Note Standard rackmount dimensions are expressed as LxWxH.
