Description
Overview

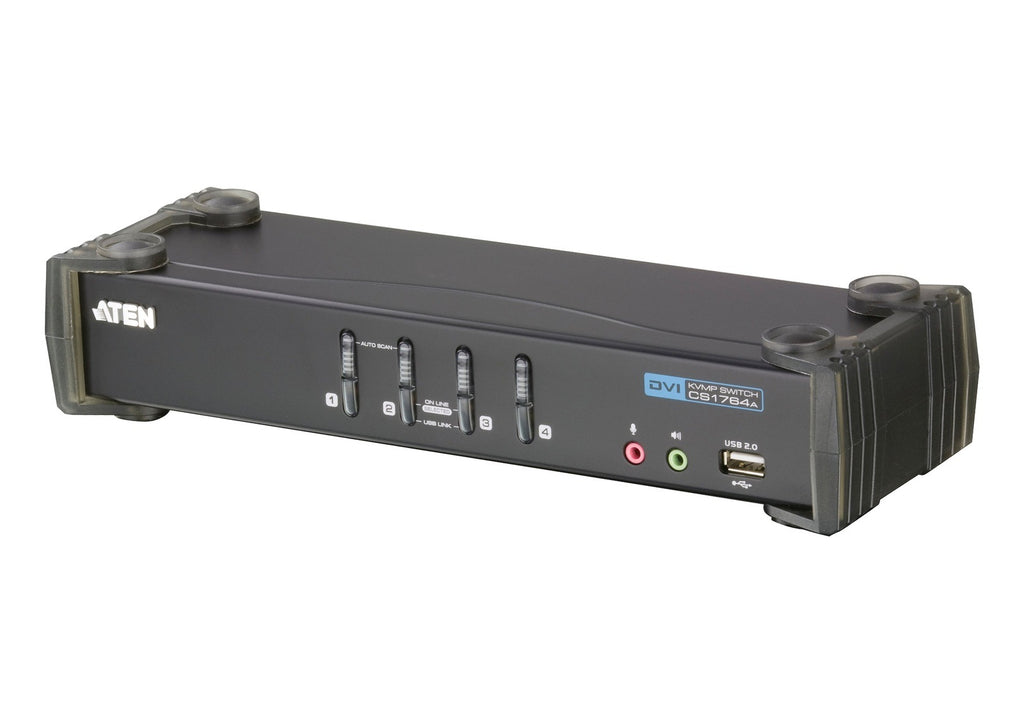

4-Port USB DVI/Audio KVMP™ Switch
- Superior video quality – 1920 x 1200
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Multiplatform support – Windows, Linux, Mac, and Sun
The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN’s Video DynaSync™ technology, enhancing display resolution, and power-on detection. This means that if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.
Functioning as a KVM switch, it allows users to access 4 computers using a single USB keyboard, USB mouse, and monitor console. Operating as a USB 2.0 hub, it enables each computer to access peripherals connected to the hub one at a time.
4-Port USB DVI/Audio KVMP™ Switch
- Superior video quality – 1920 x 1200
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Multiplatform support – Windows, Linux, Mac, and Sun
The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN’s Video DynaSync™ technology, enhancing display resolution, and power-on detection. This means that if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.
Functioning as a KVM switch, it allows users to access 4 computers using a single USB keyboard, USB mouse, and monitor console. Operating as a USB 2.0 hub, it enables each computer to access peripherals connected to the hub one at a time.
| Product Specifications | |
|---|---|
| General | |
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse |
| Connectors | |

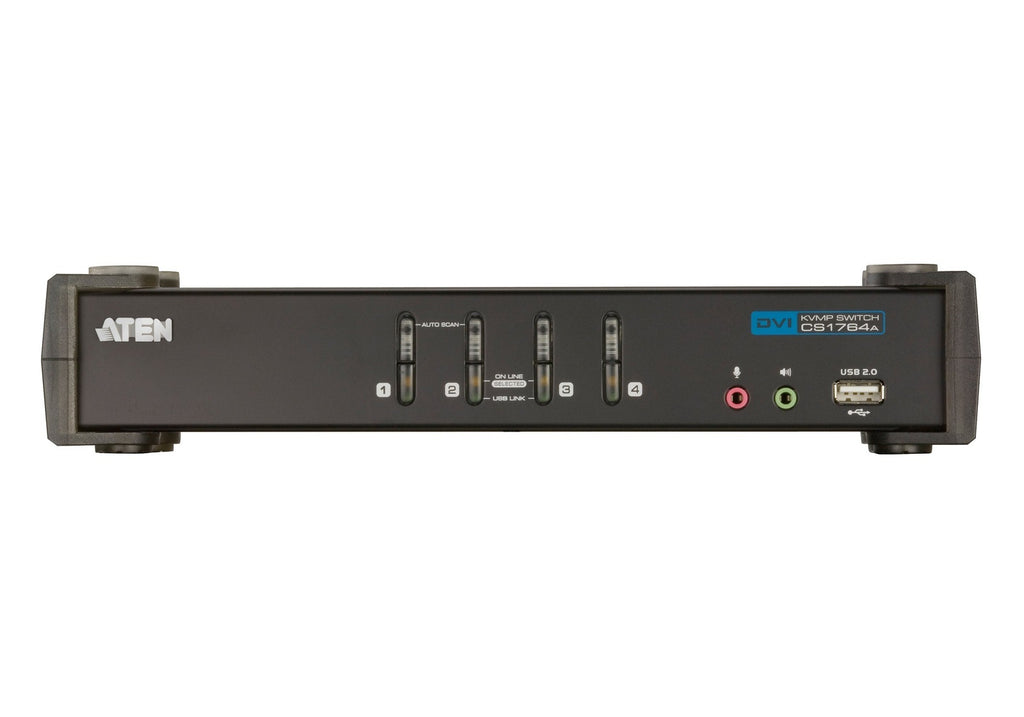

| Console Ports | 2 x USB Type A Female (White; front panel) 1 x DVI-I Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel) |

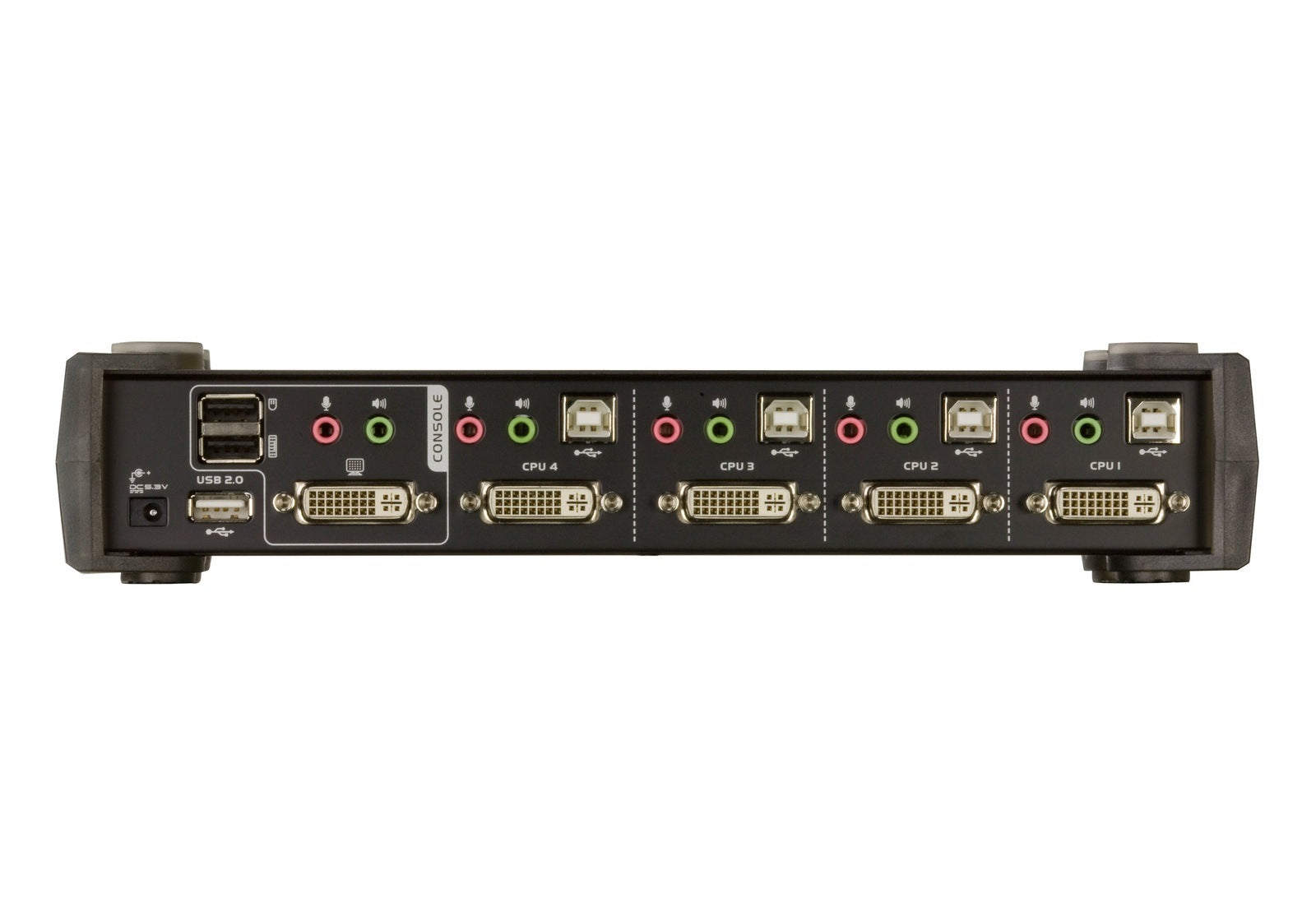

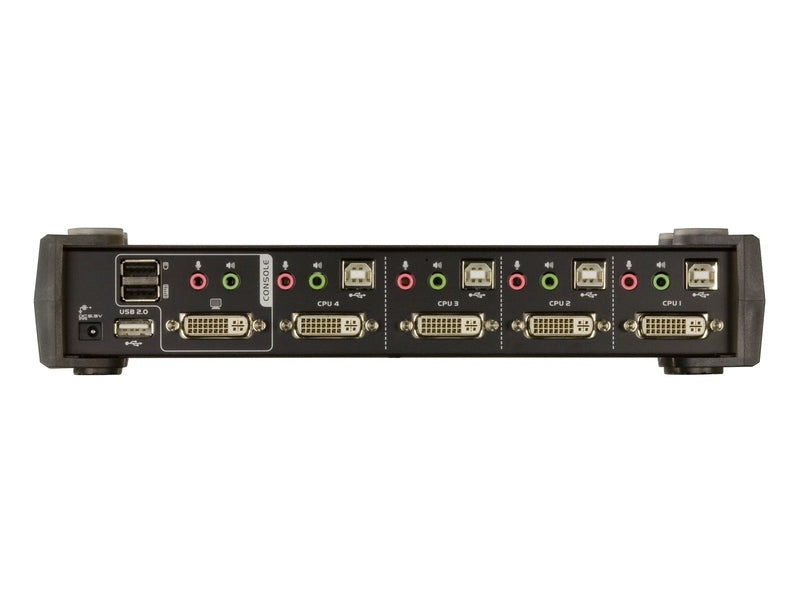

| KVM Ports | 4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel) |
| Switches | |
| Selected | 4 x Pushbutton |
| LEDs | |
| USB Link | 4 (Green) |
| On Line / Selected | 4 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | |
| Resolution | 1920 x 1200 @ 60Hz; DDC2B |
| Scan Interval | 1–99 Seconds (Default: 5 sec.) |
| Power Consumption | |
| Typical / Loaded | DC5.3V: 3.69W; 43 BTU/h |
| Note | |
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. ● For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | –20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.94 kg (2.07 lb) |
| Dimensions (L x W x H) | 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.) |
