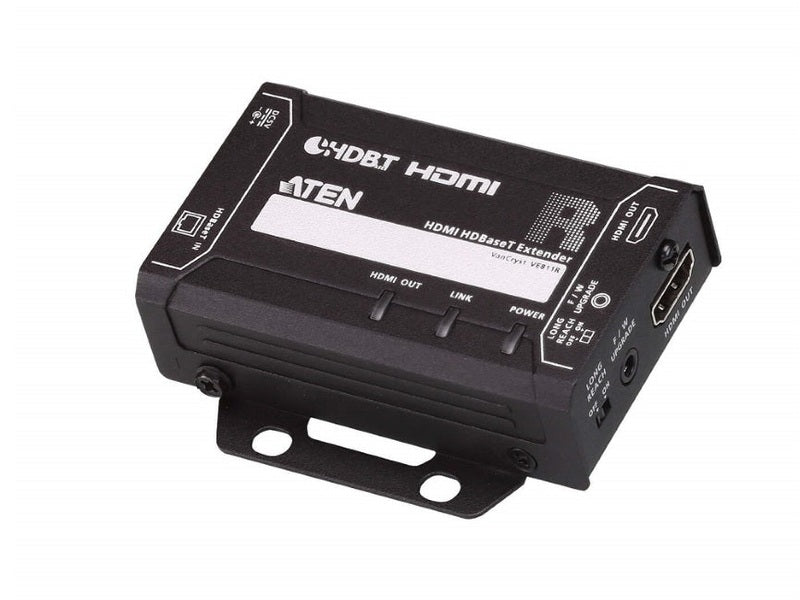

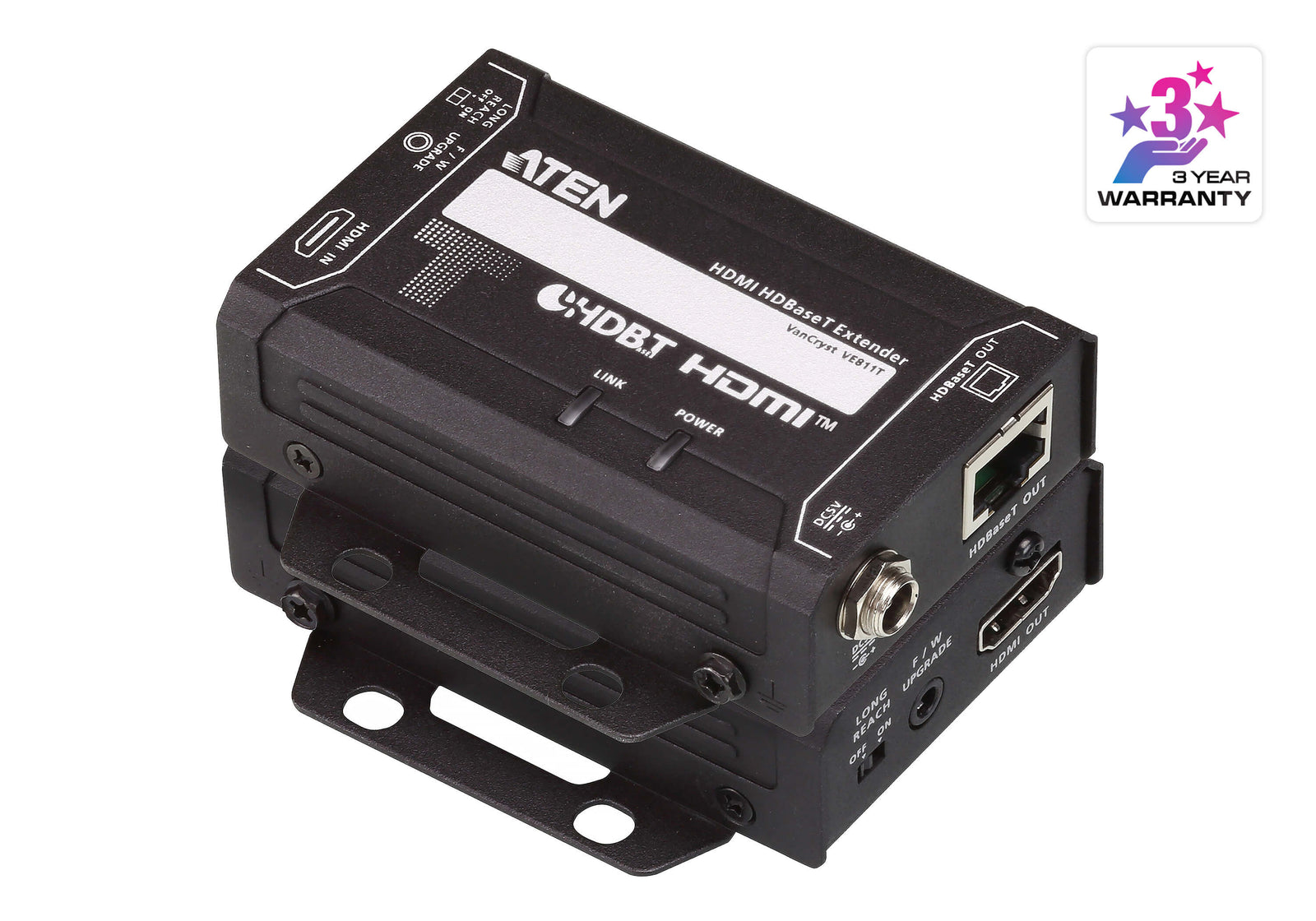

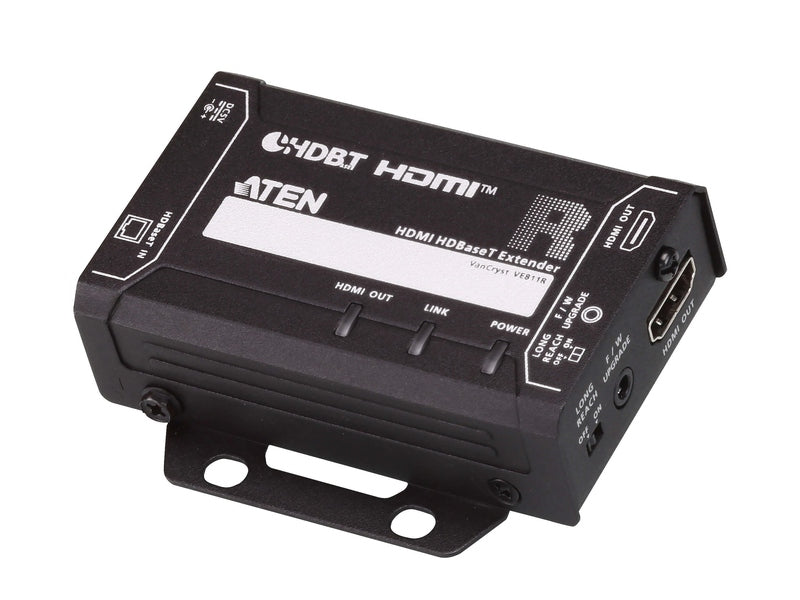

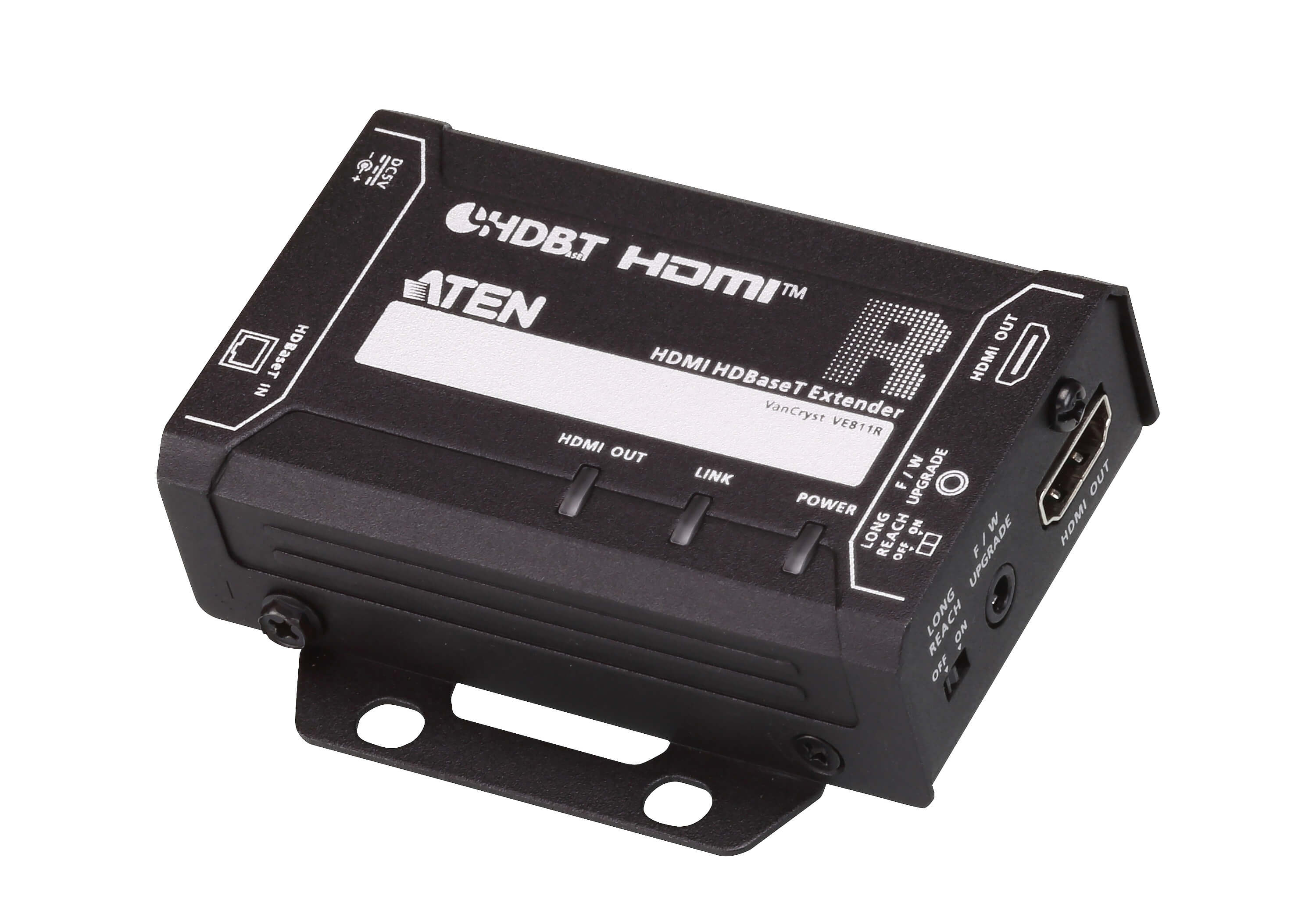

Aten HDBaseT HDMI Extender (4K@100m)

AtenSKU: VE811-AT-U

Video Extender

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$507.00

Estimate shipping

Description

Overview

HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)

- HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Supports resolutions of up to 4K and 1080p
- HDCP 2.2 compatible

Note: The images are for reference only. The printing on the device may differ due to product enhancement.

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 7.1 ch and DTS HD audio.

Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.

Function VE811R VE811T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ω N/A
Max. Distance 3 m N/A
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A

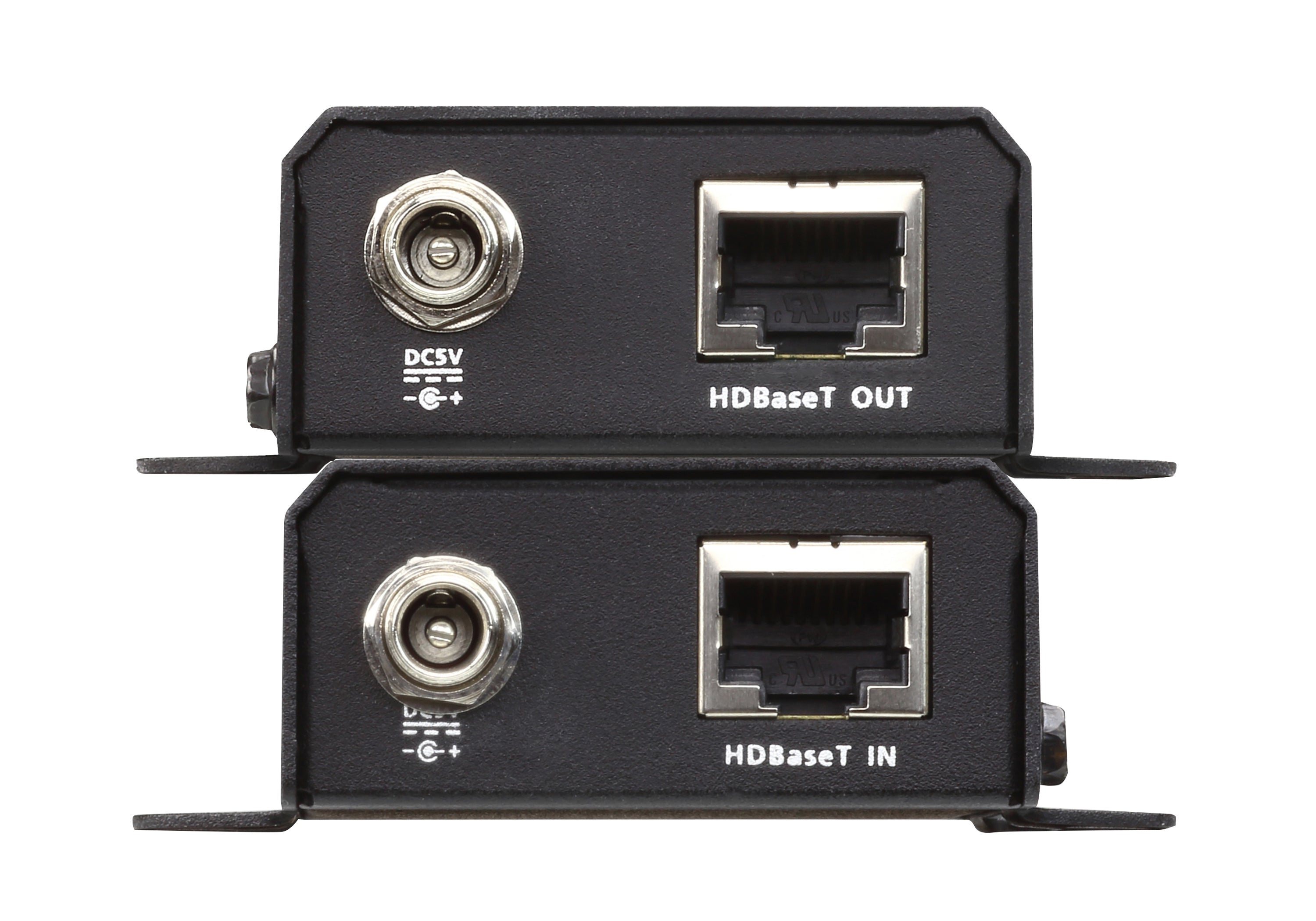

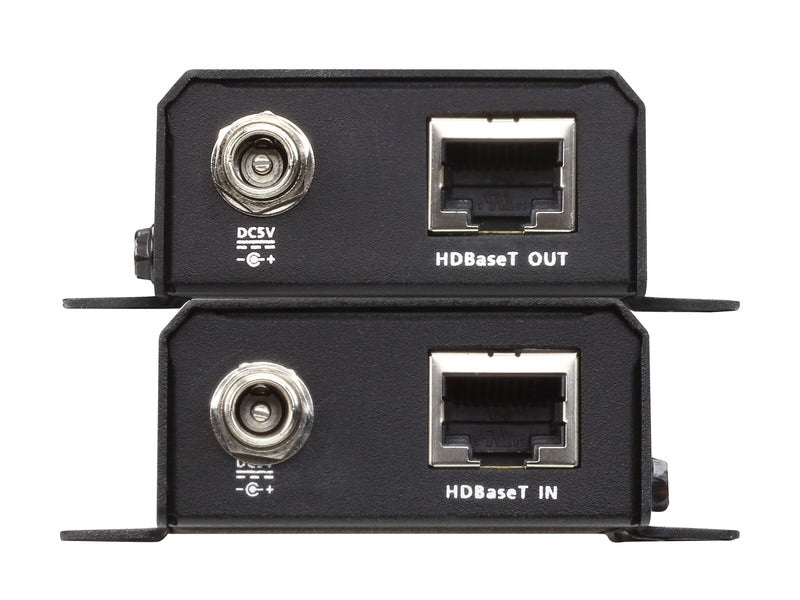

Connectors
Unit To Unit 1 x RJ-45 Female
Firmware Upgrade 1 x Mini Stereo Jack Female (Black)
Power 1 x DC Jack (Black) with locking

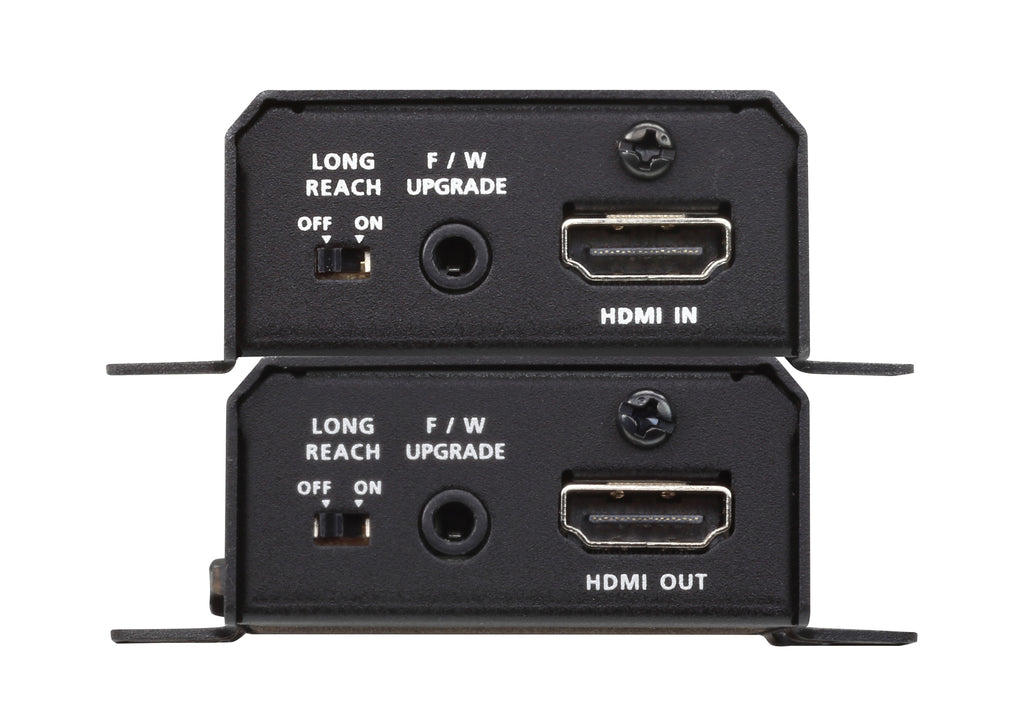

Switches
Long Reach Mode Switch 1 x Slide Switch - ON/OFF
Power Consumption
Typical / Loaded DC5V: 3.84W; 18 BTU/h DC5V: 3.77W; 18 BTU/h
Note
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–40°C
Storage Temperature –20–60°C
Humidity 0–80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.17 kg (0.37 lb) 0.16 kg (0.35 lb)
Dimensions (L x W x H) with bracket 8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)
Dimensions (L x W x H) without bracket 8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)
Input Resolutions
VE811R 640 x 480 @ 60/67/72/75 Hz
640 x 480 @ 60Hz (4:3)
720 x 400 @ 70 Hz
800 x 600 @ 56/60/72/75 Hz
1024 x 768 @ 60/70/75 Hz
1280 x 800 @ 60 Hz
1280 x 1024 @ 60/75 Hz
1400 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
1920 x 1200 @ 60 Hz
VE811T 1920 x 1200 @ 60 Hz (Reduced Blanking)
480p 60 Hz (4:3)/(16:9)
576p 50 Hz (4:3)/(16:9)
720p 50/60 Hz
1080i 50/60 Hz
1080p 24/25/30/50/60 Hz
3840 x 2160p 24/25/30 Hz
3840 x 2160p 50/60 Hz 4:2:0
4096 x 2160p 24/25/30 Hz
4096 x 2160p 50/60 Hz 4:2:0
