Aten HDMI HDBaseT-Lite Extender

AtenSKU: VE801-AT-U

Video Extender

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$357.00

Estimate shipping

Description

Overview

HDMI HDBaseT-Lite Extender (4K@40m) (HDBaseT Class B)

- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable

Note: The images are for reference only. The printing on the device may differ due to product enhancement.

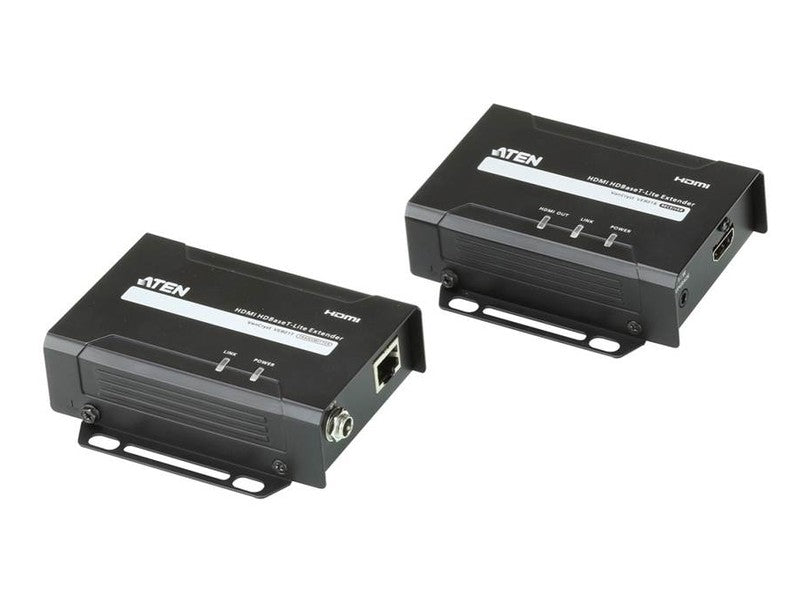

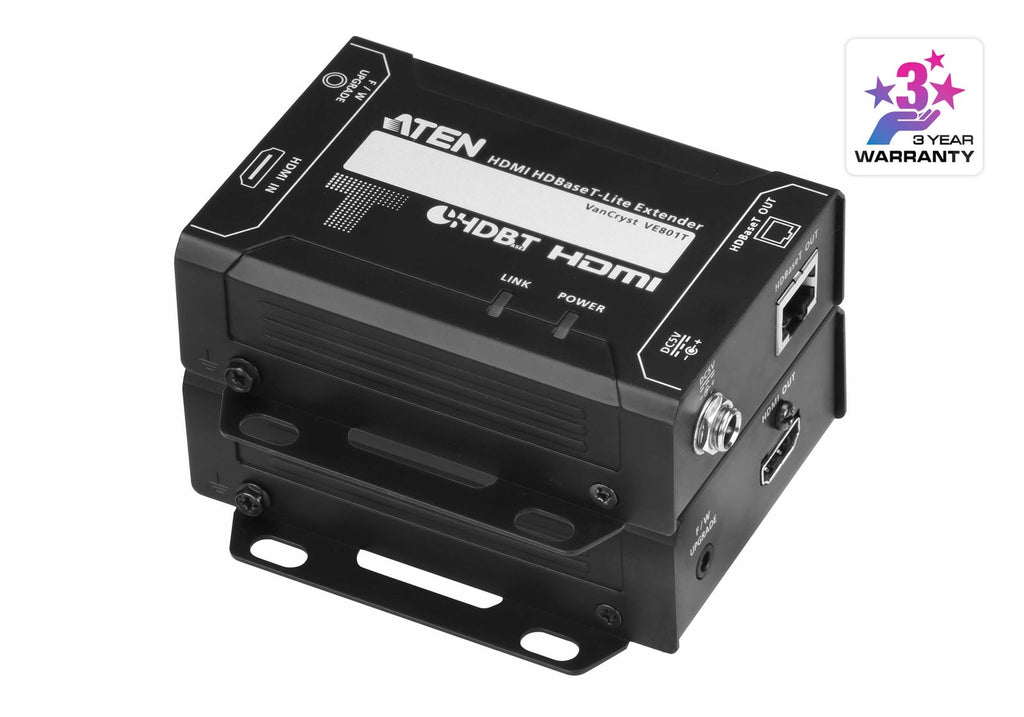

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

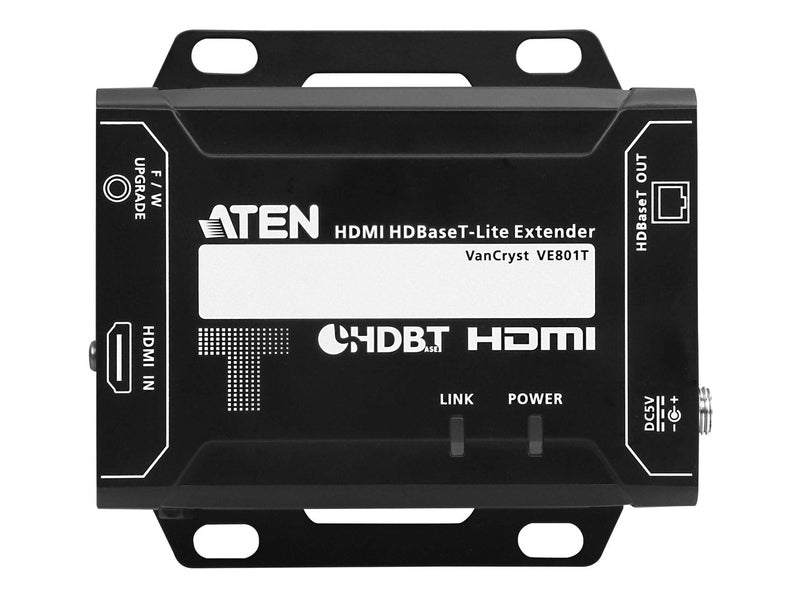

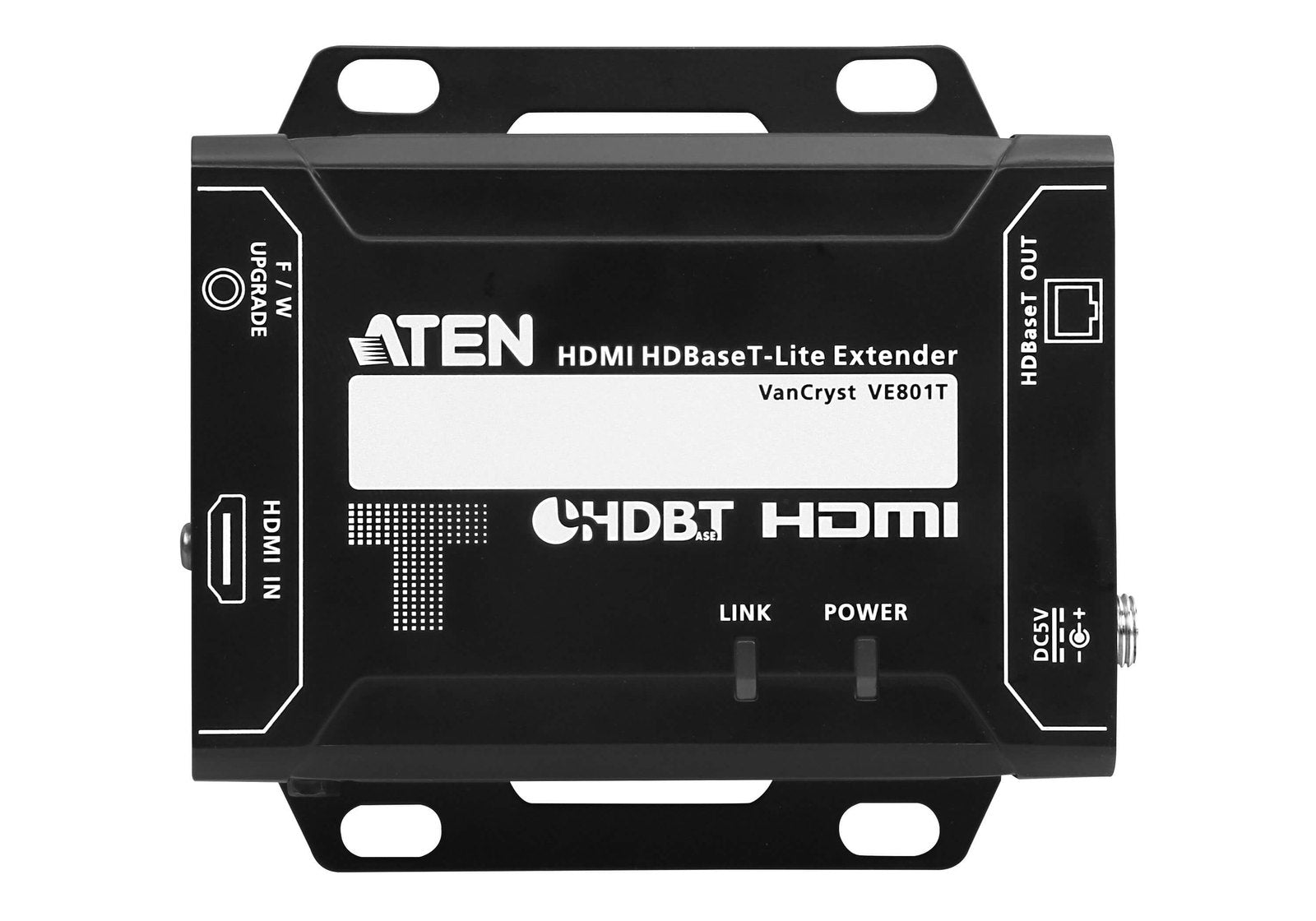

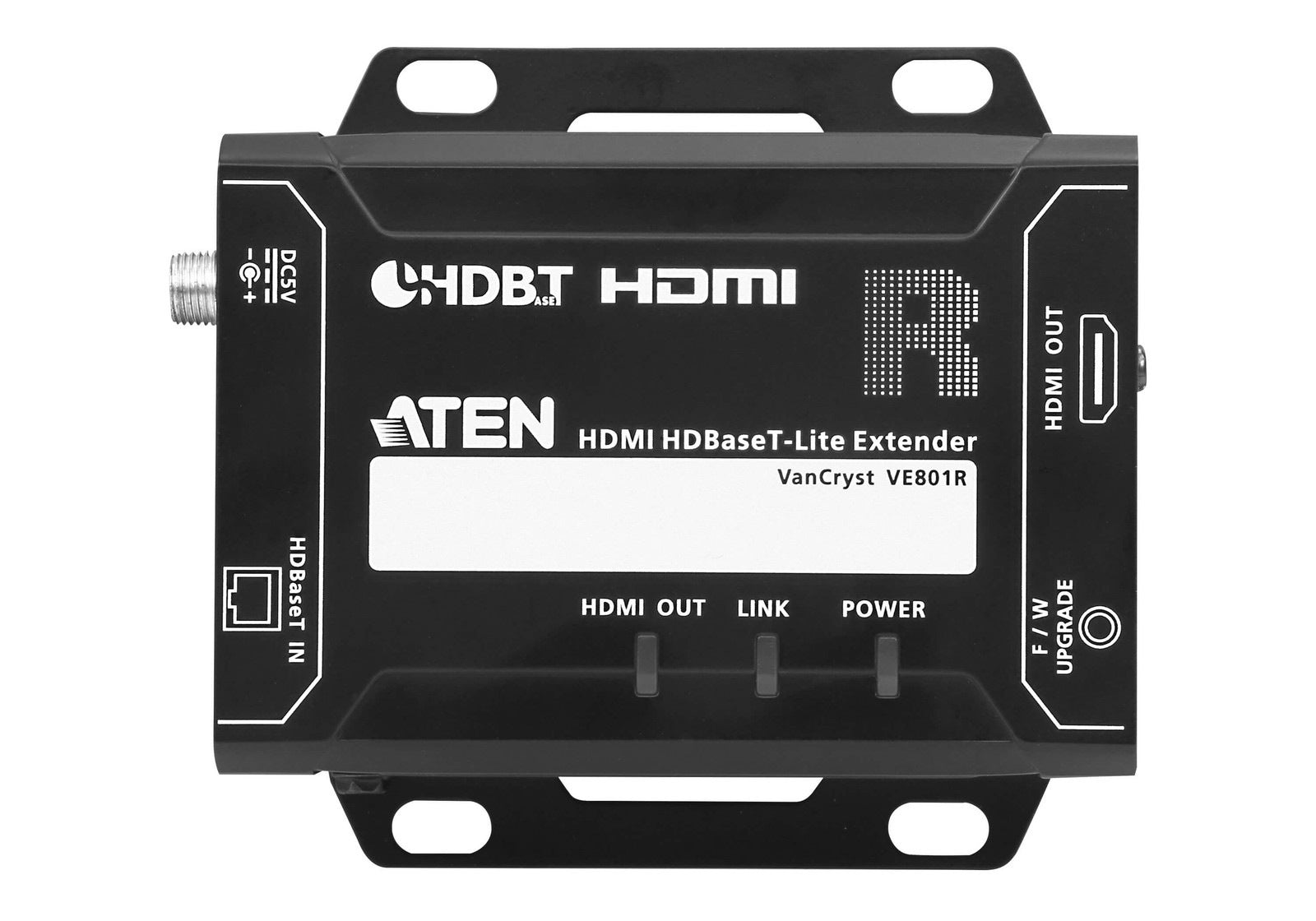

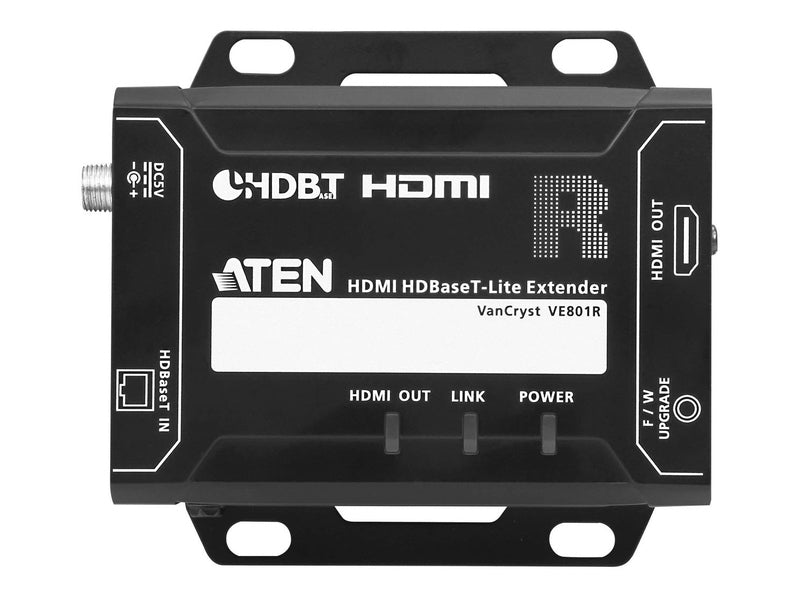

Function VE801R VE801T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ω N/A
Max. Distance 3 m N/A
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A

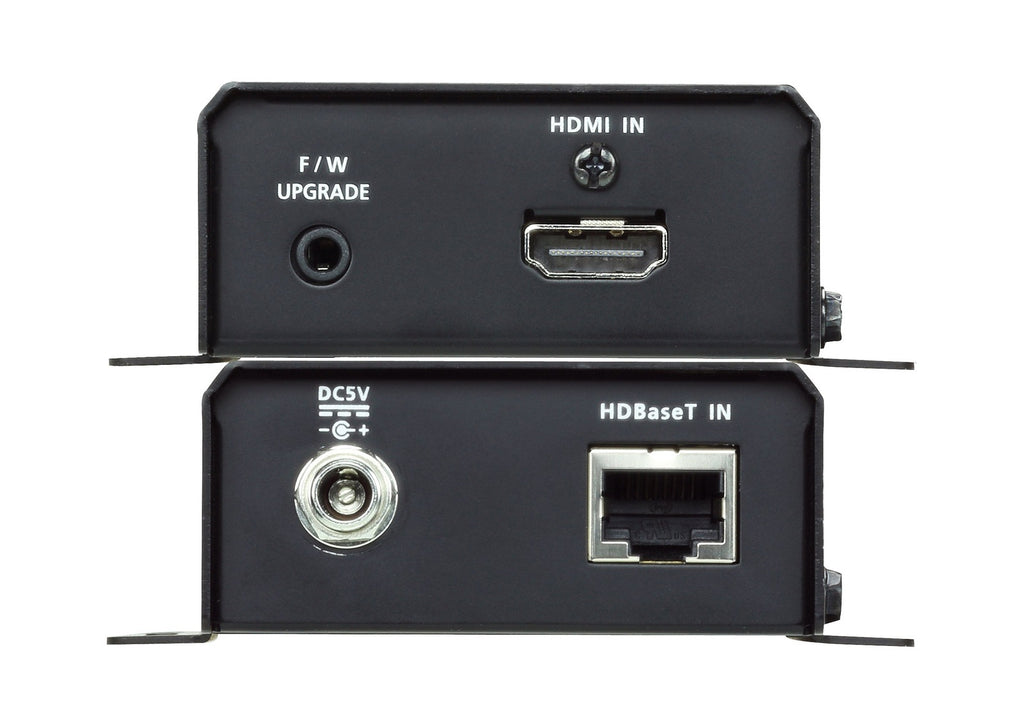

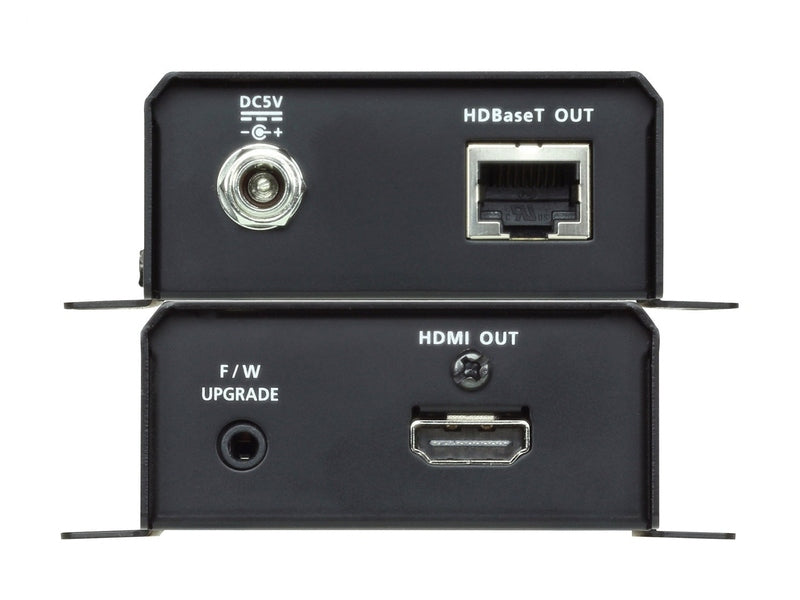

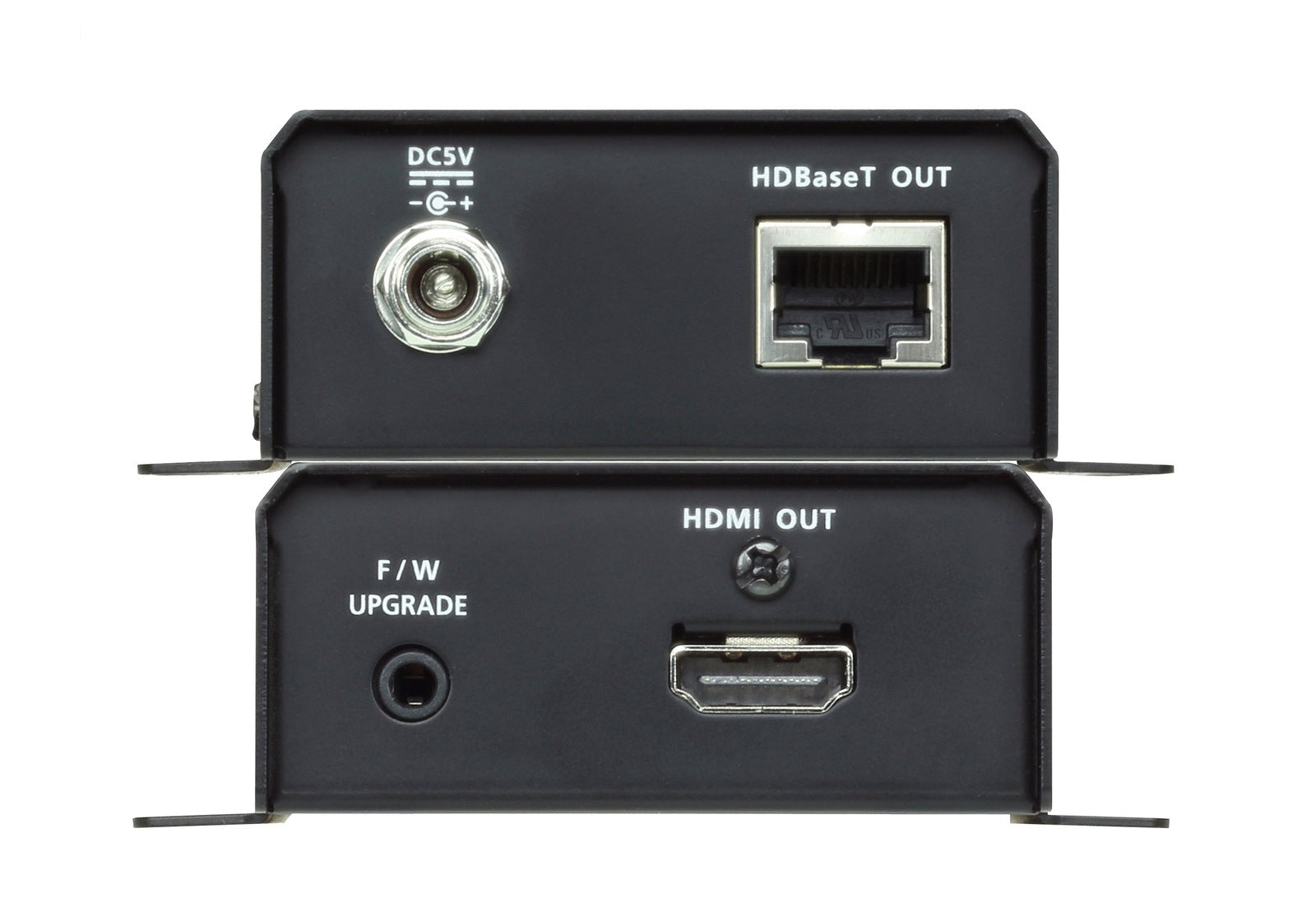

Connectors
Power 1 x DC Jack (Black) with locking
Unit To Unit 1 x RJ-45 Female
Power Consumption DC5V: 4.24W; 20 BTU/h DC5V: 1.86W; 9 BTU/h
Note
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature –20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.25 kg (0.55 lb) 0.24 kg (0.53 lb)
Dimensions (L x W x H) with bracket 9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket 9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)
