Overview
USB VGA Cat 5 KVM Extender (1280 x 1024@150m)
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Automatic gain control - adjusts signal strength to compensate for distance

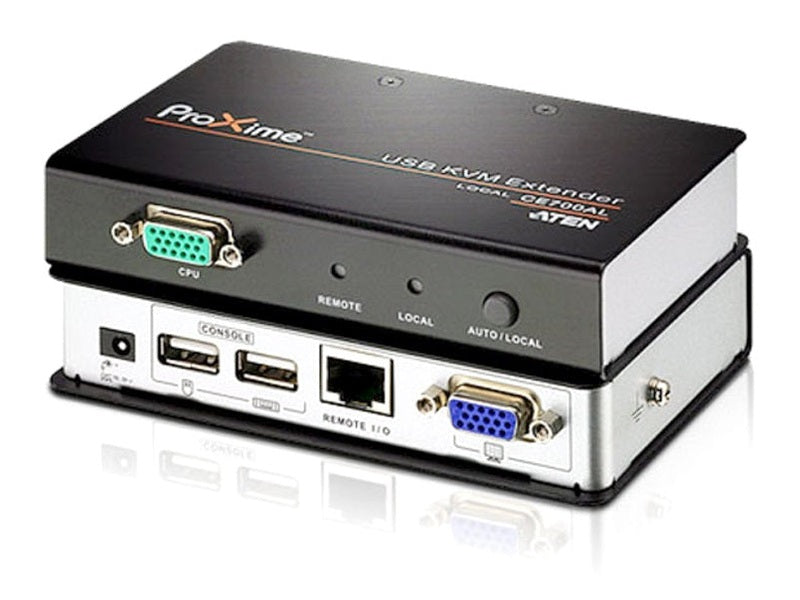

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.
USB VGA Cat 5 KVM Extender (1280 x 1024@150m)
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Automatic gain control - adjusts signal strength to compensate for distance
The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.
| Function | CE700AL | CE700AR |
|---|---|---|
| Connectors | ||

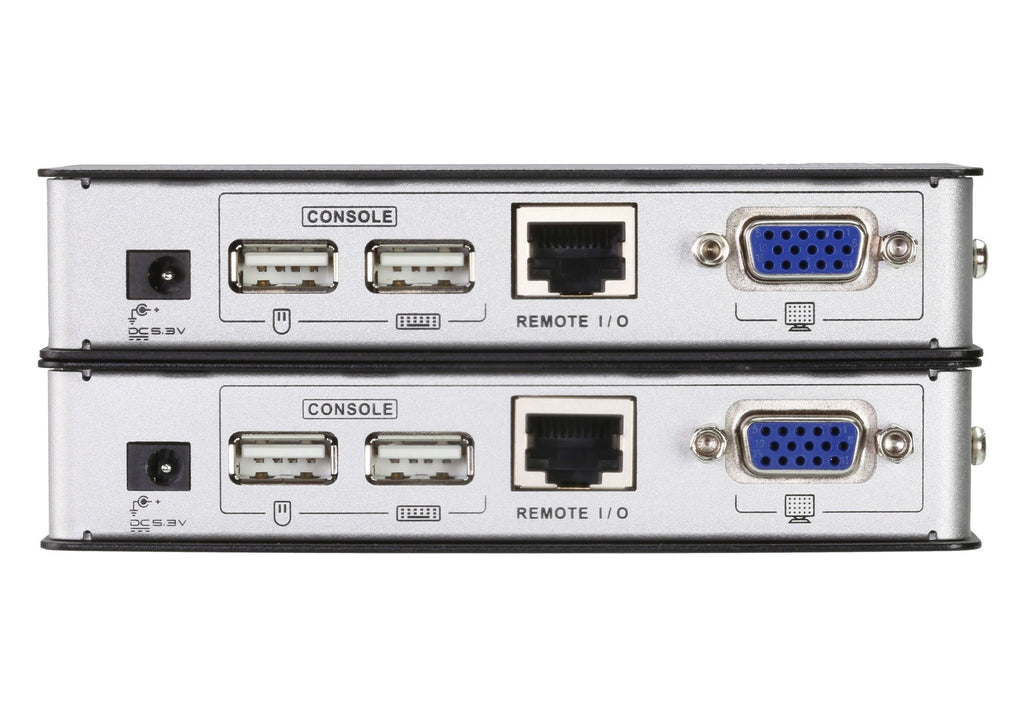

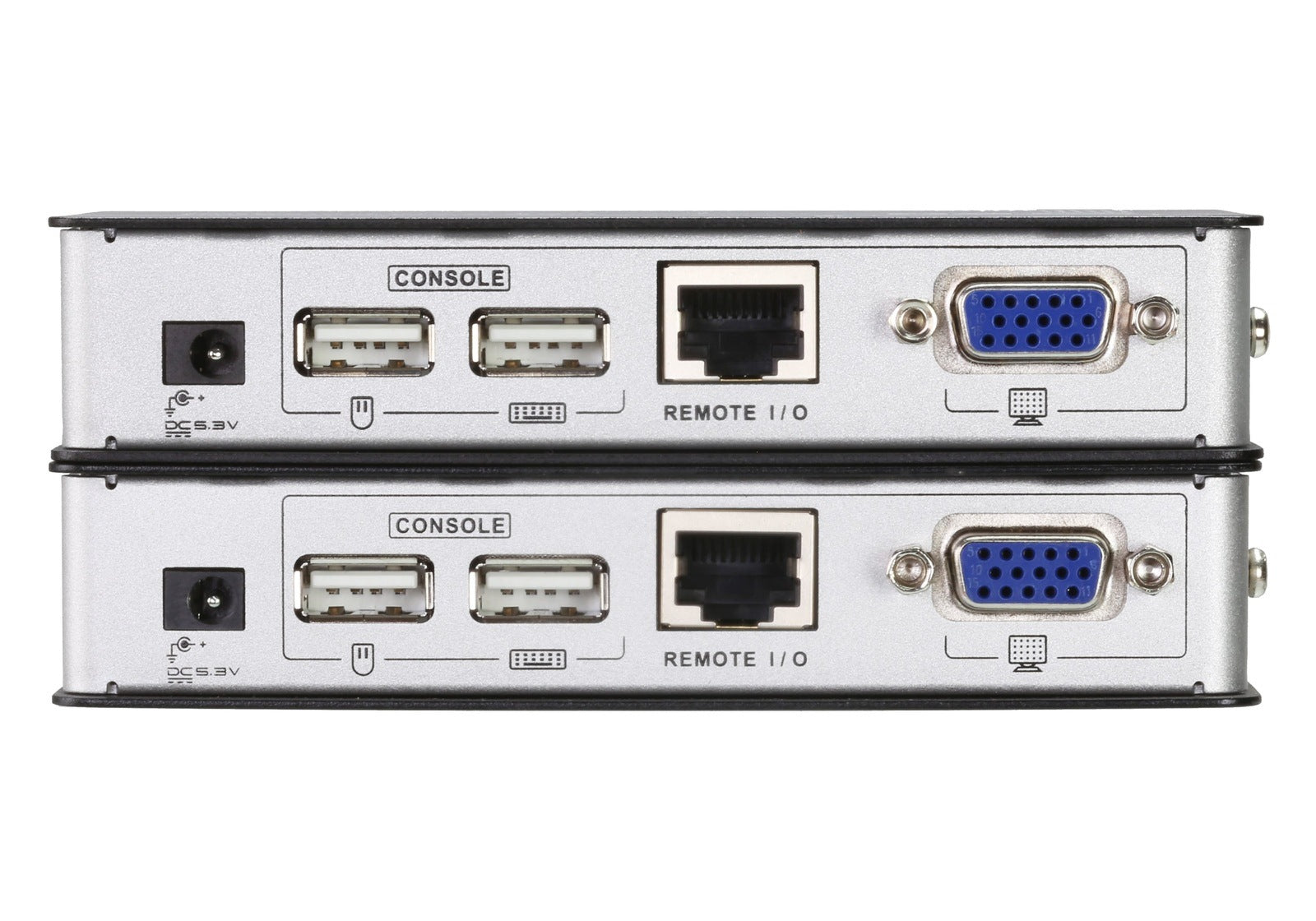

| Console Ports | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) |
2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) |
| KVM Ports | 1 x SPHD-17 Female (Green) | N/A |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| Pushbuttons | ||
| Operating Mode Selection | 1 x Pushbutton | N/A |
| LEDs | ||
| Local | 1 (Green) | N/A |
| Remote | 1 (Green) | 1 (Green) |
| Link | N/A | 1 (Green) |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Power Consumption | ||
| Typical / Loaded | DC5.3V: 2.17W; 14 BTU/h | DC5.3V: 1.59W; 12 BTU/h |
| Note | ||
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
||
| Video | ||
| Resolution / Distance | 1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m) |
|
| Environmental | ||
| Operating Temperature | 0–50°C | |
| Storage Temperature | –20–60°C | |
| Humidity | 0–80% RH, Non-condensing | |
| Physical Properties | ||
| Housing | Metal | |
| Weight | 0.33 kg (0.73 lb) | 0.32 kg (0.7 lb) |
| Dimensions (L x W x H) | 12.70 x 8.65 x 2.50 cm (5 x 3.41 x 0.98 in.) |
12.70 x 8.14 x 2.50 cm (5 x 3.2 x 0.98 in.) |
| Note | ||
| For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | ||
