Overview

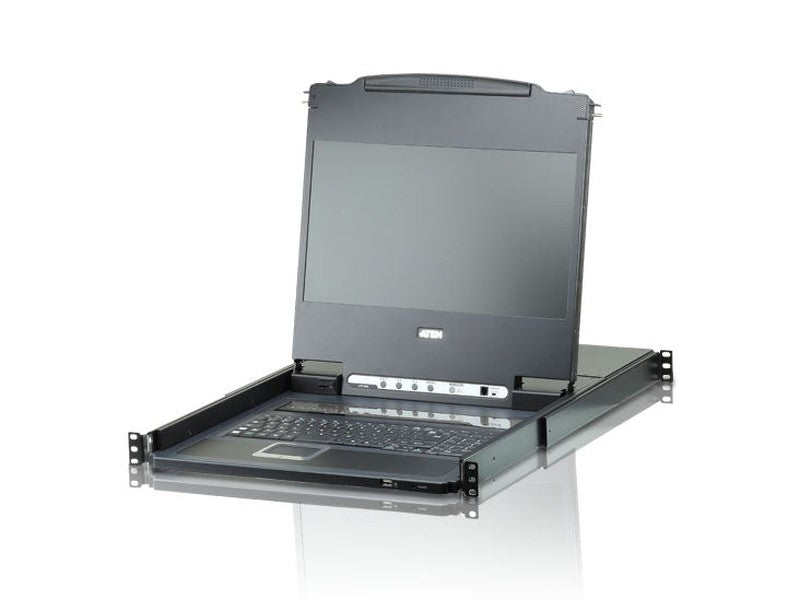

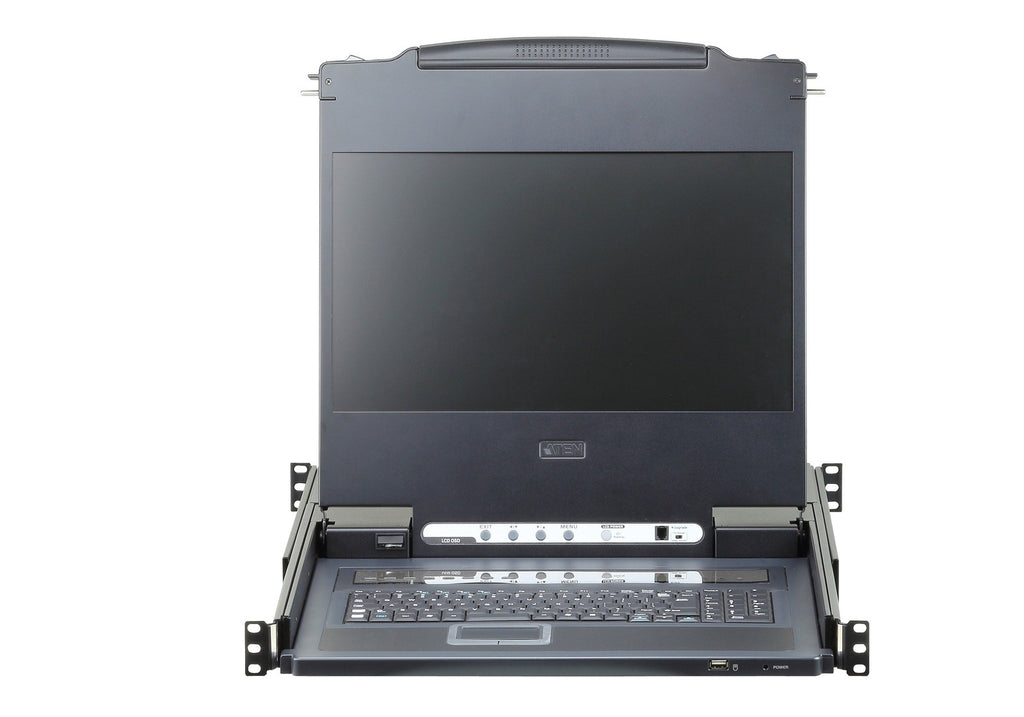

8-Port USB DVI Single Rail WideScreen LCD KVM Switch
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
- A single console controls up to 64 computers by cascade to 1 level and connect up to 8 switches.
- Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – integrating an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of Full HD 1080p video – greater clarity than typical analog interfaces, the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
8-Port USB DVI Single Rail WideScreen LCD KVM Switch
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
- A single console controls up to 64 computers by cascade to 1 level and connect up to 8 switches.
- Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – integrating an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of Full HD 1080p video – greater clarity than typical analog interfaces, the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
| CL6708MW Specifications | |
|---|---|
| Computer Connections | |
| Direct | 8 |
| Maximum | 64 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |

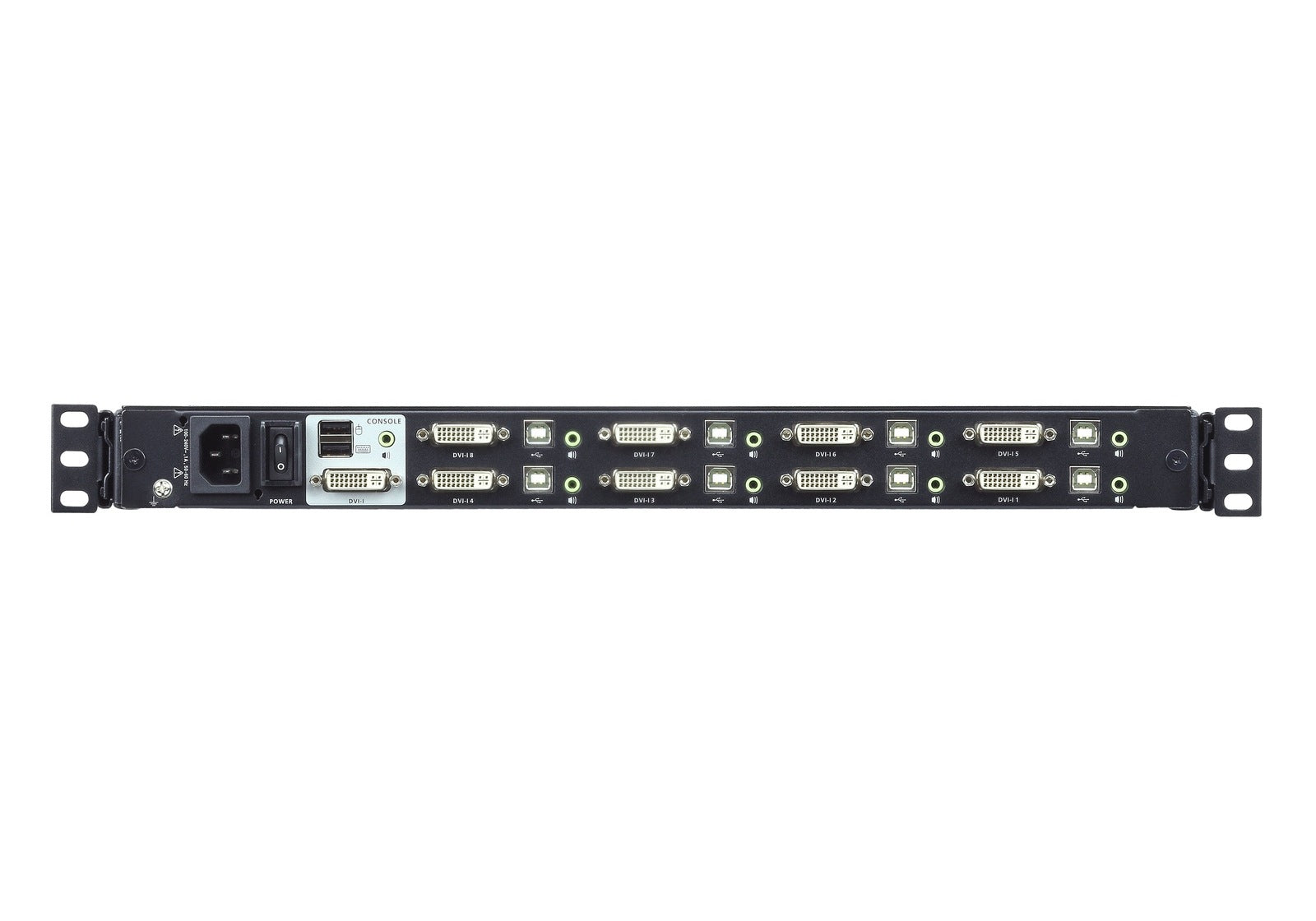

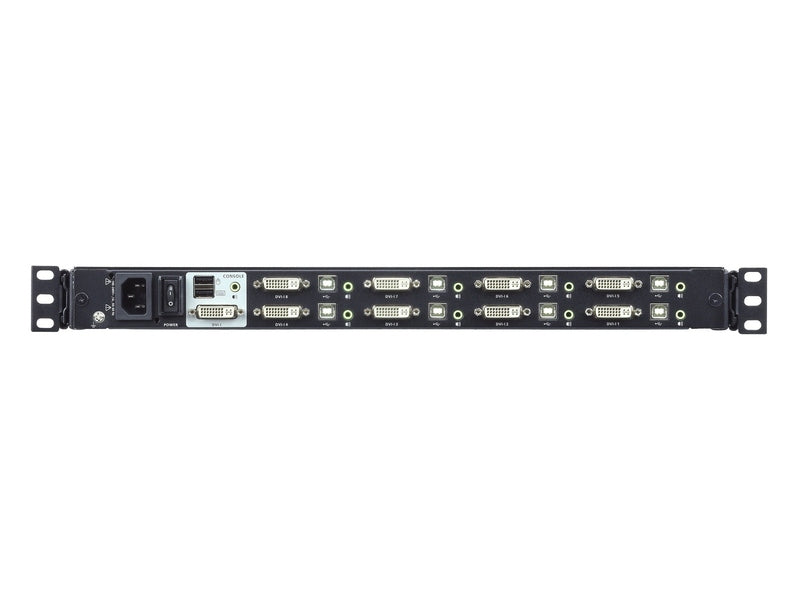

| KVM Ports | 8 x DVI-I Female (White) 8 x USB Type B Female 8 x 3.5mm Audio Jack Female (Green) |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
| External Console Ports | 1 x DVI-I Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
| External Mouse / Peripheral | 1 x USB Type A Female (Front) |
| Switches | |
| Port Selection | 8 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton |
| LEDs | |
| Online | 8 (Orange) |
| Selected | 8 (Green) |
| Power | 1 x KVM Power (Dark Green) 1 x LCD Power (Orange) |
| Lock | Num Lock, Caps Lock, Scroll Lock (Green) |
| LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | |
| LCD Module | 17.3" TFT-LCD |
| Resolution | 1920 x 1080 @ 60 Hz |
| Response Time | 16 ms |
| Viewing Angle | 170° (H), 170° (V) |
| Pixel Pitch | 0.1989 mm x 0.1989 mm |
| Support Color | 16.77M colors |
| Contrast Ratio | 800:1 |
| Luminance | 250 cd/m² |
| Video | |
| Input Video Resolution | Up to 1920 × 1200 @ 60 Hz (all resolutions @ 60Hz only) 1920 × 1080 @ 60 Hz, DDC2B |
| Scan Interval | 1–255 seconds |
| Emulation | |
| Keyboard / Mouse | USB |
| Power | |
| Maximum Input Power Rating | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | AC110V: 23.3W; 116 BTU/h AC220V: 23.3W; 116 BTU/h |
| Note | |
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
|
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | –20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal + Plastic |
| Rail Type | Single Rail |
| Weight | 12.70 kg (27.97 lb) |
| Dimensions (L x W x H) | 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.) |
| Note | |
| For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
