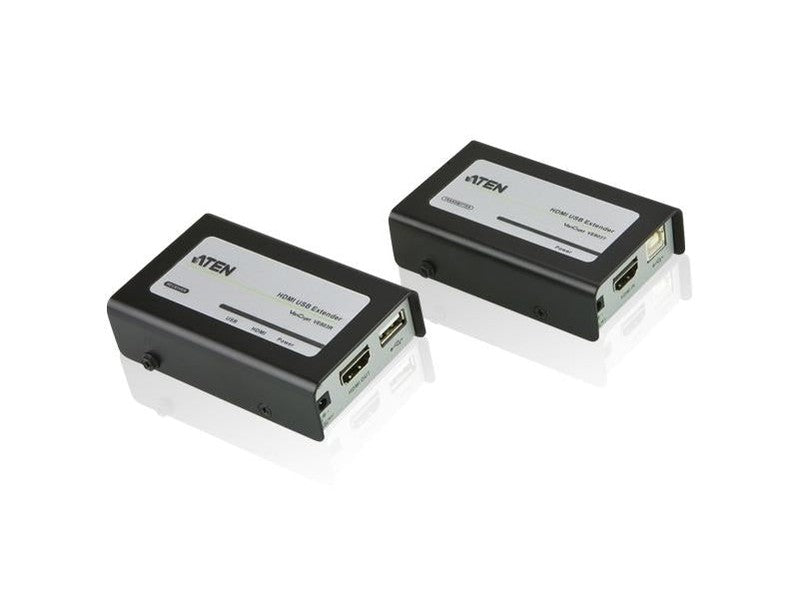

Aten VanCryst HDMI USB Extender (Over Cat5) - Up to 1080p@40m; 1080i@60m

AtenSKU: VE803-AT-U

Video Extender

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$239.00

Estimate shipping

Description

Overview

HDMI/USB Cat 5 Extender (1080p@40m)

- Uses two Cat 5e cables to connect the local and the remote units
- Extends 1080p by 40m; extend 1080i by 60m
- Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
- HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits

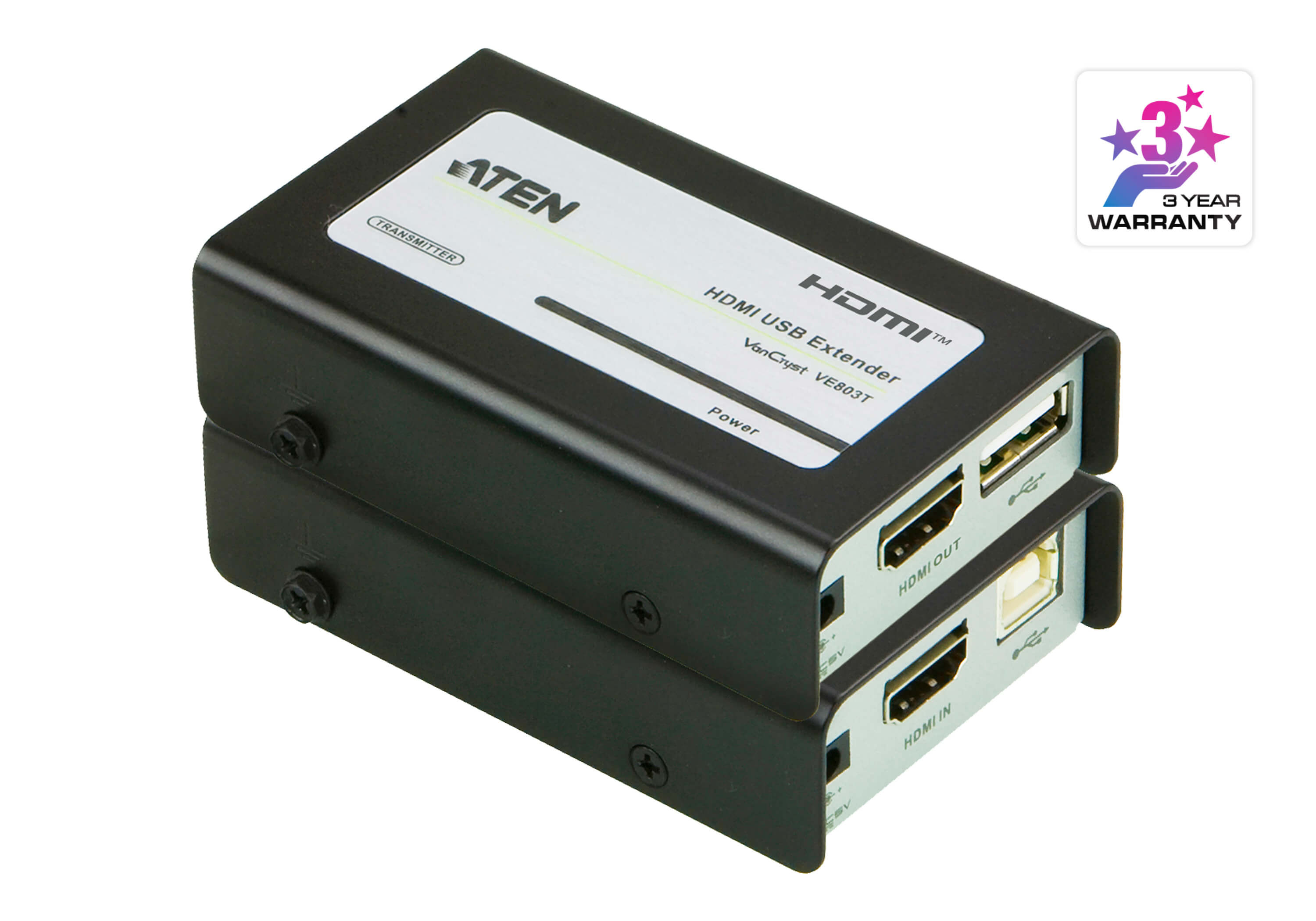

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.

The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.

The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.

Function VE803R VE803T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ω N/A
Max. Distance 3 m N/A
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible Yes
Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Control

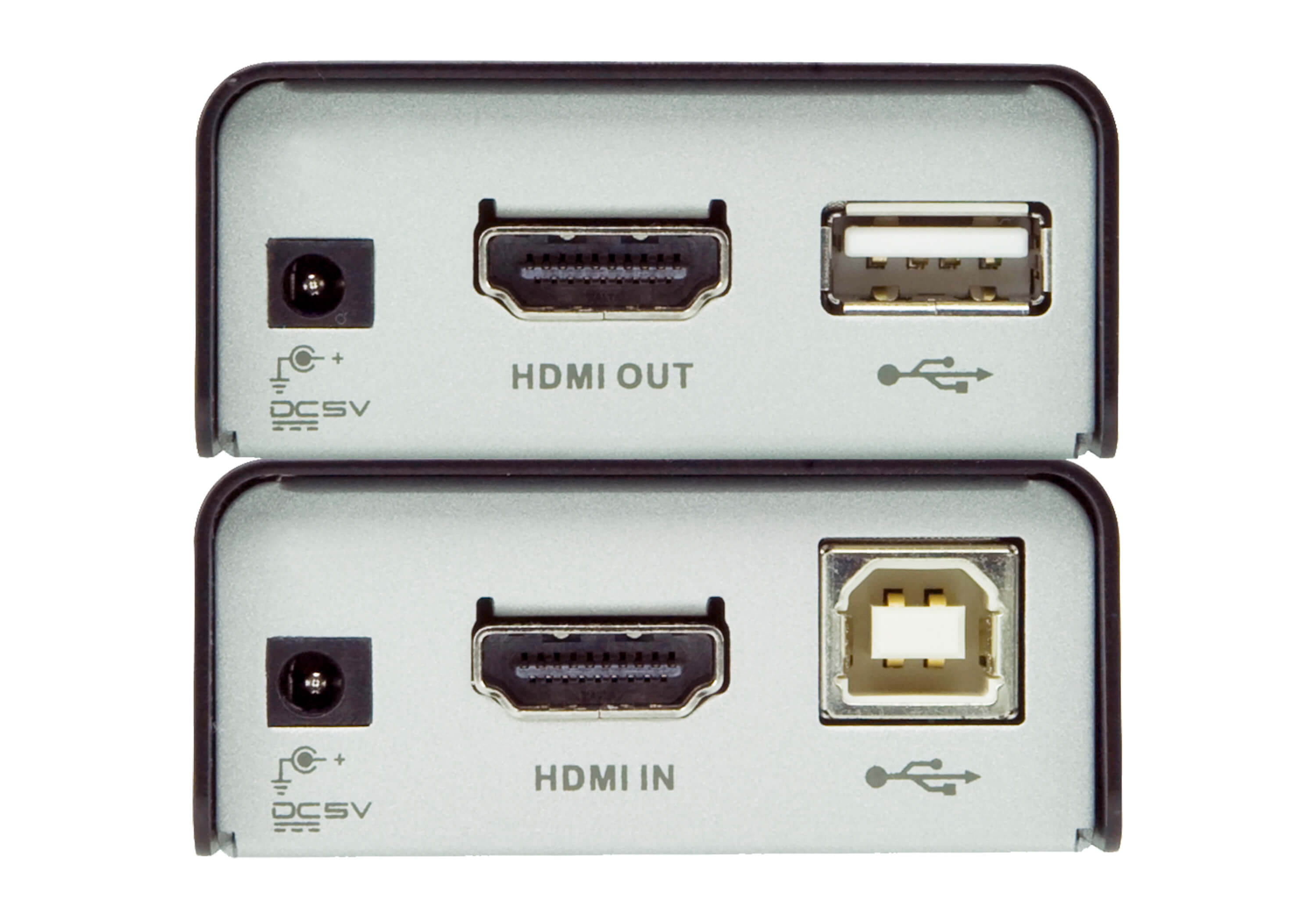

USB 1 x USB Type A Female 1 x USB Type B Female

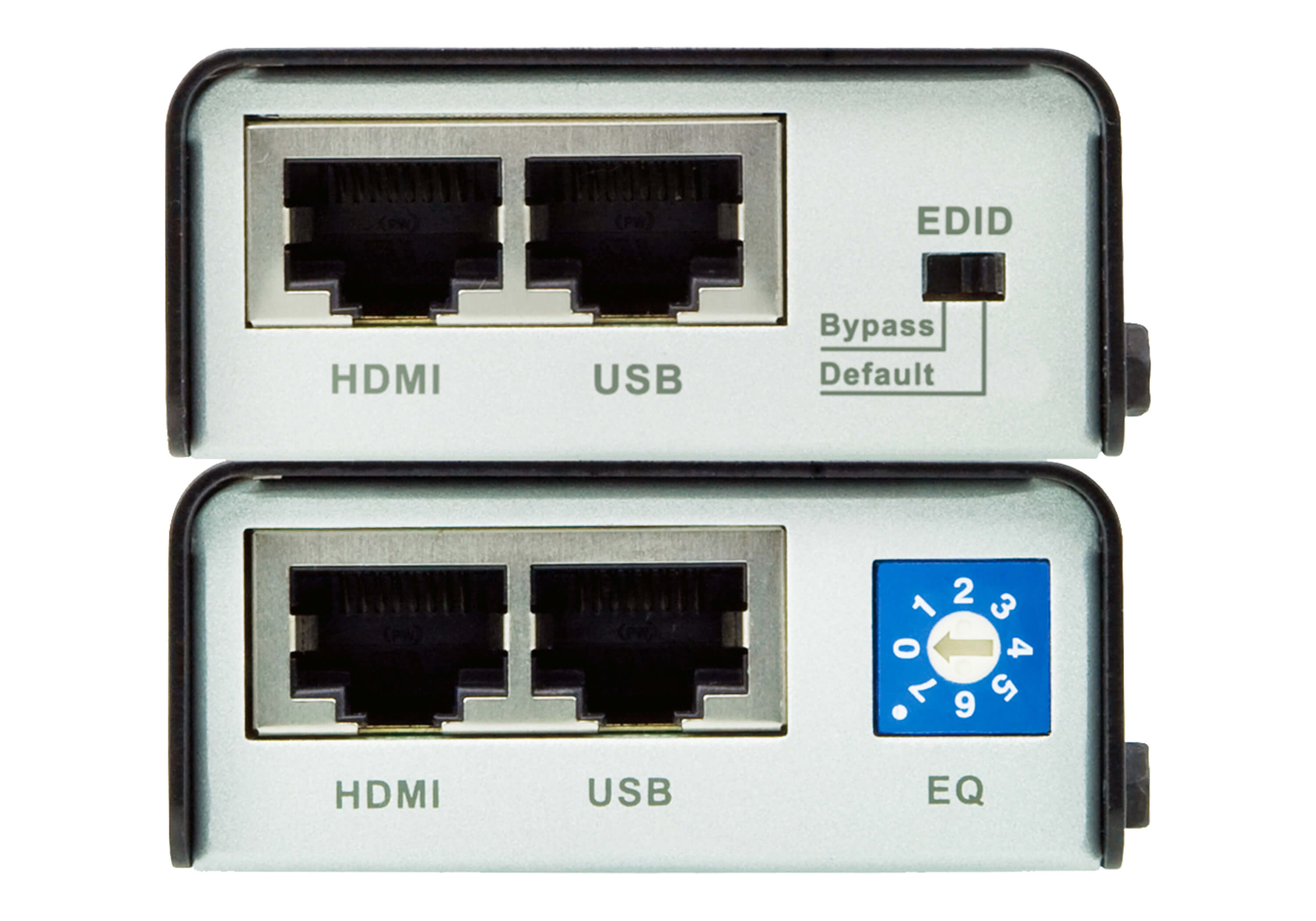

EDID Settings EDID Mode: Default
Connectors
Power 1 x DC Jack 1 x DC Jack
Power Consumption
VE803R DC5V: 0.75W / 14BTU/h
VE803T DC5V: 1.04W / 16BTU/h
Environmental
Operating Temperature 0 - 50°C 0 - 50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.16 kg (0.35 lb) 0.16 kg (0.35 lb)
Dimensions (L x W x H) 9.00 x 5.74 x 2.40 cm
(3.54 x 2.26 x 0.94 in.)
9.00 x 5.74 x 2.40 cm
(3.54 x 2.26 x 0.94 in.)
Carton Lot 5 pcs 5 pcs
Note Standard rackmount dimensions are expressed as LxWxH.
