Overview

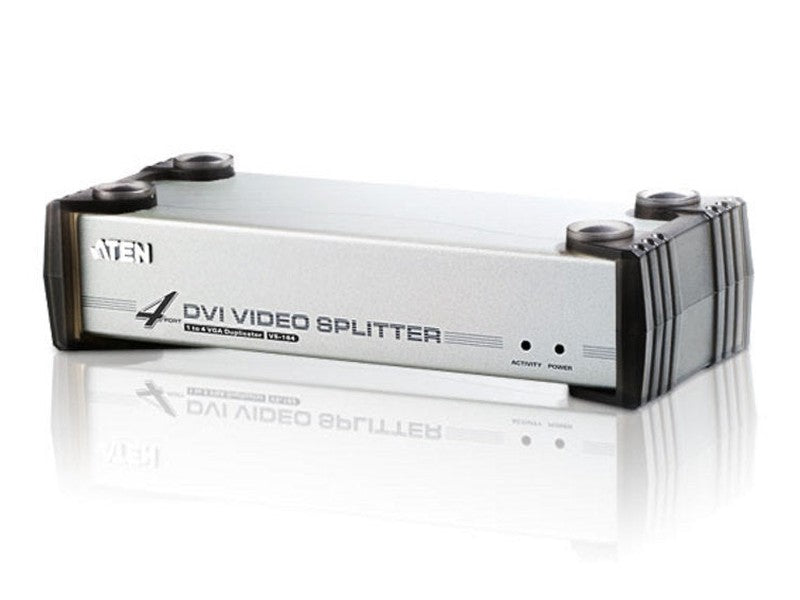

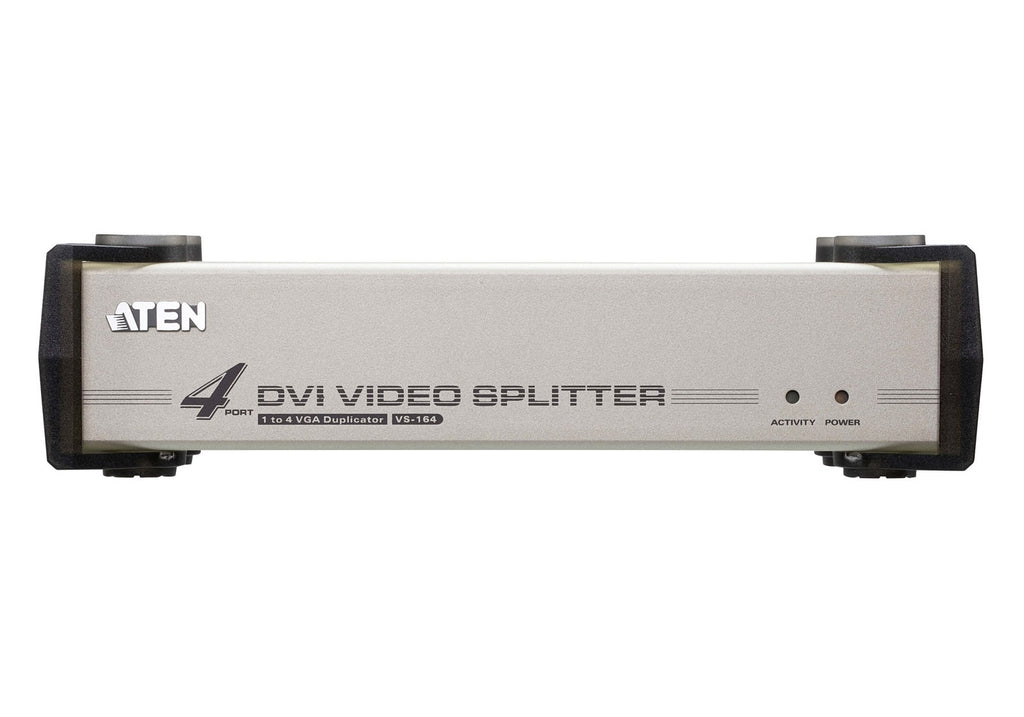

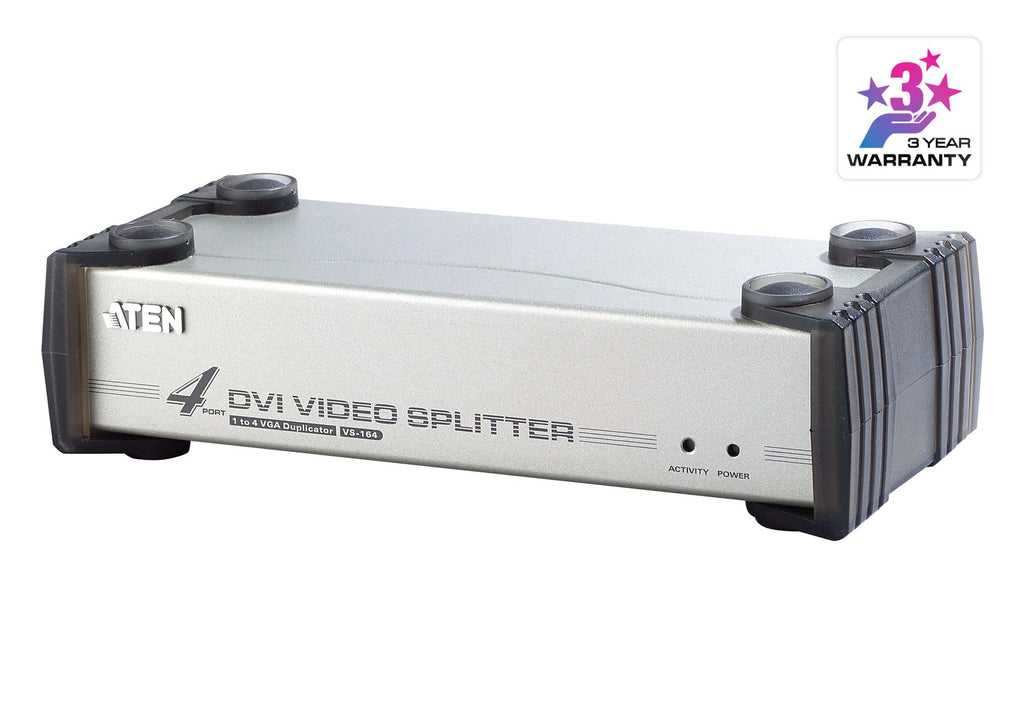

4-Port DVI/Audio Splitter
- Connects computers with DVI graphics to four DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Maintains highest single link video resolution (up to 1920 x 1200).
- Speaker enabled for audio enjoyment.
VS164 Video Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
4-Port DVI/Audio Splitter
- Connects computers with DVI graphics to four DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Maintains highest single link video resolution (up to 1920 x 1200).
- Speaker enabled for audio enjoyment.
VS164 Video Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
| Product Specifications | |
|---|---|
| Video Input | |

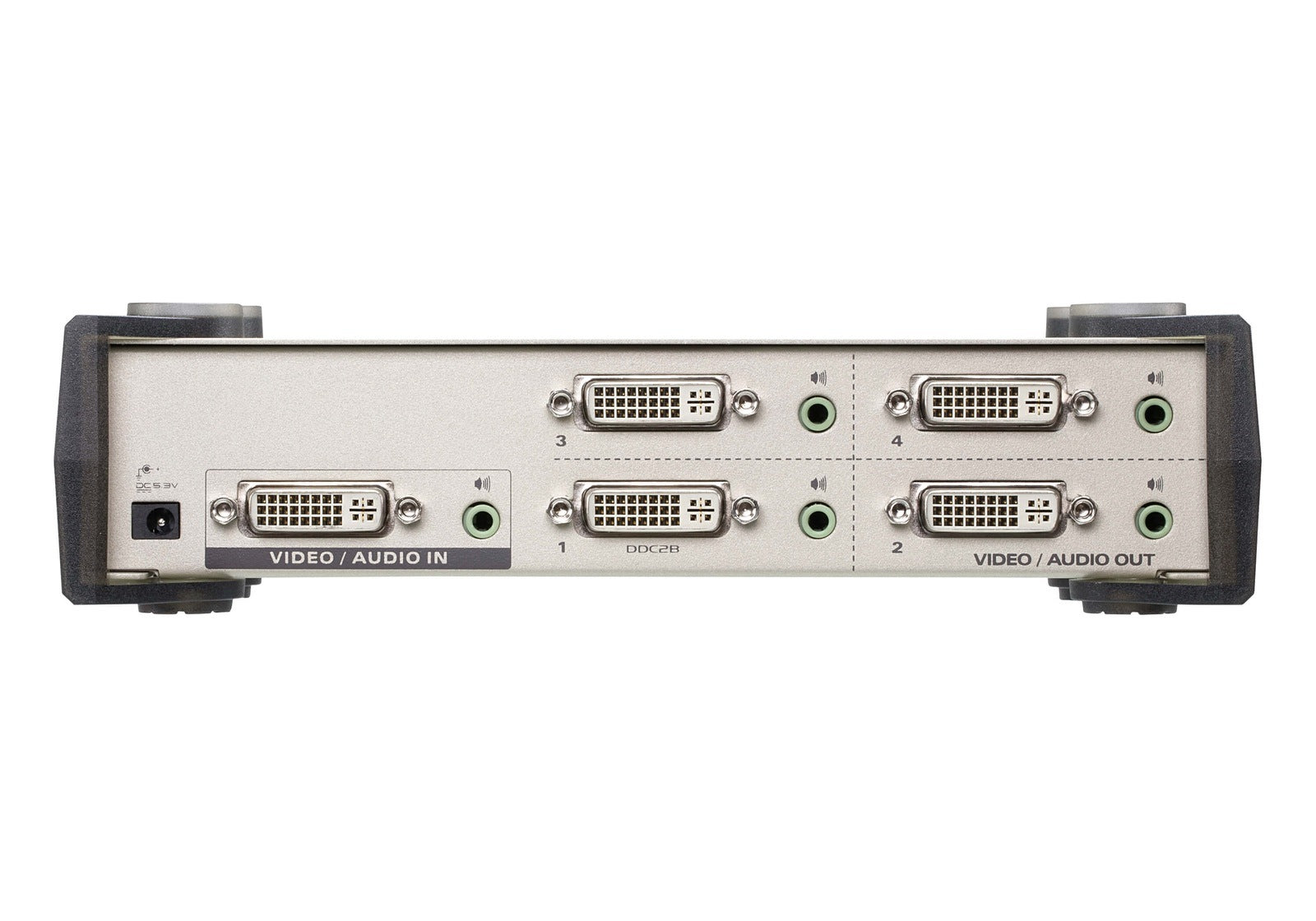

| Interfaces | 1 x DVI-I Female (White) |
| Impedance | 100 Ω |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x DVI-I Female (White) |
| Impedance | 100 Ω |
| Video | |
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Compliance | HDCP Compatible |
| Max. Resolution | Up to 1920 x 1200 |
| Max. Distance | Up to 5 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 4 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V: 3.95W; 19 BTU/h |
| Note | |
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
|
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | –20–60°C |
| Humidity | 0–80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.72 kg (1.59 lb) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
| Carton Lot | 5 pcs |
| Note | |
| For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
