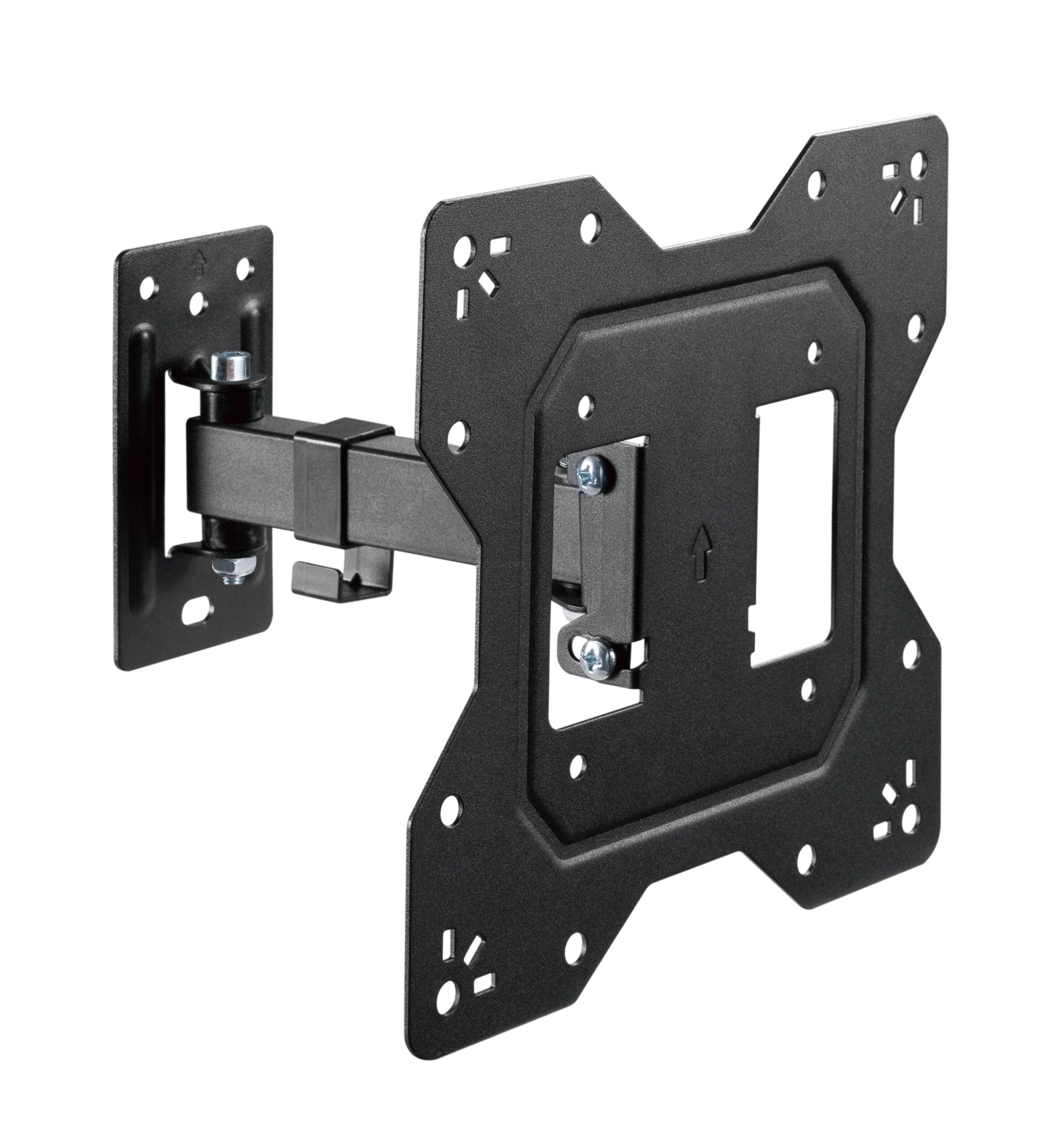

Brateck Economical Full-Motion TV Wall Mount For 23"-43" Fit Curved TV up to 30KG, VESA 100x100,100x200,200x100,200x200 Fine Texture Black
FEATURES:
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Cable Management: keeps everything organized
Brateck Economical Full-Motion TV Wall Mount For 23"-43" Fit Curved TV up to 30KG, VESA 100x100,100x200,200x100,200x200 Fine Texture Black
FEATURES:
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Cable Management: keeps everything organized
| Full-motion TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Full-motion TV Wall Mount |
| Rank | Economy |
| Material | Steel |
| Metal Sheet Thickness | VESA Panel: 1.8 mm cold-rolled sheet (0.071") Wall Plate: 2.5 mm pickling sheet (0.098") |
| Pipe Size | 30 × 20 × 1.2 mm Square Steel Tube (1.2" × 0.79" × 0.047") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 230 × 230 × 204 mm (9.1" × 9.1" × 8") |
| Fit Screen Size | 23"–43" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatible | 100×100, 100×200, 200×100, 200×200 |
| Max. Mounting Hole | 200 × 200 mm |
| Weight Capacity | 30 kg (66 lbs) |
| Strength Tested | 3 Times Approved |
| Profile | 56 ~ 204 mm (2.2" ~ 8") |
| Tilt Range | +5° ~ -8° |
| Swivel Range | +90° ~ -90° |
| Screen Freely Tilting | No |
| Installation | Solid Wall, Single Stud |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | Yes |
| Accessory Kit Package | Compartment Polybag |
