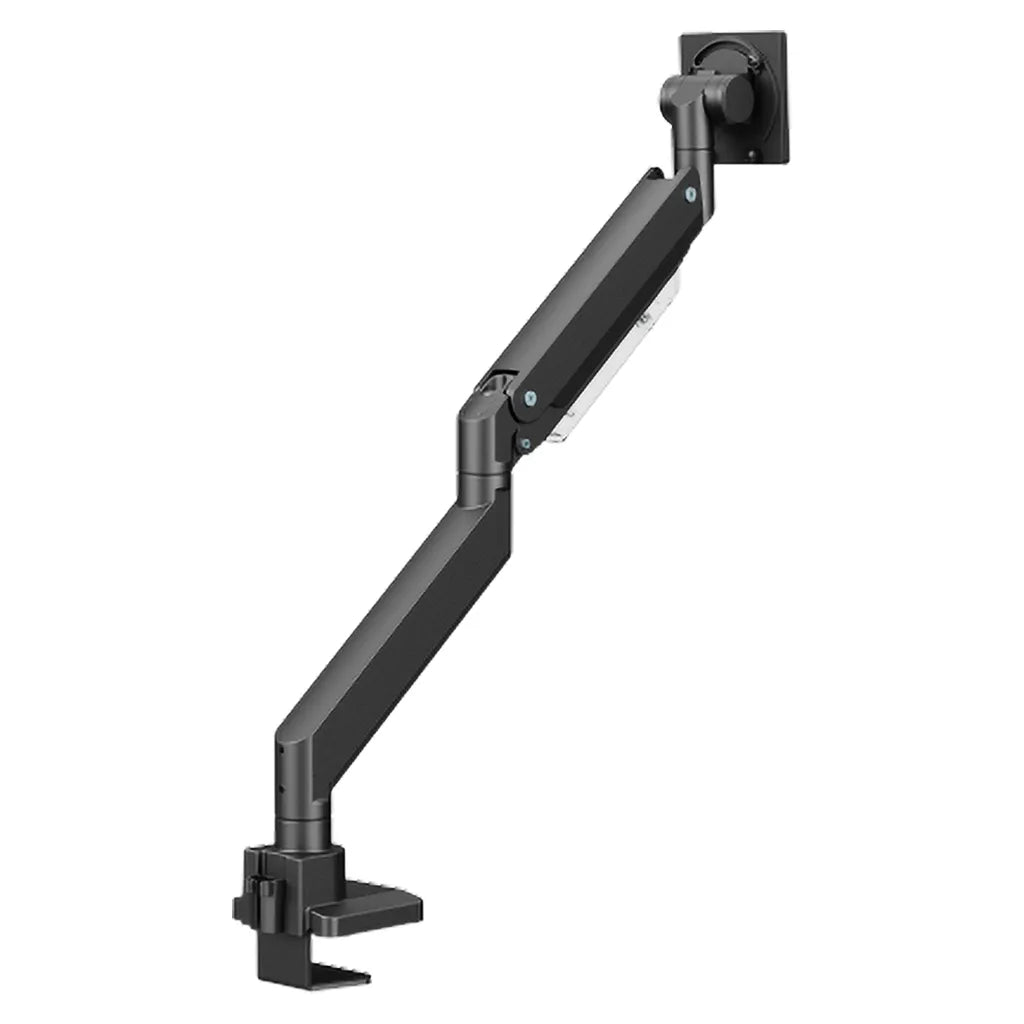

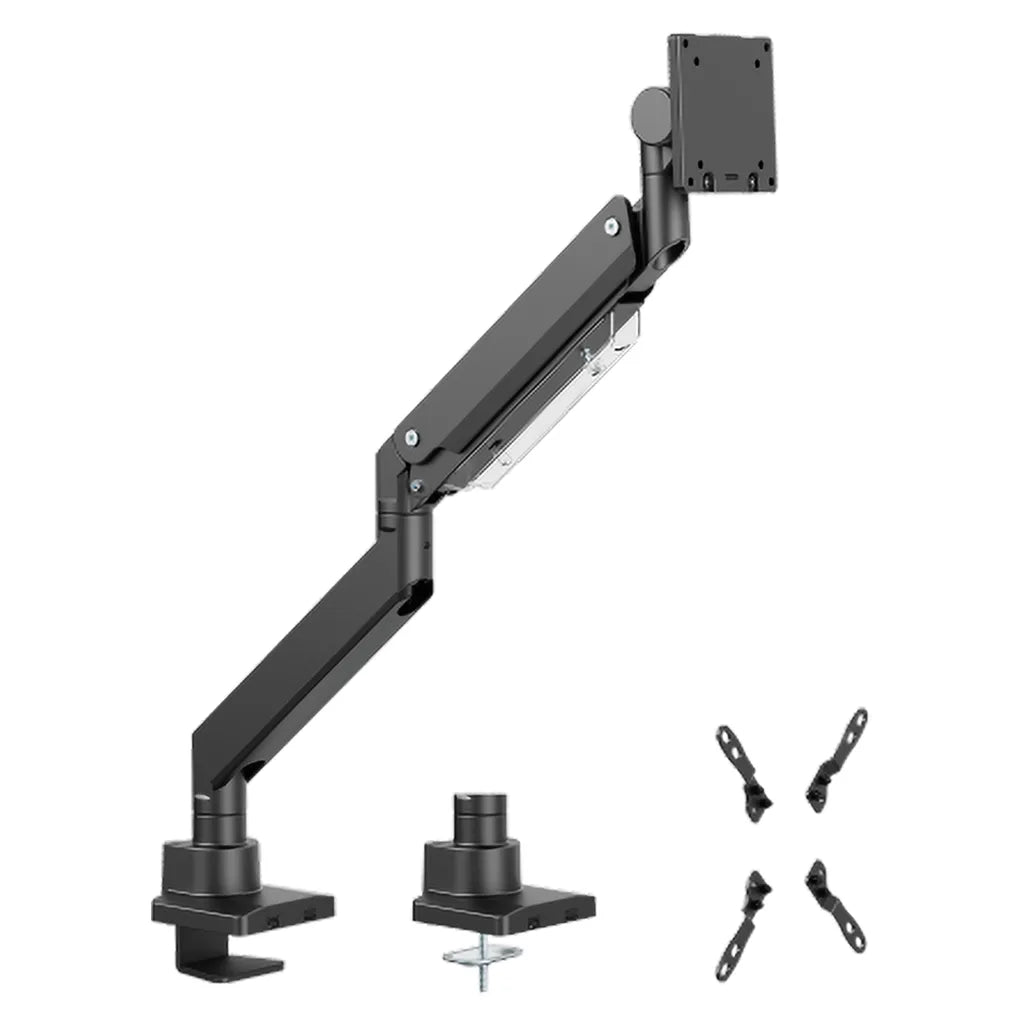

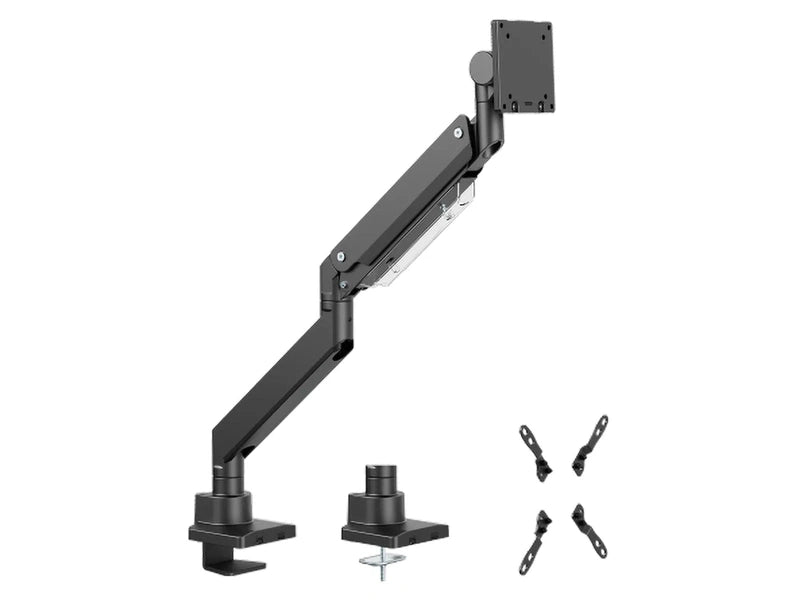

Brateck LDT80-C012 SUPER HEAVY-DUTY GAS SPRING MONITOR ARM For most 17"~57" Monitors, Matte Black
FEATURES
●Detachable VESA Plate Design: enables easy installation
●Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
●Built-in Spring Tension Mechanism: for perfect weight adjustments
●Installs from Top Side: installs entirely from above the desk surface
●Include VESA Adapters: fit monitors with different VESA patterns
Brateck LDT80-C012 SUPER HEAVY-DUTY GAS SPRING MONITOR ARM For most 17"~57" Monitors, Matte Black
FEATURES
●Detachable VESA Plate Design: enables easy installation
●Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
●Built-in Spring Tension Mechanism: for perfect weight adjustments
●Installs from Top Side: installs entirely from above the desk surface
●Include VESA Adapters: fit monitors with different VESA patterns
| Gas Spring Monitor Arm – Technical Specifications | |
|---|---|
| Product Category | Gas Spring Monitor Arm |
| Rank | Premium |
| Material | Steel, Aluminum, Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 120 × 580 × 730 mm (4.7" × 22.8" × 28.7") |
| Fit Screen Size | 17"–57" |
| Fit Curved Monitor | Yes |
| Screen Quantity | 1 |
| Weight Capacity (per screen) | 2~27 kg (4.4~59.4 lbs) |
| Weight Capacity for Curved Screen | 2~22 kg (4.4~48.4 lbs) |
| VESA Compatible | 75×75, 100×100, 200×100, 200×200, 100×200 |
| Tilt Range | +60° ~ -20° |
| Swivel Range | +90° ~ -90° |
| Screen Rotation | +90° ~ -90° |
| Arm Full Extension | 526 mm (20.7") |
| Installation | Clamp, Grommet |
| Suggested Desktop Thickness | Clamp: 10~45 mm (0.39"~1.8") Grommet: 10~40 mm (0.39"~1.6") |
| Quick Release VESA Plate | Yes |
| USB Port | No |
| Multi-Media Port | No |
| Cable Management | Yes |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
