Description
Overview

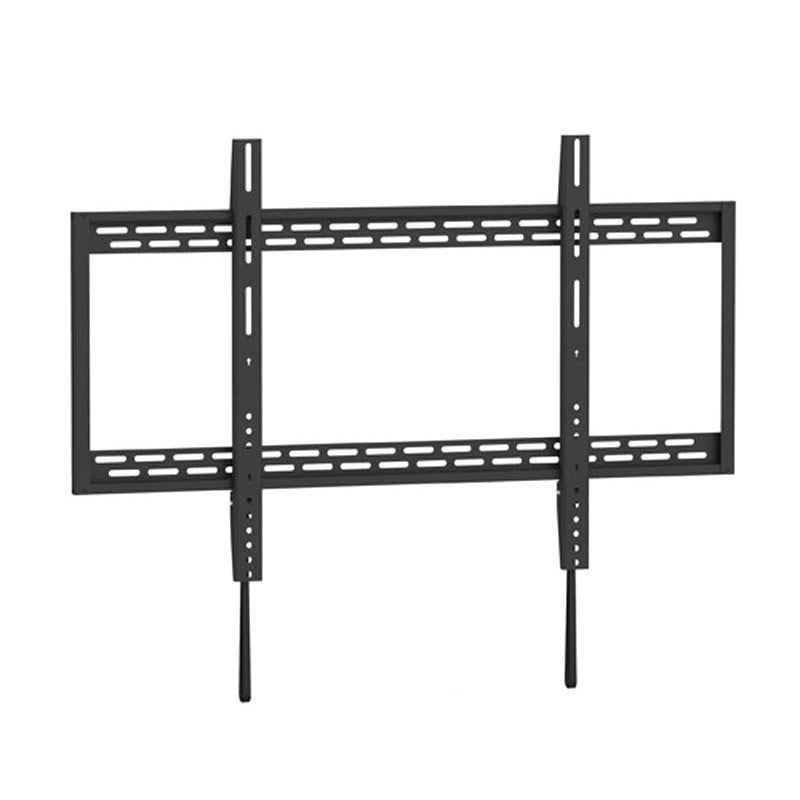

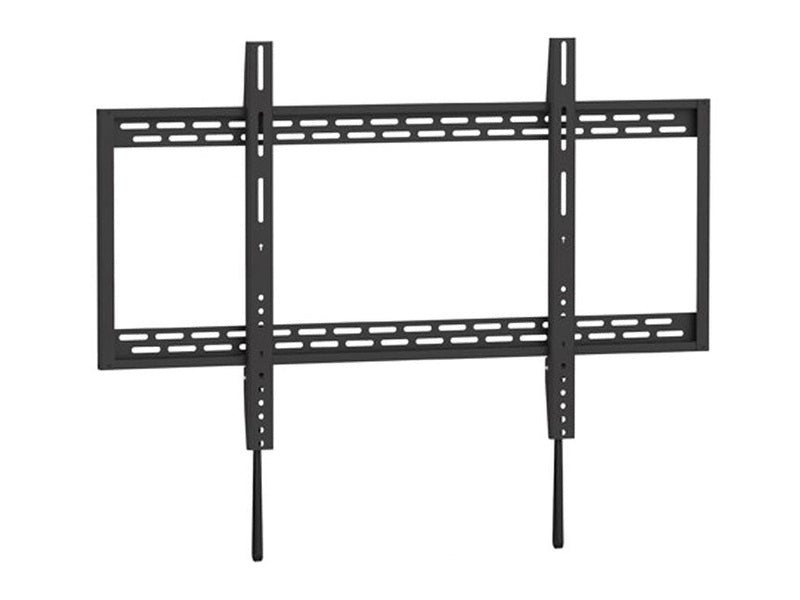

X-Large Heavy-duty Fixed Wall Mount The popular model LP37-69F is designed to fit any 60" ~ 100" Flat Panel TV up to 100kgs/220lbs. Its automatically click-in spring lock with easily-release cord easily and securely attaches your super large flat panels to wall. Strength has been tested for a minimum of four times its stated load capacity.
FEATURES
●Automatically Click-in Spring Lock: helps TV brackets snap into place for added safety
●Open Architecture: provides increased ventilation and easier access to wires
X-Large Heavy-duty Fixed Wall Mount The popular model LP37-69F is designed to fit any 60" ~ 100" Flat Panel TV up to 100kgs/220lbs. Its automatically click-in spring lock with easily-release cord easily and securely attaches your super large flat panels to wall. Strength has been tested for a minimum of four times its stated load capacity.
FEATURES
●Automatically Click-in Spring Lock: helps TV brackets snap into place for added safety
●Open Architecture: provides increased ventilation and easier access to wires
| Fixed TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Fixed TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Wall Plate THK = 3 mm (0.12") cold-rolled sheet, Bracket Arm THK = 2 mm (0.079") cold-rolled sheet |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 1009 × 630 × 32 mm (39.7" × 24.8" × 1.3") |
| Fit Screen Size | 60"–100" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200×200, 300×300, 400×200, 400×400, 600×400, 800×400, 800×600, 900×600 |
| Weight Capacity | 100 kg (220 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 32 mm (1.3") |
| Installation | Double Stud (406 mm / 450 mm / 600 mm), Solid Wall |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | No |
| Certification | UL |
