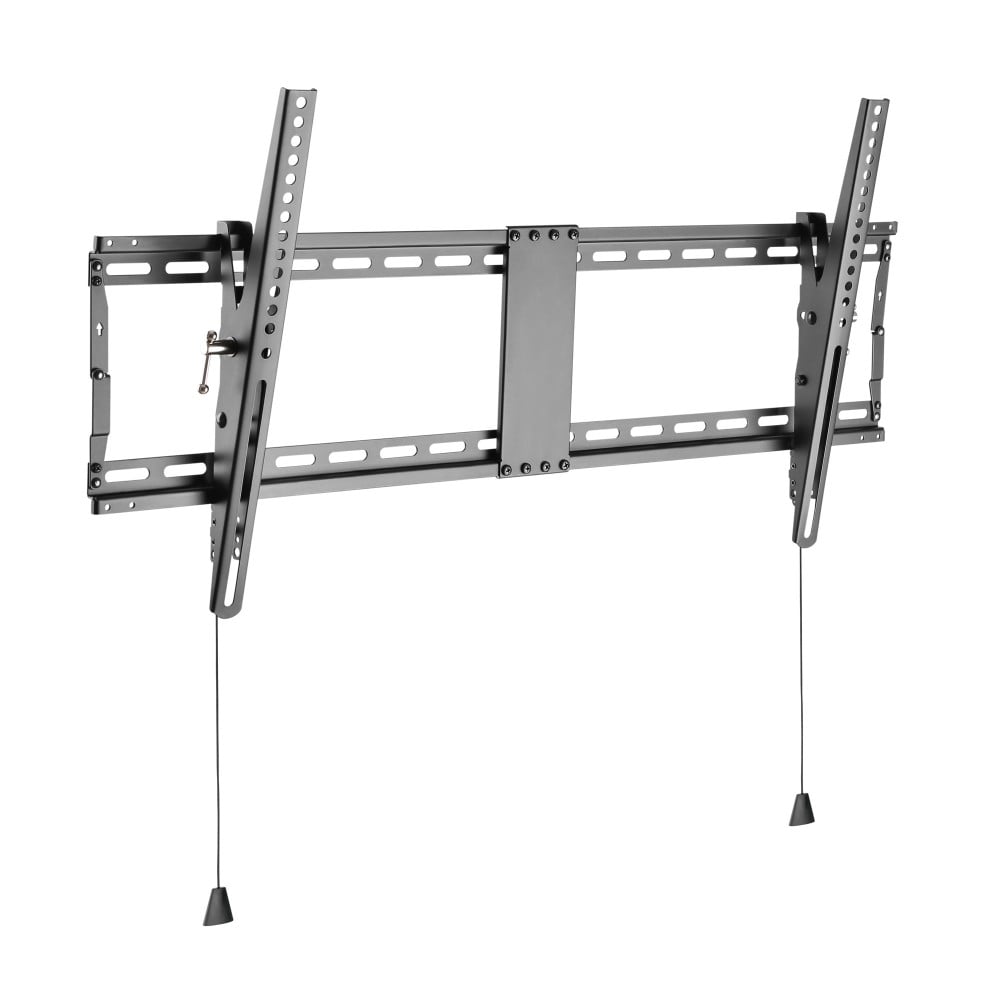

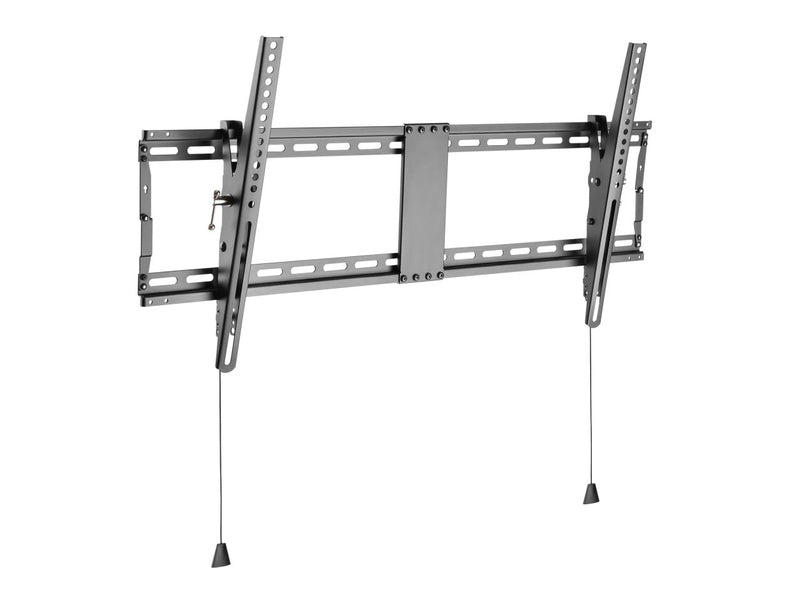

Brateck Heavy Duty Foldable Tilt TV Wall Mount For 43"-90" TVs
LP59-48T is a tilting TV mount that can hold your large TVs up to 90”in size and 70kg/154lbs in weight firmly. The foldable design reduces shipping cost while maximizing shelf space. For better safety and security, its anti-theft design provides great protection. This mount comes with a quality steel knob for firmer grip and open wall plate access for wiring. Minimalist design-yet with solid holding power.
FEATURES
●Toolless Tilt: allows for effortless positoning
●Open Architecture: provides increased ventilation and easier access to wires
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)
●Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
Brateck Heavy Duty Foldable Tilt TV Wall Mount For 43"-90" TVs
LP59-48T is a tilting TV mount that can hold your large TVs up to 90”in size and 70kg/154lbs in weight firmly. The foldable design reduces shipping cost while maximizing shelf space. For better safety and security, its anti-theft design provides great protection. This mount comes with a quality steel knob for firmer grip and open wall plate access for wiring. Minimalist design-yet with solid holding power.
FEATURES
●Toolless Tilt: allows for effortless positoning
●Open Architecture: provides increased ventilation and easier access to wires
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)
●Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
| Tilt TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Wall Plate THK = 2 mm cold-rolled sheet (0.079") |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 49 × 890 × 431 mm (1.9" × 35" × 17") |
| Fit Screen Size | 43"–90" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×400, 800×400 |
| Max. VESA | 855 × 405 mm |
| Weight Capacity | 70 kg (154 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 49 mm (1.9") |
| Tilt Range | +3° ~ -12° |
| Screen Freely Tilting | No |
| Installation | Double Stud (406 mm / 450 mm / 600 mm), Solid Wall |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
