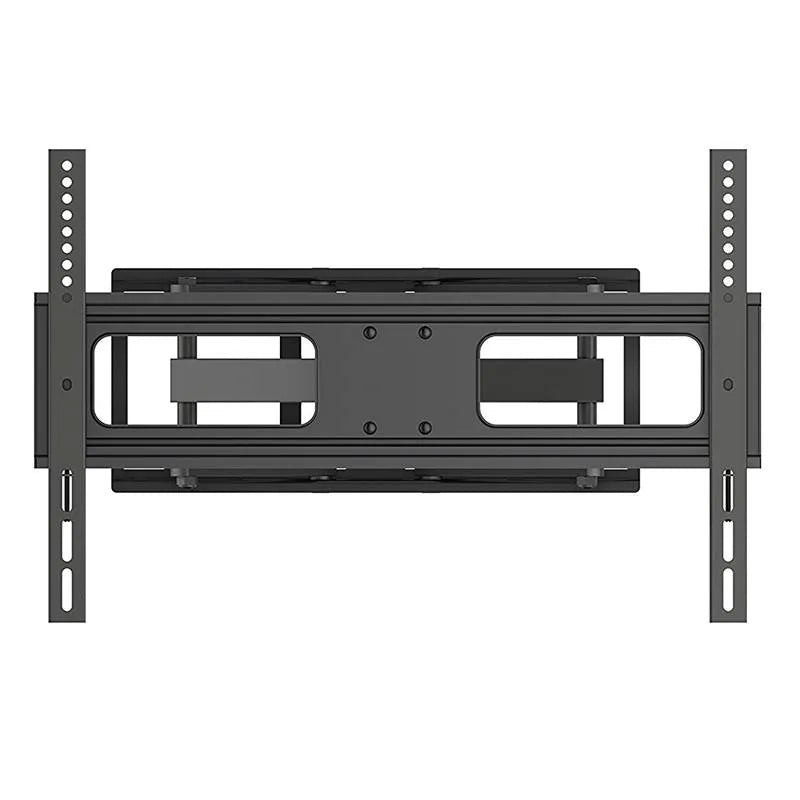

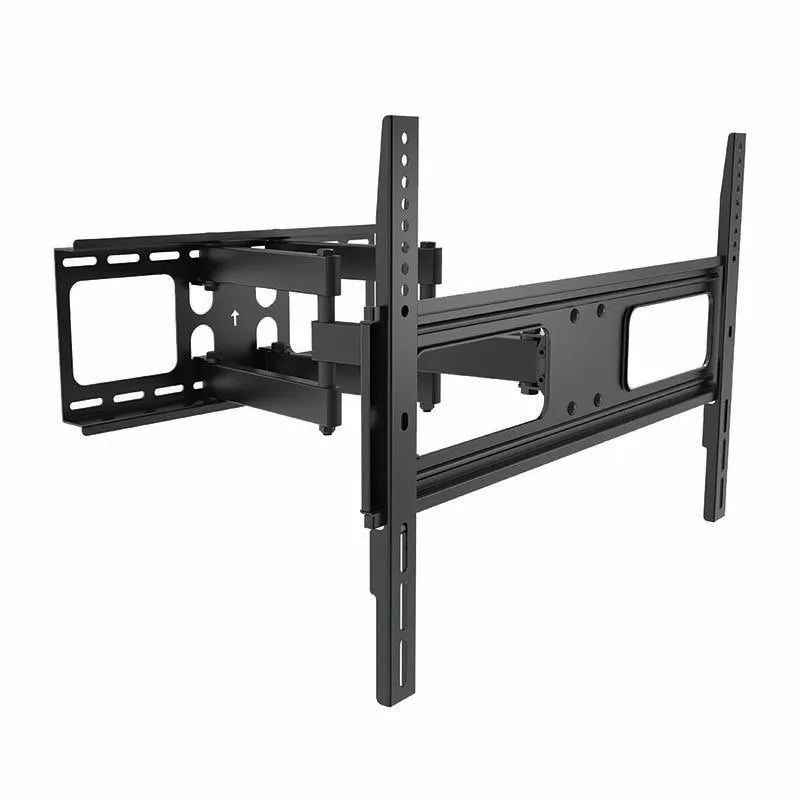

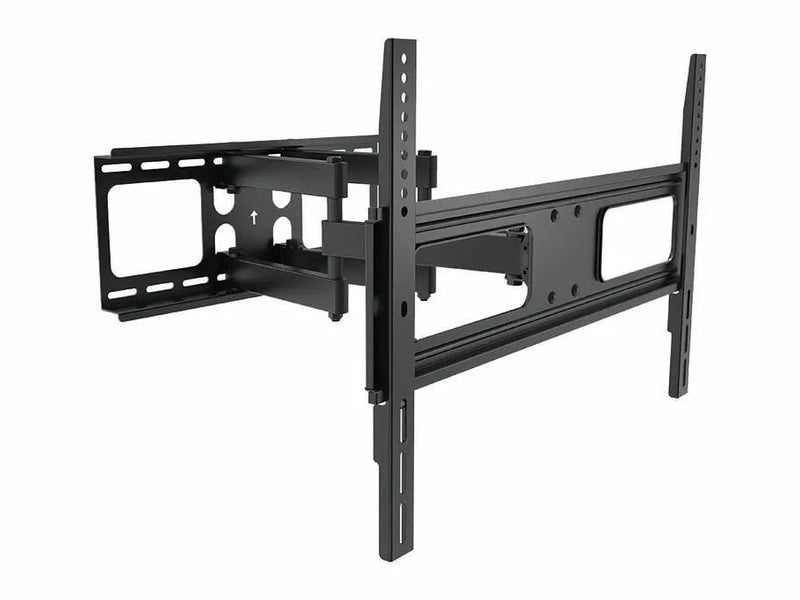

The LPA36-466 is a dual-arm full-motion wall mount for curved & flat panel TVs up to 70", 50kg/110lbs. This mount extends out 510mm from wall and allows TVs to turn 60 left or right. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to “roll" up to 3 clockwise and counterclockwise to ensure it is perfectly level. Integrated cable management system keeps cables organised and protected. Wide wall plate fits for 406/450mm stud installation.
FEATURES
●Free-Tilting Design: for multiple monitor viewing angles
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Built-In Level Adjustment: ensures perfect positioning
The LPA36-466 is a dual-arm full-motion wall mount for curved & flat panel TVs up to 70", 50kg/110lbs. This mount extends out 510mm from wall and allows TVs to turn 60 left or right. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to “roll" up to 3 clockwise and counterclockwise to ensure it is perfectly level. Integrated cable management system keeps cables organised and protected. Wide wall plate fits for 406/450mm stud installation.
FEATURES
●Free-Tilting Design: for multiple monitor viewing angles
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Built-In Level Adjustment: ensures perfect positioning
| Full-motion TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Full-motion TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Dimensions | 510 × 660 × 430 mm (20.1" × 26" × 16.9") |
| Fit Screen Size | 37"–70" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | Universal |
| VESA Compatible | 200×200, 300×300, 400×200, 400×400, 600×400 |
| Max. VESA | 600 × 400 mm |
| Weight Capacity | 50 kg (110 lbs) |
| Strength Tested | 3 Times Approved |
| Profile | 64–510 mm (2.5"–20.1") |
| Tilt Range | -20° ~ +10° |
| Swivel Range | -60° ~ +60° |
| Screen Level | -3° ~ +3° |
| Screen Freely Tilting | Yes |
| Installation | Solid wall, Double Stud (406 mm), Double Stud (450 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Cable Management | No |
| Anti-theft | No |
| Power Supply | No |
| Accessory Kit Package | Compartment Polybag |
