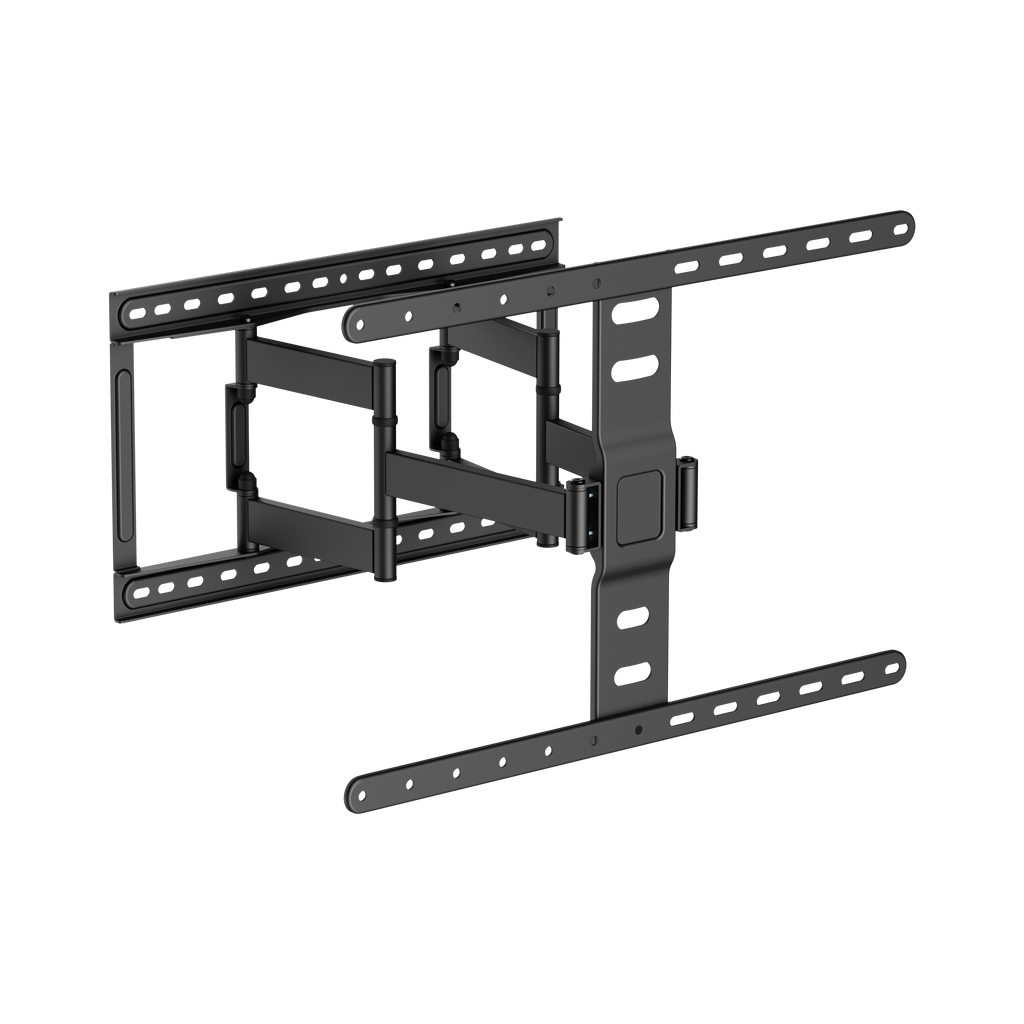

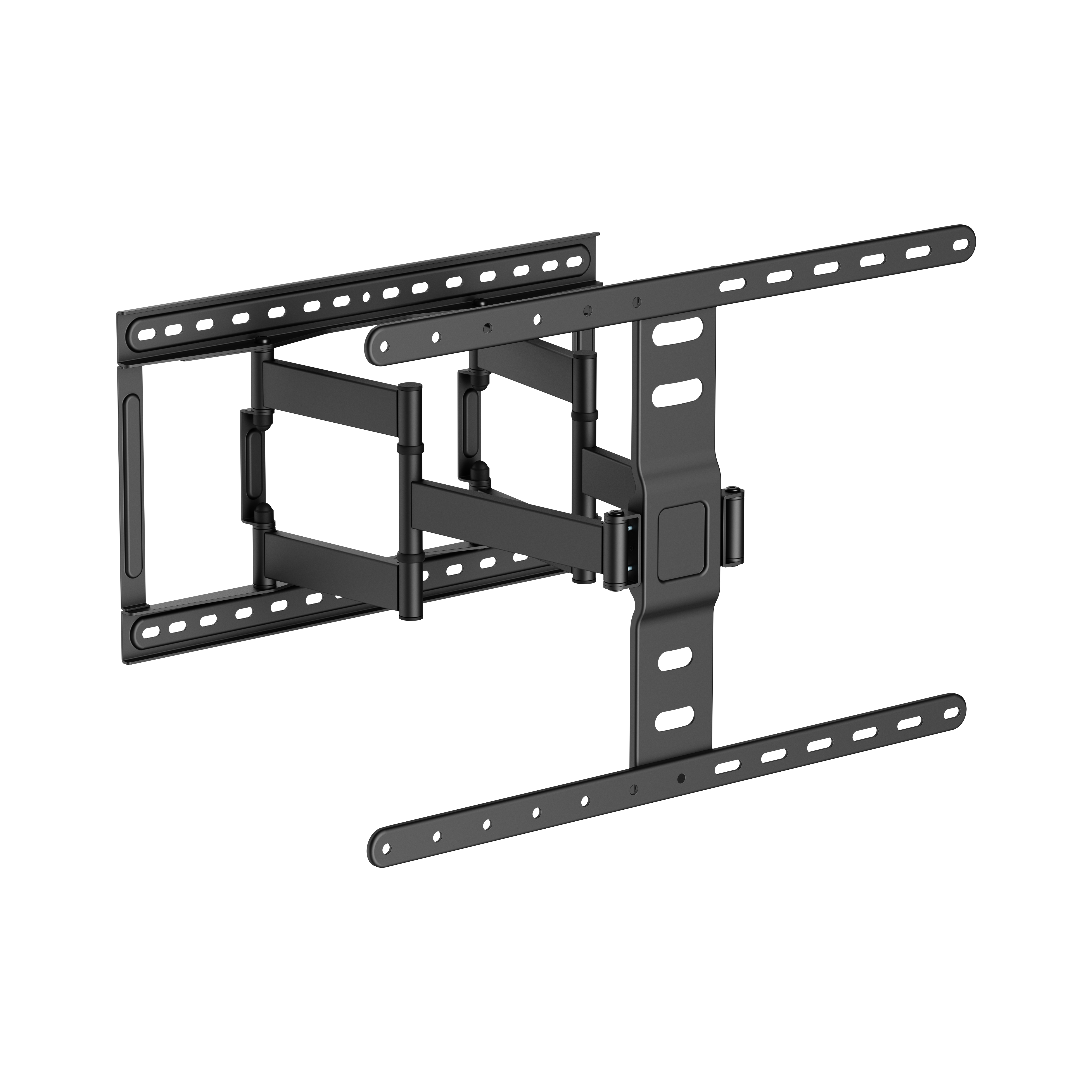

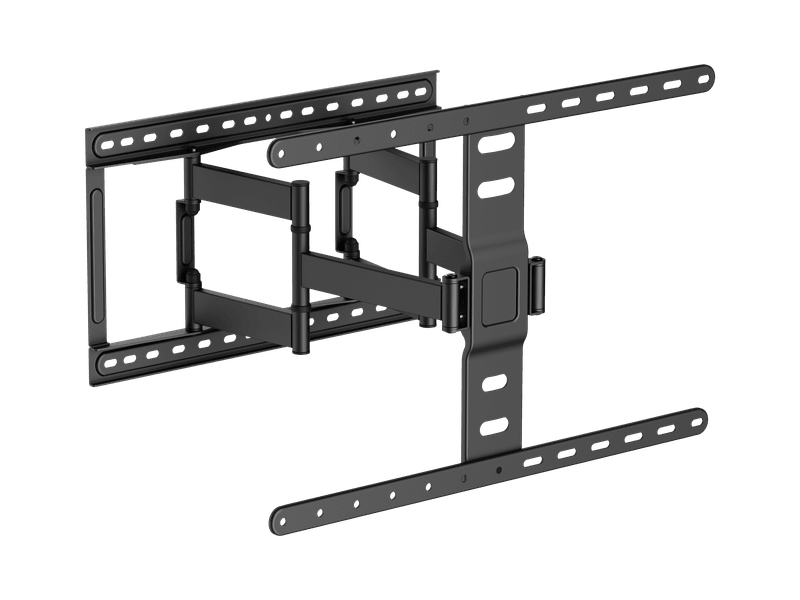

Brateck LPA83-466 MODERN ULTRA-SLIM FULL-MOTION TV WALL MOUNT For most 43"-90" TVs
FEATURES
●Ultra-slim design
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)
●Cable Management: keeps everything organized
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Easy Assembly: Installation is as easy as 1-2-3
Brateck LPA83-466 MODERN ULTRA-SLIM FULL-MOTION TV WALL MOUNT For most 43"-90" TVs
FEATURES
●Ultra-slim design
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)
●Cable Management: keeps everything organized
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Easy Assembly: Installation is as easy as 1-2-3
| Full-motion TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Full-motion TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm: 3.0 mm pickling sheet (0.12") VESA Panel: 2.5 mm pickling sheet (0.098") Wall Plate: 2.5 mm pickling sheet (0.098") |
| Pipe Size | 40 × 15 × 1.2 mm Square Steel Tube (1.6" × 0.59" × 0.047") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 420 × 509 × 632 mm (16.5" × 20" × 24.9") |
| Fit Screen Size | 43"–90" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 100×200, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 400×400, 600×300, 600×400 |
| Max. Mounting Hole | 602 × 400 mm |
| Weight Capacity | 60 kg (132 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 27 ~ 420 mm (1.1" ~ 16.5") |
| Tilt Range | +3° ~ -12° |
| Swivel Range | +60° ~ -60° |
| Screen Level | +3° ~ -3° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall, Double Stud (406 mm / 450 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | Yes |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
