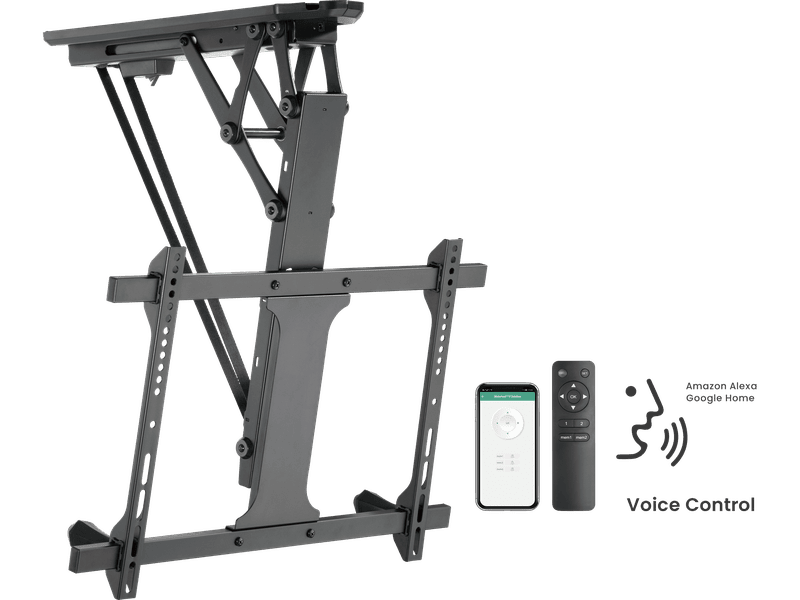

Brateck PLB-M0546AI SMART FLIP DOWN TV CEILING MOUNT POWERED BY TUYA Support most 32" ~ 70" TVs (Black)
FEATURES
●Powerful Motor: more stable, strong and durable
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●App Remote Control: remote powered by Tuya App
●Flip Down Design: allows for easy storage, cleared up space and out-of-way safety
●Smart Voice Control: effortlessly adjust the position of the TV with a simple voice command
Brateck PLB-M0546AI SMART FLIP DOWN TV CEILING MOUNT POWERED BY TUYA Support most 32" ~ 70" TVs (Black)
FEATURES
●Powerful Motor: more stable, strong and durable
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●App Remote Control: remote powered by Tuya App
●Flip Down Design: allows for easy storage, cleared up space and out-of-way safety
●Smart Voice Control: effortlessly adjust the position of the TV with a simple voice command
| Motorized TV Ceiling Mount – Technical Specifications | |
|---|---|
| Product Category | Motorized TV Ceiling Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Metal Sheet Thickness | Bracket Arm: 2 mm cold-rolled sheet (0.079") VESA Panel: 2 mm cold-rolled sheet (0.079") Wall Plate: 2 mm cold-rolled sheet (0.079") |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 725 × 664 × 516 mm (28.5" × 26.1" × 20.3") |
| Fit Screen Size | 32"–70" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatible | 200×100, 200×200, 300×200, 200×400, 400×200, 300×300, 400×300, 400×400, 600×400 |
| Max. VESA | 600 × 400 mm |
| Weight Capacity | 35 kg (77 lbs) |
| Strength Tested | 3 Times Approved |
| Profile | 108 mm (4.3") |
| Tilt Range | 0° ~ -75° |
| Screen Level | +2° ~ -2° |
| Screen Freely Tilting | No |
| Installation | Ceiling Mounted |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Cable Management | Yes |
| Anti-theft | No |
| Power Supply | Input: AC 100~240V, 50/60Hz Output: DC 24V, 1.5A |
| Power Cord Length | 1.5 m (4.9 ft) |
| Controller Type | Application Control, Radio Frequency (RF) Remote |
| Bubble Level | No |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
| Certification | CE, FCC, RoHS |
