Overview

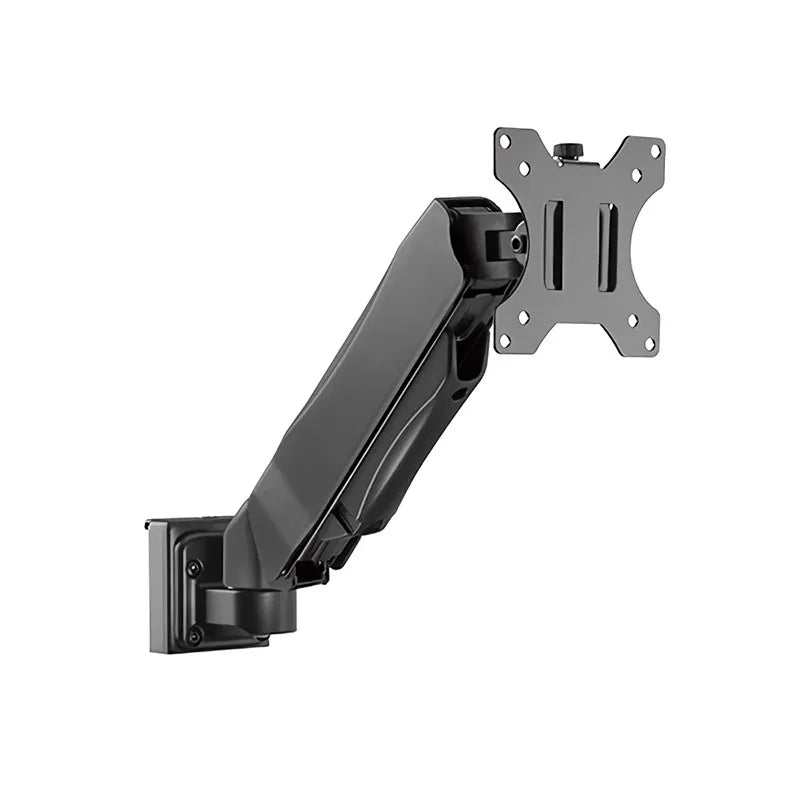

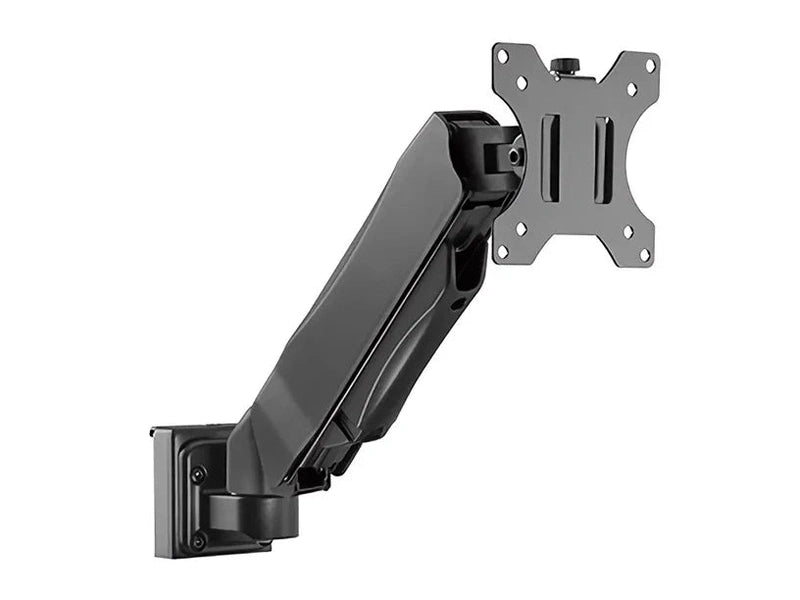

The SW03-8 is constructed with elegant die casting aluminum and innovative counterbalance technology. It can efficiently frees up space on your desk and easily move your LCD monitor into the best ergonomic position. The desk arm is designed with cable management to provide neat desk space.
Can only be installed with one of following combinations together:
MABT-SW01-3 + MABT-SW02-3
or
MABT-SW01-3 + MABT-SW02-4
The SW03-8 is constructed with elegant die casting aluminum and innovative counterbalance technology. It can efficiently frees up space on your desk and easily move your LCD monitor into the best ergonomic position. The desk arm is designed with cable management to provide neat desk space.
Can only be installed with one of following combinations together:
MABT-SW01-3 + MABT-SW02-3
or
MABT-SW01-3 + MABT-SW02-4
| Monitor Hanger – Technical Specifications | |
|---|---|
| Product Category | Monitor Hanger |
| Rank | Standard |
| Material | Aluminum, Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 114 × 342 × 295 mm (4.5" × 13.5" × 11.6") |
| Fit Screen Size | 13"–27" |
| Screen Quantity | 1 |
| Weight Capacity (per screen) | 2~6.5 kg (4.4~14.3 lbs) |
| VESA Compatible | 75×75, 100×100 |
| Tilt Range | +45° ~ -45° |
| Swivel Range | +90° ~ -90° |
| Screen Rotation | +180° ~ -180° |
| Arm Full Extension | 290 mm (11.4") |
| Installation | Hanger |
| Quick Release VESA Plate | Yes |
| Cable Management | Yes |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
