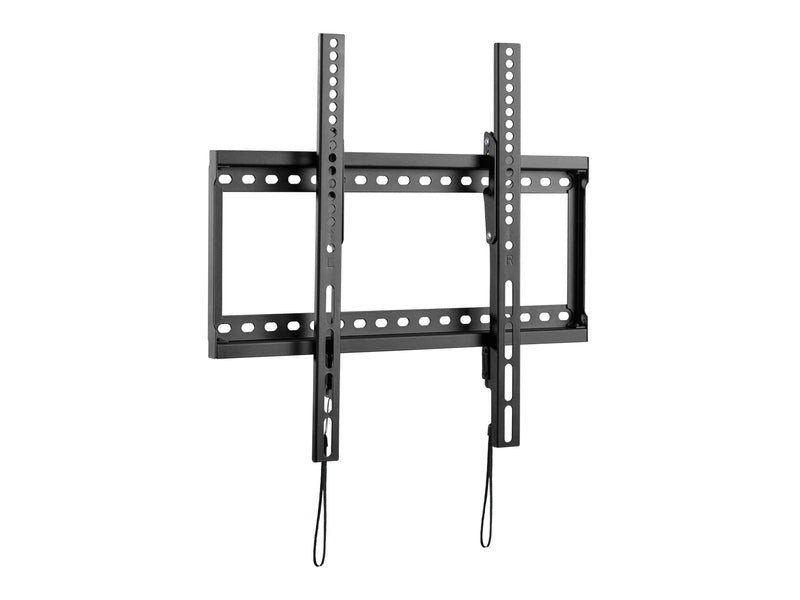

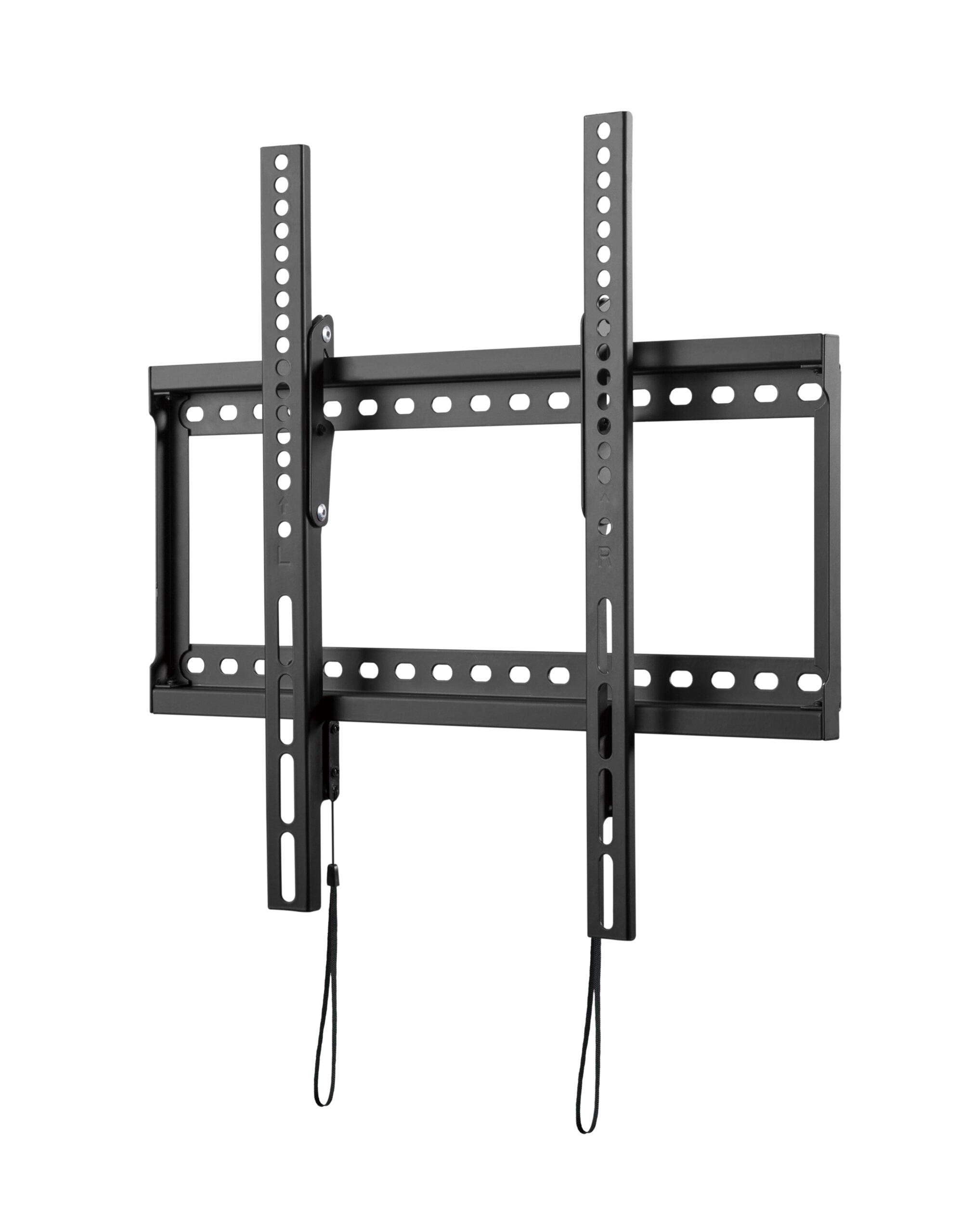

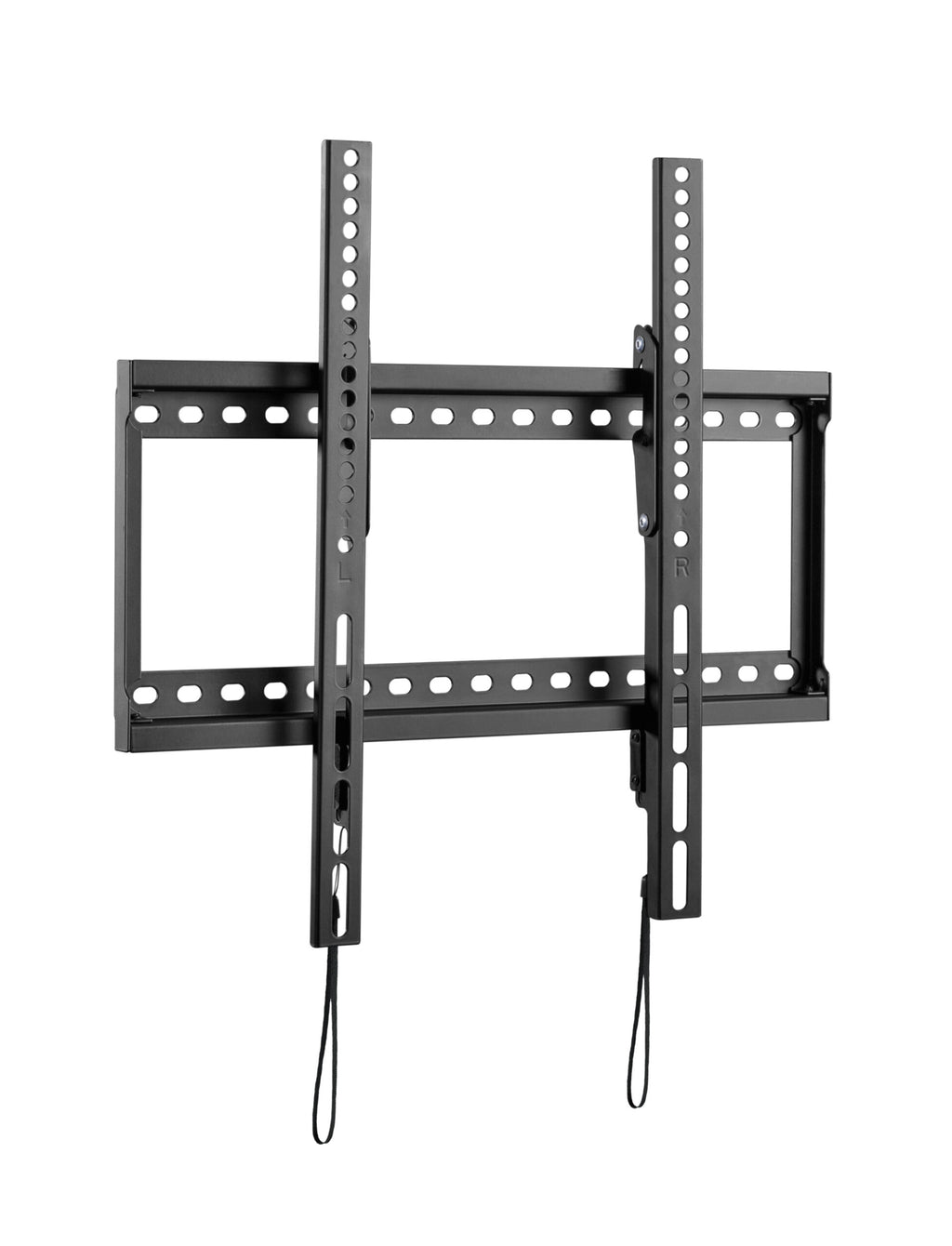

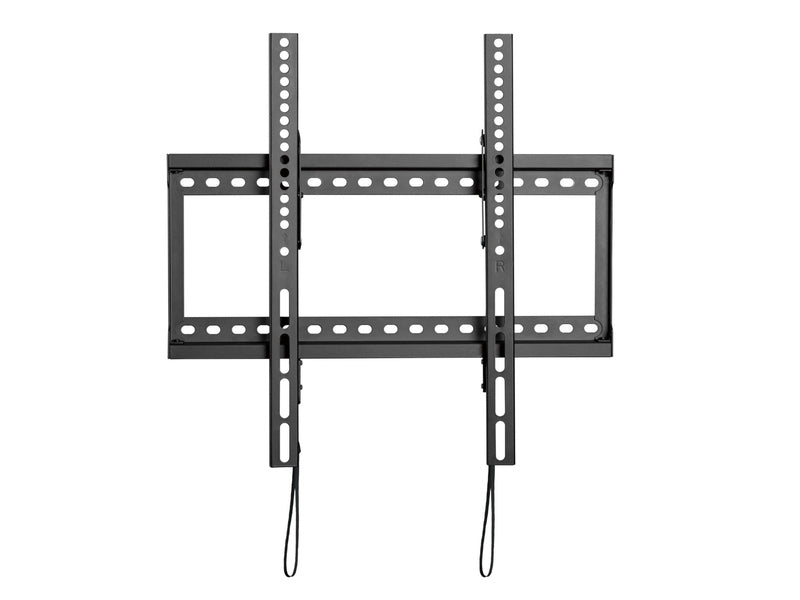

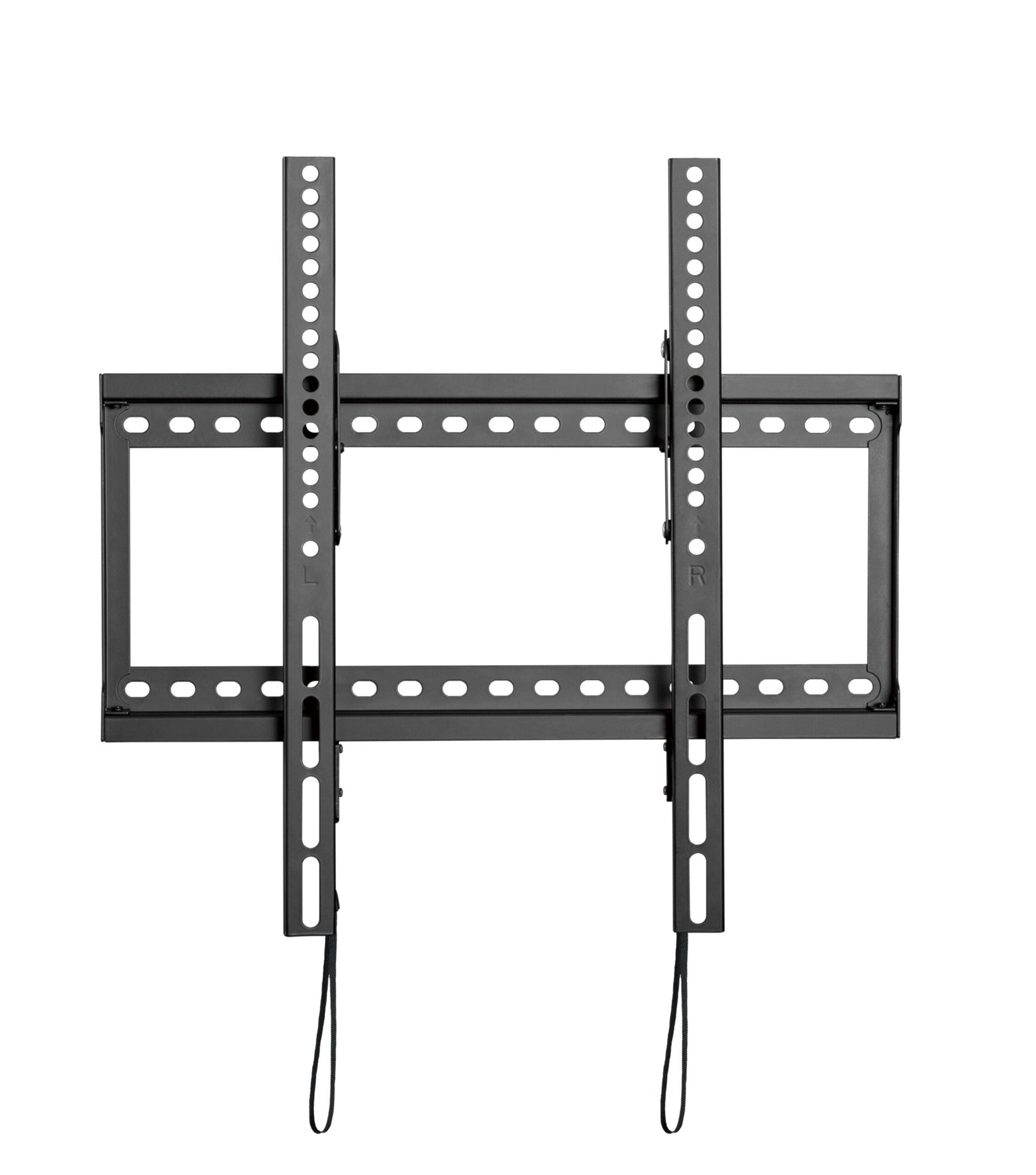

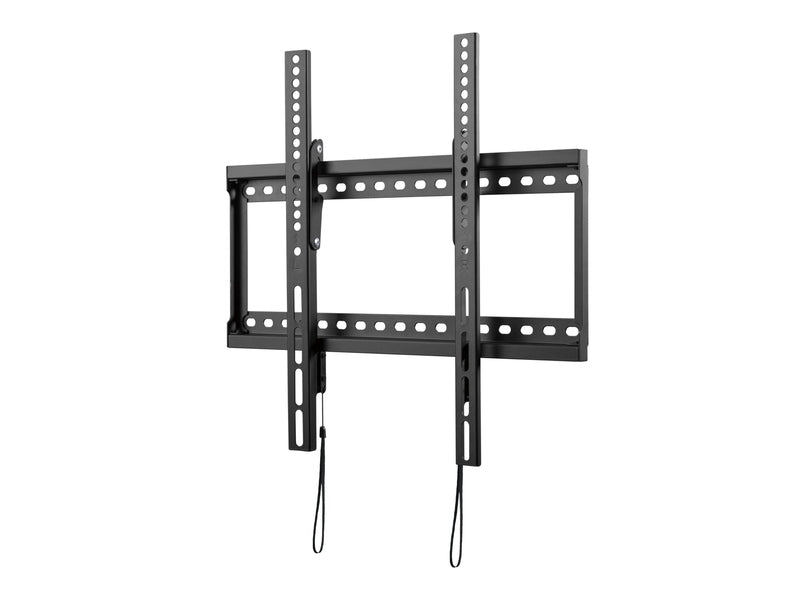

Brateck Tilt TV Wall Mount For 32"-70" up to 75KG, VESA Compatible: 50x50,75x75,100x100,100x150,100x200,200x200,300x200,200x400 Fine Texture Black
FEATURES:
●Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Open Architecture: provides increased ventilation and easier access to wires
Brateck Tilt TV Wall Mount For 32"-70" up to 75KG, VESA Compatible: 50x50,75x75,100x100,100x150,100x200,200x200,300x200,200x400 Fine Texture Black
FEATURES:
●Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Open Architecture: provides increased ventilation and easier access to wires
| Tilt TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm: 1.5 mm cold-rolled sheet (0.059") Wall Plate: 1.5 mm cold-rolled sheet (0.059") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 37 × 438 × 420 mm (1.5" × 17.2" × 16.5") |
| Fit Screen Size | 32"–70" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50×50, 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200, 300×200, 200×400, 400×200, 300×300, 400×300, 350×350, 400×400 |
| Max. Mounting Hole | 400 × 400 mm |
| Weight Capacity | 75 kg (165 lbs) |
| Strength Tested | 3 Times Approved |
| Profile | 37 mm (1.5") |
| Tilt Range | 0° ~ -8° |
| Installation | Solid Wall, Double Stud (406 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Accessory Kit Package | Compartment Polybag |
