Description
Overview

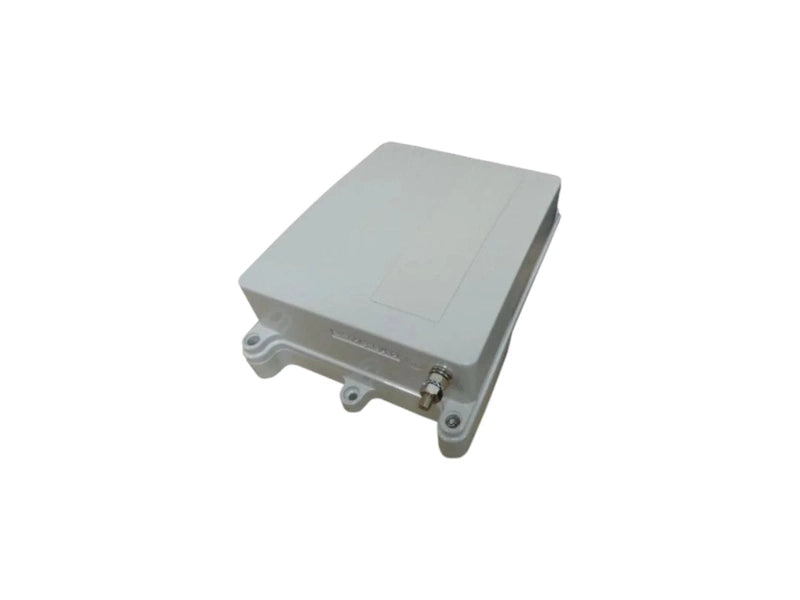

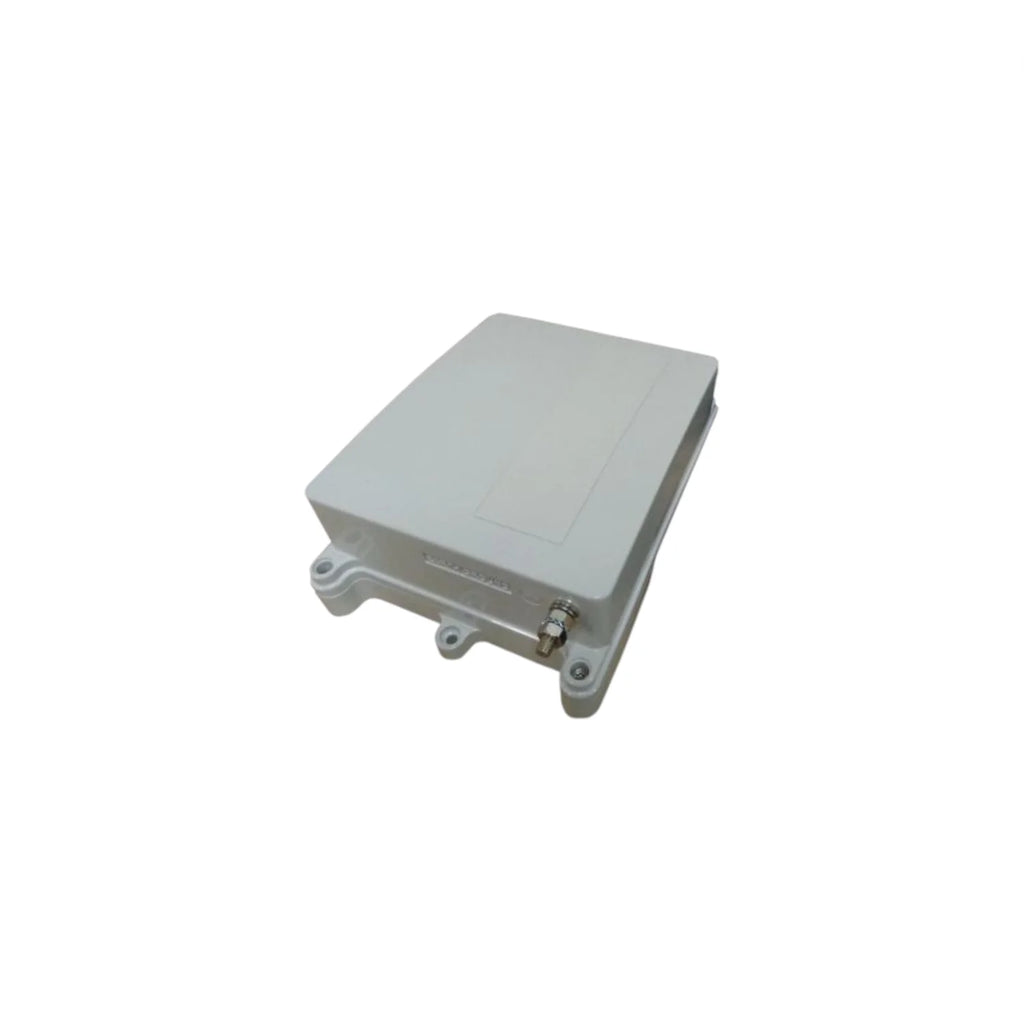

60W outdoor rated power injector, International version with blunt-end cable.
60W outdoor rated power injector, International version with blunt-end cable.
| Cisco AIR-PWRINJ-60RGD2= Specifications | |
|---|---|
| Product Name | Cisco Aironet 60W Outdoor PoE Injector |
| Part Number | AIR-PWRINJ-60RGD2= |
| Power Output | Up to 60W over all four wire pairs |
| Input Voltage | 100–240V AC, 50–60 Hz |
| Output Voltage | 55V DC |
| Connector Type | Shielded RJ-45 Ethernet |
| Ethernet Cable Requirements | Shielded outdoor-rated cable, 26 AWG minimum |
| Max Cable Length | 100 meters (328 feet) |
| Mounting Options | Wall mount or pole mount (with AIR-PWRINJ-60-PMK) |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 10% to 95% non-condensing |
| Dimensions (W × D × H) | 6.5 × 3.5 × 1.5 in (approx.) |
| Weight | ~1.5 lb |
| Compliance | UL, CE, FCC, RoHS |
| Use Case | Outdoor deployment of Cisco Aironet access points |
