Description
Overview
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Specifications
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Specifications

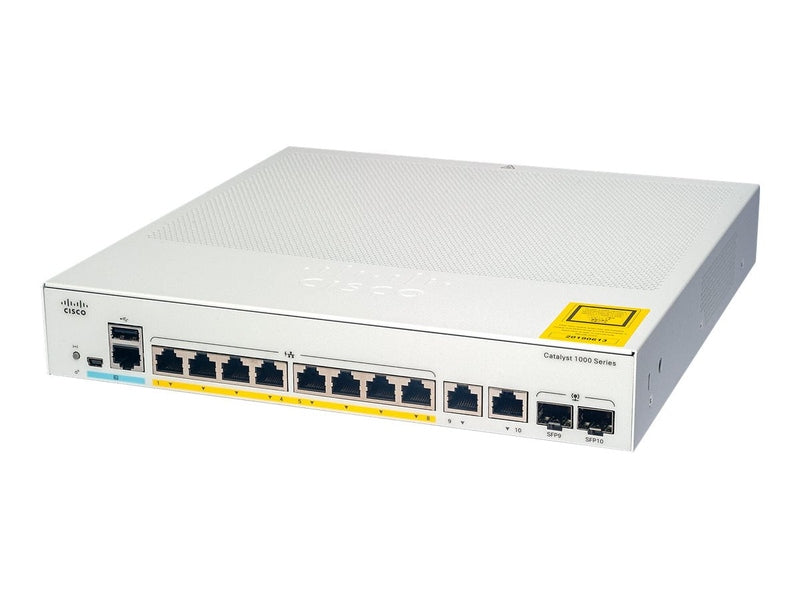

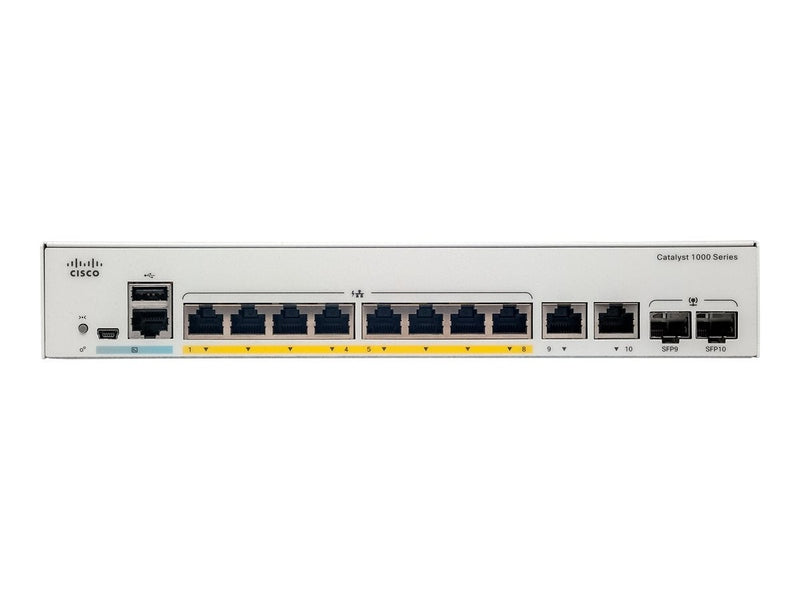

Product Description | Cisco Catalyst 1000-8T-2G-L - switch - 8 ports - Managed - rack-mountable |
Device Type | Switch - 8 ports - Managed |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) |
Performance | Forwarding bandwidth: 10 Gbps ? Switching bandwidth: 20 Gbps ? Forwarding rate (64-byte L3 packets): 14.88 Mpps |
Capacity | Unicast MAC addresses: 15360 ? IPv4 unicast direct routes: 542 ? IPv4 unicast indirect routes: 256 ? IPv6 unicast direct routes: 414 ? IPv6 unicast indirect routes: 128 ? IPv4 routes (static): 16 ? IPv6 routes (static): 16 ? IPv4 routes (Multicast): 1024 ? IPv6 groups (Multicast): 1024 ? IPv4/MAC security ACEs: 600 ? IPv6 security ACEs: 600 ? Active VLANs: 256 ? VLAN IDs: 4094 ? STP instances: 64 ? SPAN sessions: 4 ? MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Power | AC 120/230 V (50 - 60 Hz) |
Dimensions (WxDxH) | 26.8 cm x 18.5 cm x 4.39 cm |
Manufacturer Warranty | Limited lifetime warranty |
