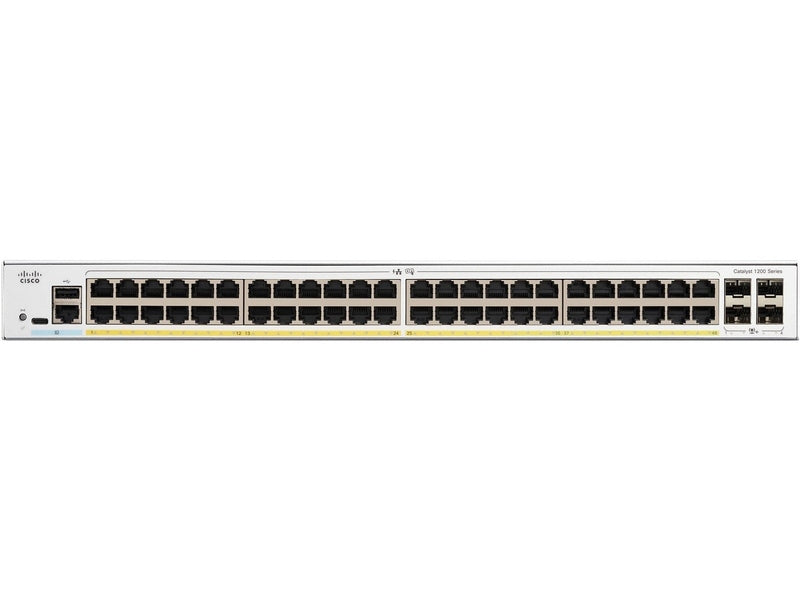

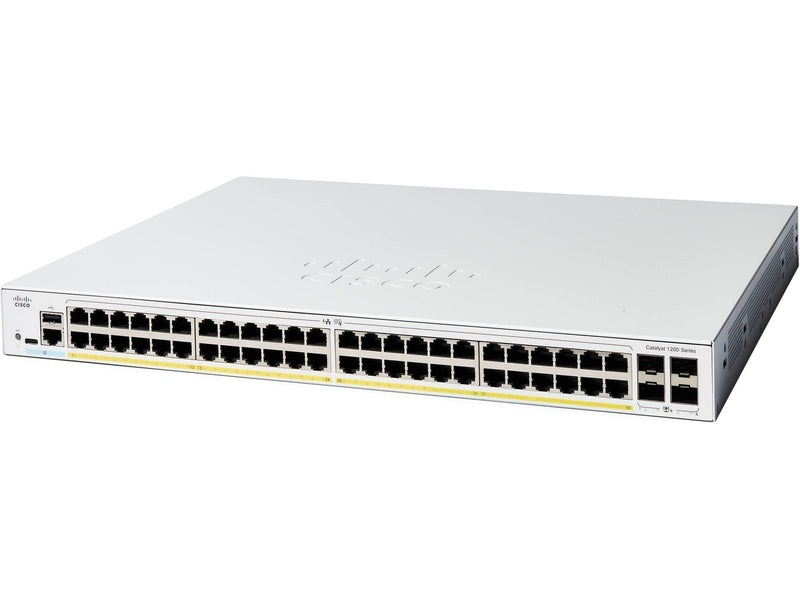

Cisco Catalyst 1200 Series switches
The Cisco Catalyst 1200 Series is the next generation of affordable switches, combining powerful performance and reliability with a complete suite of the features you need for a small or medium-sized business network. The switches operate on customized Linux OS software and provide flexible management options, comprehensive security capabilities, and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, the Catalyst 1200 Series switches provide the ideal solution at an affordable pricing point.
Specifications
Cisco Catalyst 1200 Series switches
The Cisco Catalyst 1200 Series is the next generation of affordable switches, combining powerful performance and reliability with a complete suite of the features you need for a small or medium-sized business network. The switches operate on customized Linux OS software and provide flexible management options, comprehensive security capabilities, and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, the Catalyst 1200 Series switches provide the ideal solution at an affordable pricing point.
Specifications
| Capacity in millions of packets per second (mpps) (64-byte packets) | 130.94 |
| Switching capacity in gigabits per second (Gbps) |
176.0 |
| Power dedicated to PoE | 375W |
| Number of ports that support PoE | 48 |
| System power consumption |
110V=47.44W 220V=47.03W |
| Power consumption (with PoE) |
110V=462.84W 220V=449.48W |
| Heat dissipation (BTU/hr) | 1579.28 |
| Idle Power |
110V=20.51W 220V=20.27W |
| Total system ports | 48x Gigabit Ethernet + 4x 10 Gigabit Ethernet |
| RJ-45 ports | 48x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4x SFP+ |
| Packet buffer | 3 MB |
| Unit dimensions (W x D x H) |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
| Unit weight | 5.43 kg (11.97 lb) |
| Fan (number) | 1 |
| Acoustic noise | 25°C: 37.3 dBA |
| MTBF at 25°C (hours) | 856,329 |
