Description
Overview
The Cisco Catalyst 8200 Series Edge Platforms are 5G-ready cloud edge platforms designed for Secure Access Service Edge (SASE), multilayer security, and cloud-native agility to accelerate your journey to cloud.
Specifications
The Cisco Catalyst 8200 Series Edge Platforms are 5G-ready cloud edge platforms designed for Secure Access Service Edge (SASE), multilayer security, and cloud-native agility to accelerate your journey to cloud.
Specifications

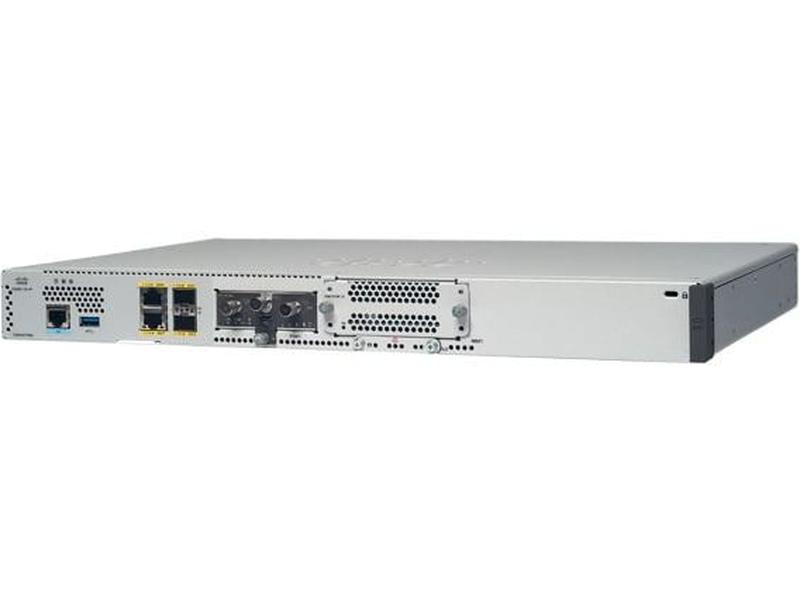

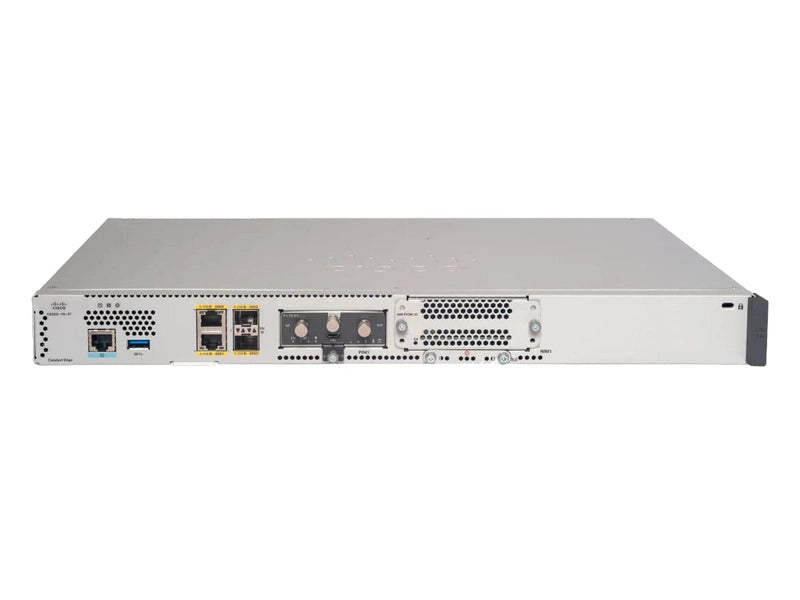

Product Description | Cisco Catalyst 8200L-1N-4T - router - rack-mountable |
Device Type | Router |
Enclosure Type | Rack-mountable - 1U |
Data Link Protocol | Gigabit Ethernet |
Performance | SD-WAN IPsec throughput (1400Bytes, clear text): 500 Mbps ? SD-WAN IPsec throughput (IMIX, clear text): 400 Mbps ? IPv4 forwarding throughput (1400-byte packet size): 3.8 Gbps ? IPsec throughput (1400Bytes, clear text): 500 Mbps |
Capacity | SD-WAN overlay tunnels scale: 1500 ? IPsec SVTI tunnels: 1500 ? Access Control Entries (ACEs) per system (IPv4): 72000 ? IPv4 routes: 800000 ? IPv6 routes: 800000 ? Queues: 16000 ? NAT sessions: 600000 ? Firewall sessions: 512000 ? Virtual Routing and Forwarding (VRF) entries: 2000 ? ACLs per system: 4000 |
Network / Transport Protocol | RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP |
Routing Protocol | OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol | SNMP, SCP, OMP |
VoIP Protocols | SRTP |
Features | NAT support, PAT support, Syslog support, URL filtering, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Bidirectional Forwarding Detection (BFD), DHCP client, Forward Error Correction (FEC), Class of Service (CoS), Call Admission Control (CAC), Flexible NetFlow (FNF), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), Hierarchical Quality of Service (HQoS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Datagram Transport Layer Security (DTLS), Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), Application Aware Routing (AAR), Interactive Voice Response (IVR), Service Advertisement Framework (SAF), Secure Unique Device Identification (SUDI) |
Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 43.8 cm x 30 cm x 4.39 cm |
Weight | 4.54 kg |
System Requirements | Cisco IOS XE 17.5.1 |
