Cisco CP-8831 Unified IP VOIP Conference Phone Control Unit

CiscoSKU: 74-102725-04

Availability:

✅ In Stock at PC LAN Store

Pickup available at PC LAN Store

Usually ready in 30 minutes

Price:
Sale price$176.00
1

Estimate shipping

Description

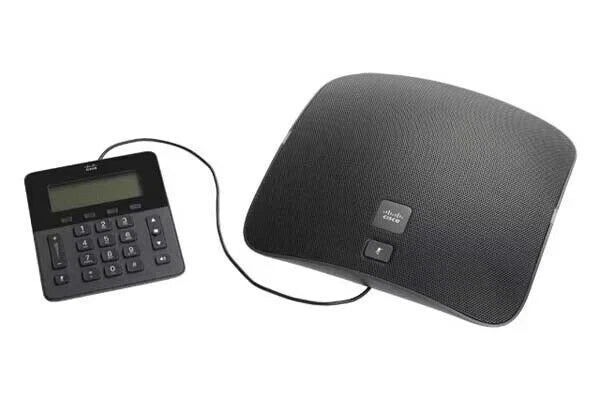

Cisco CP-8831 Unified IP VOIP Conference Phone Control Unit

The Cisco CP-8831-EU-K9 (74-102725-04) is an IP conference phone built for boardrooms and large meeting spaces. It delivers full-duplex audio, wideband sound performance, 360° microphone coverage and supports both wired and wireless extension microphones. Operating via SIP, powered by PoE Class 3, it allows daisy-chaining of two units for expanded room coverage


The IP Conference Phone 8831 is a simple, scalable solution that meets the challenges of the most diverse rooms. It provides flexible deployment options and expansion by using optional extension microphones that can be wired or wireless (Digital Equipment Cordless Telephone [DECT]) with a daisy-chain configuration of two units.

The IP Conference Phone 8831 has an industrial design with enhanced ergonomics that puts the user first. It offers a detached control panel so that the display may be easily viewed without having to move the entire unit. It also provides easy view of device mute status from all sides.

Supported on Cisco Unified Communications Manager and Business Edition systems, the IP Conference Phone 8831 delivers a more productive, acoustically pleasing, and secure communications experience across sites and participants.

Features and Benefits

The Cisco Unified IP Conference Phone 8831 offers many improvements. New features include:

  • Superior wideband acoustics with the first two-element speaker in a conference phone; this feature allows the phone to capture the full voice spectrum without having to compromise with a single-element speaker
  • Expanded room coverage with support for daisy chaining two units
  • Support for optional DECT wireless extension microphone: sold separately
  • Session Initiation Protocol (SIP) signaling
  • Device authentication and signaling encryption using Transport Layer Security (TLS) with Advanced Encryption Standard 128 (AES-128)
  • Media encryption using Secure Real-Time Transport Protocol (SRTP) with AES-128



Specification

Feature

Specification

Signaling protocol support

Session Initiation Protocol (SIP)

Codec support

G.711, G.729 (a and ab), G.722, and Internet Low Bitrate Codec (iLBC)

Calling feature support

●  + Dialing (E.164)
●  Adjustable ringing and volume levels
●  Adjustable display brightness
●  Application launch pad
●  Auto-answer
●  Auto-detection of headset
●  Barge
●  Call forward
●  Call history lists
●  Call timer
●  Call waiting
●  Caller ID
●  Corporate directory
●  Conference
●  Direct transfer
●  Fast-dial service
●  Hold
●  Immediate divert
●  Join
●  Message-waiting indicator
●  Music on hold
●  Mute
●  Network profiles (automatic)
●  On- and off-network distinctive ringing
●  Personal directory
●  Predialing before sending
●  Privacy
●  Ring tone per line appearance
●  Shared line
●  Survivable Remote Site Telephony (SRST)
●  Time and date display
●  Transfer
●  Voicemail

Directories

The Cisco Unified IP Conference Phone 8831 identifies incoming messages and categorizes them for users on the screen. This feature allows you to quickly and effectively return calls using direct dial-back capability. The corporate directory integrates with the Lightweight Directory Access Protocol Version 3 (LDAPv3) standard directory.

Apps

The Apps soft key allows you to enter the Applications menu, where you are able to adjust display contrast, select background images (if available), and select from a large number of unique ringer sounds through the User Preference menu. Network configuration preferences also can be set up (usually by the system administrator). Configuration can be either automatically or manually set up for Dynamic Host Control Protocol (DHCP), Trivial File Transfer Protocol (TFTP), Cisco Unified Communications Manager, and backup Cisco Unified Communications Manager instances.

Help

The online Help feature gives you information about the phone keys, buttons, and features. The pixel display allows for more flexible feature navigation and significantly expands the information viewed when using features such as Services, Information, Messages, and Directory. For example, the Directory button can show local and server-based directory information.

Hold, Mute, and Redial keys

The Mute key is a fixed key. When it is active, the LED flashes on the Cisco Unified IP Conference Phone 8831 as well as on the optional wired and wireless microphone kits. Hold and Redial are provided as soft keys associated with the screen, and are always at the same position for easy access.

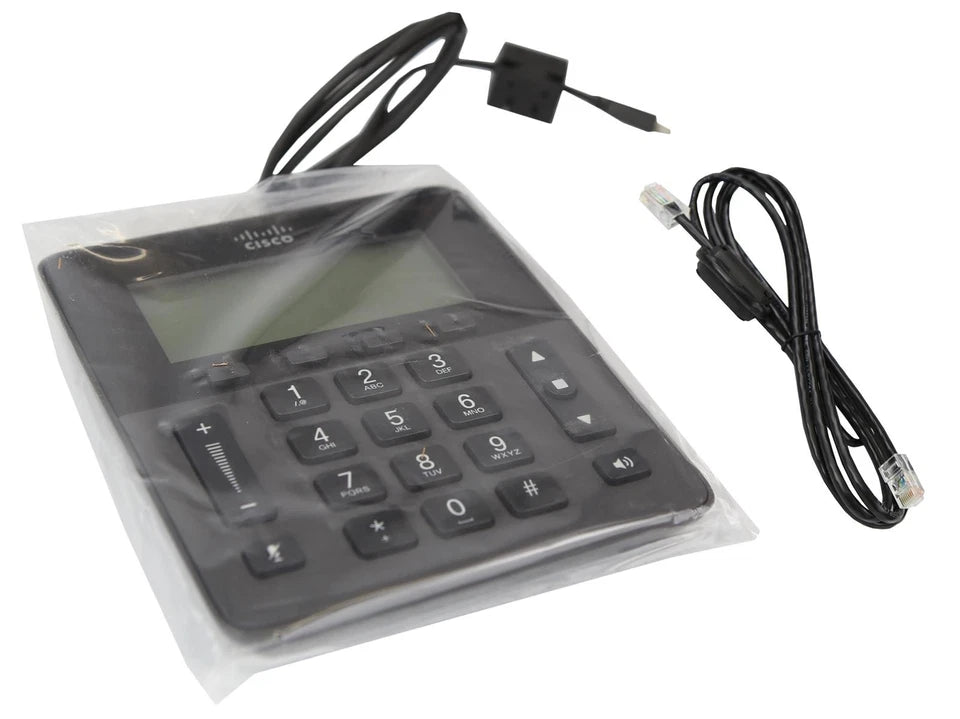

Wired control panel

The panel allows easy control of the unit and viewing of the display without having to move the entire unit.

Display

The conference station has a large high-resolution, graphical 3.5-inch backlit display (396 x 162 pixels).

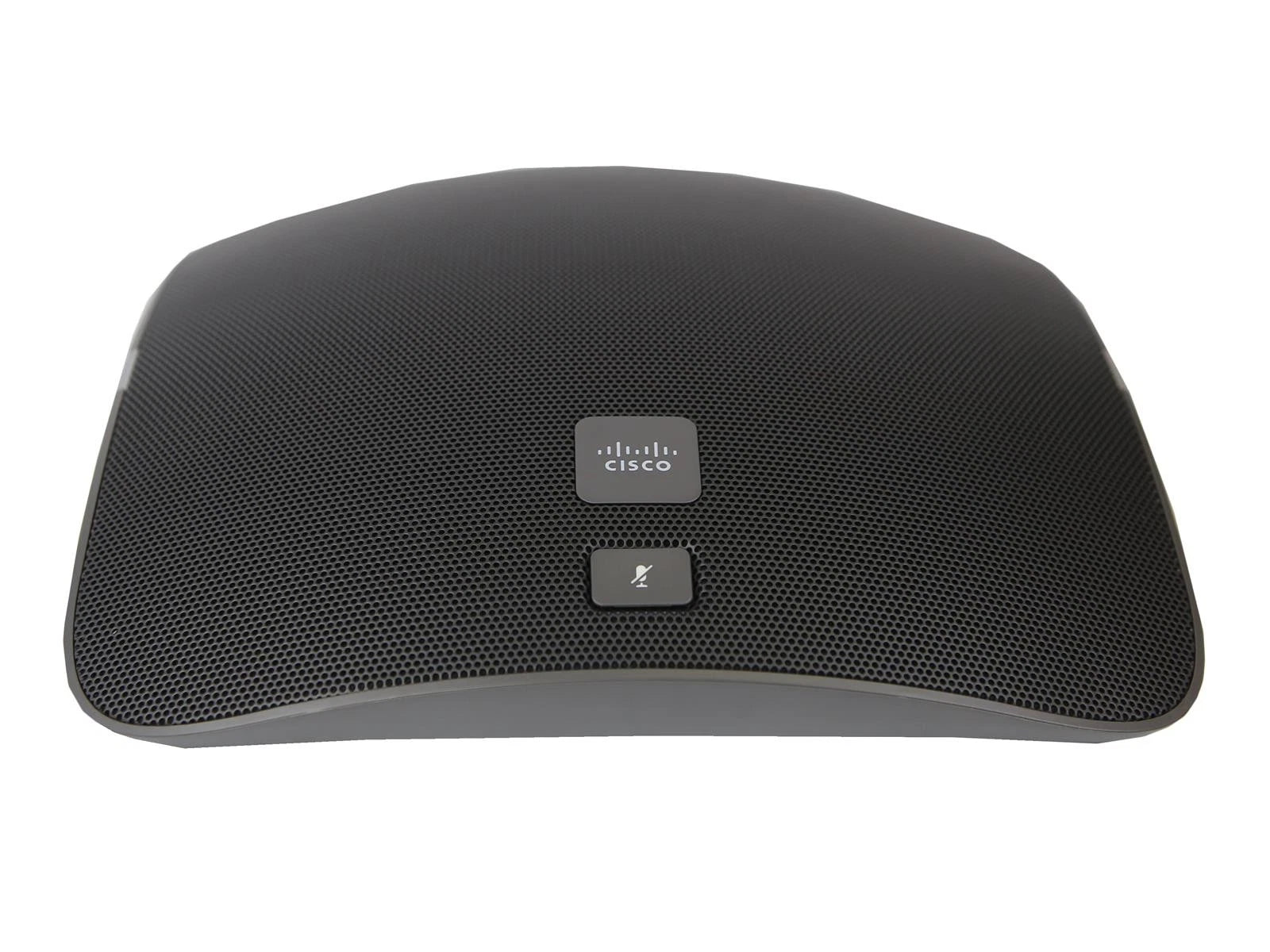

Speakerphone

The Cisco Unified IP Conference Phone 8831 offers full-duplex high-quality wideband speakerphone technology. Included are Automatic Gain Control, comfort-noise generation, silence suppression and voice activity detection, Echo Suppression, and dynamic noise reduction, which reduces noise by up to 9 dB from constant noise sources such as fans or heating, ventilation, and air conditioning (HVAC) systems.

A two-way high-fidelity loudspeaker system provides superior speech clarity versus traditional conferencing systems.

Volume control

The convenient Volume Control buttons on Cisco Unified IP Conference Phone 8831 provide for easy, decibel-level adjustments for the speakerphone and ringer.

Quality-of-service (QoS) options

The Cisco Unified IP Conference Phone supports DHCP and 802.1Q/p standards. The conference station can also be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID.

Multiple ring tones

User-adjustable ring tones are available.

Security

The Cisco Unified IP Conference Phone 8831 supports device authentication through 802.1.x supplicant (TLS) and SRTP.

Language support

Arabic (Arabic Area)

Bulgarian (Bulgaria)

Catalan (Spain)

Chinese (China)

Chinese (Hong Kong)

Chinese (Taiwan)

Croatian (Croatia)

Czech (Czech Republic)

Danish (Denmark)

Dutch (Netherlands)

English (United Kingdom)

Estonian (Estonia)

French (France)

Finnish (Finland)

German (Germany)

Greek (Greece)

Hebrew (Israel)

Hungarian (Hungary)

Italian (Italy)

Japanese (Japan)

Latvian (Latvia)

Lithuanian (Lithuania)

Korean (Korea Republic)

Norwegian (Norway)

Polish (Poland)

Portuguese (Portugal)

Portuguese (Brazil)

Romanian (Romania)

Russian (Russian Federation)

Spanish (Columbia)

Spanish (Spain)

Slovak (Slovakia)

Swedish (Sweden)

Serbian (Republic of Serbia)

Serbian (Republic of Montenegro)

Slovenian (Slovenia)

Thai (Thailand)

Turkish (Turkey)

Configuration options

You can configure IP address assignment statically or through the DHCP client.
