Description

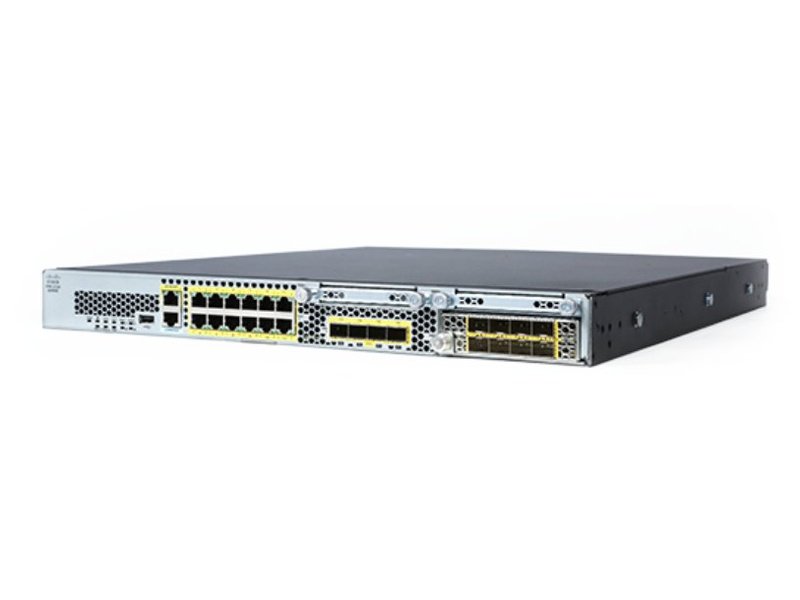

The Cisco Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The series’ firewall throughput range addresses use cases from the Internet edge to the data center. Network Equipment Building Standards (NEBS)- compliance is supported by the Cisco Firepower 2100 Series platform. The 2100 Series platforms can run either the Cisco ASA Firewall or Cisco Firepower Threat Defense (FTD).
Specifications
Features |
Cisco Firepower Model |
|||
2110 |
2120 |
2130 |
2140 |
|
Dimensions (H x W x D) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
Form factor (rack units) |
1RU |
1RU |
1RU |
1RU |
Integrated I/O |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
Network modules |
None |
None |
10G SFP+, 1/10G FTW Options |
10G SFP+, 1/10G FTW Options |
Note: The 2100 Series appliances may also be deployed as dedicated threat sensors with fail-to-wire network modules. Please contact your Cisco representative for details. |
||||
Maximum number of interfaces |
Up to 16 total Ethernet ports, (12x1G RJ-45, 4x1G SFP) |
Up to 16 total Ethernet ports, (12x1G RJ-45, 4x1G SFP) |
Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module |
Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module |
Integrated network management ports |
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
Serial port |
1 x RJ-45 console |
1 x RJ-45 console |
1 x RJ-45 console |
1 x RJ-45 console |
USB |
1 x USB 2.0 Type-A (500mA) |
1 x USB 2.0 Type-A (500mA) |
1 x USB 2.0 Type-A (500mA) |
1 x USB 2.0 Type-A (500mA) |
Storage |
1x 100 GB, 1x spare slot (for MSP) |
1x 100 GB, 1x spare slot (for MSP) |
1x 200 GB, 1x spare slot (for MSP) |
1x 200 GB, 1x spare slot (for MSP) |
Power supply configuration |
Single integrated 250W AC power supply. |
Single integrated 250W AC power supply. |
Single 400W AC, Dual 400W AC optional. Single/Dual 350W DC optional1 |
Dual 400W AC. Single/dual 350W DC optional1 |
AC input voltage |
100 to 240V AC |
100 to 240V AC |
100 to 240V AC |
100 to 240V AC |
AC maximum input current |
< 2.7A at 100V |
< 2.7A at 100V |
< 6A at 100V |
< 6A at 100V |
AC maximum output power |
250W |
250W |
400W |
400W |
AC frequency |
50 to 60 Hz |
50 to 60 Hz |
50 to 60 Hz |
50 to 60 Hz |
AC efficiency |
>88% at 50% load |
>88% at 50% load |
>89% at 50% load |
>89% at 50% load |
DC input voltage |
- |
- |
-48V to -60VDC |
-48V to -60VDC |
DC maximum input current |
- |
- |
< 12.5A at -48V |
< 12.5A at -48V |
DC maximum output power |
- |
- |
350W |
350W |
DC efficiency |
- |
- |
>88% at 50% load |
>88% at 50% load |
Redundancy |
None |
None |
1+1 AC or DC with dual supplies |
1+1 AC or DC with dual supplies |
Fans |
4 integrated (2 internal, 2 exhaust) fans2 |
4 integrated (2 internal, 2 exhaust) fans2 |
1 hot-swappable fan module (with 4 fans)2 |
1 hot-swappable fan module (with 4 fans)2 |
Noise |
56 dBA @ 25C |
56 dBA @ 25C |
56 dBA @ 25C |
56 dBA @ 25C |
74 dBA at highest system performance. |
74 dBA at highest system performance. |
77 dBA at highest system performance. |
77 dBA at highest system performance. |
|
Rack mountable |
Yes. Fixed mount brackets included. (2-post). Mount rails optional (4-post EIA-310-D rack) |
Yes. Fixed mount brackets included. (2-post). Mount rails optional (4-post EIA-310-D rack) |
Yes. Mount rails included (4-post EIA-310-D rack) |
Yes. Mount rails included (4-post EIA-310-D rack) |
Weight |
16.1 lb (7.3 kg): with 2x SSDs |
16.1 lb (7.3 kg): with 2x SSDs |
19.4 lb (8.8 kg) 1 x power supplies, 1 x NM, 1 x fan module, 2x SSDs |
21 lb (9.53 kg) 2 x power supplies, 1 x NM, 1 x fan module, 2x SSDs |
Temperature: operating |
32 to 104°F (0 to 40°C) |
32 to 104°F (0 to 40°C) |
32 to 104°F (0 to 40°C) or NEBS operation (see below)3 |
32 to 104°F (0 to 40°C) |
Temperature: nonoperating |
-4 to 149°F (-20 to 65°C) |
-4 to 149°F (-20 to 65°C) |
-4 to 149°F (-20 to 65°C) |
-4 to 149°F (-20 to 65°C) |
Humidity: operating |
10 to 85% noncondensing |
10 to 85% noncondensing |
10 to 85% noncondensing |
10 to 85% noncondensing |
Humidity: nonoperating |
5 to 95% noncondensing |
5 to 95% noncondensing |
5 to 95% noncondensing |
5 to 95% noncondensing |
Altitude: operating |
10,000 ft (max) |
10,000 ft (max) |
10,000 ft (max) or NEBS operation (see below)3 |
10,000 ft (max) |
Altitude: nonoperating |
40,000 ft (max) |
40,000 ft (max) |
40,000 ft (max) |
40,000 ft (max) |
NEBS operation (FPR-2130 Only) |
Operating altitude: 0 to 13,000 ft (3962 m) |
|||
Operating temperature: |
||||
Long term: 0 to 45°C, up to 6,000 ft (1829 m) |
||||
Long term: 0 to 35°C, 6,000 to 13,000 ft (1829 to 3964 m) |
||||
Short term: -5 to 55°C, up to 6,000 ft (1829 m) |
  |
