Description
Highlights
Configurations

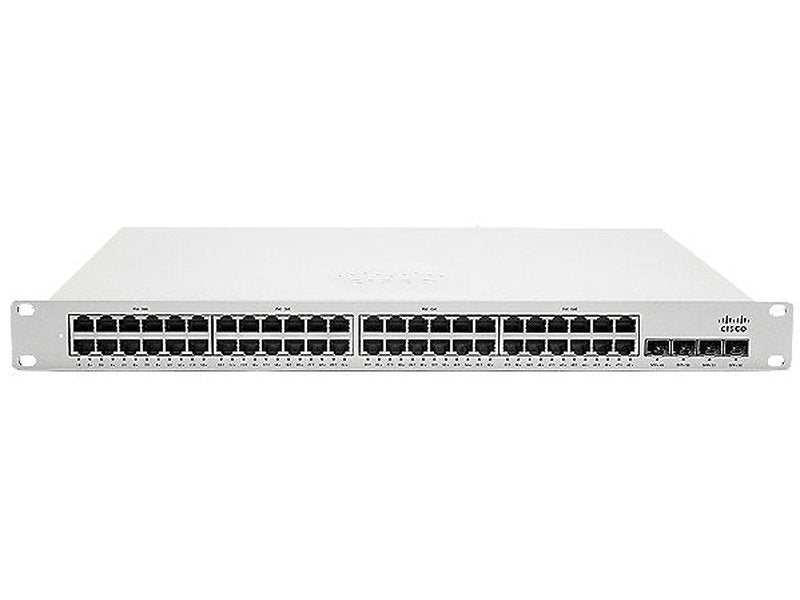

48 port Gigabit Ethernet
4 × 10GbE SFP+
uplinks
MS350-48LP includes 370 W PoE / PoE+
MS350-48FP includes 740 W PoE
/ PoE+
160G Physical stacking
Hardware platform
Voice and Video QoS
Non-blocking switch fabric
Hot-swappable power supplies and fans
Ultra-reliable, includes lifetime warranty
Power over Ethernet (for PoE
models)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS350-48LP maximum PoE output: 370 W
MS350-48FP maximum PoE output: 740 W
PoE available simultaneously on all ports
Intelligent PoE power allocation
based on device advertisement (LLDP)
Cloud management
Visibility and
control over thousands of ports
Built-in multi site management
Zero touch
provisioning
Monitoring and diagnostics
Cable failure testing
Gateway
connectivity testing
Real time troubleshooting tools
Email and text
message alerts
Layer 3
Dynamic routing (OSPFv2) *
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to
configure routed interfaces
Warm spare redundancy (VRRP) *
DHCP Failover
TECHNICAL SPECIFICATIONS
Interfaces
48 × 10/100/1000BASE-T
Ethernet (RJ45) with auto-MDIX crossover
48V DC 802.3af/802.3at
Power-over-Ethernet (PoE/PoE+) on the MS350-48P models, available on all ports
(maximum of 30W per port for PoE+)
4 × SFP+ 10 Gigabit Ethernet interfaces
for uplink
2 × Stacking interfaces
Auto negotiation and crossover
detection
Ethernet switching capabilities
802.1p Quality of Service
prioritization
802.1Q VLAN tagging with 4,095 addressable tags
802.1D
Spanning Tree Protocol (RSTP, STP)
802.1ab Link Layer Discovery Protocol
(LLDP)
802.3ad link aggregation with up to 8 ports per aggregate
Broadcast
storm control
IGMP snooping for multicast filtering
MAC forwarding table
entries: 96,000
Security
Integrated two-factor authentication
Role-based administration
Corporate wide password policy enforcement
IEEE
802.1X port-based security
Performance
Non-blocking fabric
176 Gbps
non-blocking switching capacity
2.5 microsecond latency
Power over
Ethernet (PoE models):
802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W
per port
MS350-48LP maximum PoE output: 370 W
MS350-48FP maximum PoE
output: 740 W
PoE available on all ports simultaneously
Pre-standard PoE:
supports pre-standard PoE devices
Management
Managed via the cloud using
the Meraki dashboard
Integrated with Meraki wireless, routing, and firewall
management
No-touch remote deployment (no staging needed)
Detailed
historical per-port and per-client usage statistics
DHCP and hostname
fingerprinting
SNMP v2c
Seamless over-the-web firmware upgrades
Remote
diagnostics
Email and text alerts
Live remote packet capture
Aggregated
event logs with instant search
Scalable stacking
Unified configuration and
monitoring of all switches
Virtually stack thousands of switch ports in a
single logical stack for unified management, monitoring, and configuration
Physically stack up to 8 switches for added resiliency in high-throughput
environments
Layer 3 capabilities
Static routing
Dynamic routing
(OSPFv2)
DHCP Server and Relay
Warm spare (VRRP) with DHCP Failover
Power
Power input: 100-240 VAC, 47-63 Hz
MS350-48 power consumption: 56-63
W max
MS350-48LP power consumption: 63-478 W max
MS350-48FP power
consumption: 70-888 W max
Environment
Operating temperature: 32°F to 113°F
(0°C to 45°C)
Humidity: 5 to 95% non-condensing
MTBF (at 25°C)
MS350-48: 588,000 hours
MS350-48LP: 536,000 hours
MS350-48FP: 516,000
hours
Warranty
Lifetime hardware warranty with advanced replacement
included
Physical dimensions (H × W × D)
MS350-48LP
1.74" x 19.1" x 20.4" (4.44 x 48.6 x 51.8 cm) with power supply fitted
Weight: 13.82 lb (6.27 kg)
