Description

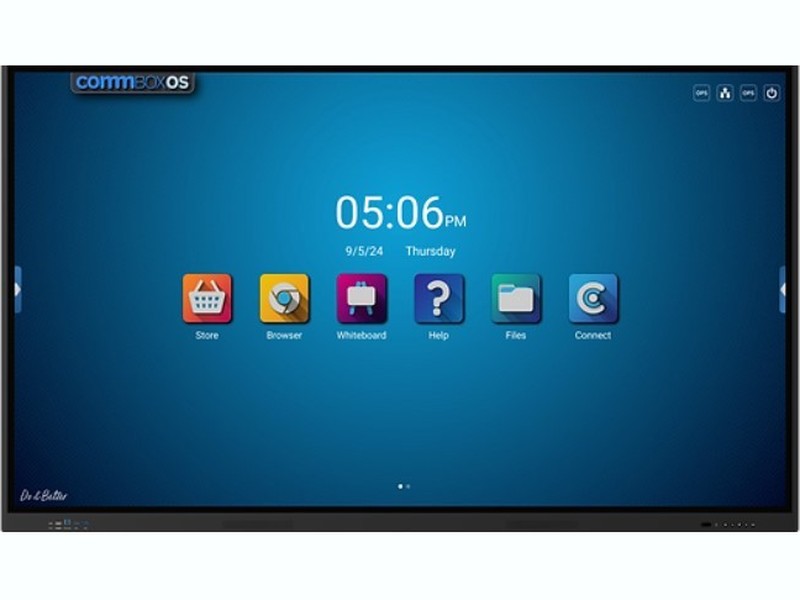

Commbox 86" 4K UHD Interactive ATOM Display, Android 13 4 Year Warranty
| LCD SIZE | 86" |
| SCREEN TYPE | LCD IPS 4K |
| GLASS TYPE AND THICKNESS | TOUGHEN GLASS 3.2MM GRADE MOHS LEVEL 8 |
| TOUCH TYPE | ADVANCED INFRA-RED TOUCH FRAME |
| TOUCH ACCURACY | 1MM |
| BACKLIGHT TYPE | D-LED |
| ORIENTATION | LANDSCAPE |
| ASCPECT RATIO | 16:09 |
| RESOLUTION | 3830 (h) X 2160 (V) |
| VIEW AREA (H)/(v)MM | 1895.04mm*1065.96mm |
| BRIEGHTNESS (cd/m2) | 400 |
| CONTRAST RATIO | 1200:1 |
| LCD REFRESH RATE | 60Hz |
| VIEWING ANGLE | 178 DEGREES |
| LIFE OF SCREEN (HRS) | 30,000 |
| DISPLAY COLOURS | 1.07B |
| RESPONSE TIME | <8MS |
| MINIMUM TOUCH OBJECT | 1.6MM |
| WINDOWS WITH MICROSOFT INK SUPPORT | MULTI-TOUCH |
| CHROMIUM, LINUX | SINGLE-TOUCH |
| MAC-OS | SINGLE TOUCH - MULTI TOUCH AVAILABLE WITH DRIVER |
| TOUCH TOOL | FINGER, PASSIVER STYLUS, ERASER |
| PEN TYPE | 2 X DUAL TIP STYLUS |
| PEN TIP DIAMETER | 3MM/8MM |
| AUDIO | DUAL FRONT FACING SPEAKERS, 2.0 SOUND CHANNEL, 2 X 16W SPEAKER |
| OPERATING SYSTEM | ANDROID 13 |
| SYSTEM VERSION | ANDROID OS LITE |
| RAM | 8GB |
| ROM | 64GB |
| ARCHITECTURE | DUAL QUAD CORE |
| RS232 CONTROL, IP CONTROL, WAKE ON LAN | YES |
| POWER REQUIREMENTS | 240V |
| POWER CONSUMPTION W SLOT IN PC | 380W |
| STAND BY | <0.5W |
| CONNECTIVITY | WI-FI AND BLUETOOTH |
| INPUTS AND OUTPUTS FRONT | 1 X HDMI In, 2 X USB-A 3.0, 1 X USB TOUCH, 1-65W CHARGING USB TYPE-C (BACK), 2 X HDMI IN, 1 X DISPLAY PORT, 1 X VGA, 1 X HDMI OUT |
| INPUTS AND OUTPUTS BACK (CONT) | 1 X USB A 2.0, 2 X USB A 3.0, 3 X USB-B TOUCH, 1 X 15W CHARGING USB C, 1 X AUDIO IN, 1 X SPDIF OUT, 1 X RS232, 2 X LAN RJ45, 1 X OPS SLOT |
| HOUSING | ALUMINIUM/METAL PLATE |
| PRODUCT SIZE | 1967.8x87.7 x1169.9mm |
| NET WEIGHT | 65.5KG |
| GROSS WEIGHT | 77KG |
| VESA | 800 x 600 |
| WHAT'S IN THE BOX | 2 X AAA BATTERIES, 1 X REMOTE, 2 X STYLUS, 1 X 3M POWERCORD - AU/NZ, 1 X 3M POWERCORD - UK, 1 X 3M USB A-B TOUCH CABLE, 1 X 3M USB-C CABLE, 1 X 3M HDMI CABLE, 1 X COMMBOX ERASER, 1 X WALL BRACKET AND MOUNTING |
| COMMBOX EXPERIENCE | 4 YEAR WARRANTY, UNLIMITED FREE VIRTUAL TRAINING FOR THE LIFE OF THE SCREEN, SAME BUSINESS DAY HELP DESK SUPPORT |
| PRE-INSTALLED APPLICATIONS | COMMBOX OS LITE, COMMBOX TOOLS, COMMBOX CONNECT POWERED BY E-SHARE, COMMBOX STORE, COMMBOX WHITEBOARD, COMMBOX MANAGE 7 YEAR LICENSE NOT INCLUDED |
| CERTIFICATIONS |
RoHS, RCM, CE, CB
|
